| Movement Control | Control axes: X axis, Z axis, Y axis, A axis, B axis, C axis; interlinked (interpolation) axis, servo spindle C axis |
| Axis output signal: pulse + direction and orthogonal pulse, suitable for AC servo or stepper motor drive unit | |
| Interpolation function: straight line, arc | |
| Position command range: -9999.999mm~9999.999mm; minimum command unit: 0.001mm | |
| Electronic gear: instruction multiplication coefficient 1~32767, instruction frequency division coefficient 1~32767 | |
| Fast moving speed: up to 30000mm/min Fast rate: F0, 25%,50%,100% four levels of real-time adjustment |
|
| Cutting feed rate: up to 15000mm/min or 500mm/r (feed per revolution) Feed rate: 0~150% sixteen levels of real-time adjustment |
|

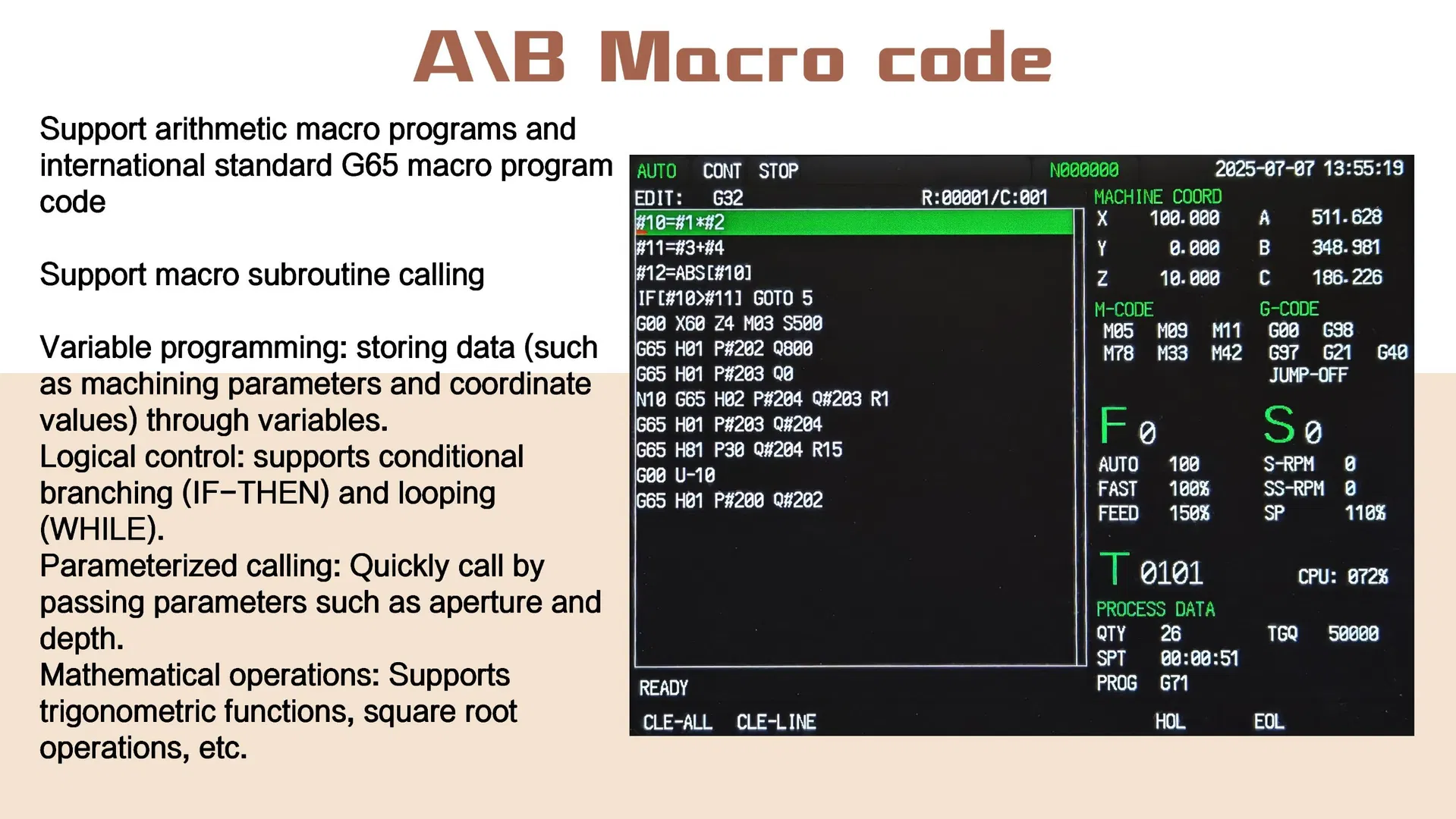

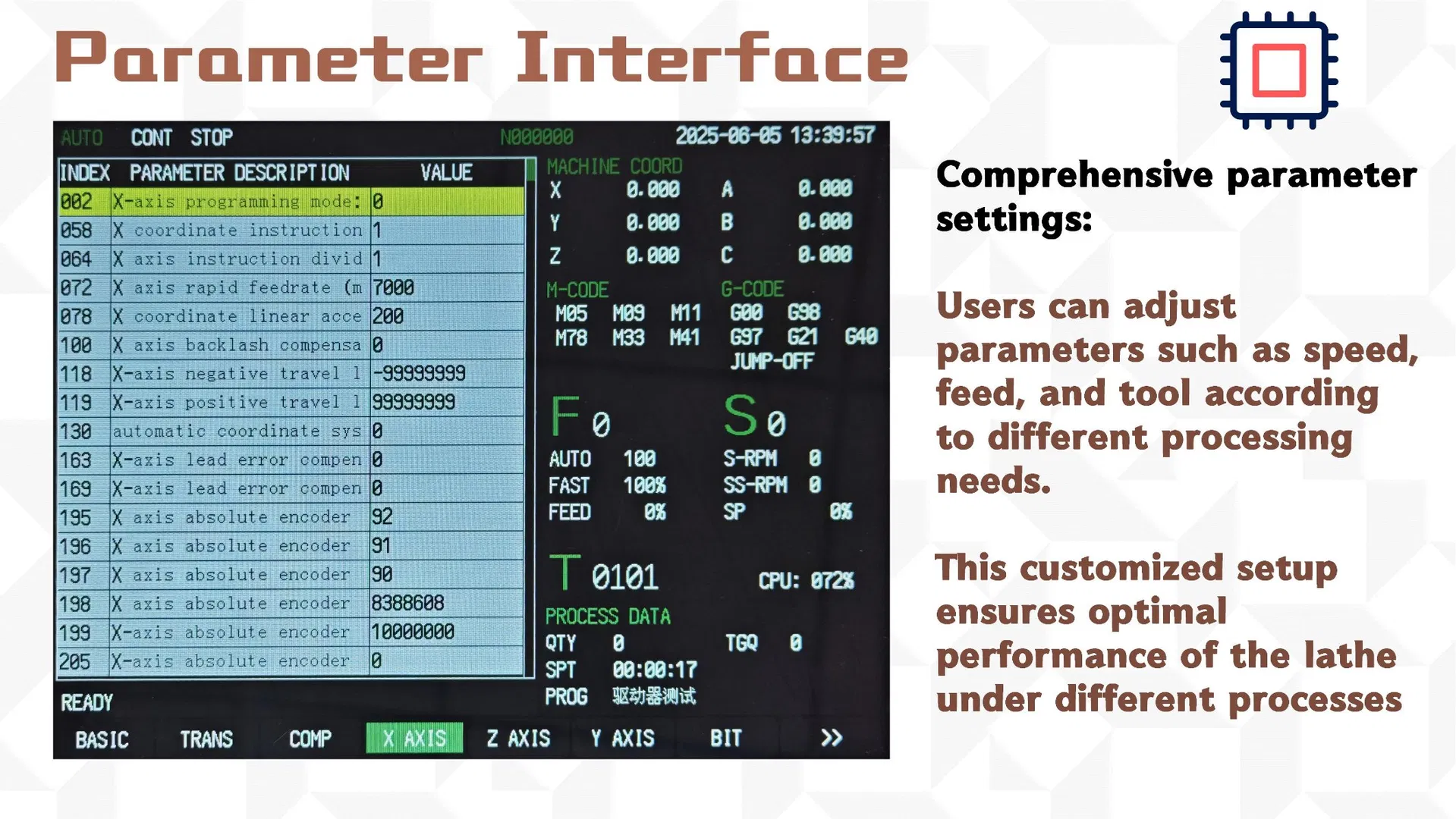

| Manual feed speed: set F value at will, or manually input 0-9 keys to set F30-F5000 | |
| Handwheel feed: 0.001mm, 0.01mm, 0.1mm Three gears, automatic handwheel test run program | |
| Acceleration and deceleration: S type acceleration and deceleration is used for fast movement, and exponential acceleration and deceleration is used for cutting feed | |
| Automatic chamfer function | |
| G Function | 29 kinds of G codes: G00, G01, G02, G03, G04, G28, G30, G32, G33, G34, G40, G41, G42, G50, G51, G65, G70, G71, G72, G73, G74, G75, G76, G90, G92, G94, G96, G97, G98, G99, G990, G991, macro instruction G65, can complete 27 kinds of arithmetic, logic operations and jump, class B operation macro program (G9000-G9010). |
| Thread Machining | Thread cutting function; single or multi-head external metric straight threads, tapered threads, end face threads, and variable pitch threads. The thread retraction length, angle, and speed characteristics can be set, with high-speed retraction processing available. Thread pitch ranges from 0.0001mm to 500mm or 0.06 threads per inch to 25400 threads per inch |
| Main shaft encoder: The number of encoder lines can be set (100p/r~5000p/r) | |
| Accuracy Compensate | Reverse gap compensation: each axis 0mm~2.000mm |
| Pitch error compensation: 512 compensation points, each axis compensation point can be set arbitrarily, the compensation amount of each point: -0.255 ~ 0.255mm | |
| Tool compensation: X and Z axis 32 sets of tool length compensation, tool tip radius compensation (compensation method C) Tool alignment mode: fixed point tool alignment, trial cutting tool alignment Tool compensation execution mode: the tool is moved or the coordinate is offset to execute the tool compensation |
|

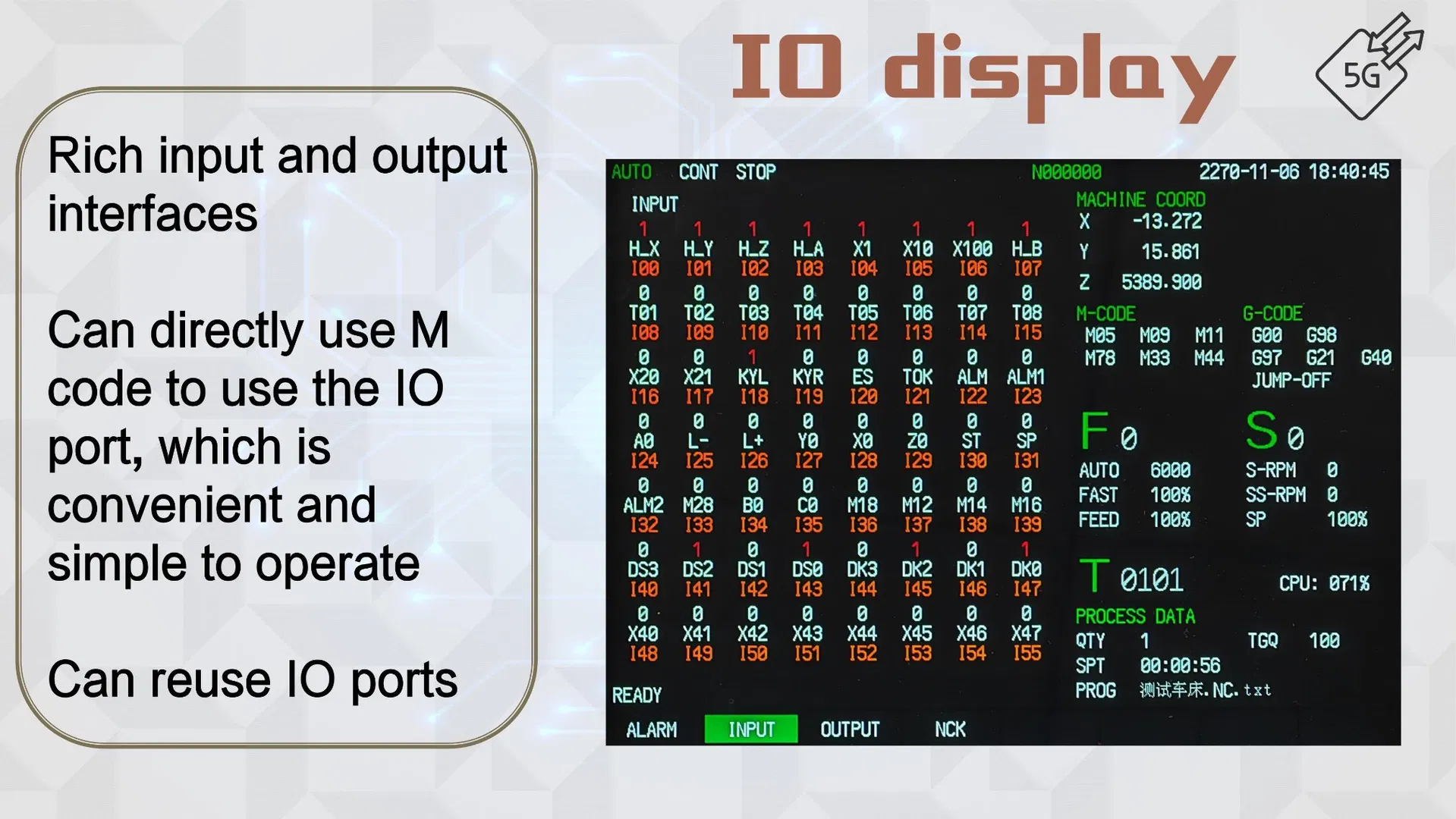

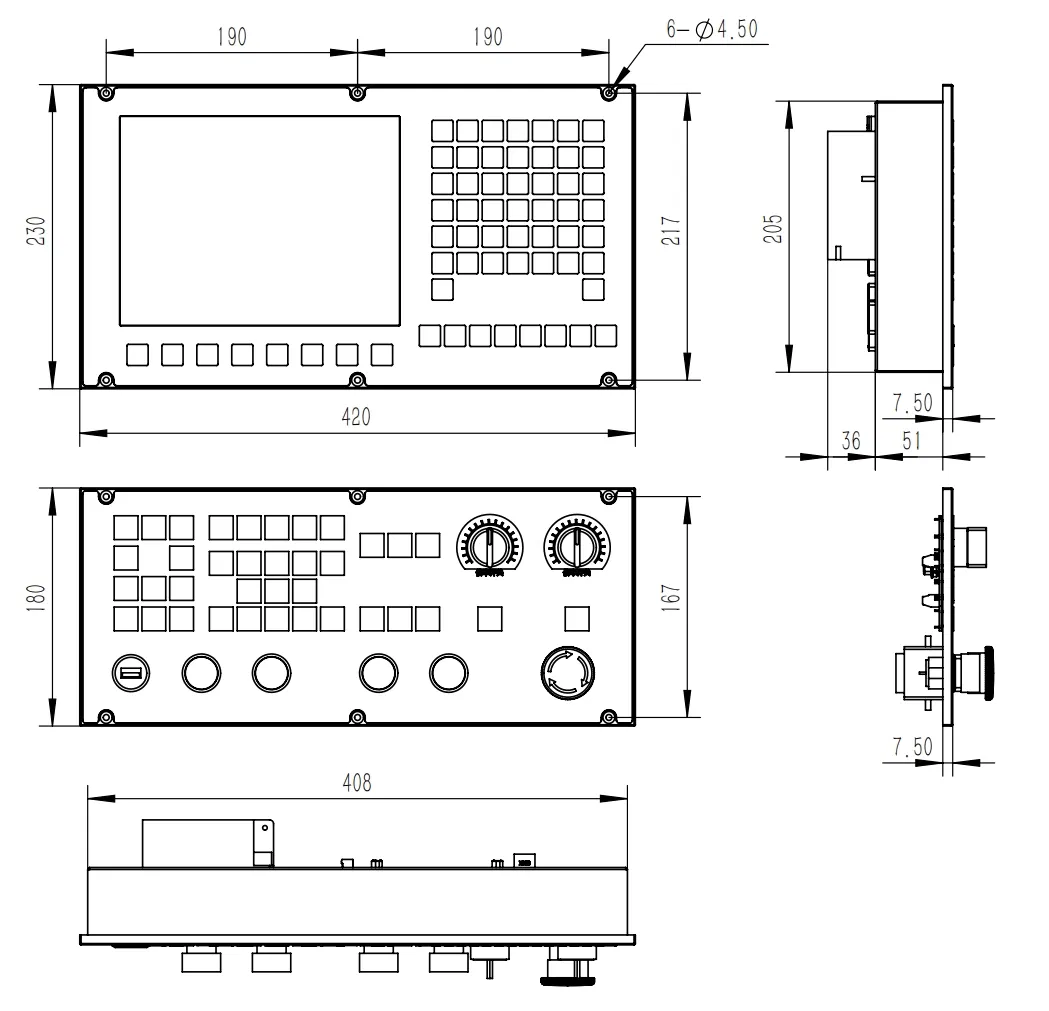

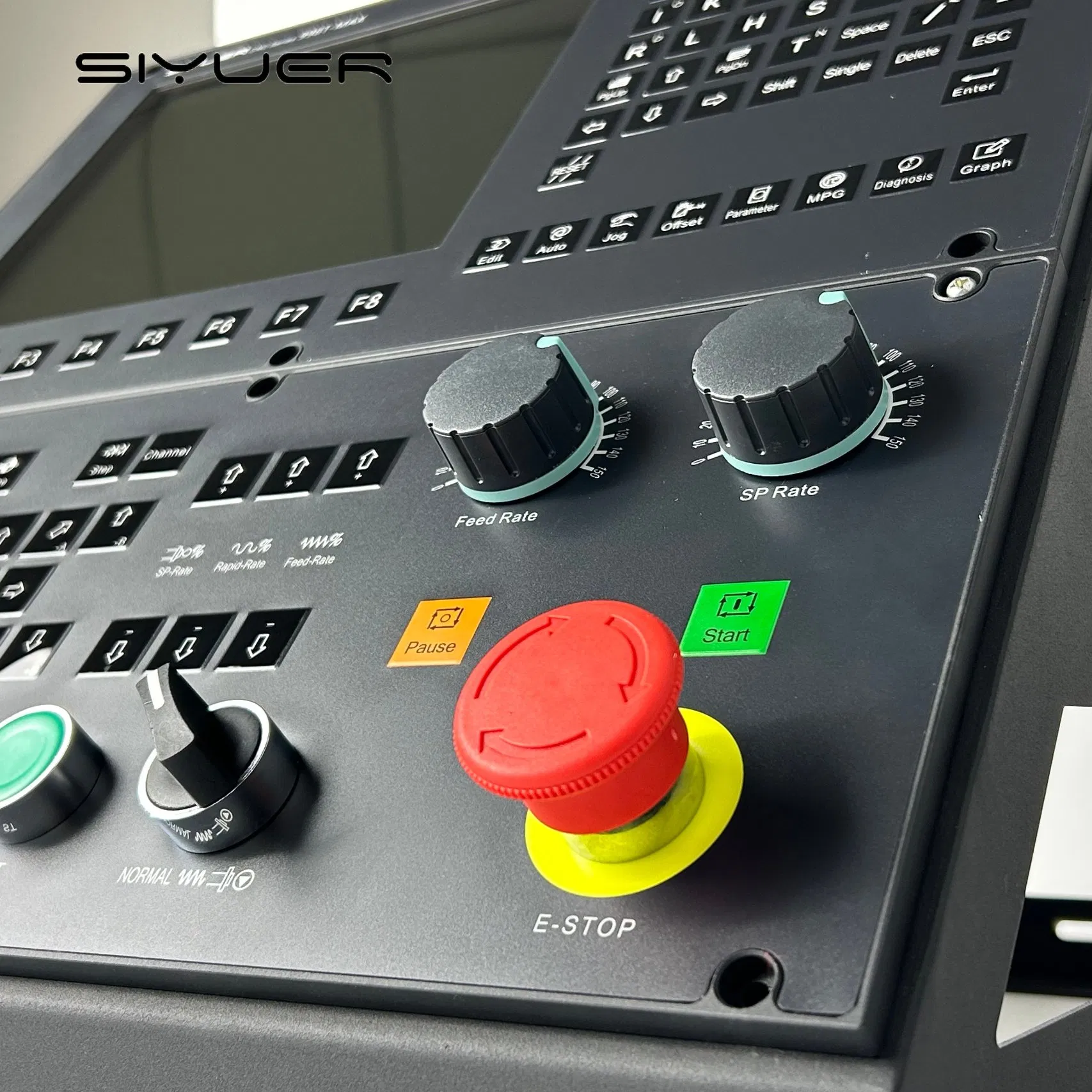

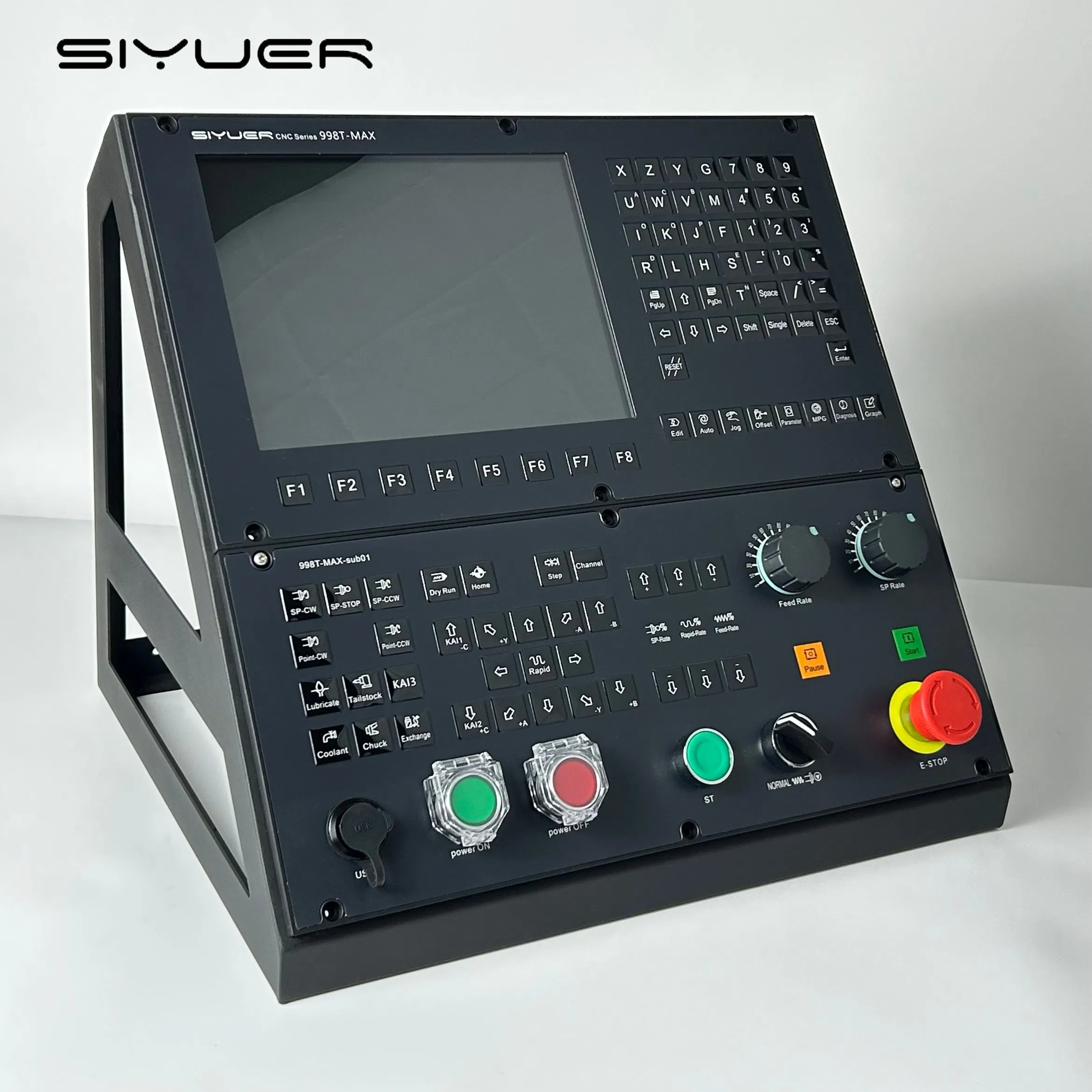

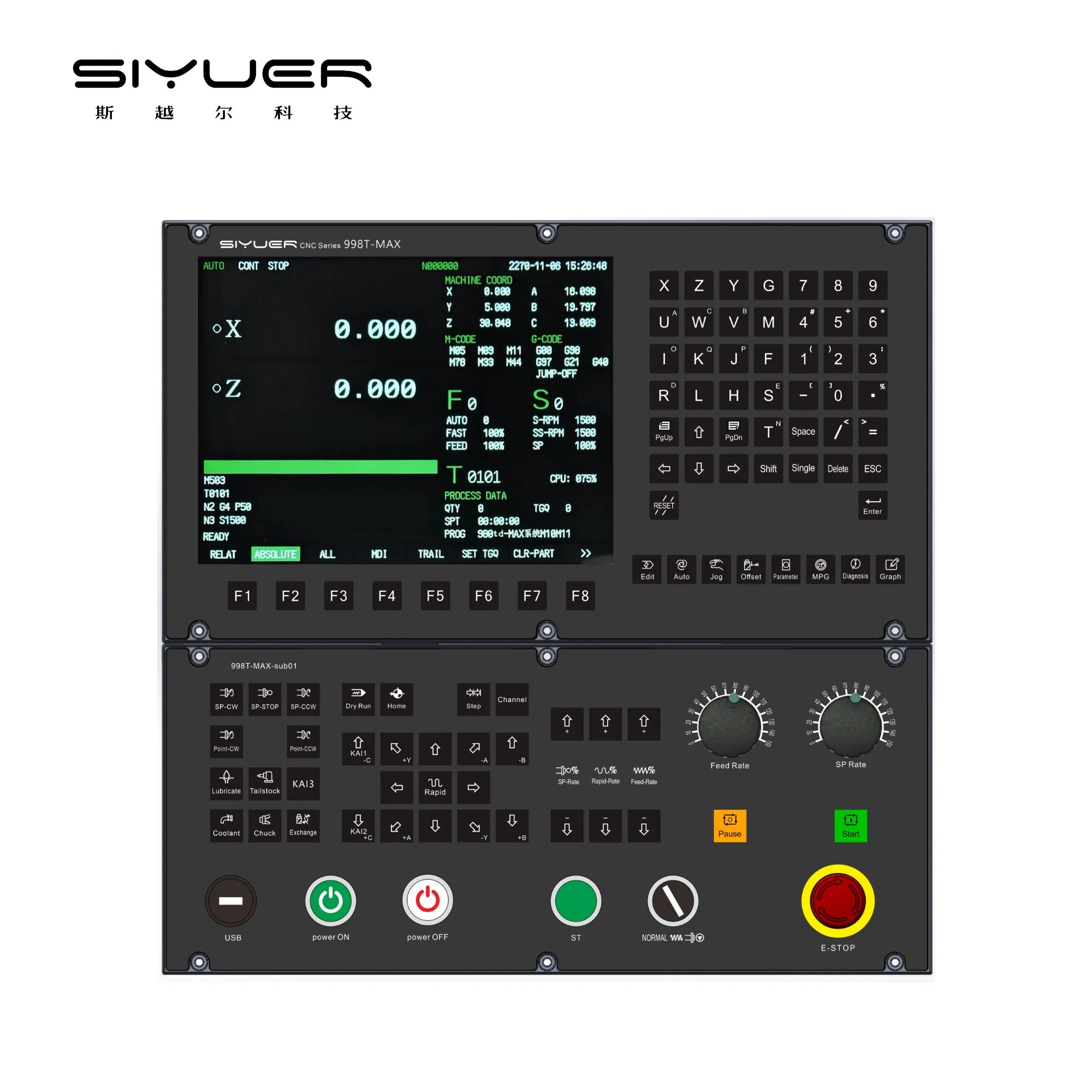

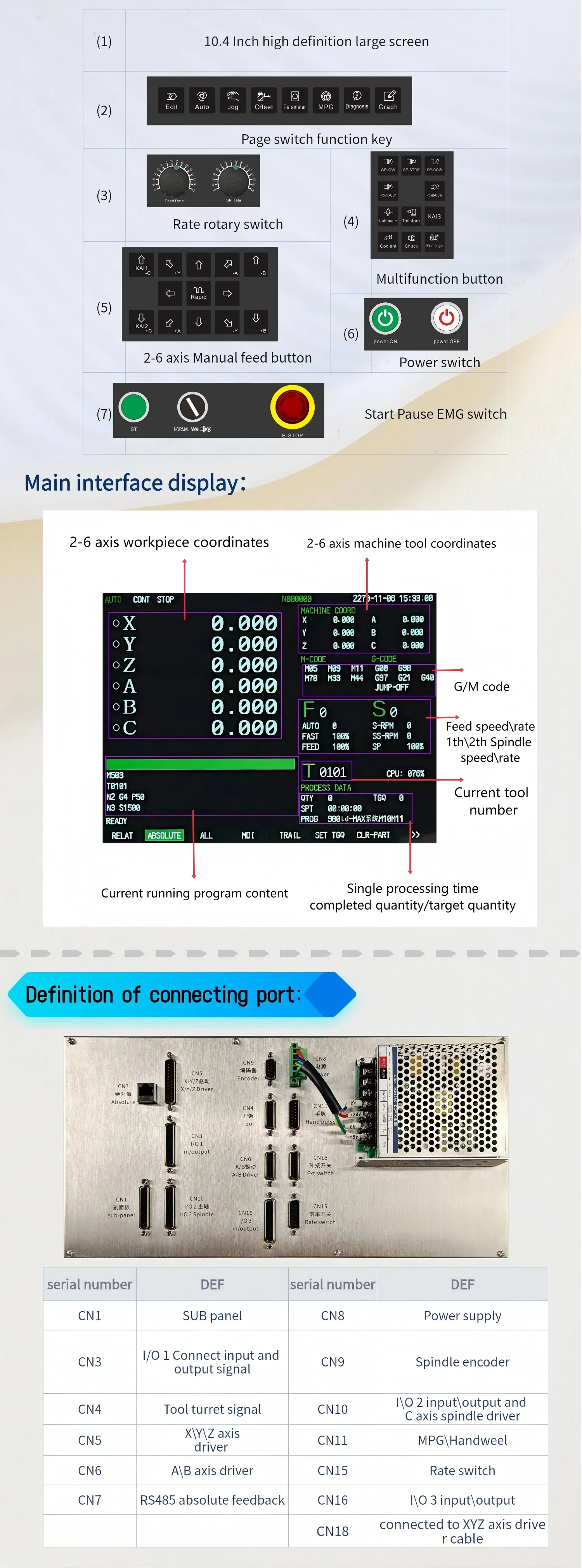

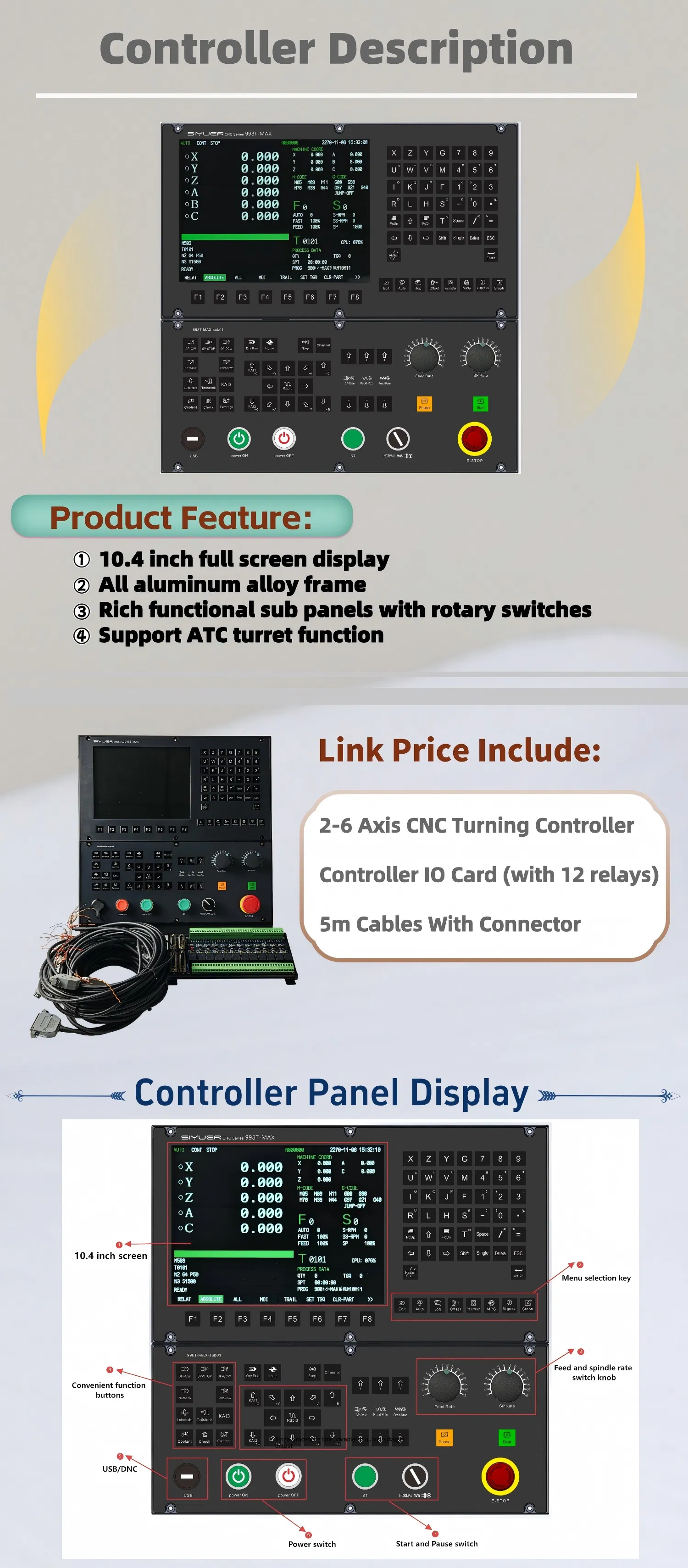

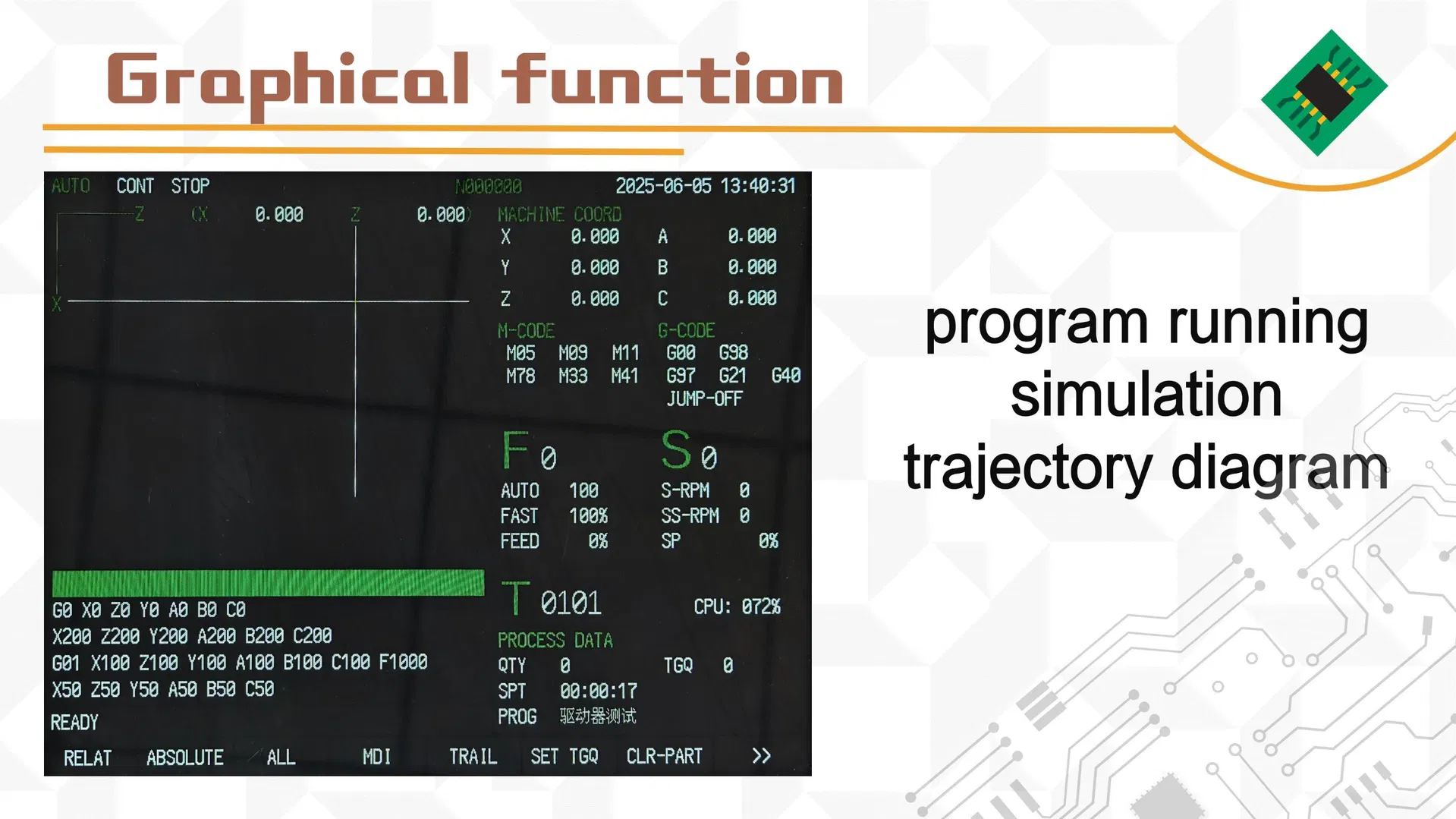

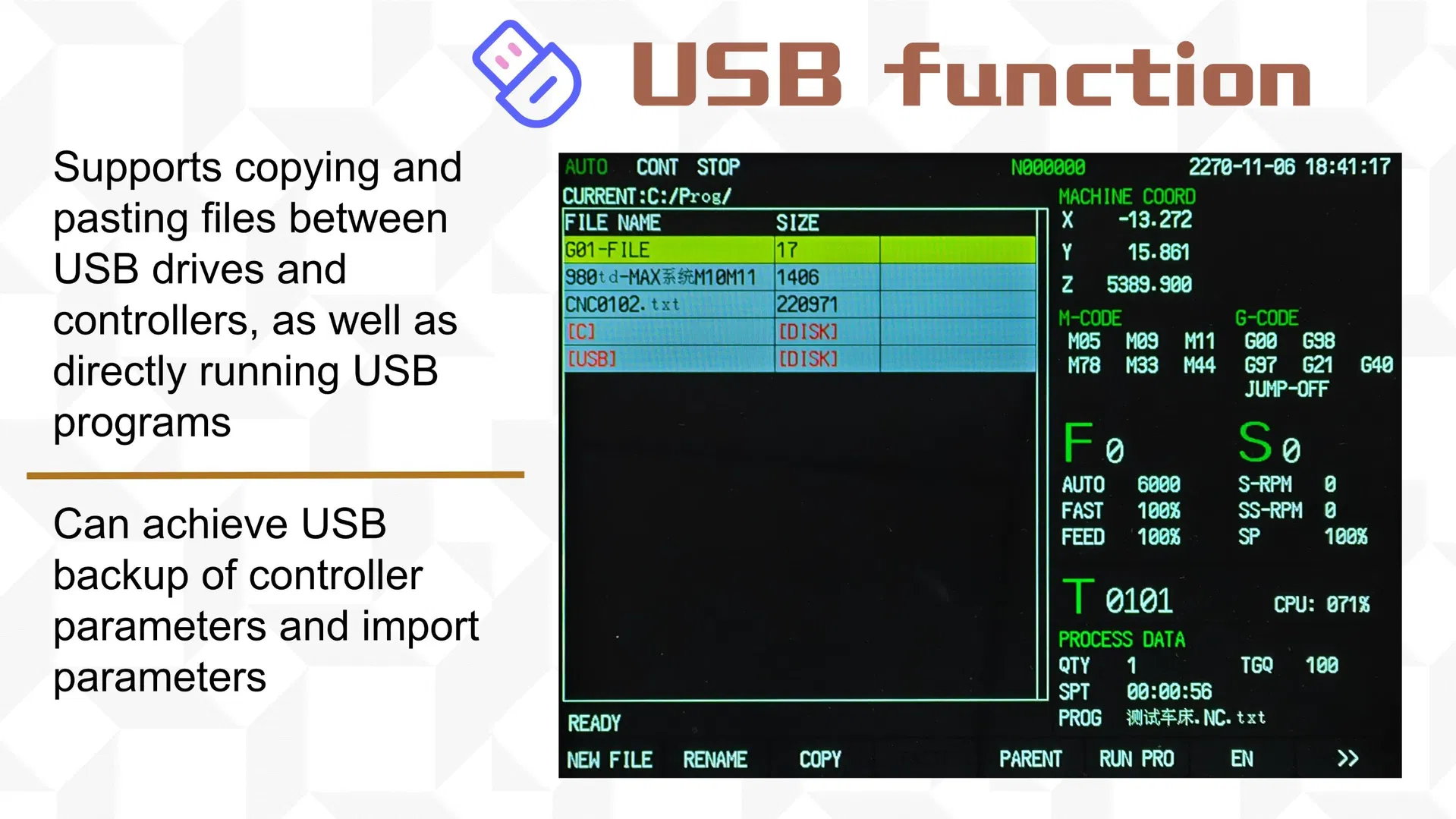

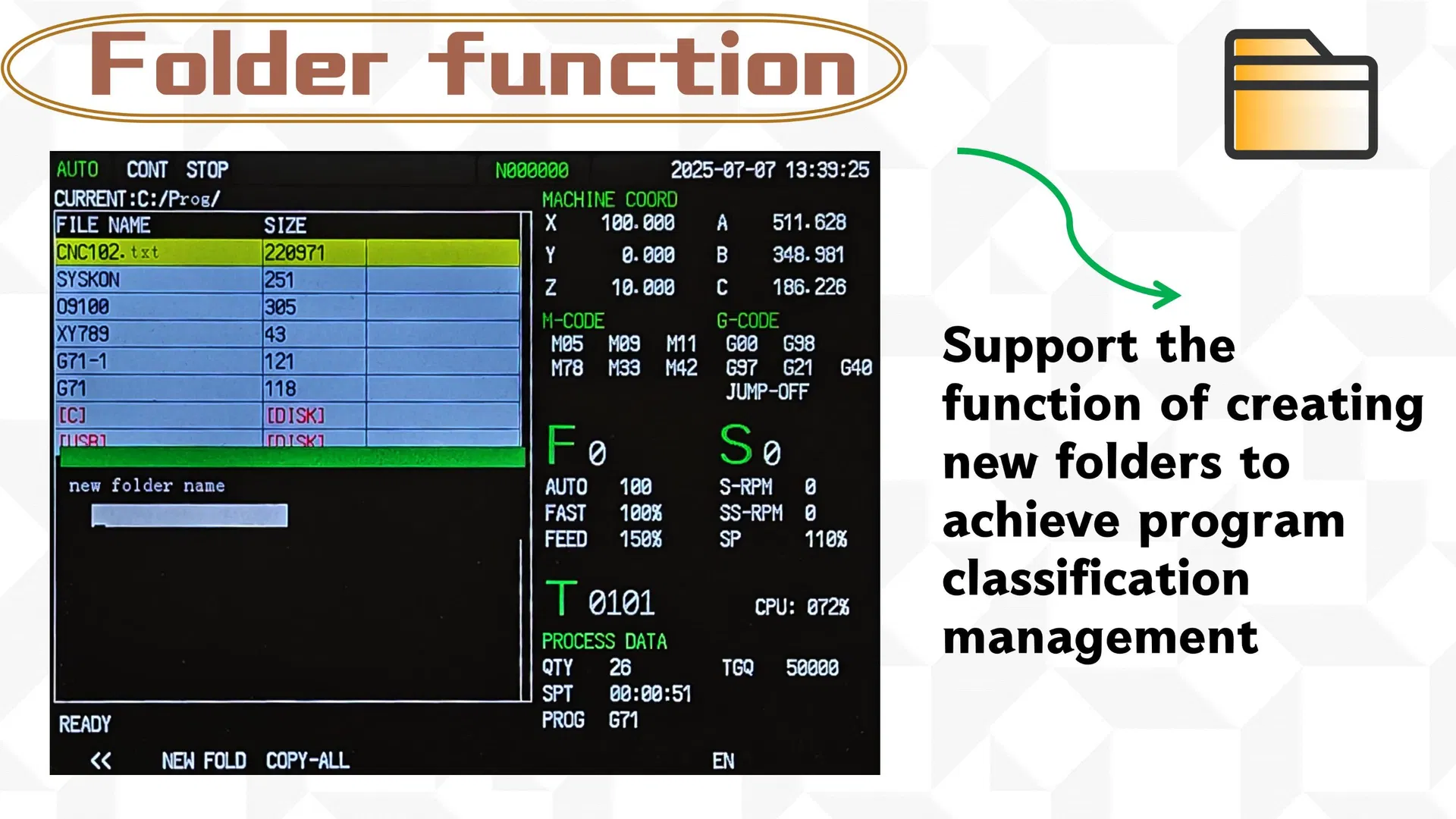

| M Code | Special M instructions (cannot be redefined): M02, M30, M20, M97, M98, M99, M500, M501, M502, M503, M504, M505, M506, M600, M601, M1800, M1801, M1802 |
| Standard configuration M code: M00, M03, M04, M05, M08, M09, M10, M11, M74, M75, M78, M79, M58, M59, M32, M33, M41, M42, M43, M44, M60, M61, M62, M63, M65, M67, M69, M71, M73 | |
| T Code | Up to 32 cutting positions (T01~T32) |
| Principal Axis | Speed switch control mode: S instruction |
| Speed simulation voltage dual-channel control mode: 0V~10V voltage output, S or SS given spindle speed (r/min) Or cutting line speed (m/min), can be equipped with servo spindle or frequency converter, servo spindle speed and position positioning mode M601 instruction switch, Support four main shaft gears and frequency conversion gears. | |
| Display Interface | Display: 800 x 600 dot matrix, 8-inch LCD display (LCD), 10.4-inch LCD display (LCD) |
| Display mode: Chinese, English interface, can display the processing trajectory graphics | |
| Alarm log, real-time clock function | |
| Soft function key operation display | |
| Order Edit | Program capacity: 100M, up to 10000 programs, support user macro program call, subroutine four nested |
| Editing mode: The program name can be edited in Chinese and Chinese-English numbers, full screen editing, support relative coordinates, absolute coordinates and mixed coordinates programming |

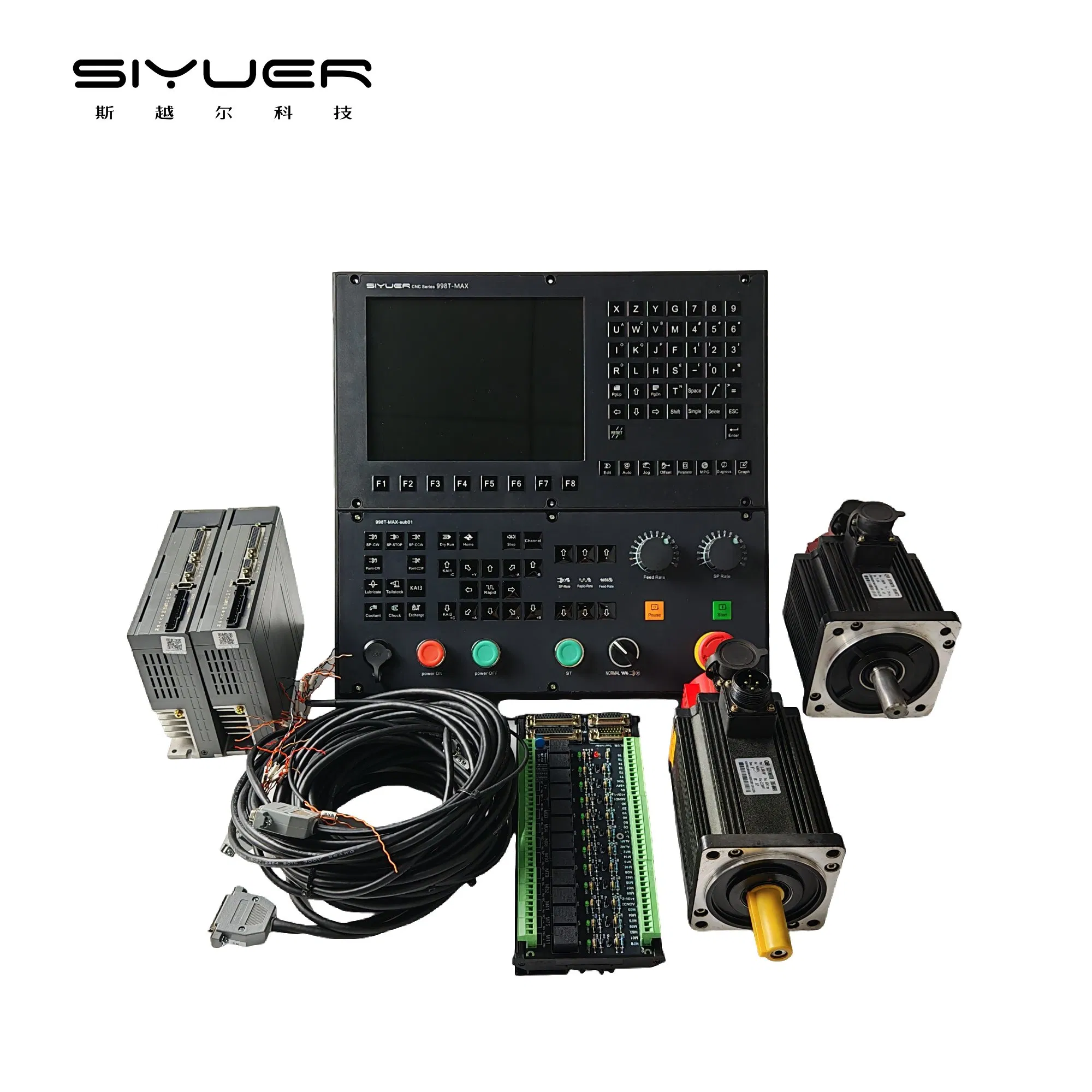

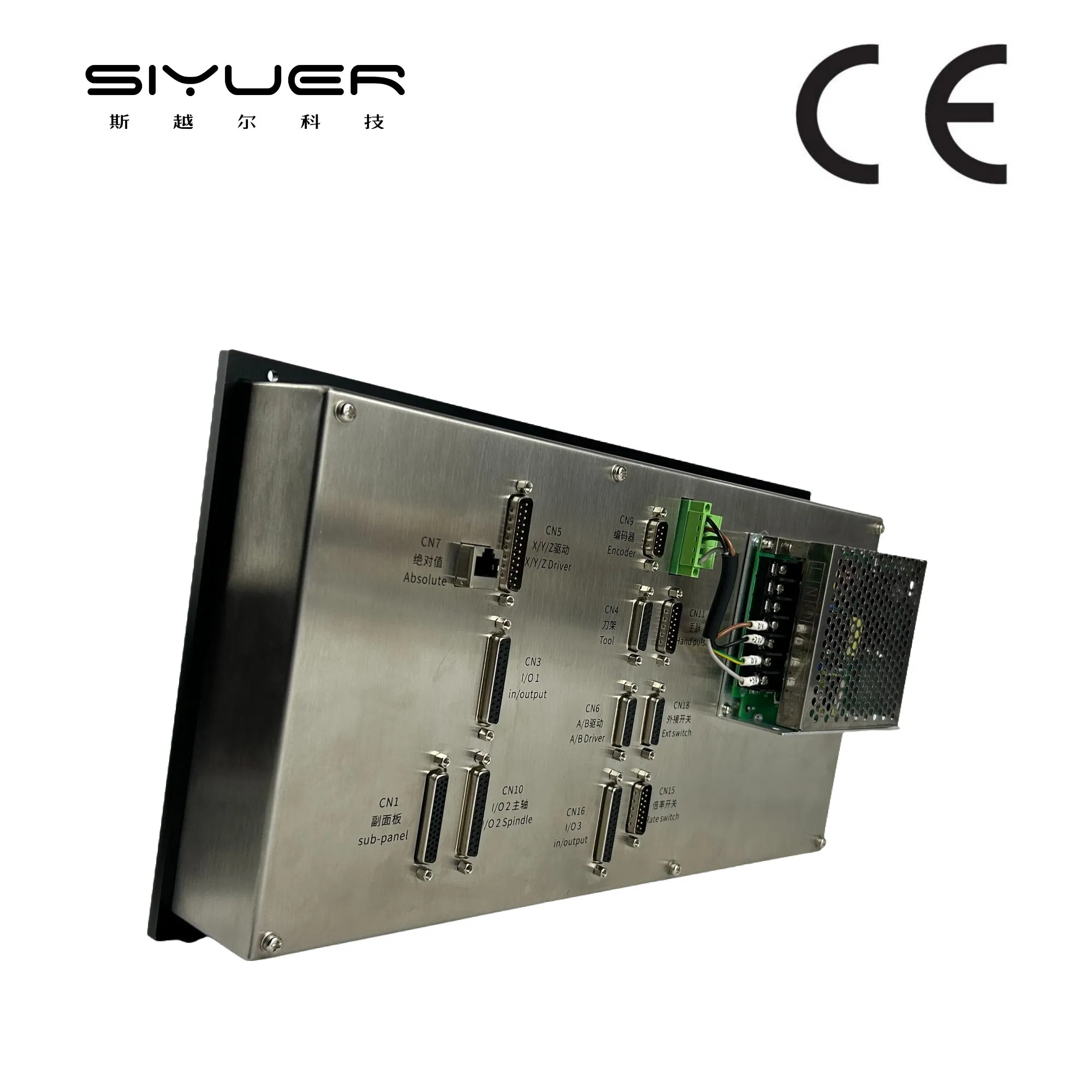

CNC Controller Package

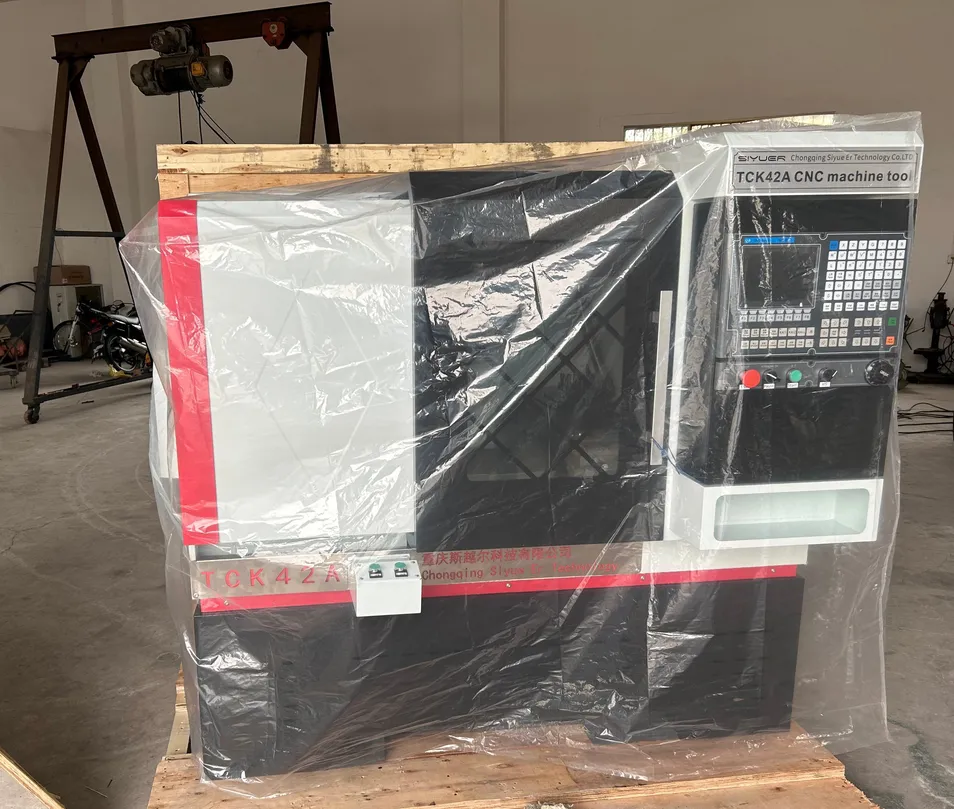

CNC Lathe Package (Export Wooden Crate)
