| Model NO. | LD10D60H-2 | Certification | CE |
|---|---|---|---|
| Condition | New | Material | Aluminum Alloy |
| Type | DC Servo Motor Driver | Rated Current | 10A |
| Rated Power Supply | 48 VDC | Limit Power Range | 16~62VDC |
| Feedback Method | Hall | Origin | China |
| HS Code | 8537101190 | Package Size | 20x20x20cm |

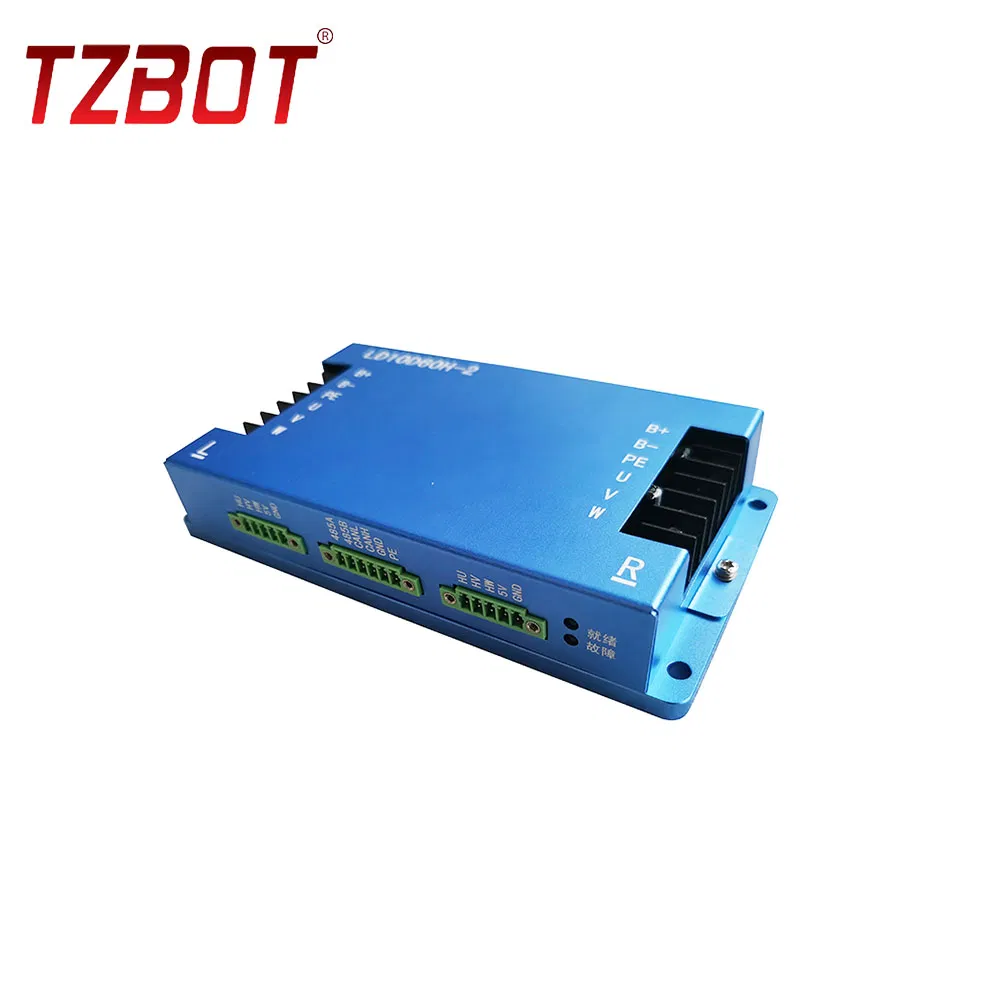

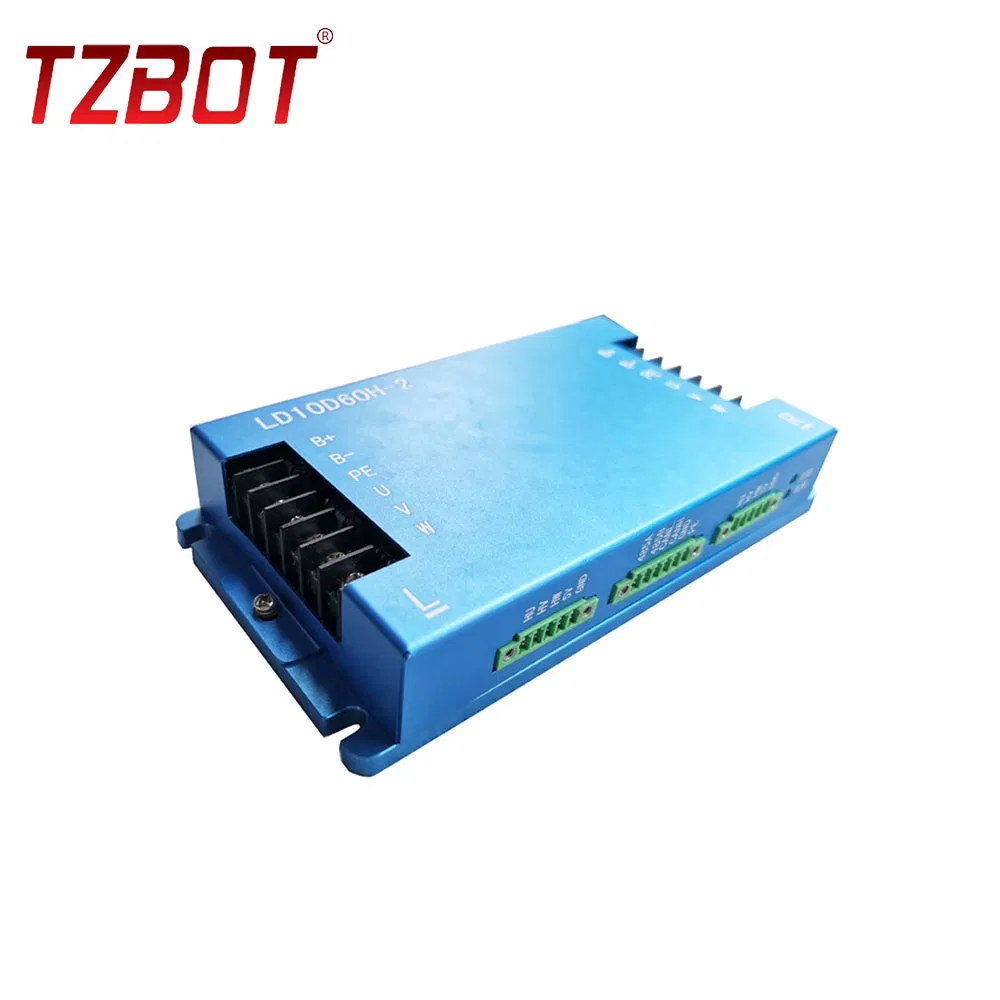

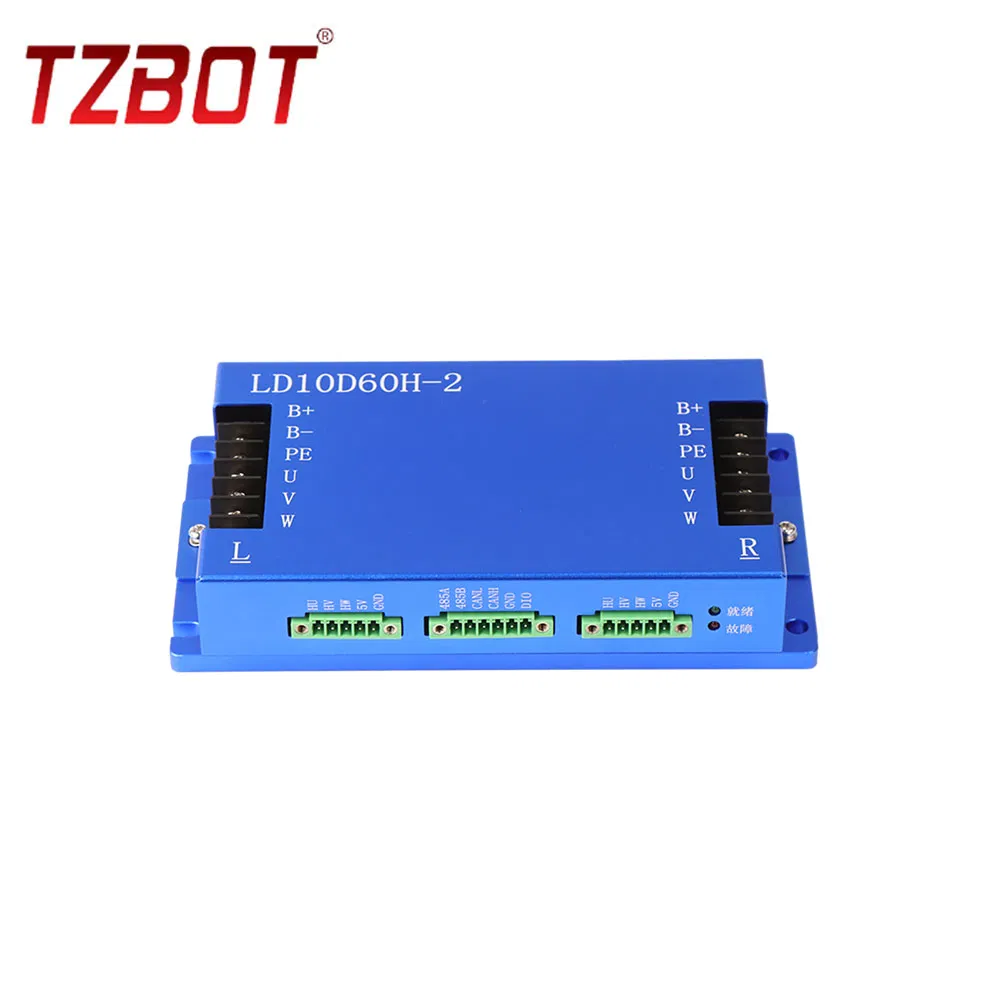

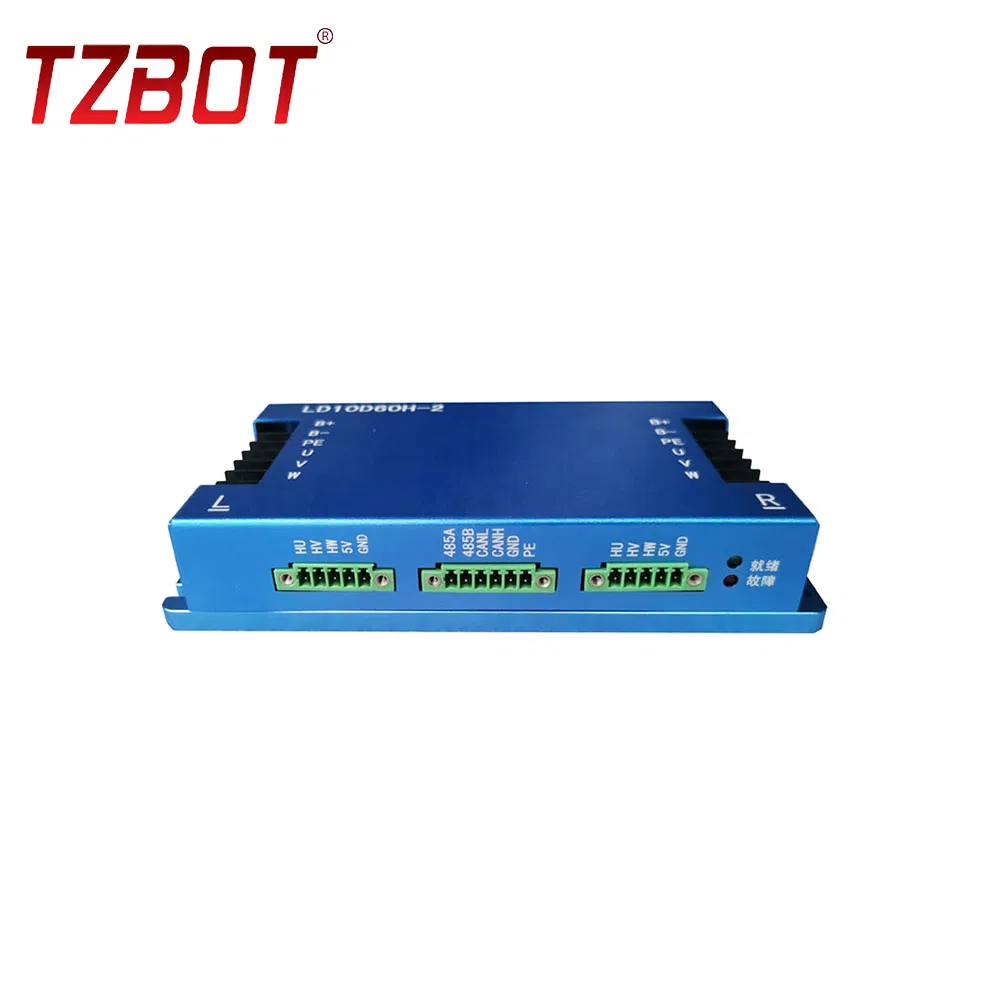

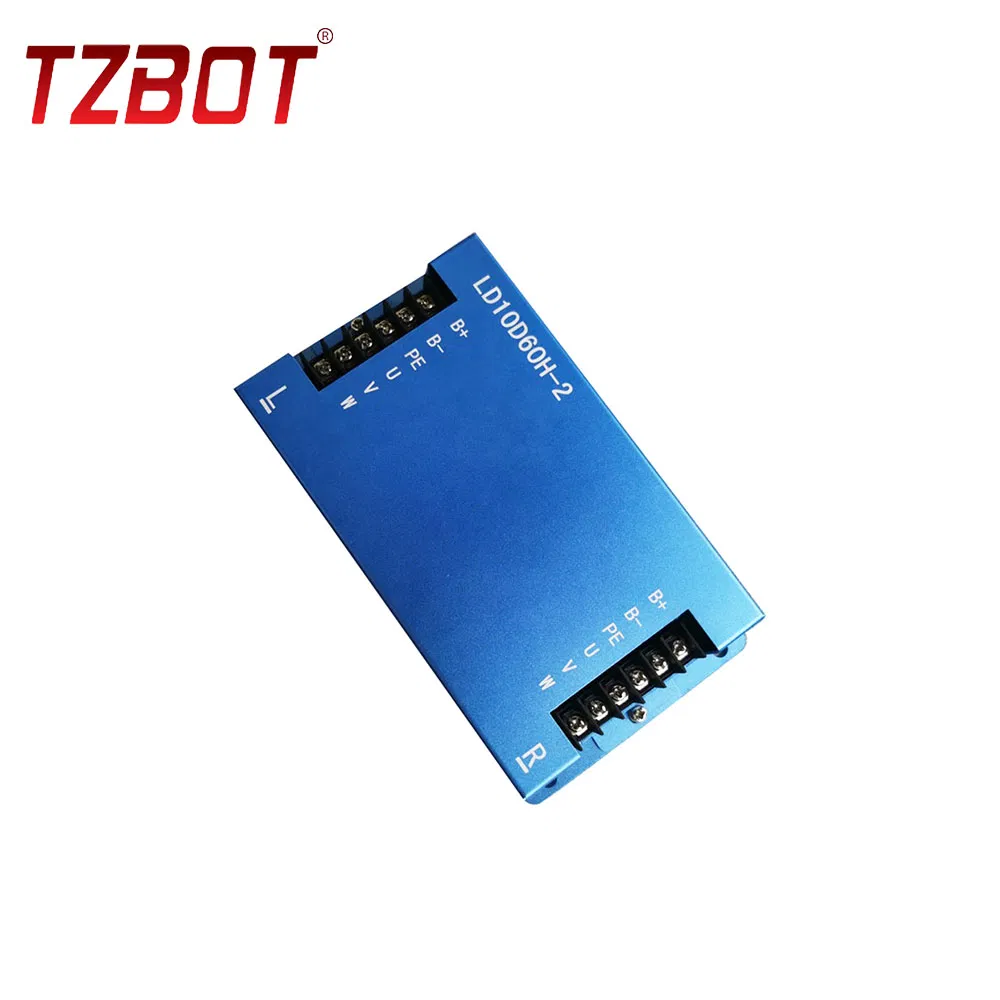

The LD series DC servo motor driver is a high-performance solution developed with over ten years of expertise in the robot industry. It integrates leading motor control and accurate current detection technology. Equipped with powerful PID adjustment technology, it ensures smooth forward and reverse rotation, commutation, and braking. The driver provides precise control over speed and position with short response times and low recoil.
| Item | Technical Specifications |
|---|---|
| Single channel rated current | 10A±2% |
| Single overload time | 30S |
| Rated power supply | 48 VDC±15% |
| Limit power supply range | 16~62VDC |
| IGBT protection current | 90A±5% |
| Driving frequency | 6 ~ 20KHz±0.1KHz |
| Mean Time Between Failures (MTBF) | ≥5000 hours |
| Feedback method | Hall |
This high-performance driver is optimized for a variety of automated and robotic systems, including:
Manufacturing processes are certified to ISO9001:2015 standards. All prototypes undergo extended testing to verify durability and quality before entering full production.
