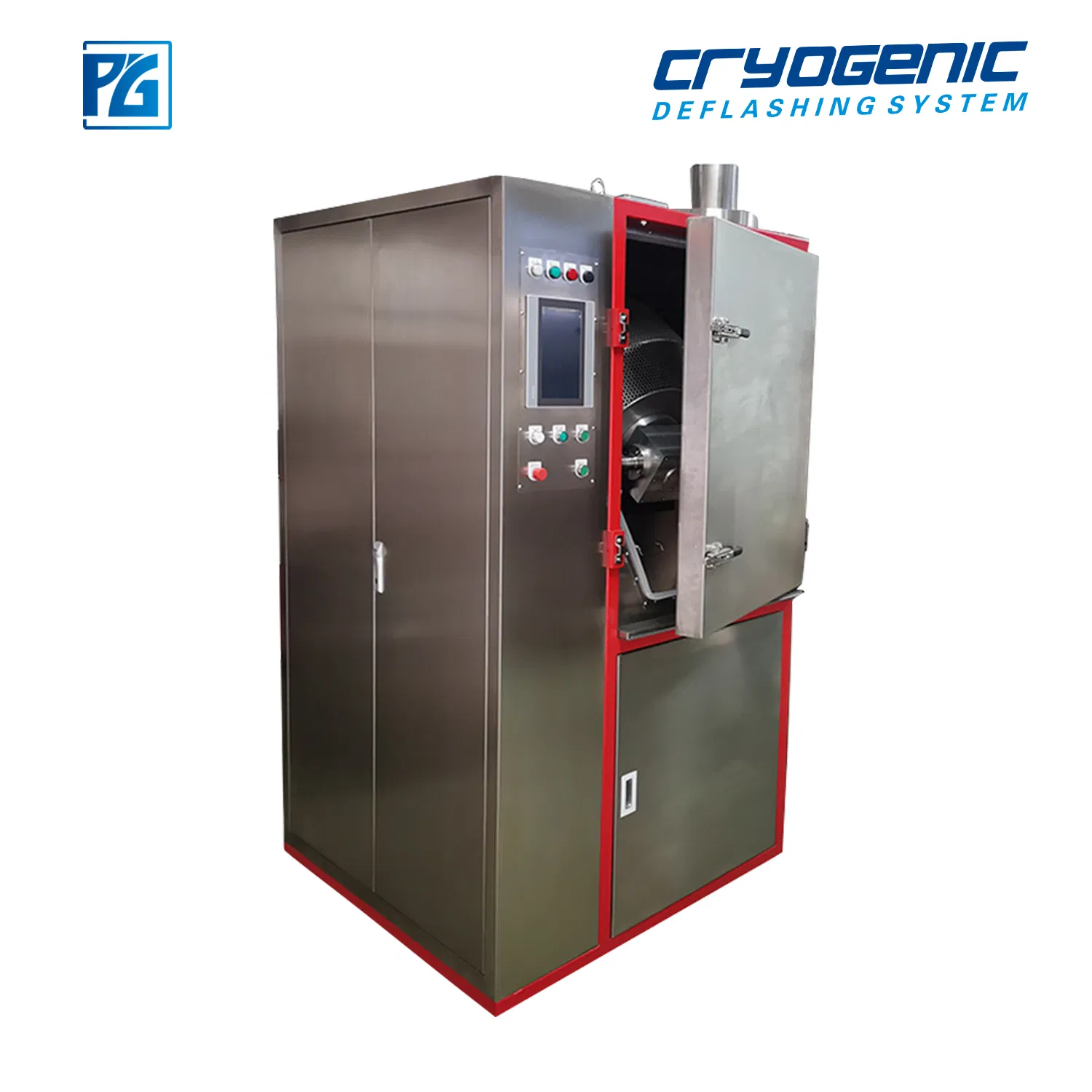

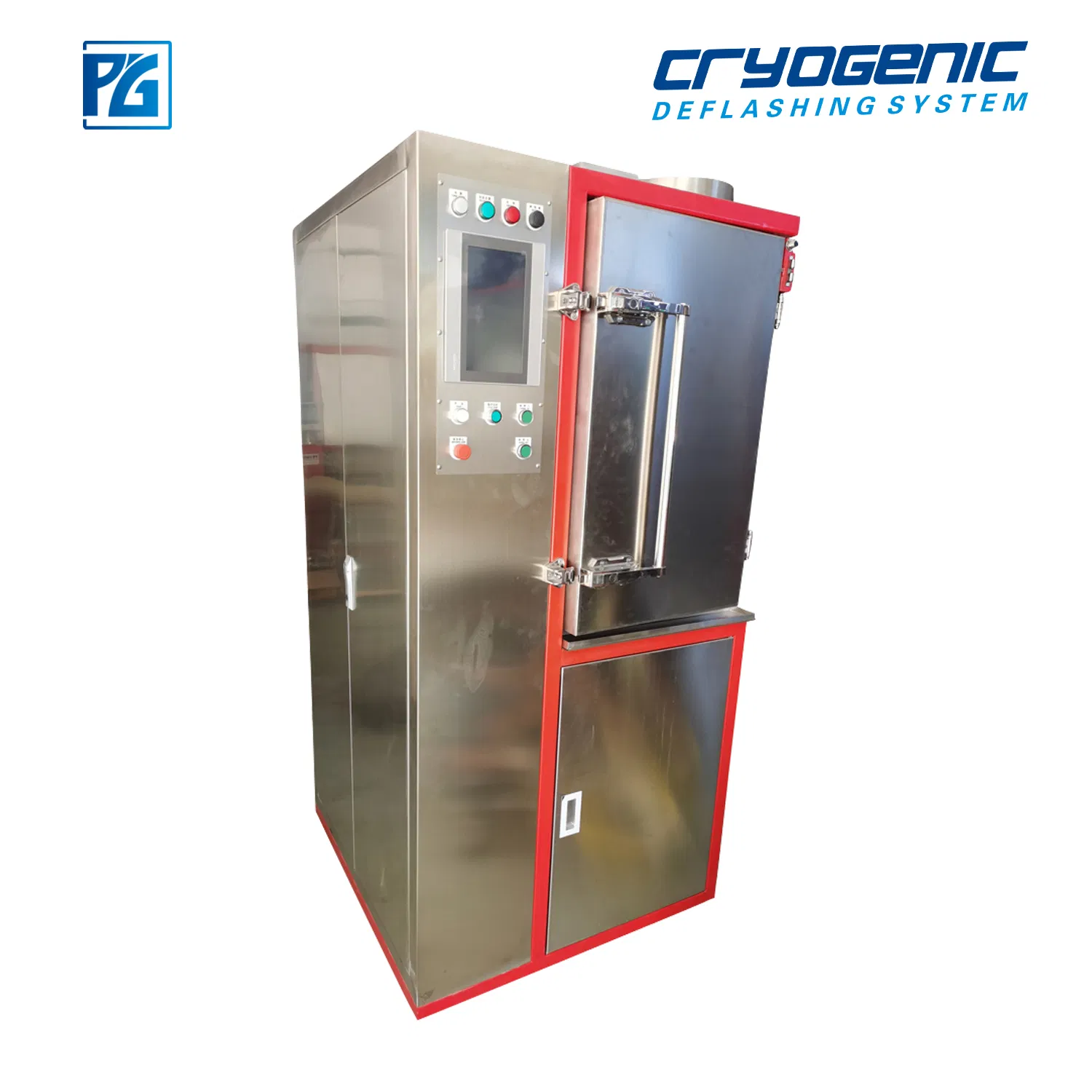

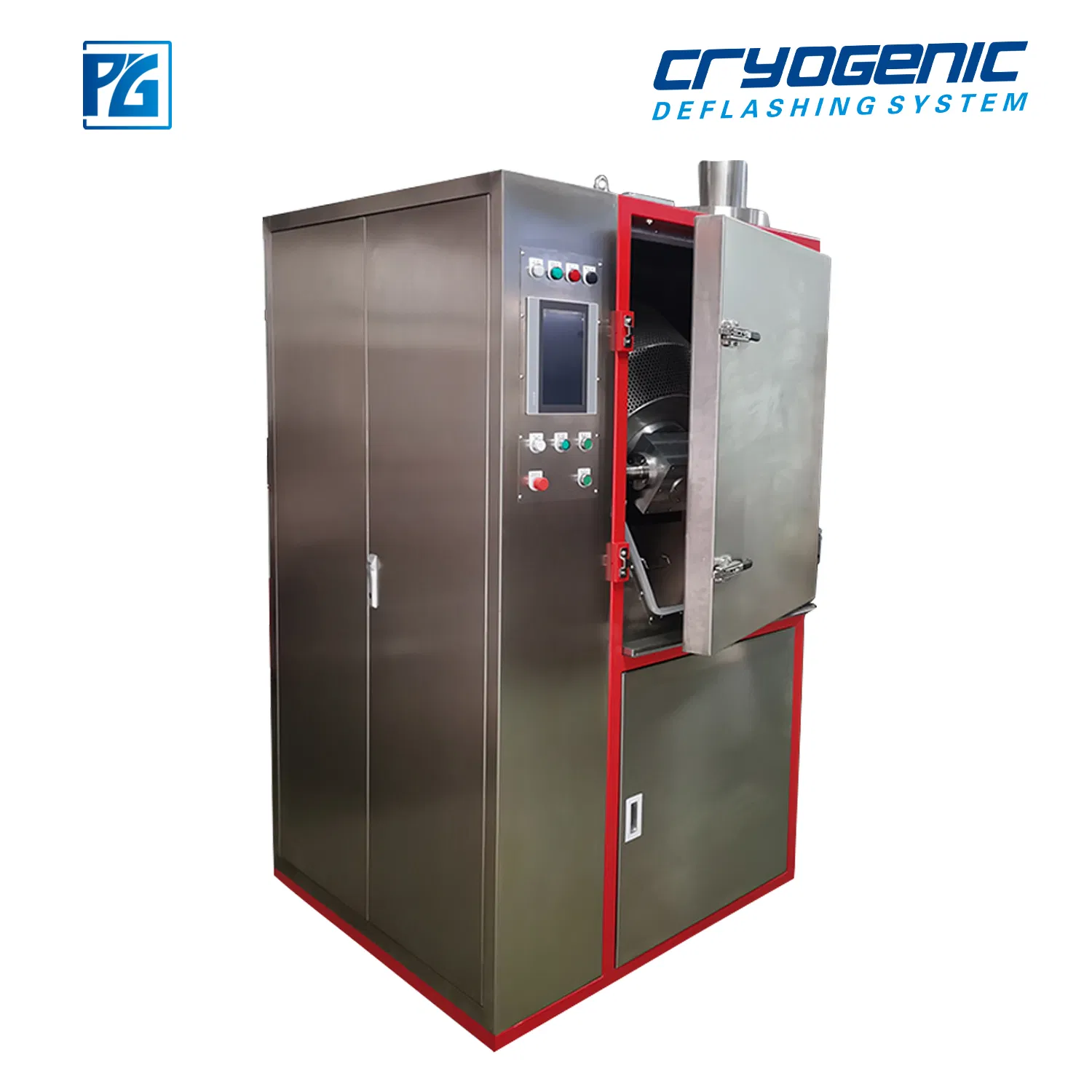

Advanced Pg-60t SUS304 Cryogenic Rubber Deflashing Systems for EV Battery Sealing
Advanced Pg-60t SUS304 Cryogenic Rubber Deflashing Systems for EV Battery Sealing
Advanced Pg-60t SUS304 Cryogenic Rubber Deflashing Systems for EV Battery Sealing
Advanced Pg-60t SUS304 Cryogenic Rubber Deflashing Systems for EV Battery Sealing
Advanced Pg-60t SUS304 Cryogenic Rubber Deflashing Systems for EV Battery Sealing
1 / 5
Advanced Pg-60t SUS304 Cryogenic Rubber Deflashing Systems for EV Battery Sealing
Advanced Pg-60t SUS304 Cryogenic Rubber Deflashing Systems for EV Battery Sealing
Advanced Pg-60t SUS304 Cryogenic Rubber Deflashing Systems for EV Battery Sealing
Advanced Pg-60t SUS304 Cryogenic Rubber Deflashing Systems for EV Battery Sealing
Advanced Pg-60t SUS304 Cryogenic Rubber Deflashing Systems for EV Battery Sealing

Advanced Pg-60t SUS304 Cryogenic Rubber Deflashing Systems for EV Battery Sealing

After-sales Service: on-Site or on-Line
Warranty: 1 Year
Certification: CE
Send Inquiry

Product Description

Overview & Basic Info
Model NO.
PG-60T
Condition
New
Customized
Customized
Automatic Grade
Semiautomatic
Structure
Vertical
Material
SUS304
Pressure
0.5-0.7MPa
Feature
Efficiency, Precision and Saving Labor
Application
Rubber, Plastic and Diecasting Alloy Deburring
HS Code
8477800000
Product Description

The PG-60T Cryogenic Deflashing & Deburring Machine (60 Liter) is masterfully engineered for unparalleled precision deflashing of rubber and plastic components.

Processing Principle

When temperatures drop, rubber and plastic parts harden and become brittle. The cryogenic deflashing machine operates precisely when the flash is brittle while the main products retain flexibility. High-speed projected special plastic media (Polycarbonate blast) strike and clear the brittle flash effectively without compromising the product integrity.

Applications

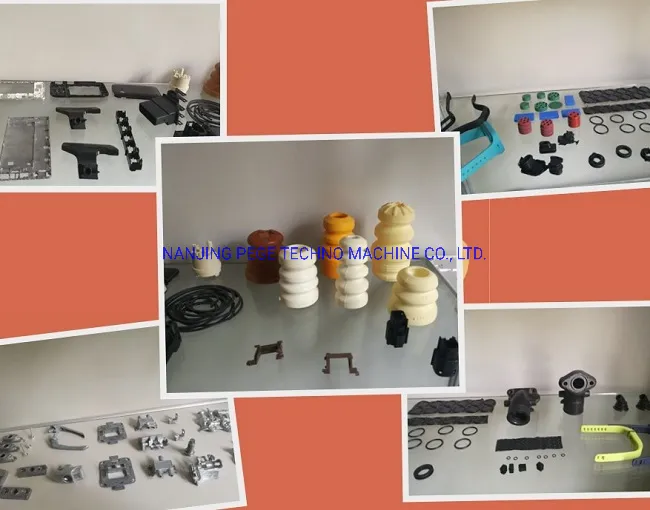

  • O-rings and irregular rubber parts of various materials and sizes.
  • Microelectronic product components and precision elastomeric parts.
  • Precision injection-molded plastic parts.
  • Die-cast products (zinc, aluminum, and magnesium alloy parts).
  • R&D production runs.

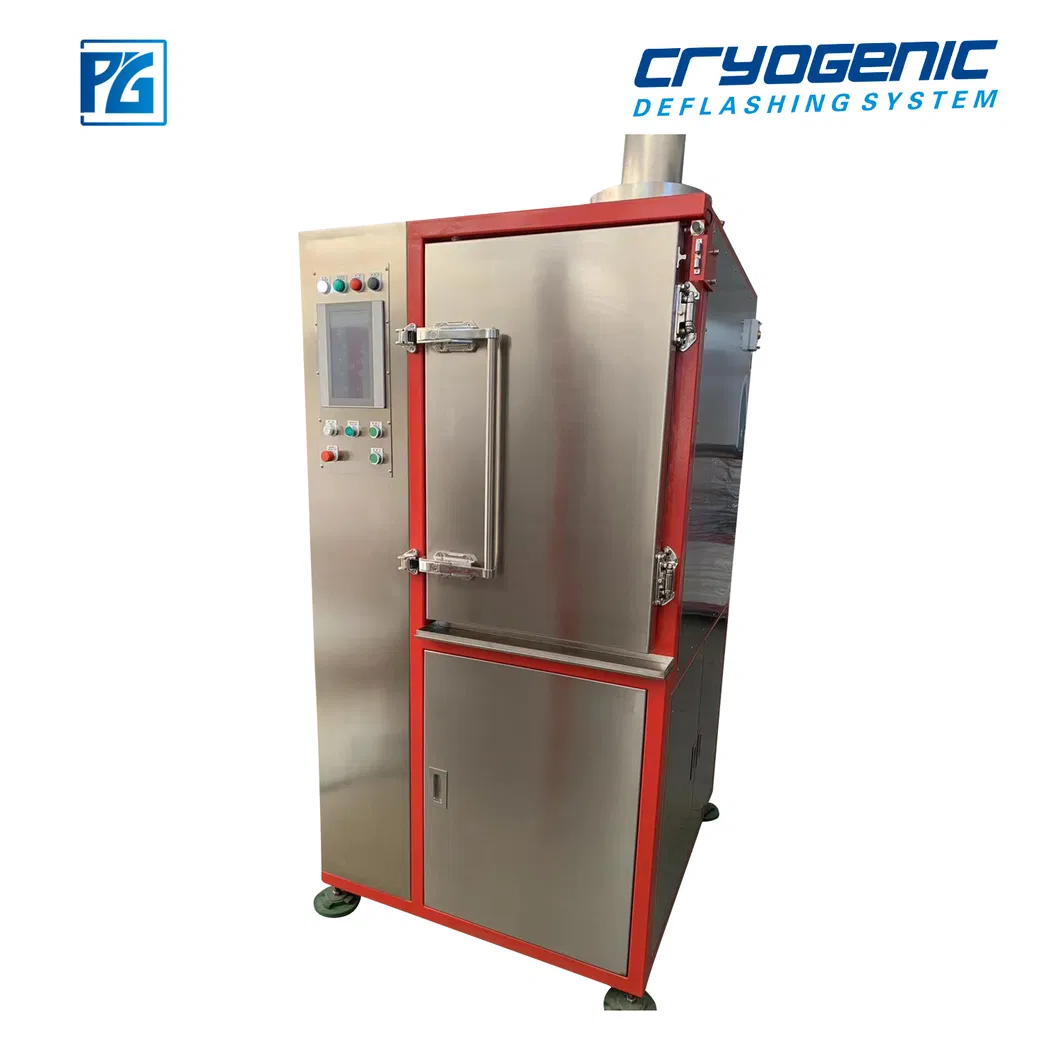

Cryogenic Rubber Deflashing Systems
Our Advantages
High Efficiency: Replaces the labor of 60-80 workers in flash removal.
High Precision: Eliminates minuscule, hardened flashes that manual labor cannot reach.
Low Cost: Provides a cost-effective solution compared to traditional manual processing.
Technical Specifications
TECHNICAL INFORMATION - PG-60T
SIZE (L*W*H)1000*1000*1950MM
WEIGHT700KG
POWERAc380v 50Hz / 6Kw*3Ph
TEMPERATURE-130°C to +50°C
PRESSURE0.5-0.7Mpa
BARREL CAPACITY60L
EFFECTIVE CAPACITY20L
WHEEL SPEED3000rpm - 7200rpm
COOLING MEDIALiquid Nitrogen
OPERATION MODETouch Screen
FRAME MATERIALSUS304 Stainless Steel
PROCESSING ABILITY200-250kg per day

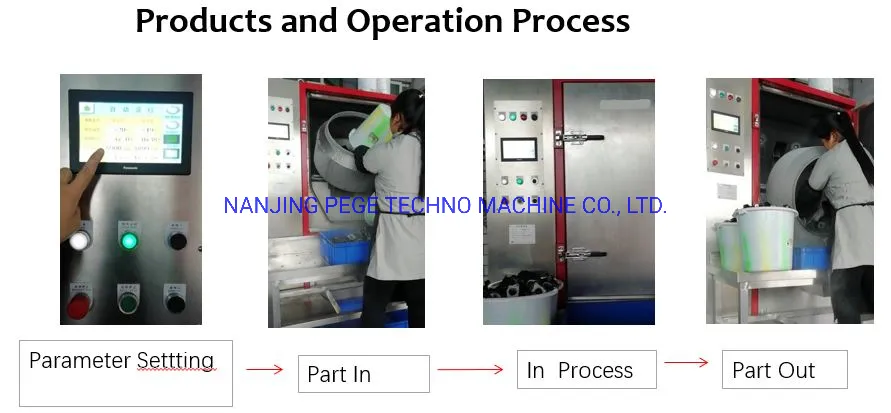

Operation Process
Operation Process Chart
Deflashing Flow
Machine Pictures & Installation

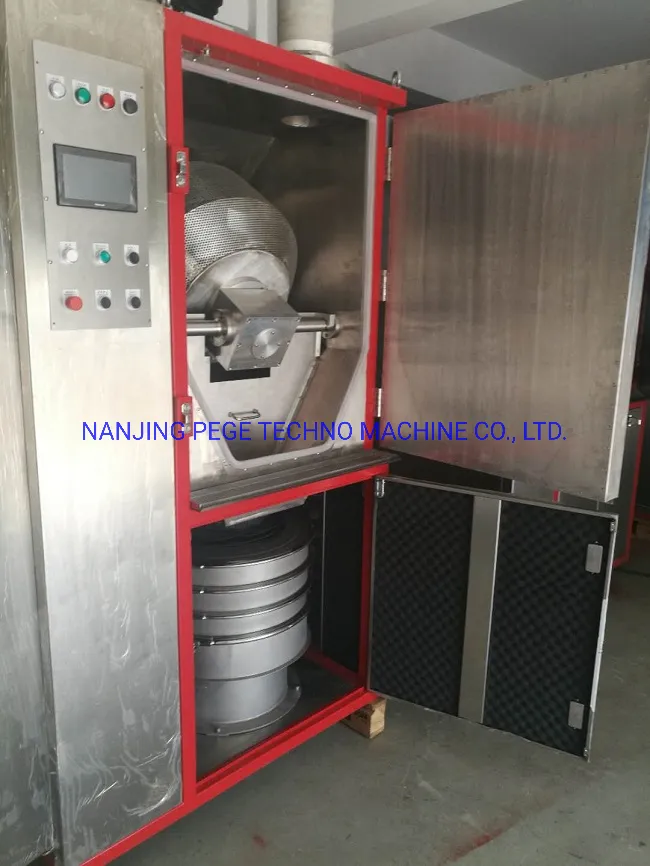

Machine View 1

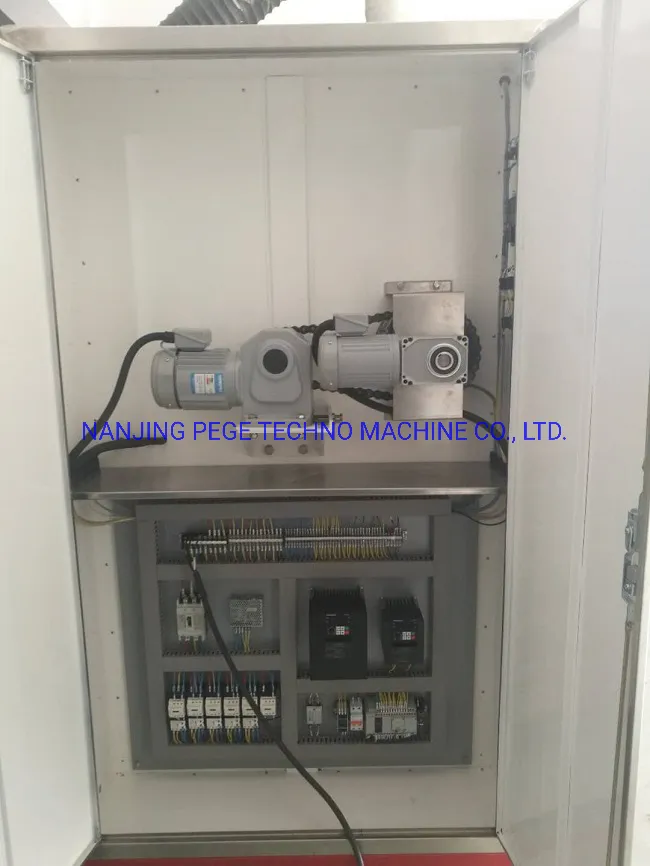

Machine View 2

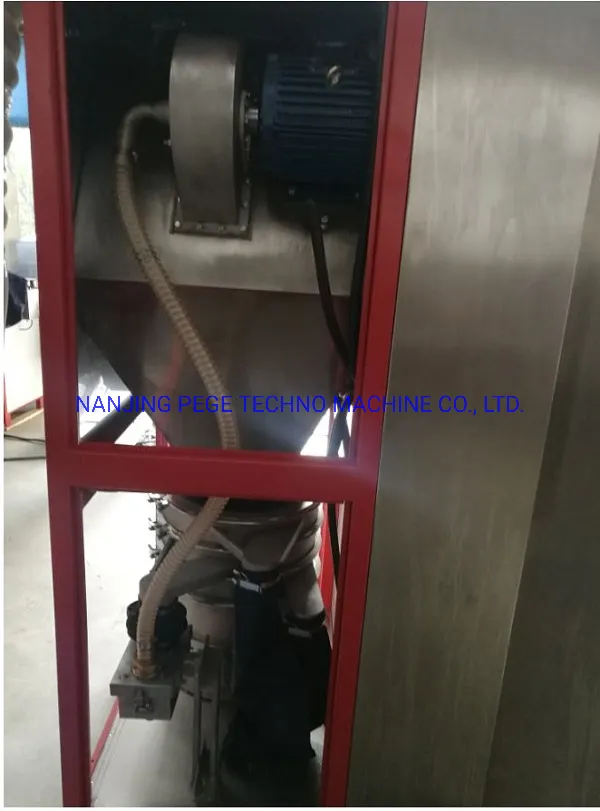

Machine View 3

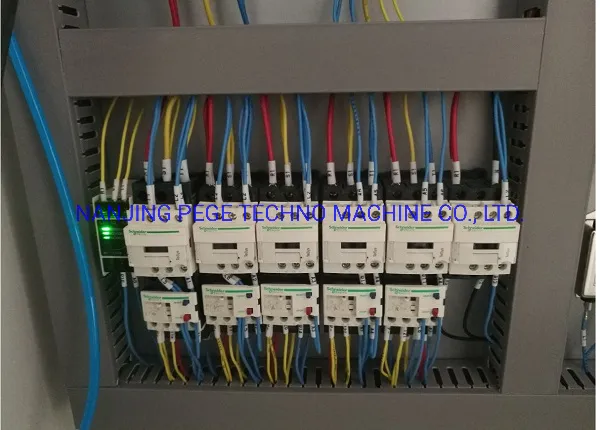

Machine Detail
Workshop & Global Reach

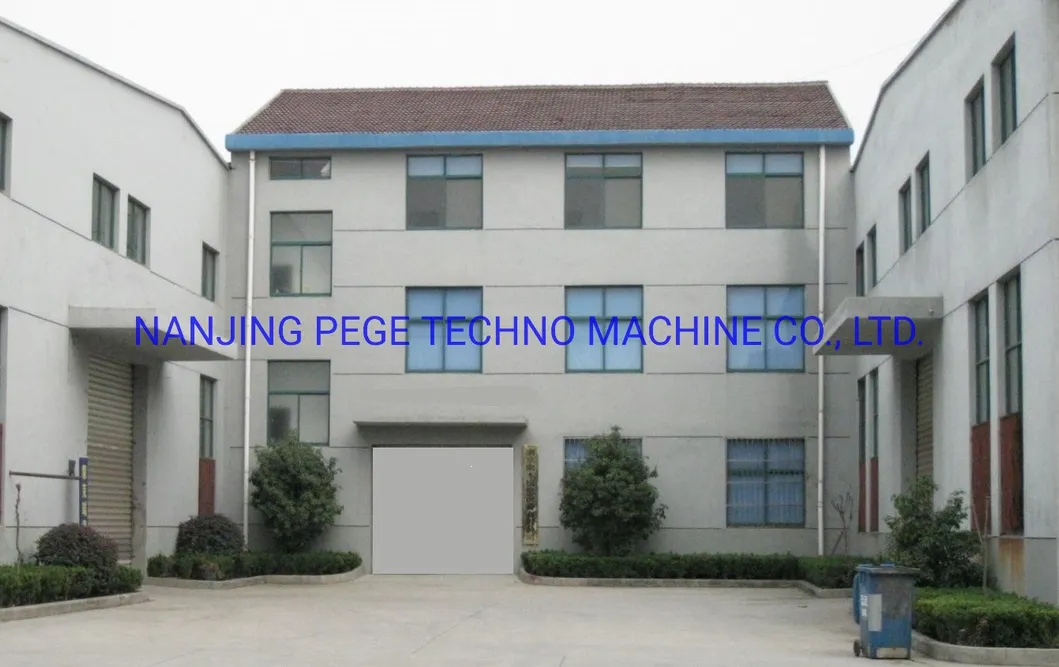

Factory Overview

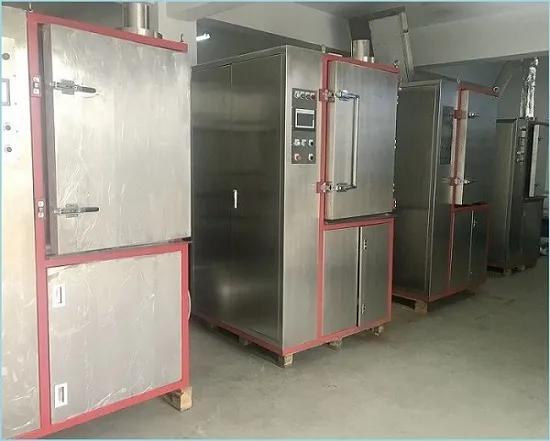

Workshop

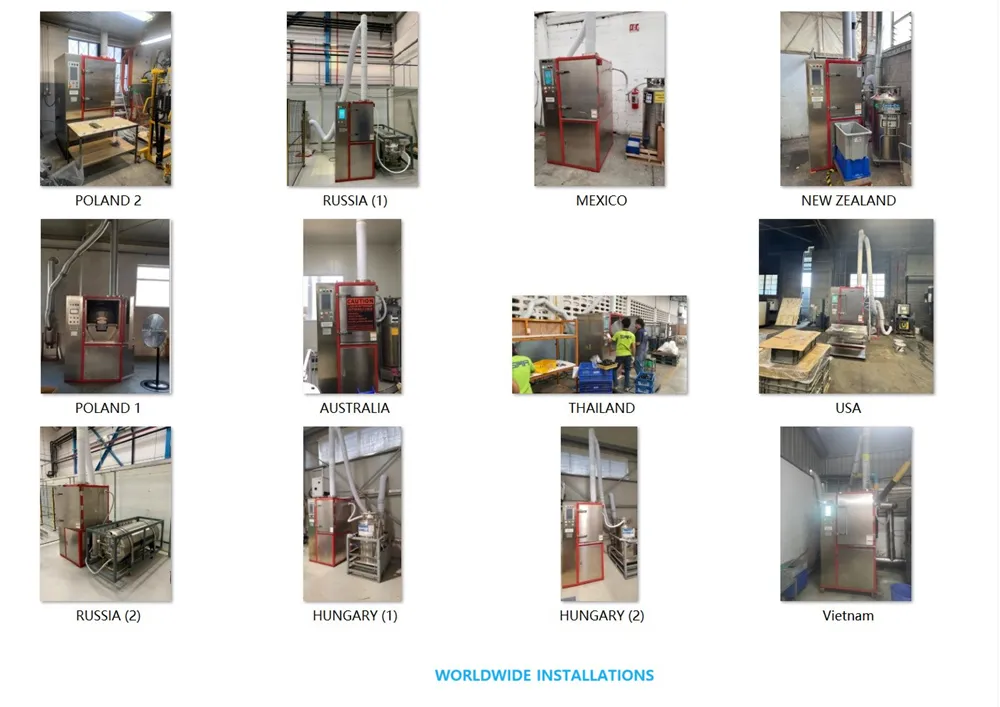

Successful installations completed in key markets including Poland and the USA.

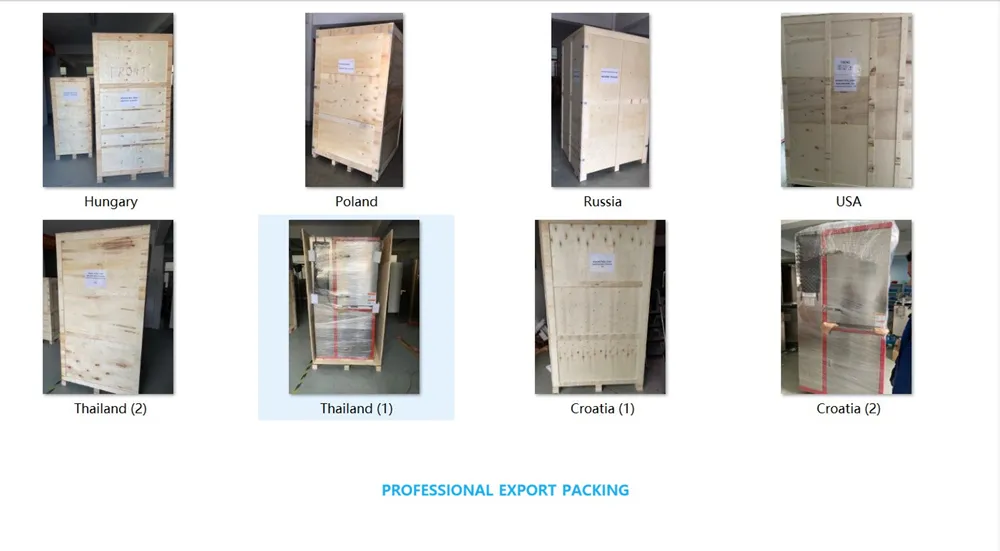

Global Shipping Map
Shipping Logistics
Frequently Asked Questions
What is the processing capacity of the PG-60T?
The PG-60T has a barrel capacity of 60L and an effective capacity of 20L, allowing it to process approximately 200-250kg of parts per day.
Which cooling media does the machine use?
The system utilizes Liquid Nitrogen (LN2) as the cooling medium to reach temperatures as low as -130°C for effective flash embrittlement.
What materials can be deflashed using this cryogenic system?
It is ideal for O-rings, gaskets, and molded parts made from rubber, plastic, and precision die-cast alloys such as zinc, aluminum, and magnesium.
How much labor can this machine save?
The PG-60T is highly efficient and can replace the manual deflashing work of 60 to 80 skilled workers, significantly reducing operational costs.
What is the construction material of the machine frame?
The entire frame and key components are constructed from high-quality SUS304 stainless steel for durability and corrosion resistance.
Does the machine support customized settings?
Yes, the machine features a touch-screen operation mode that allows for customized parameters to suit different material requirements and precision levels.
