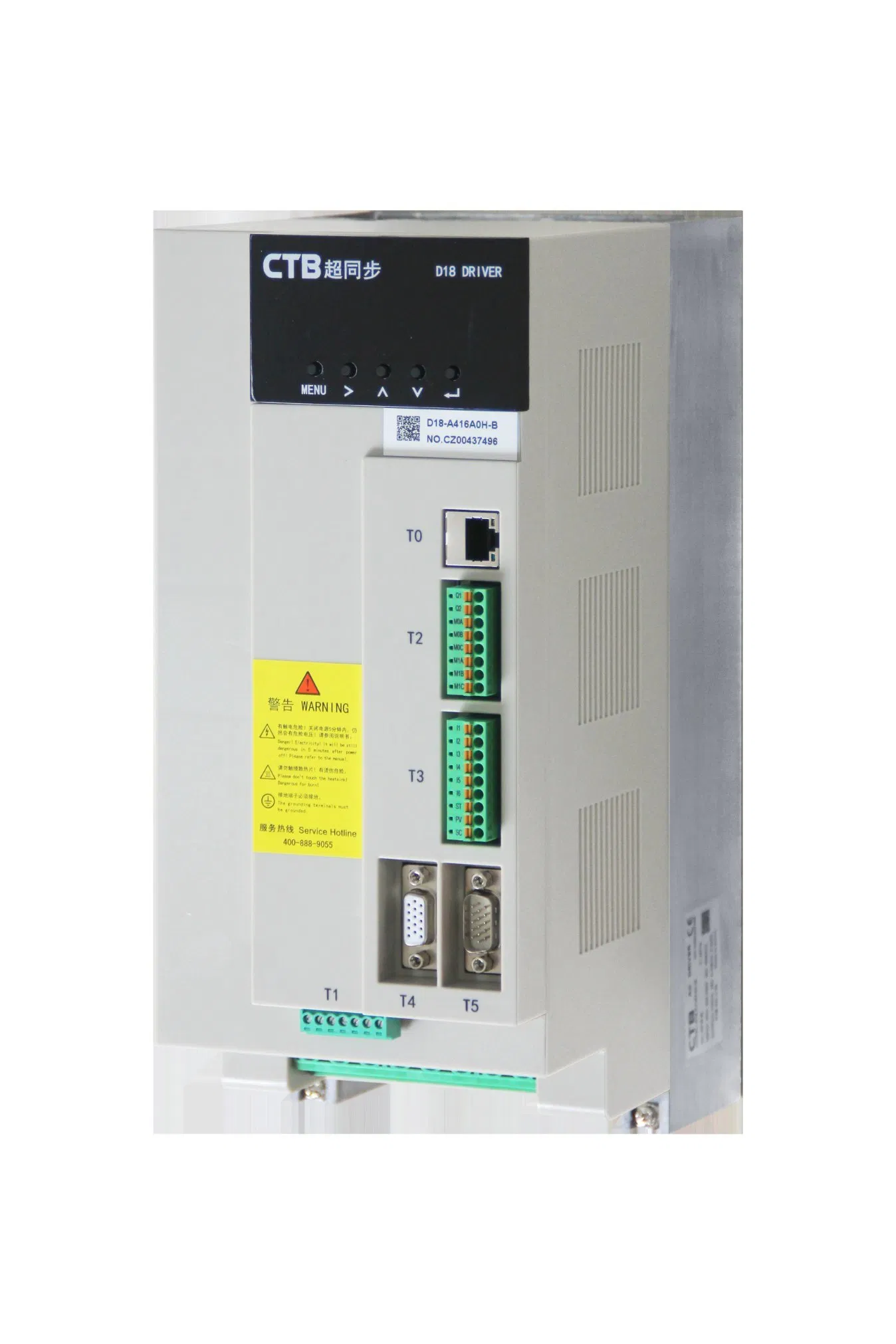

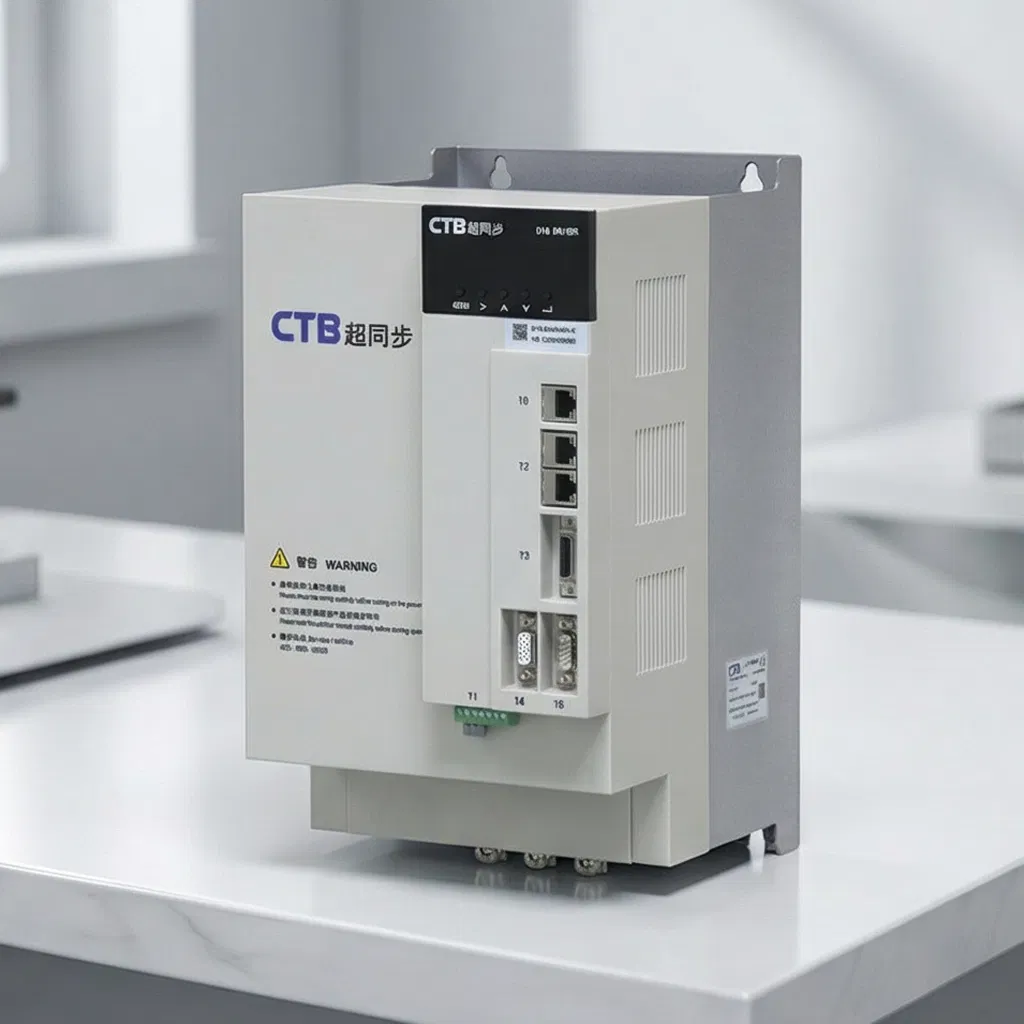

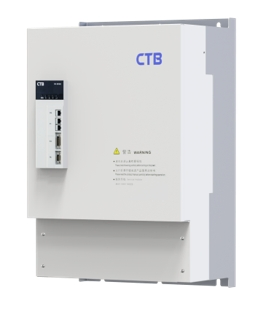

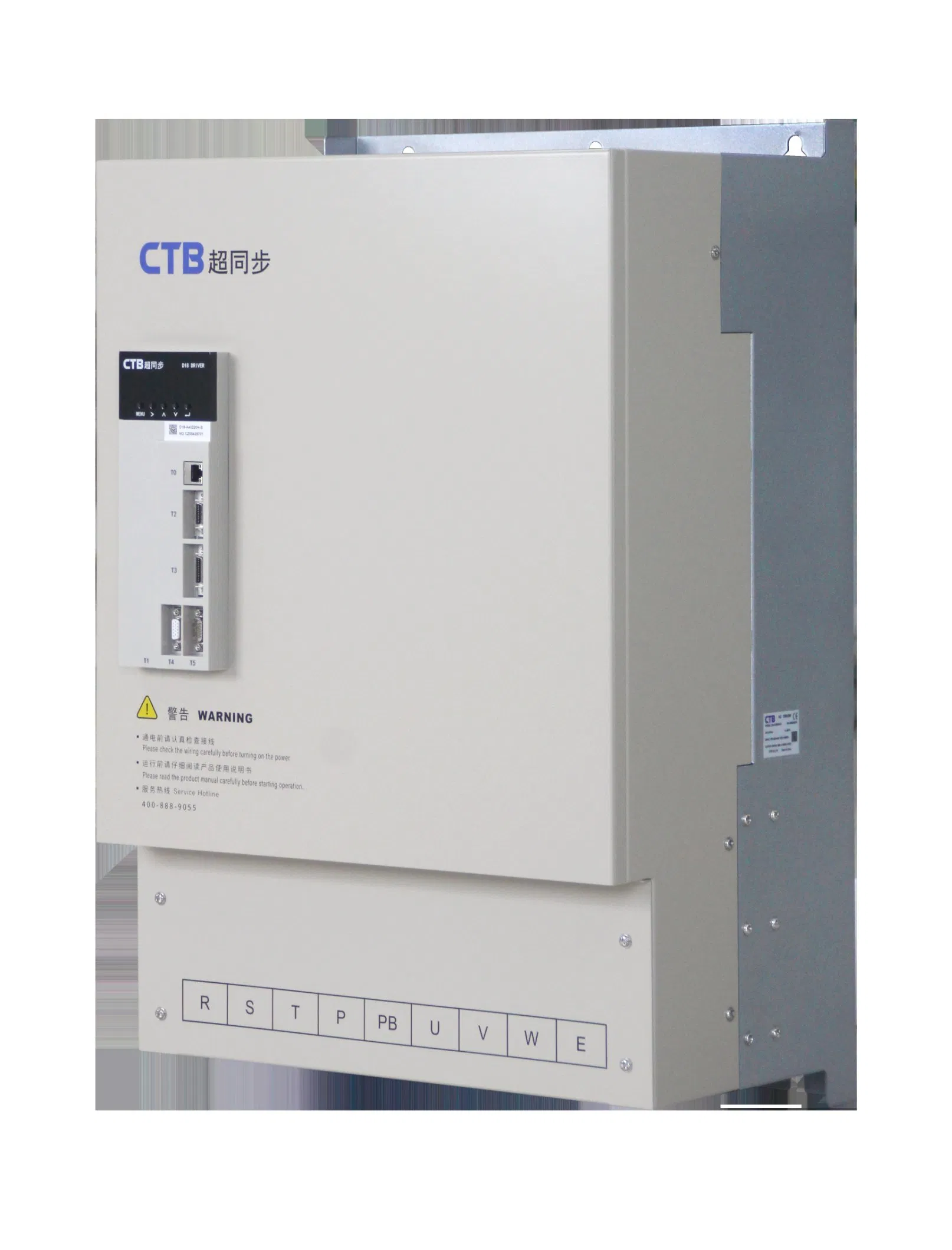

Panasonic Mitsubishi Variable Speed AC Servo Motor Drive CNC PLC Controller

Customization: Available
Structure: Open-Loop
Mathematical Model: Linear

Product Description

Basic Info
Model NO.D18
SignalContinuous
FunctionAutomatic Control
CertificationCCC, ISO: 9001
ConditionNew
CustomizedNon-Customized
MaterialAluminum Alloy
Warranty12 Months
Command Control ModeDigital Torque Command
Control MethodSvpwm, Vector Control
Command Smoothing ModeLow-Pass Filtering
Speed LimitDigital Setting Limit
Transport PackageWooden Carte
TrademarkCTB
OriginChina
Packaging & Delivery
Package Size300.00cm * 100.00cm * 100.00cm
Package Gross Weight10.000kg
Product Features
  • 1
    Abundant Bus Interfaces
    MechatroLink-III, EtherCAT, ProfiNet, ModbusTCP.
  • 2
    Applicable to Various Encoders
    Applicable to various encoder feedback signals (TTL 1VPP BISS-C ENDAT2.2 SSI RESOLVER RS485).
  • 3
    High Dynamic Responsiveness
    1 KHz speed response frequency, self-suppression of vibration, and self-learning of dynamic properties.
Variable Speed AC Servo Motor Drive
Specifications
D18-A(B)XXXXX 203A3 209A5 216A0 404A0 406A0 409A0 412A0
Current (A) 3.3 9.5 16 4 6 9 12
Capacity (KVA) 0.4 1.1 2 1.5 2.2 3.7 5.5
D18-A(B)XXXX 416A0 422A0 432A0 438A0 445A0 460A0 475A0
Current (A) 16 22 32 38 45 60 75
Capacity (KVA) 7.5 11 15 18 22 30 37
D18-A(B)XXXXX 490A0 40110 40150 40180 40220 40320 40400
Current (A) 90 110 150 180 220 320 400
Capacity (KVA) 45 55 75 90 110 160 200
D18-A(B)XXXXX 40500 40630 40800
Current (A) 500 630 800
Capacity (KVA) 250 315 400
Technical Specification Details
Output Max. output voltage (V) Three-phase 200/220/240/260 V input voltage; Three-phase 380/400/415/440 V input voltage
Max. output speed (rpm) 4-pole motor 32000 rpm, 1,600 Hz
Power supply Rated voltage, frequency Three-phase 200/220/240/260V; 50/60Hz; Three-phase 380/400/415/440V; 50/60Hz
Voltage fluctuation +10%, -15%
Frequency fluctuation ±5%
Control features Mode of control Sinusoidal wave PWM, closed loop vector control
Torque properties 200% rated torque output below basic frequency; accuracy: ±5%
Max. speed range 1:15000
Speed control accuracy ±0.1%
Frequency setting resolution Digital: 0.01 Hz; analog: double-polarity max. output frequency/2046
Position control accuracy ±1 pulse
Acceleration/deceleration 0-3000 s
Brake Dynamic braking, 125% rated torque; built-in braking unit
Overload capacity 30 s at 200% rated current
I/O interfaces Digital input Up to 14 optocoupler isolated inputs, input methods: PNP, NPN optional
Digital output Up to 6 optocoupler isolated outputs, 24V, 10mA
Analog input 3 routes: 1 route: -10~10V; 1 route: 0~10V; 1 Route: 0~10V or 4~20mA
Relay output 1×: one set of NO contacts; 250 VAC/30 VDC, 1 A
Fault output relay 1×: one set of NO/NC contacts; 250 VAC/30 VDC, 1 A
Encoder input interface 2×: motor encoder, incremental encoder, absolute encoder, intelligent encoder, external encoder
Pulse input 1×: directed pulse, orthogonal pulse (optional)
Encoder output interface 1×: 300 KHz max. output frequency, linear drive output mode, RS422 standard
Bus interface EtherCAT, Profinet, Machatrolink-III, RS485
Controls Speed control Range: 0-32000 rpm; direction: CW, CCW; speed commands: analog, pulse frequency, multi-stage speed control, communication
Position control Auto zero return, reciprocating positioning, multi-point positioning
Torque control Reeling control, swing control, torque control
Others External encoder positioning, synchronous drive, hydraulic servo, PID control
Protection Drive/motor over-current Independent detection of drive and motor over-current
Drive/motor overload Independent detection of drive and motor overload
Motor overheat Built-in motor overheat interface
Low voltage/over-voltage Main circuit busbar voltage: over-voltage alarm output if higher than 800 V; under-voltage alarm output if lower than 400 V
Working environment Working site No dust, corrosive gases or combustible gases
Temperature -10 to 45 ℃
Humidity <95%RH (non-condensing)
Vibration Vibration frequency ≤20 Hz: 9.8 m/s2; 20 Hz ≤vibration frequency ≤50 Hz: 2 m/s2
Company Profile
We are an integrated industrial supplier that combines in-house manufacturing with strategic distribution. The company employs 35 people and generates an annual output of about RMB 50 million. We focus on couplings—stocking standard lines of disc, high-elastic, jaw, and gear types while offering rapid, flexible production for non-standard requests. We also distribute linear guides, ball screws, servo motors, and drives, giving customers one-stop access to a full range of power-transmission components.

With more than twenty years in Metal-Cutting and Metal-Forming Machine Tools, our core team has deep, system-level knowledge of complete machine supply chains and long-standing upstream relationships. Backed by a stable domestic customer base, we secure competitive pricing, reliable lead times, and fast pre- and after-sales support from our suppliers. Compared with single-product factories, we deliver equivalent cost performance plus the convenience of multi-category, single-source supply: One partner instead of ten, three days instead of three weeks, one service interface instead of many. Choosing us means plugging into a proven, twenty-year supply chain that is already up and running.
Our Factory
Automation Line
Automation Line
Grinding Machine Workshop
Grinding Machine Workshop

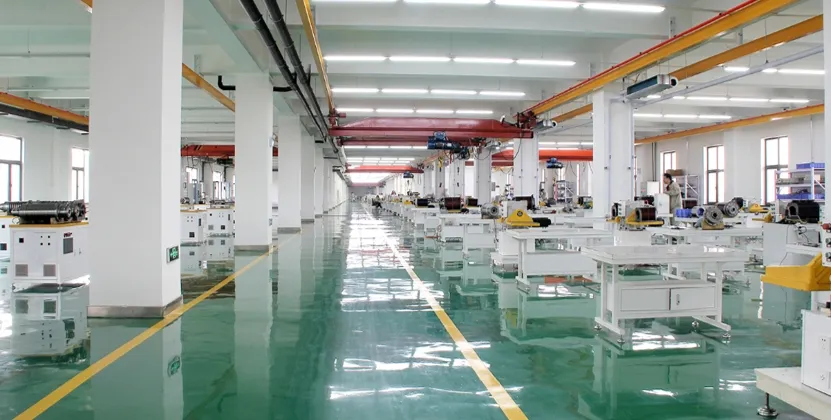

Functional-component Assembly Line
Functional-component Assembly Line

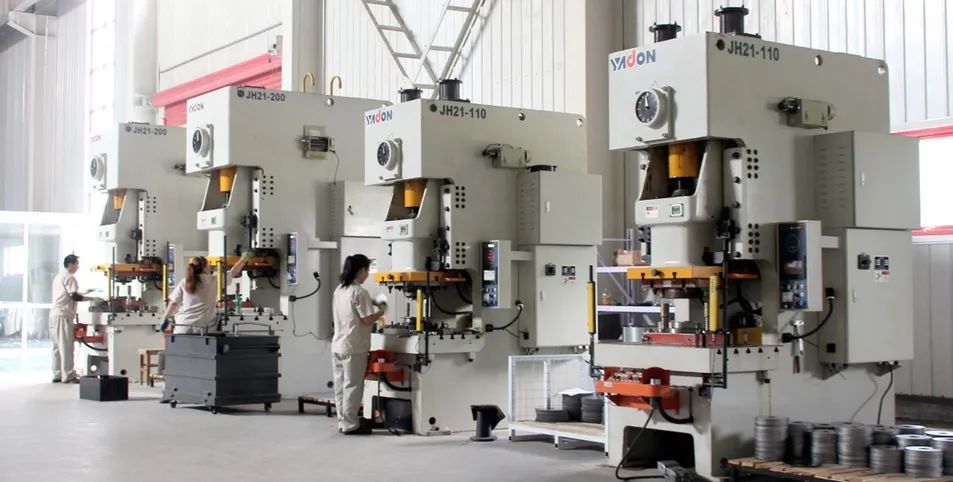

Stamping Work Cell
Stamping Work Cell
Exhibition & Showroom
Exhibition View 1

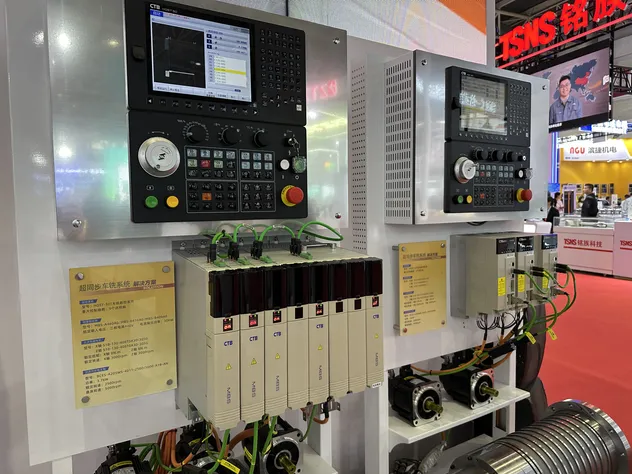

Exhibition View 2
Exhibition View 3
Our Partners & Customers
Partner Logo Grid 1
Partner Logo Grid 2
For additional product requirements, please contact us.

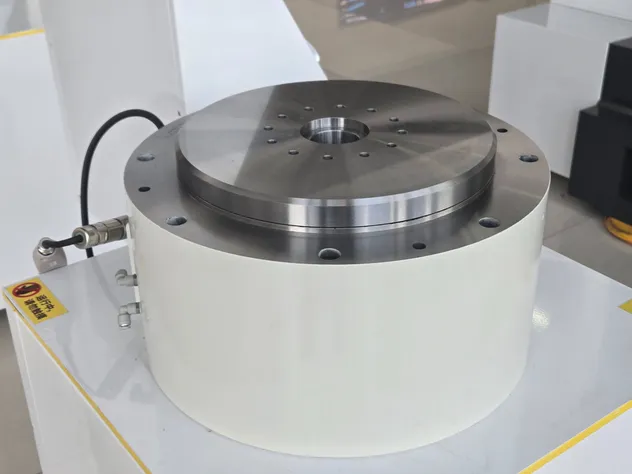

Product Showcase 1

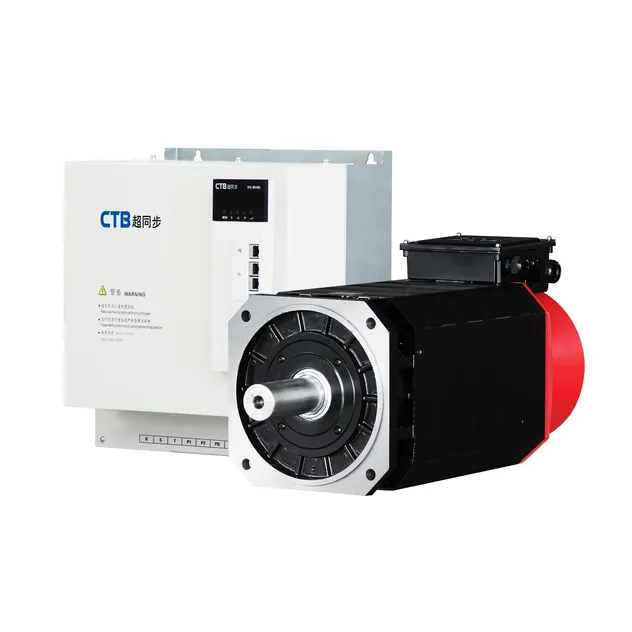

Product Showcase 2

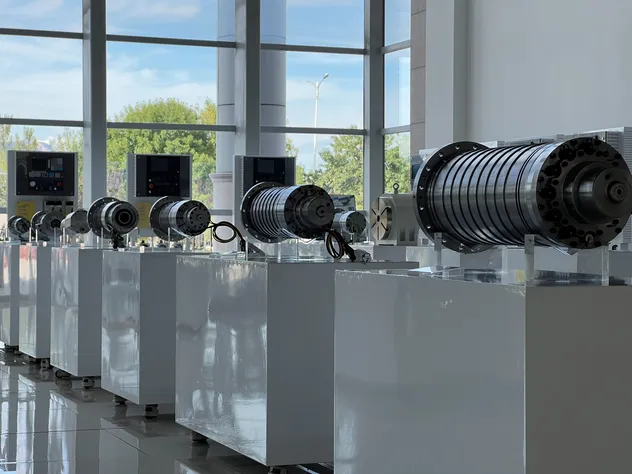

Product Showcase 3

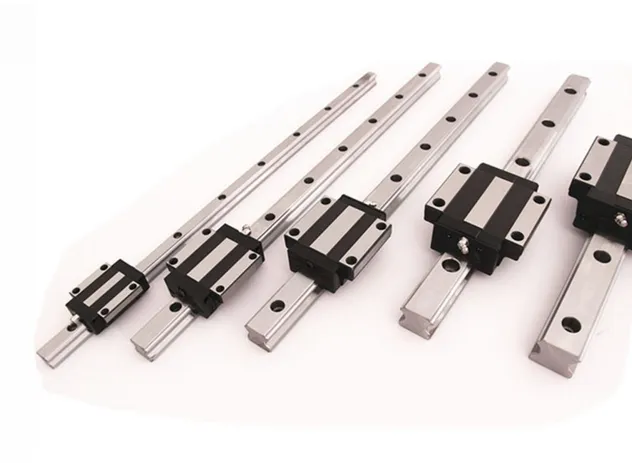

Product Showcase 4

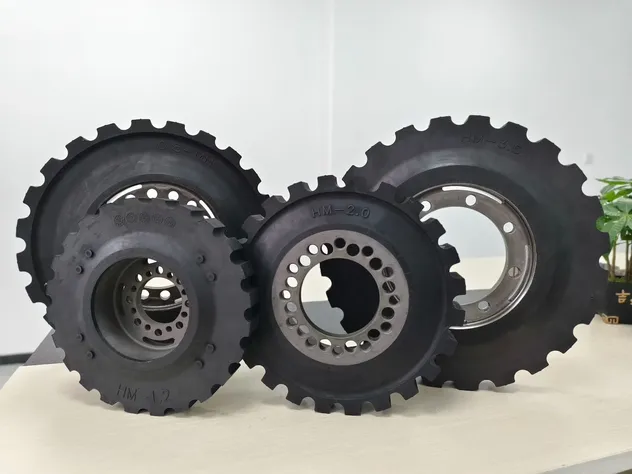

Product Showcase 5

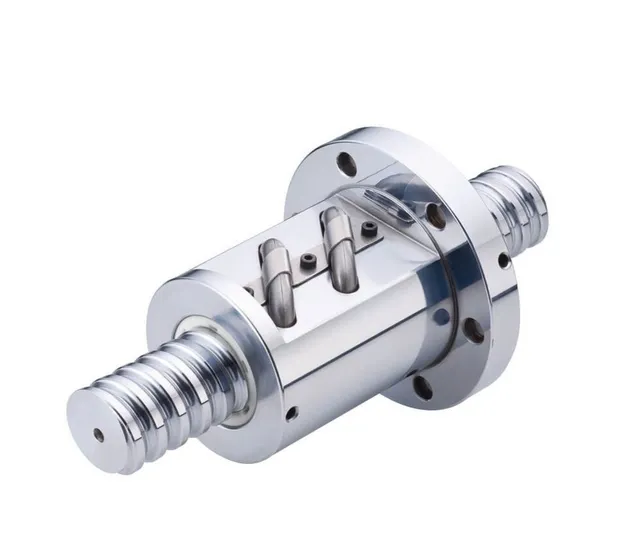

Product Showcase 6
