| Parameters | 2.4kW | 3.5kW | 4.5kW |

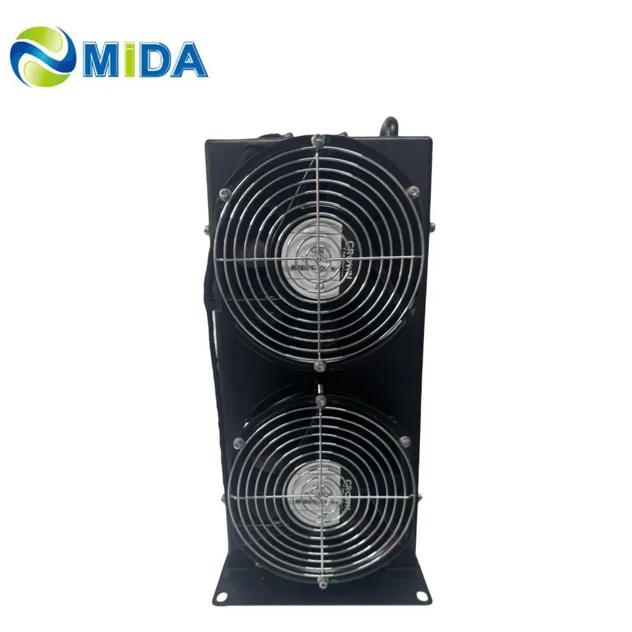

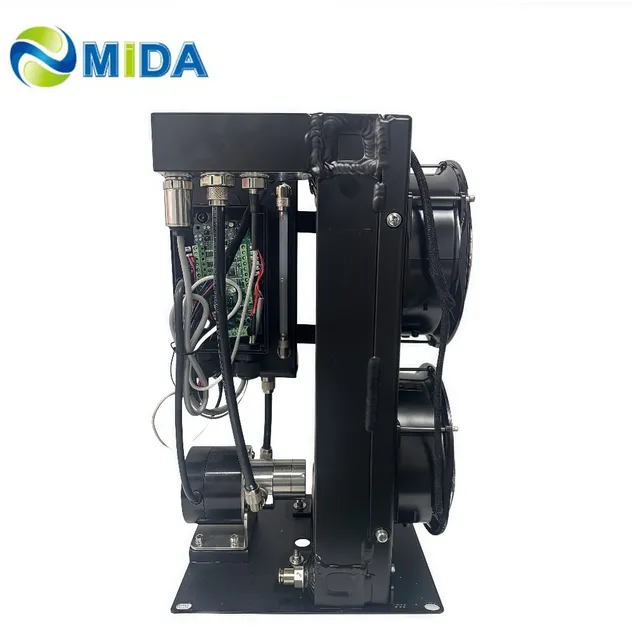

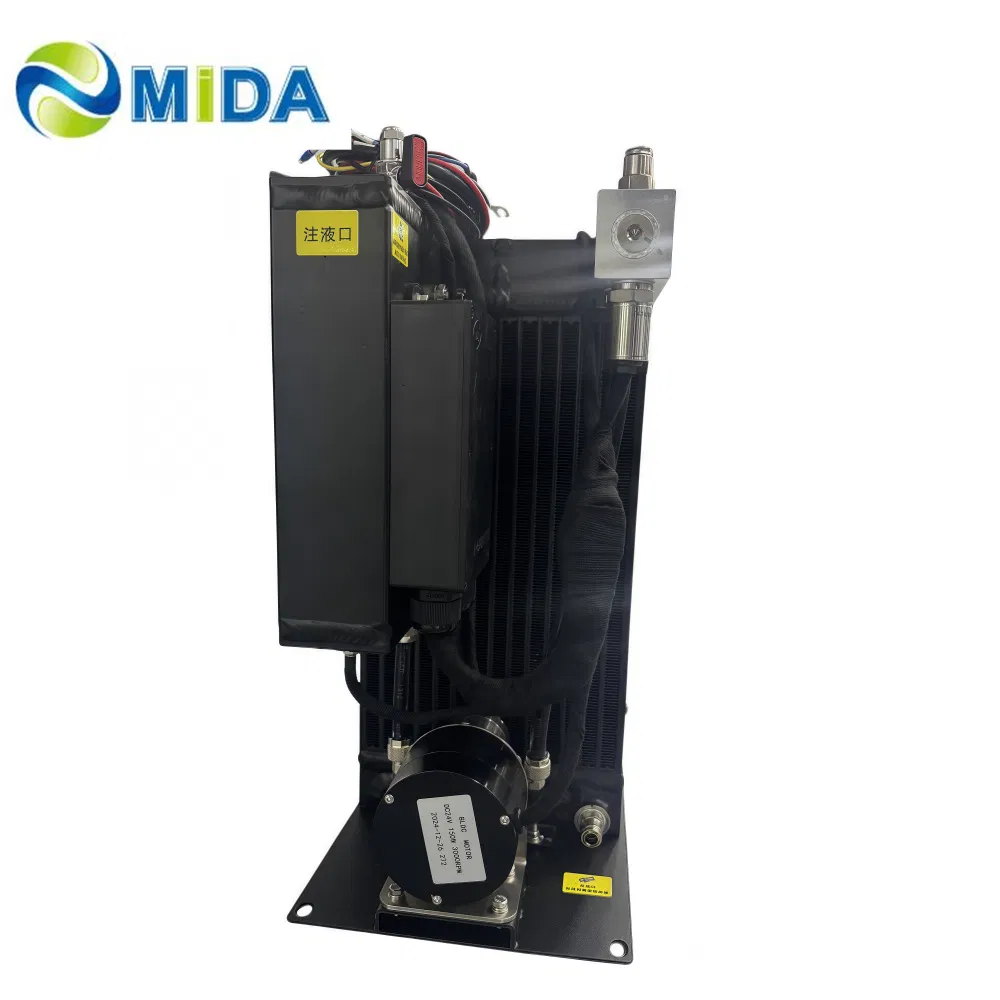

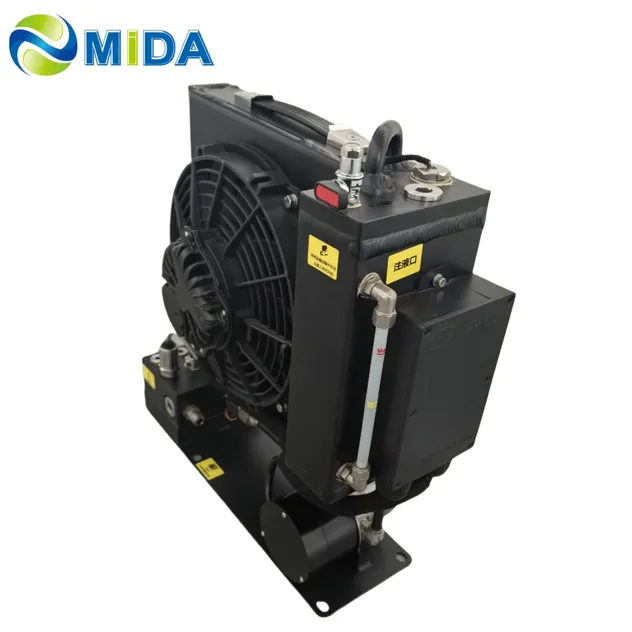

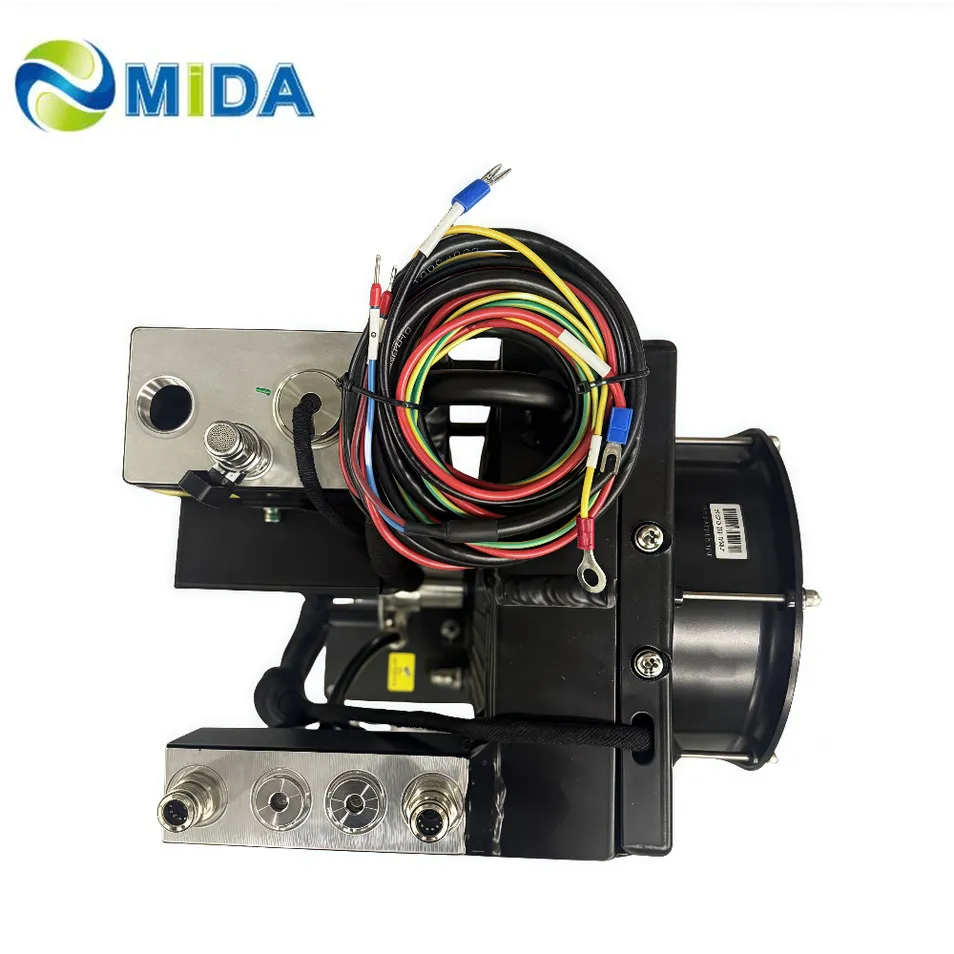

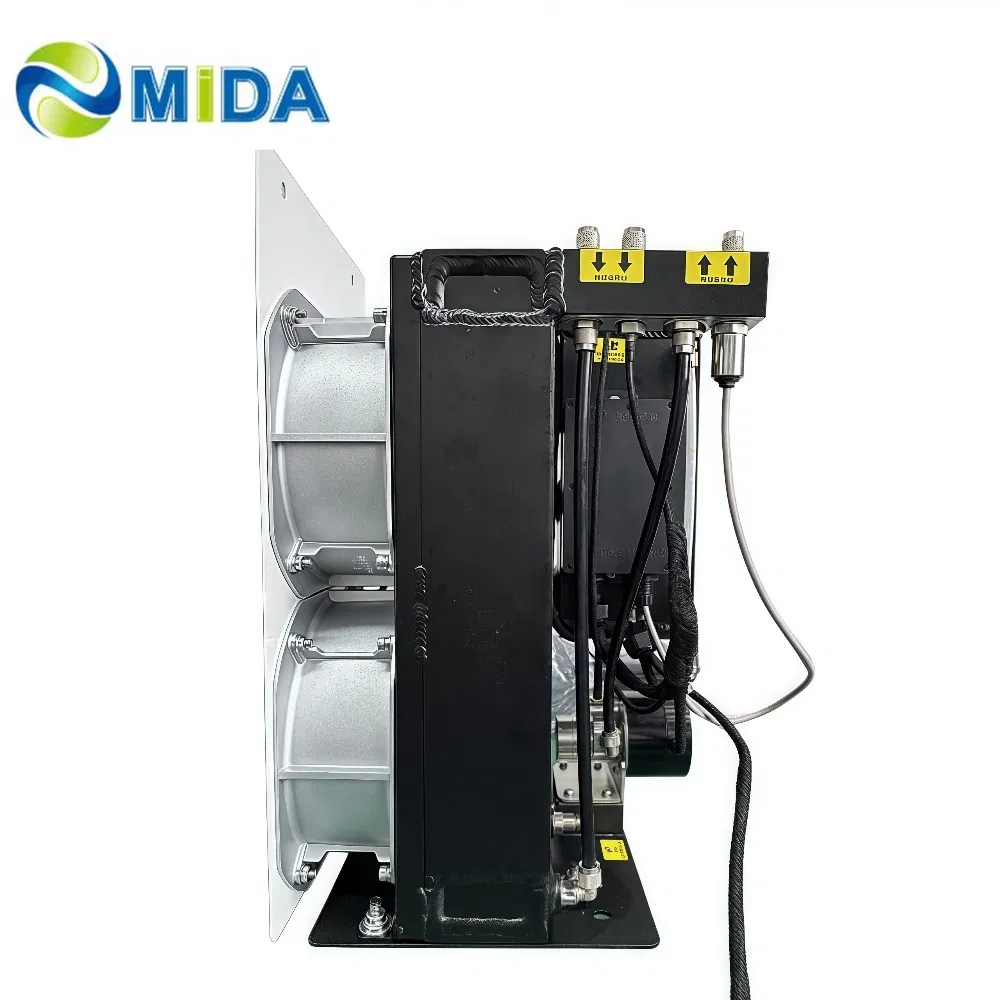

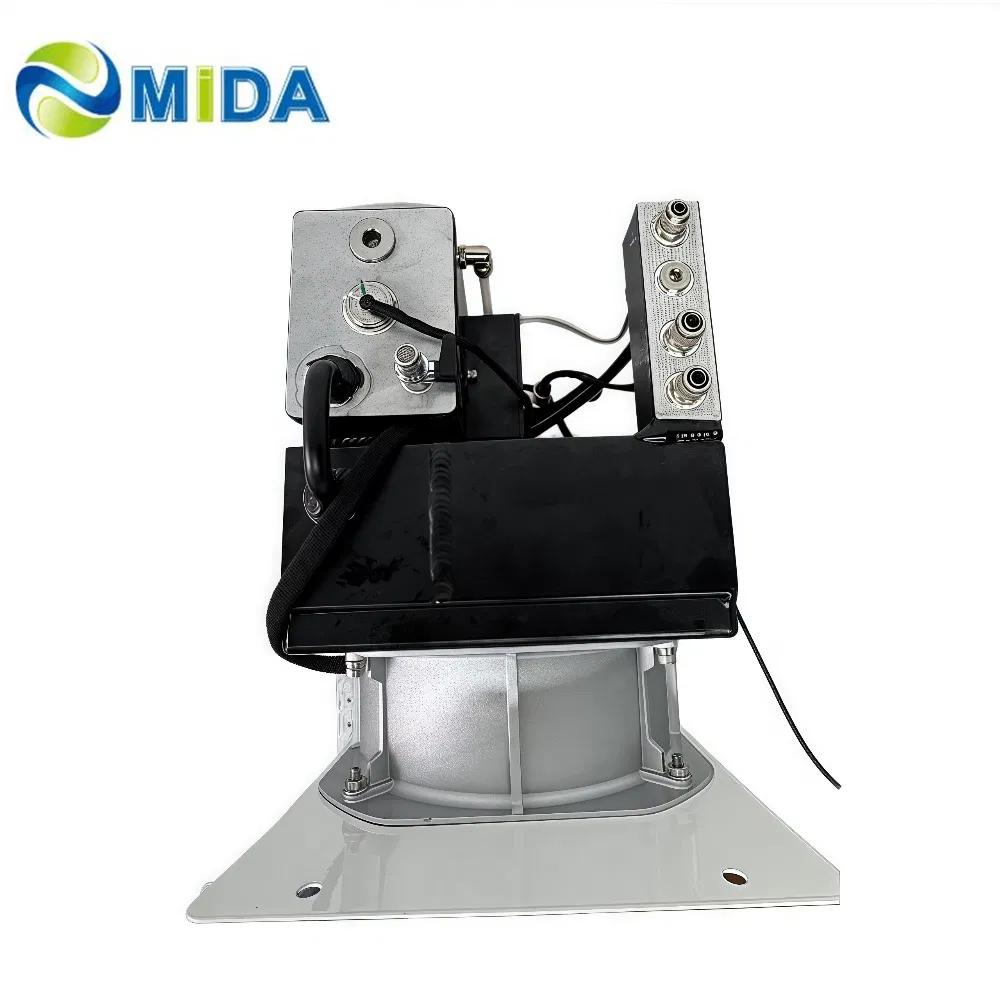

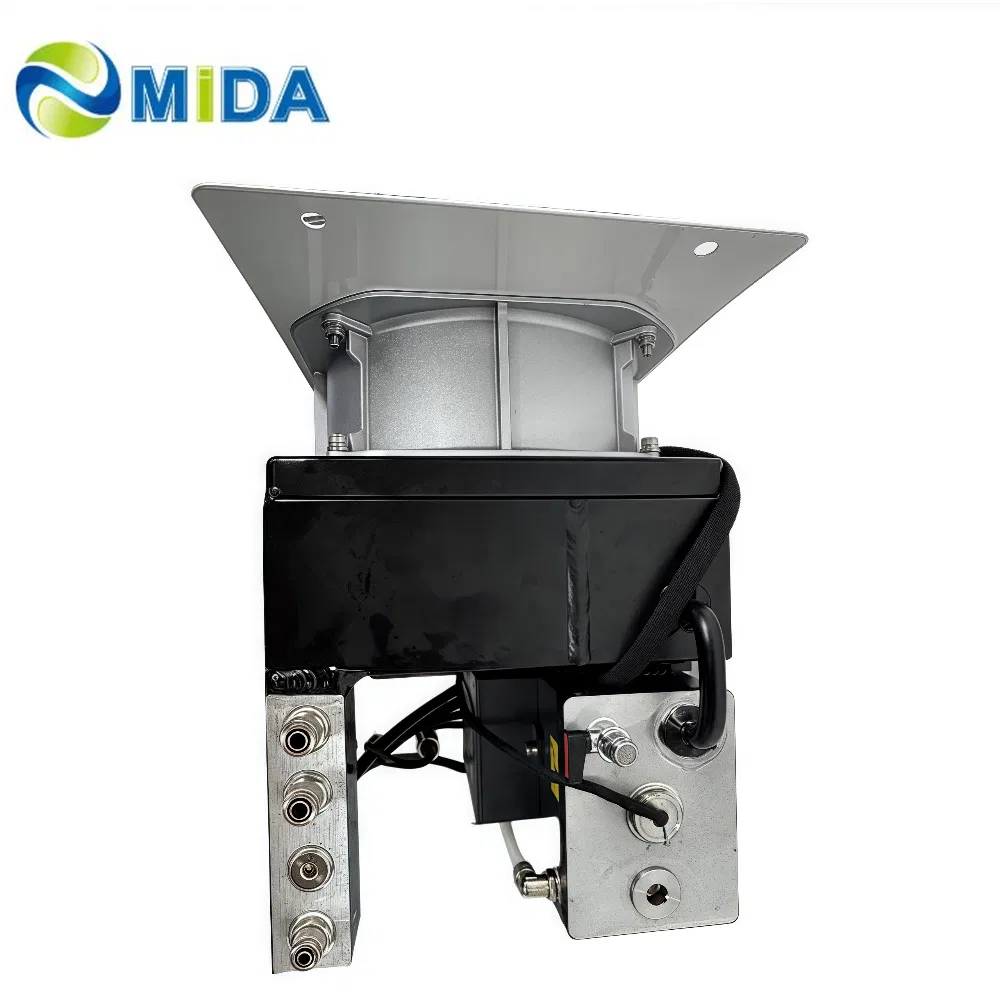

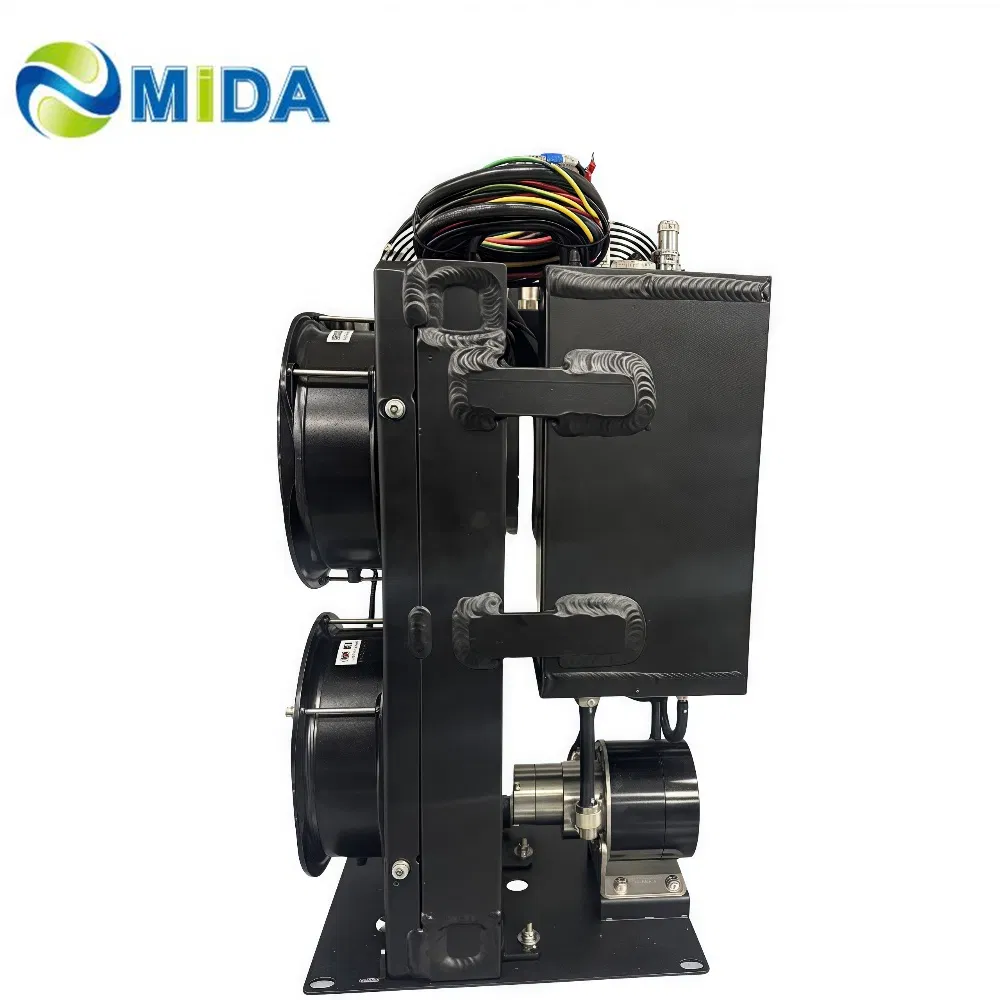

| Product Name | Liquid Cooling System | ||
| Application | Single Plug 600A/Dual Plug 400A | Single Plug 800A/Dual Plug 600A | Single Plug 800A/Dual Plug 600A at least |
| DC Output Voltage | DC150V ~ 1000V | ||
| Heat Dissipation | 2400W@5L/min, 800m³/h, 50℃ | 3500W@5L/min, 1200m³/h, 50℃ | 4500W@5L/min, 1200m³/h, 50℃ |
| Power Dissipation | < 300W | ||
| Protection Level | IP55 | ||
| Coolant Type | 10cst silicone oil or Degradable dielectric coolant | ||
| Operating Temp | -40℃ ~ 50℃ | ||
| Dimensions (W*H*D) | 262*435*200mm | 393*412*130mm | 240*534*330mm |
| Net Weight | 12kg | 18kg | 18kg |
| Noise Level | Max < 65dB | Max < 65dB | Max < 60dB |
