Integrated Patient Thermal Management and Protection System

1 / 5

Integrated Patient Thermal Management and Protection System

Customization:	Available
Transport Package:	Box
Trademark:	Rayland

Send Inquiry

Product Description

Basic Information

Model NO. Body Temperature Management System

Origin China

Production Capacity 10000 Units/Year

Product Overview

A professional solution for medical institutions to physically heat and keep surgical/non-surgical patients warm, assisting in body temperature regulation with wireless monitoring and infusion fluid warming functions.

Items	Details
Color	Blue / Purple
Type	Reusable Device & Consumables
Screen Specification	10.1-inch tablet-level screen with high screen-to-body ratio
Operation Mode	Multifunctional touch screen panel + shuttle controller
Waterproof & Dustproof	Blanket: IPX8; Aviation Lemo interface: IP68
Safety Protection	26 items of safety protection design
Patented Tech	14 items of patented full-process technologies
Safety Warnings	11 safety warnings (including failure and overheating alarms)
Temp Control	Automatic, intelligent and closed-loop

Integrated Patient Thermal Management System

Core Advantages: 7 Safety Guarantees

1. Hypothermia Prevention

Maintains stable body temperature with high-precision monitoring to avoid complications.

2. Sealed Design

No liquid inflow or electric leakage; IPX8 blanket and IP68 interface for full protection.

3. Scientific Control

Avoids low-temperature scalds with built-in sensors and automatic heating stop.

4. Protection Mechanism

Patented air guide channel ensures core temperature control and prevents downtime.

5. Biocompatible Materials

Medical-grade, non-allergenic materials tested for no contact sensitization.

6. Risk Prevention

11 safety warnings enable full-process monitoring and hazard elimination.

7. Humanized Design

Flexible composite blanket reduces pressure ulcers and enhances patient comfort.

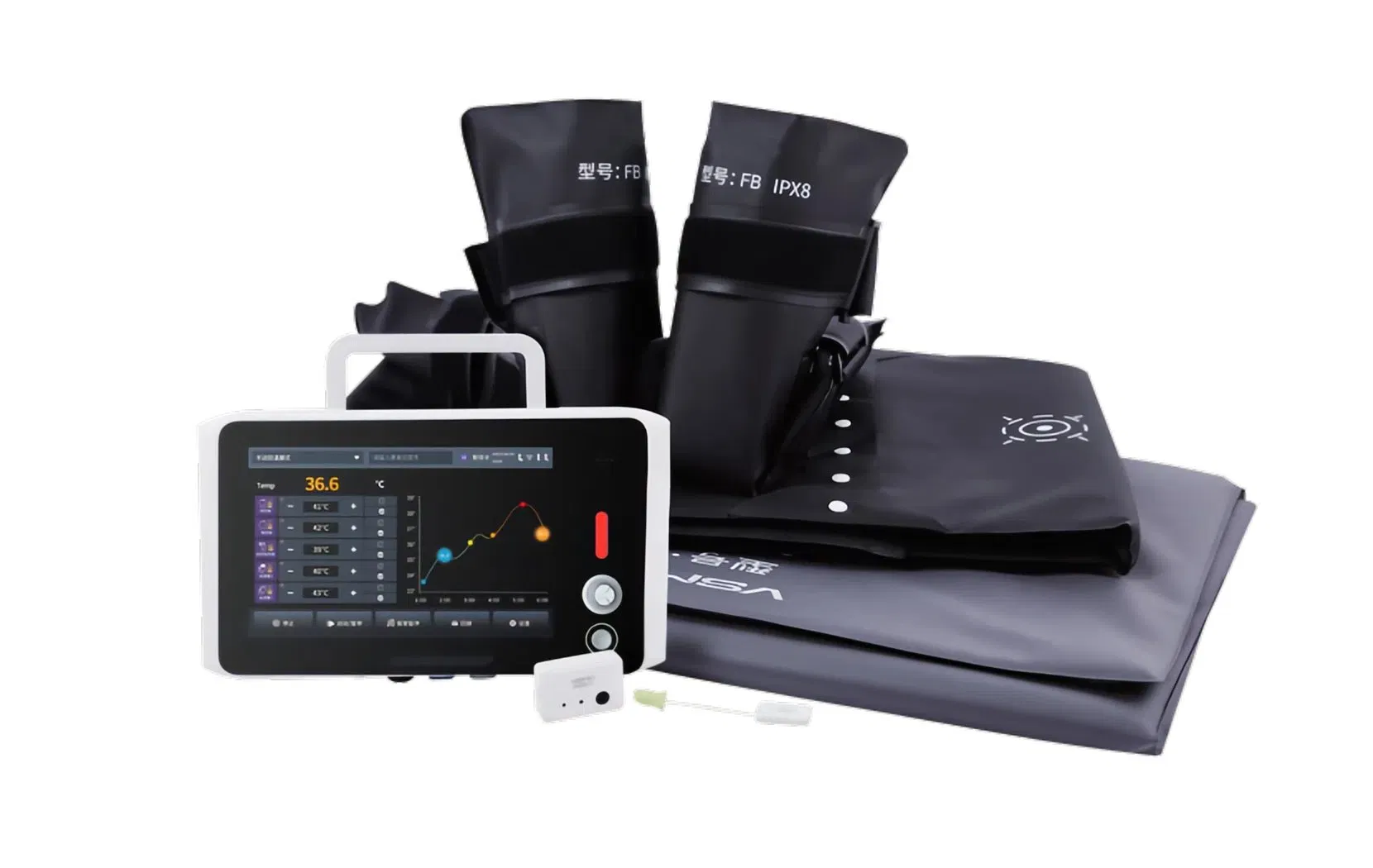

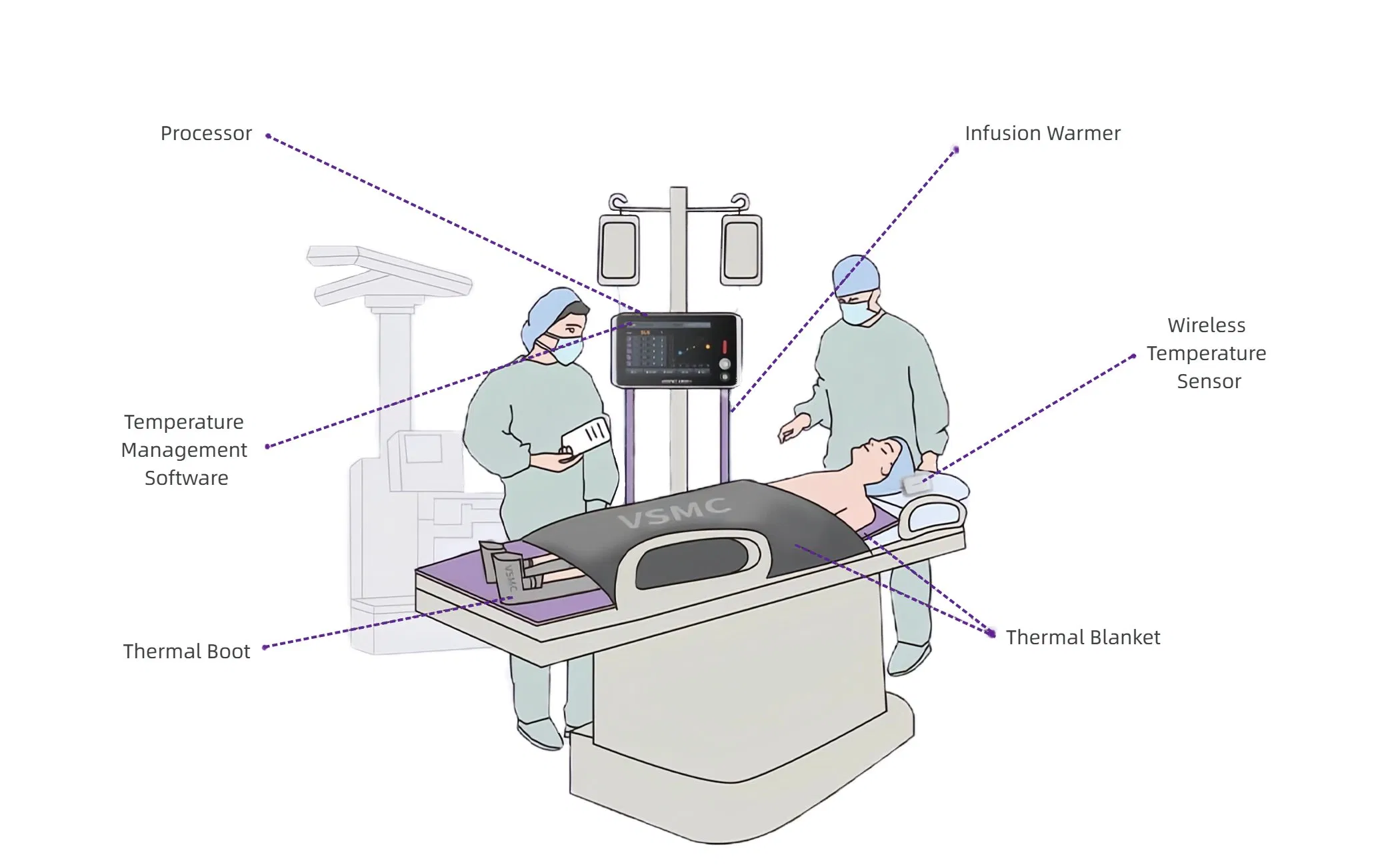

System Composition & Configuration

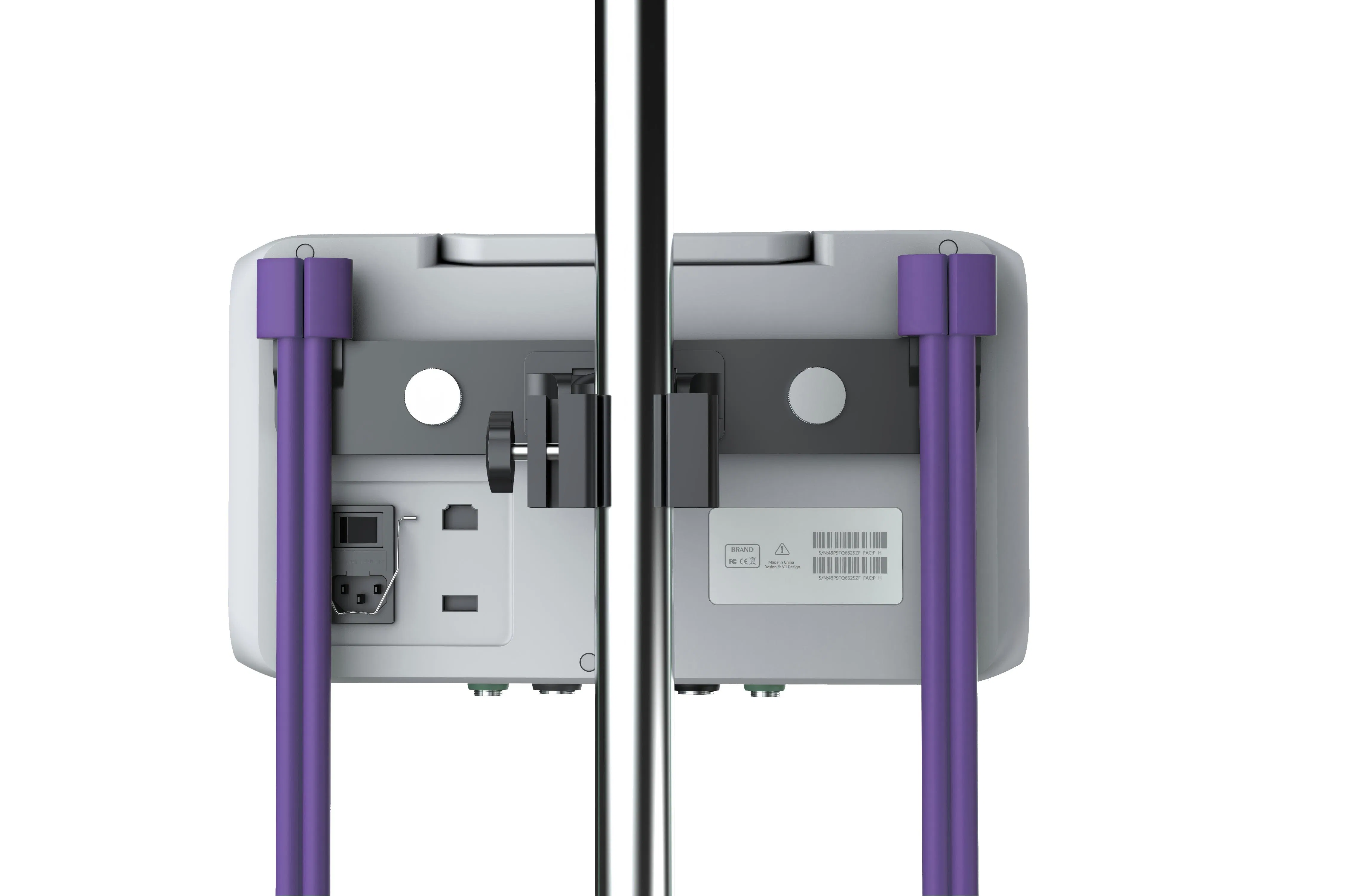

Core Unit: Temperature Control Host and Heating Tube for fast, stable performance.

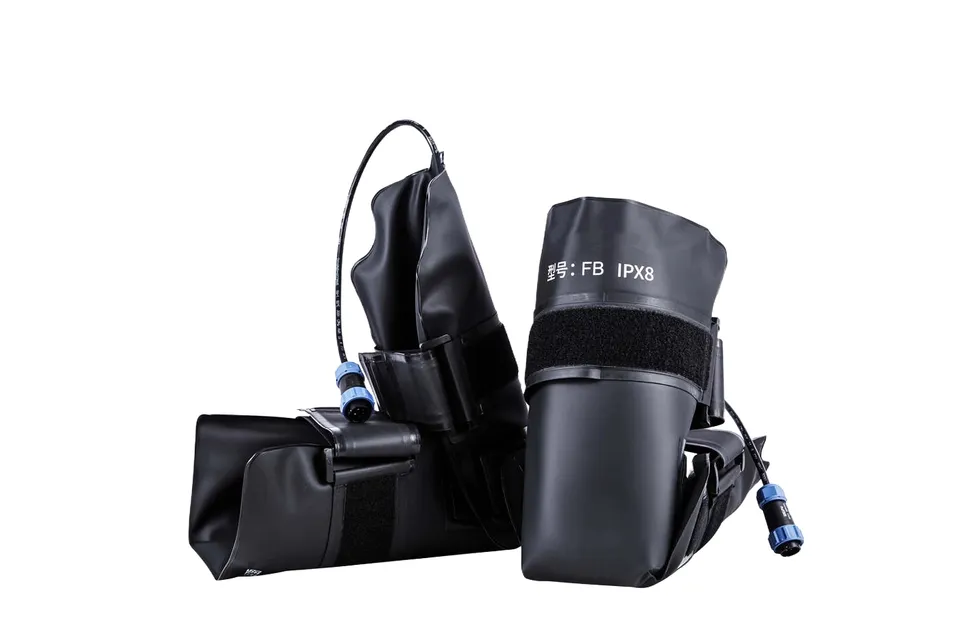

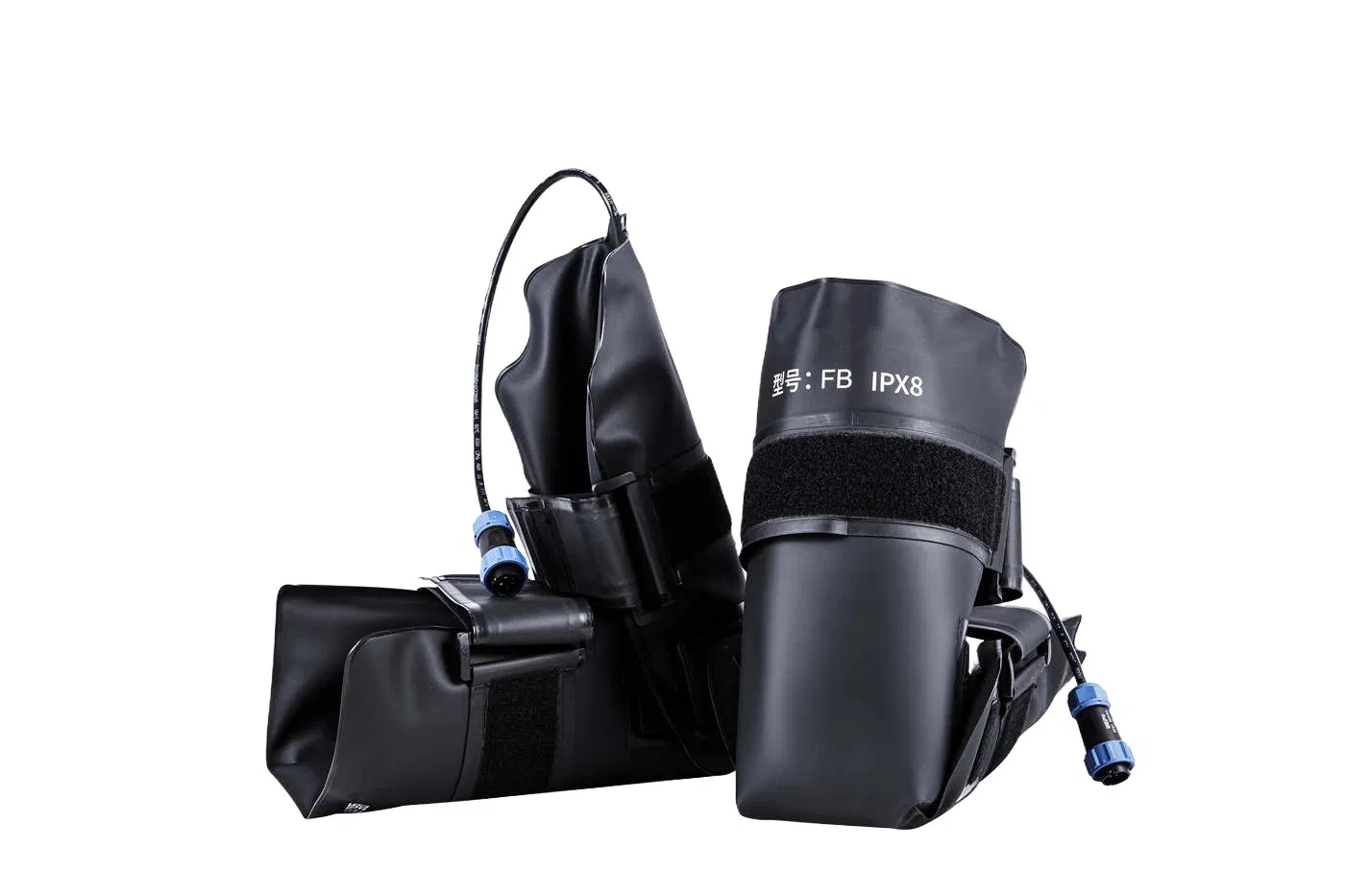

Optional Accessories: Heating Blankets (Cover/Foot), Repeaters, and Wireless Continuous Monitoring Sensors.

Usage Types: Available in both Reusable (cost-effective) and Disposable (sterile) versions.

Key Performance & Application

5-Layer Flexible Composite Wireless Temp Monitoring Infusion Fluid Warming IP68 Waterproof

Target Scenarios:

Surgical Dept: Perioperative heating
Outpatient: Fluid warming for infusions
General Ward: Daily temperature management
Long-term Care: Maintenance for bedridden patients

Frequently Asked Questions

What are the primary functions of this system?

The system provides physical heating, wireless body temperature monitoring, and infusion fluid warming for both surgical and non-surgical patients.

Is the heating blanket safe for use with liquids?

Yes, the temperature blanket features an IPX8 waterproof grade and edge heat-sealing technology, while the interface is IP68 rated to prevent leakage.

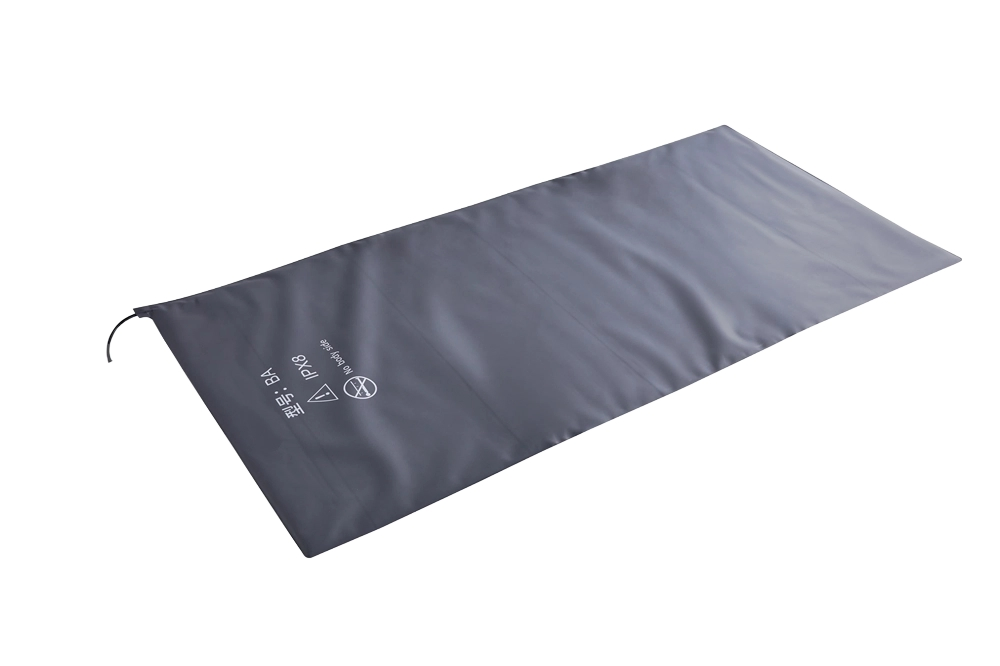

What materials are the blankets made of?

The blankets are constructed from a 5-layer flexible composite material that is medical-grade, non-allergenic, and designed to reduce pressure ulcers.

Does the system support disposable options?

Yes, both heating blankets and wireless temperature sensors are available in reusable and disposable versions to suit different sterile requirements.

How does the wireless temperature monitoring work?

The system uses wireless sensors or disposable probes to collect continuous, non-invasive body temperature data, which is transmitted in real-time to the host unit.

Can the system be used for blood warming?

It is designed for infusion and blood transfusion fluid warming to enhance patient comfort, though it should not be used for specific medicines like analgesics or chemotherapy drugs.
