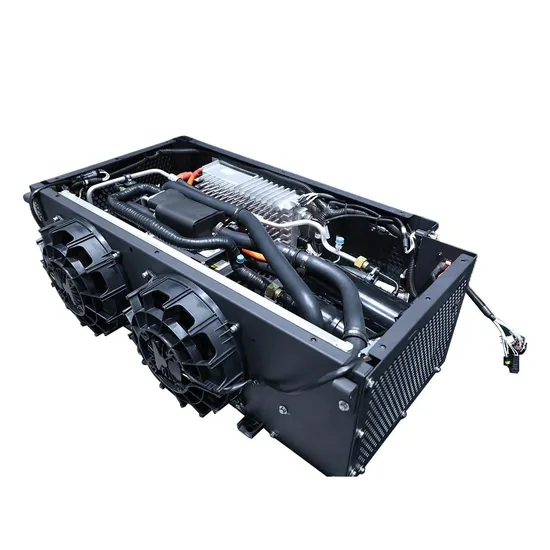

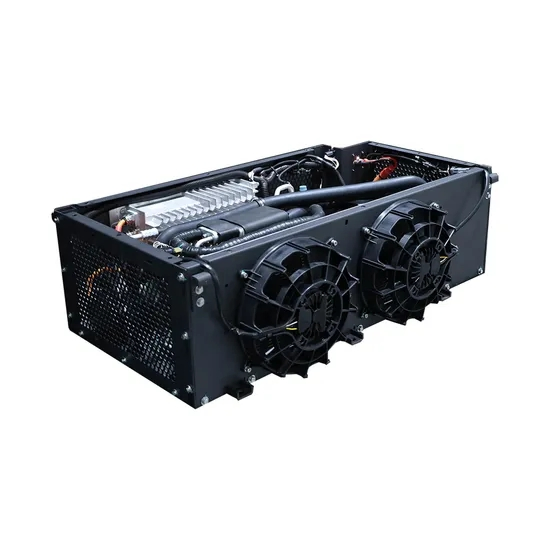

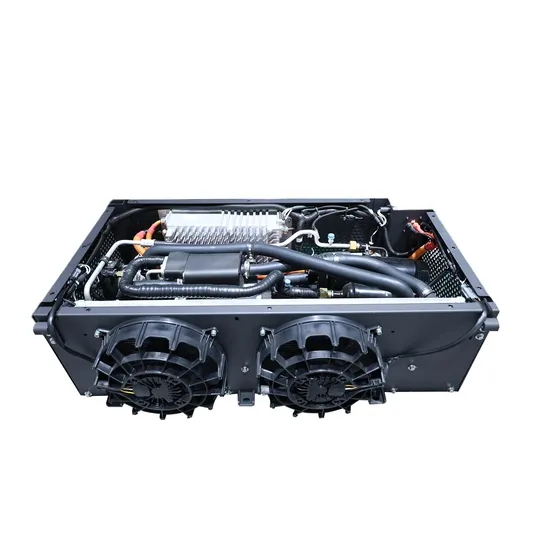

8kw 10kw 15kw Automotive Battery Thermal Management System

1 / 5

8kw 10kw 15kw Automotive Battery Thermal Management System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	NFBTM10	Function	Cooling & Heating, Ventilating, Air Filtering
Control Mode	Optional	Driving Mode	Independent
Certification	CE	Power	8-15kw
Body Material	Aluminium	Refrigerant Type	R134A
Safety Rating	IP67/IP6K9K	Noise Level	<80db (a) @ Maximum

✓

Product Description

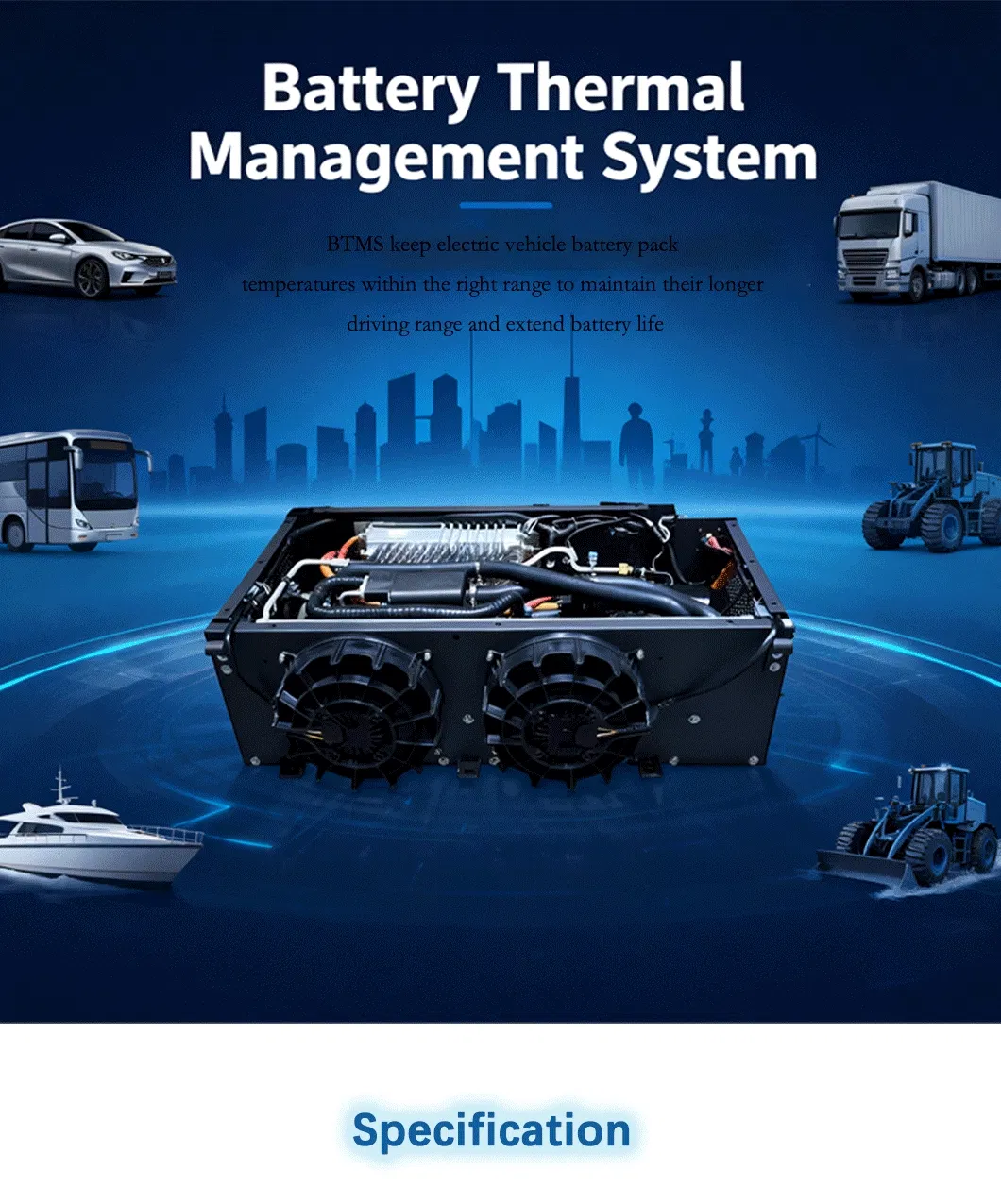

Battery Thermal Management System for Electric Vehicles

Providing essential battery cooling and heating for commercial vehicles, heavy-duty trucks, buses, construction machinery, and energy storage stations.

Technical Parameters

Parameter	Specification
Product Model Code	NFBTM10
Operating Ambient Temperature	-30 to +60ºC (Refrigeration: -15ºC to +55ºC)
Maximum Cooling Capacity	10KW (8~24KW Optional)
Maximum Heating Capacity	0~35Kw
Compressor Displacement	33CC / 46CC
Compressor Speed	800~10000rpm / 800~12000rpm
Coolant Type	50%/50% Ethylene Glycol/Water Solution
Communication Interface	CAN 2.0 (500k bps)
COP	>2.2
Protection Rating	IP67
Dimensions	L833 x W550 x H290mm (Standard)

📷

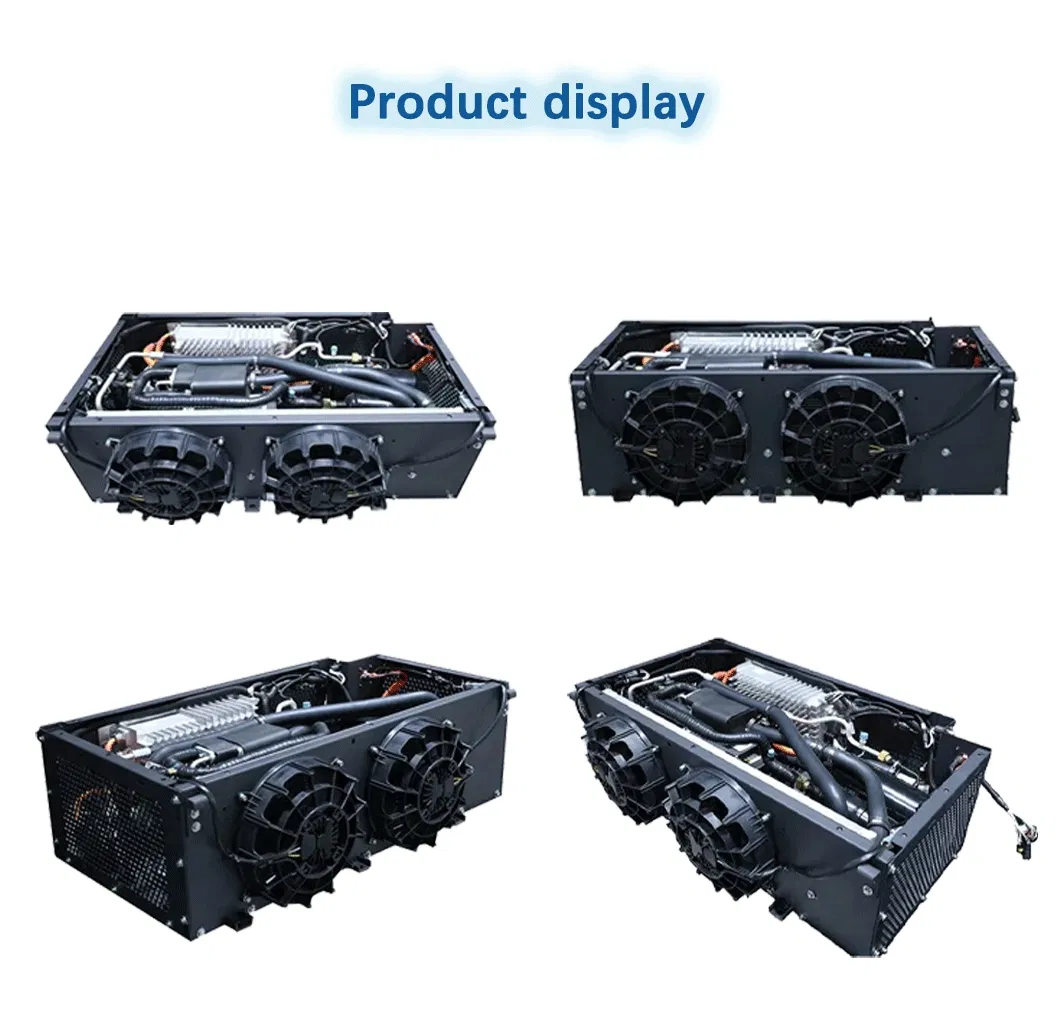

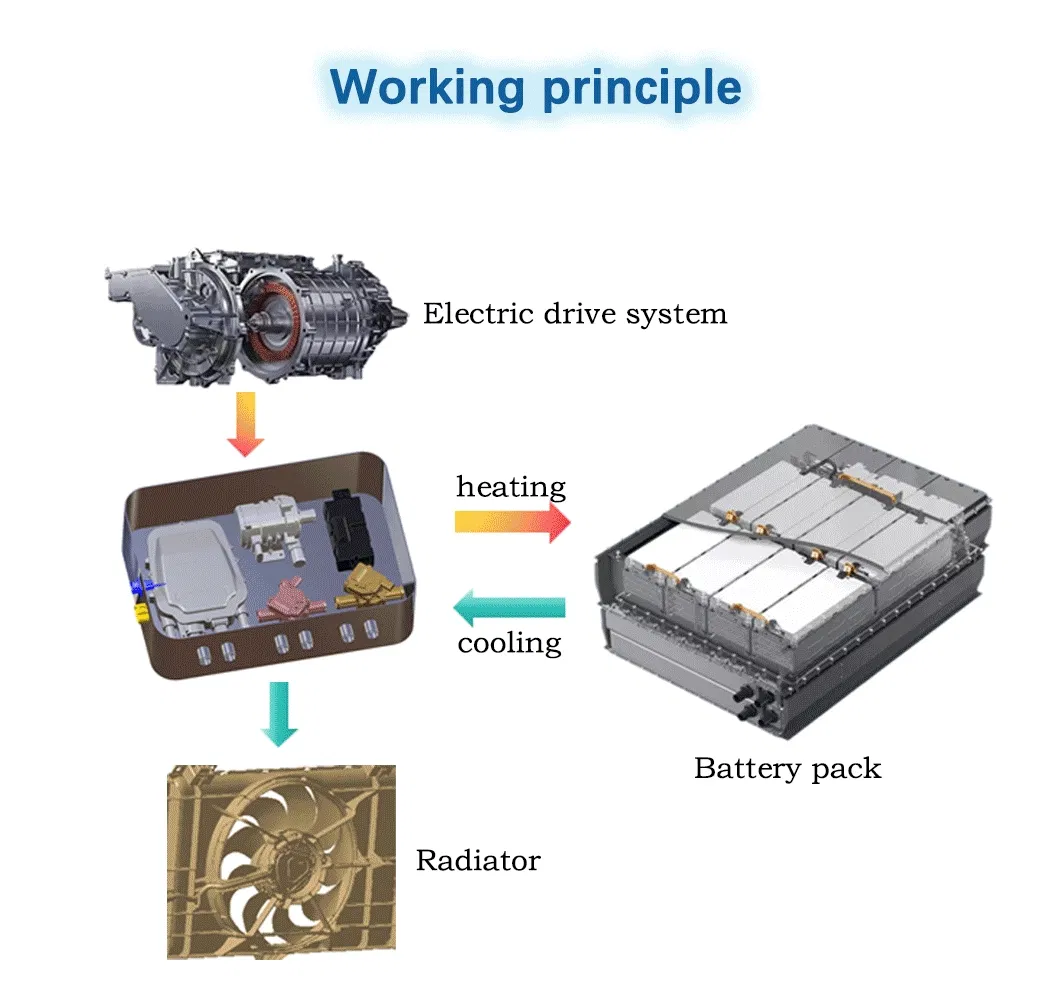

Detailed Visuals

★

Our Advantages

High-Temperature Heat Dissipation Quickly dissipates heat during fast charging and high-power discharging, preventing overheating and thermal runaway.

Low-Temperature Preheating Rapidly warms up during cold starts, improving charging efficiency and avoiding lithium dendrite formation.

Temperature Uniformity Suppresses localized hot spots, ensuring even cell aging and system stability.

Safety & Lifespan Assurance Extends battery cycle life through precision temperature control.

📜

Quality & Certifications

Frequently Asked Questions

What are your terms of packing?

Generally, we pack our goods in neutral white boxes and brown cartons. Branded packaging is available with proper authorization for registered patents.

What are your payment terms?

T/T 30% as deposit, and 70% before delivery. We provide photos of the products and packages before final payment.

What is the estimated delivery time?

It usually takes 30 to 60 days after receiving your advance payment, depending on the specific items and order quantity.

Can you produce based on samples?

Yes, we can manufacture products according to your physical samples or technical drawings, including the construction of molds and fixtures.

Do you test all products before delivery?

Yes, we conduct a 100% test on all goods before they are dispatched to ensure quality and functionality.

What is your sample policy?

We can supply samples if parts are in stock; however, customers are responsible for the sample cost and courier fees.
