Overview & Basic Specification
Basic Info
| Model NO. |
ECO-E101WX |
| Nominal Capacity |
101kwh |
| Cycle Life |
6000 Cycles |
| Application |
Industrial Commercial Factory |
| Cooling |
Air-Cooled |
| OEM/ODM |
Yes(Accepted) |
| Communication Port |
Modbus TCP/IP |
| Type |
Energy Storage System |
| Battery Capacity |
101kwh |
| Usage |
Storage System |
| Keywords |
Cabinet Energy Storage |
| Grid Type |
on Grid/ off Grid |
| BMS |
Built-in BMS Protection |
| Transport Package |
Wooden Case |
| Specification |
1250*1200*21500mm |
| Origin |
China |
| HS Code |
85065000 |
| Production Capacity |
100000 Sets/Year |
Packaging & Delivery
| Package Size |
148.00cm * 133.00cm * 227.00cm |
| Package Gross Weight |
2000.000kg |
Product Description

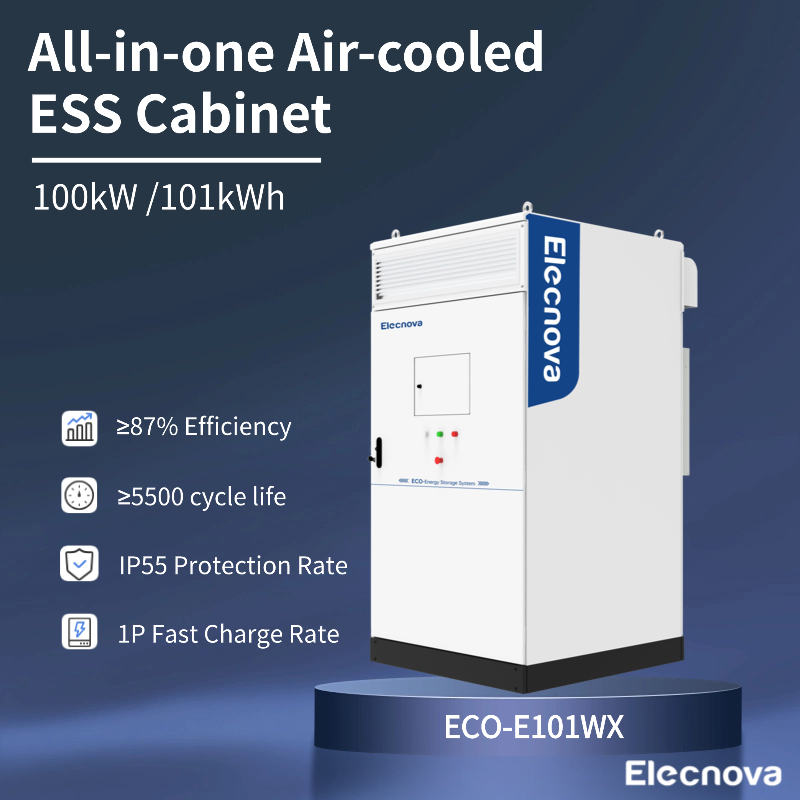

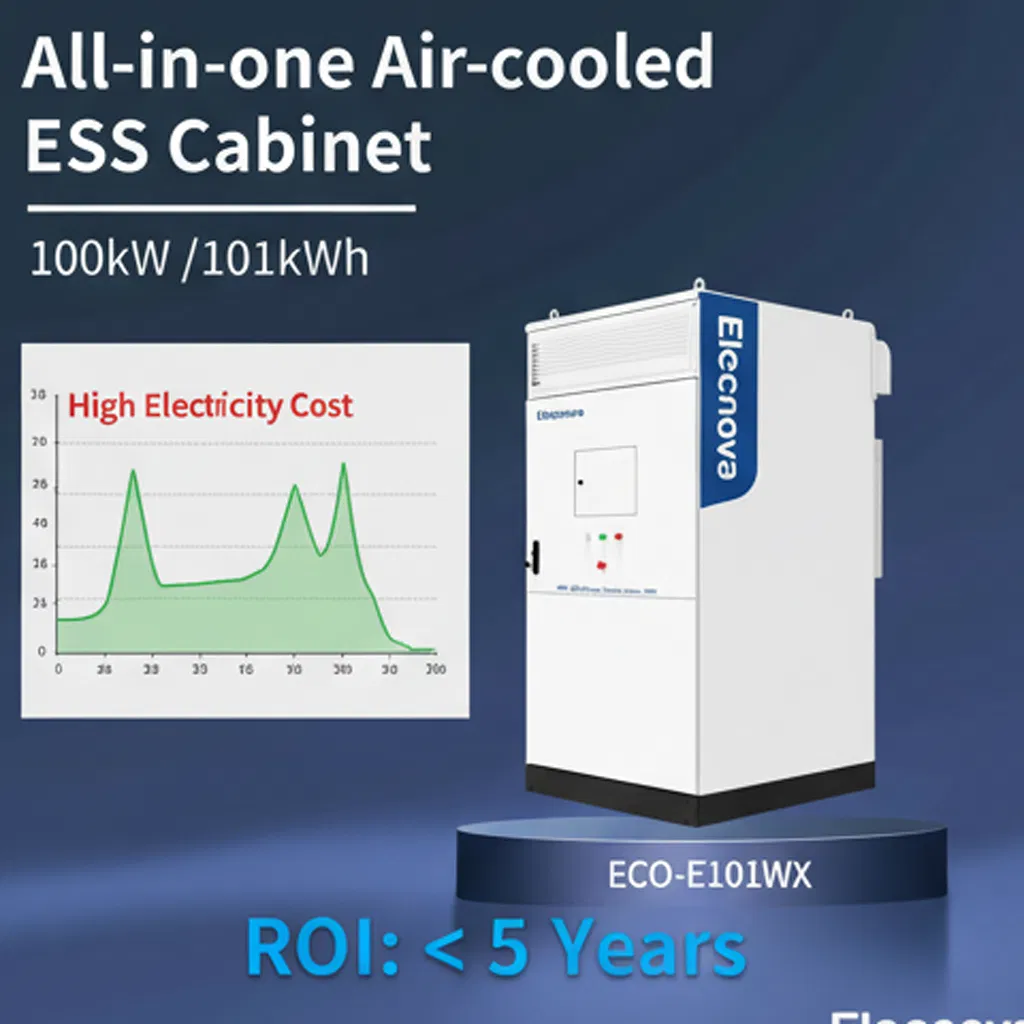

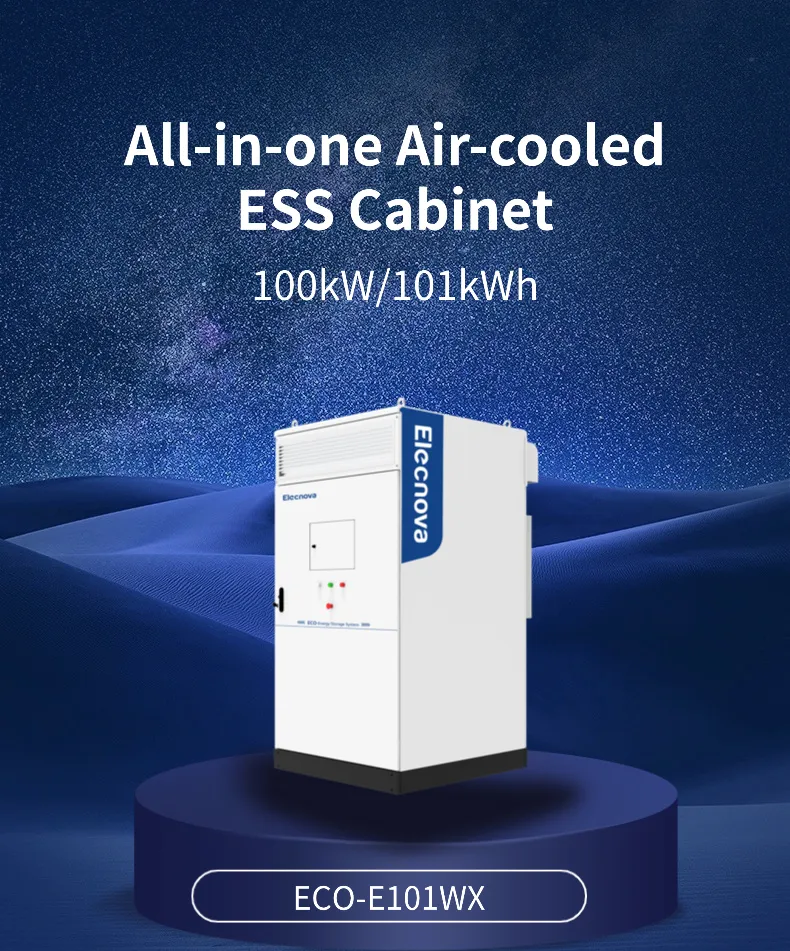

ECO-E101WX
The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.
solar battery storage systems
solar battery storage
solar panel battery storage cost
industrial commercial energy

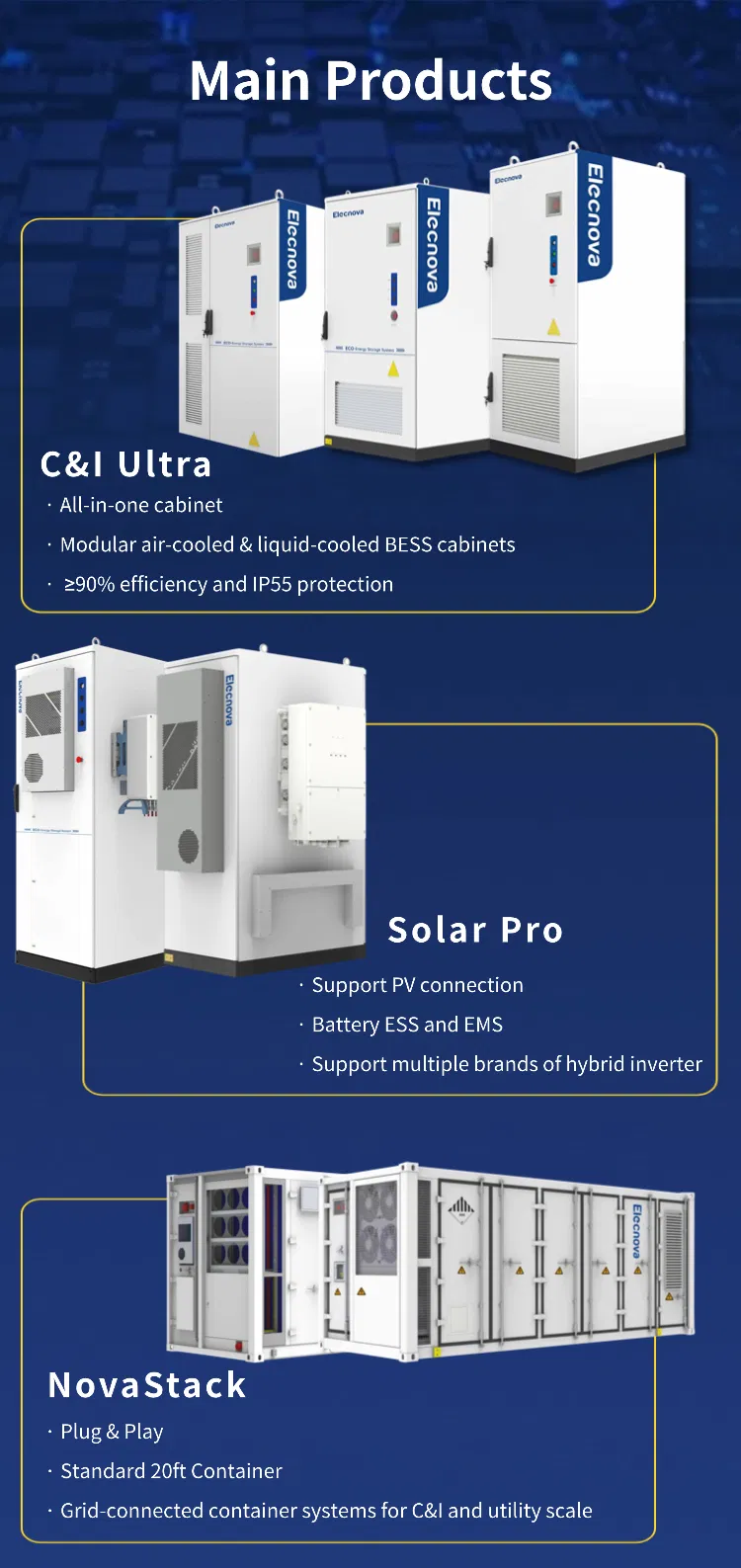

We offer three flagship product lines to meet diverse energy storage demands:
- C&I Ultra: All-in-one modular BESS cabinets (air-cooled/liquid-cooled) with ≥90% efficiency and IP55 protection, ideal for commercial & industrial scenarios.
- Solar Pro: Seamlessly integrates with PV systems, featuring battery ESS, EMS, and compatibility with multiple hybrid inverter brands.
- NovaStack: Plug-and-play 20ft container systems, designed for grid-connected C&I and utility-scale energy storage projects.
Product Parameters
Introducing the ECO-E101WX, a high-performance energy storage solution ideal for EV charging stations and similar applications. With a max charge/discharge rate of 1P, ≥87% efficiency, and a robust cycle life of ≥5500 cycles, it delivers consistent power. Its IP55 ingress rating and forced air cooling ensure durability in varied environments. Trust ECO-E101WX to power your charging infrastructure with reliability and efficiency.
| DC Side |
| Cell Type |
LFP / 120 Ah |
| PACK Configuration |
9.2 kWh / 1P24S |
| System Configuration |
101 kWh / 1P264S |
| Rated DC Voltage |
844.8 V |
| DC Voltage Range |
739.2 ~ 950.4 V |
| Max. Charge/Discharge Rate |
1 P |
| Max. Depth of Discharge |
100% (25 ± 2 ºC) |
| AC Side |
| Rated Output Power |
100kW |
| Max. Apparent Power |
110 kVA |
| Rated AC Voltage |
230 / 400 V |
| AC Voltage Range |
±15% |
| Grid Type |
3W+PE / 3W+N+PE |
| Rated Frequency |
50 Hz / 60 Hz |
| Power Factor |
0.99/ -1 ~ +1 |
| THDi |
≤3% |
| DC Ratio |
<0.5% Ipn |
| General |
| Round Trip Efficiency |
≥ 87% |
| Cycle Life |
≥ 5,500 cycles |
| Communication |
Modbus TCP/IP |
| Fire Suppression System |
Aerosol |
| Ingress Rating |
IP55 |
| Cooling |
Forced air cooling |
| Operating Temperature |
-25ºC~55ºC (Derating after 45ºC) |
| Anticorrosion Rating |
C4 (C5 optional) |
| Humidity |
0~95% RH (non-condensing) |
| Noise |
≤ 75 dB |
| Altitude |
4000m (Derating above 2000m) |
| Dimensions (W*D*H) |
1,250*1,200*2,150 mm |
| Weight |
2,000 kg |
| Certification |
UN38.3, IEC62477-1, IEC61000, IEC62619, IEC63056, EN50549 |
Packaging & Shipping

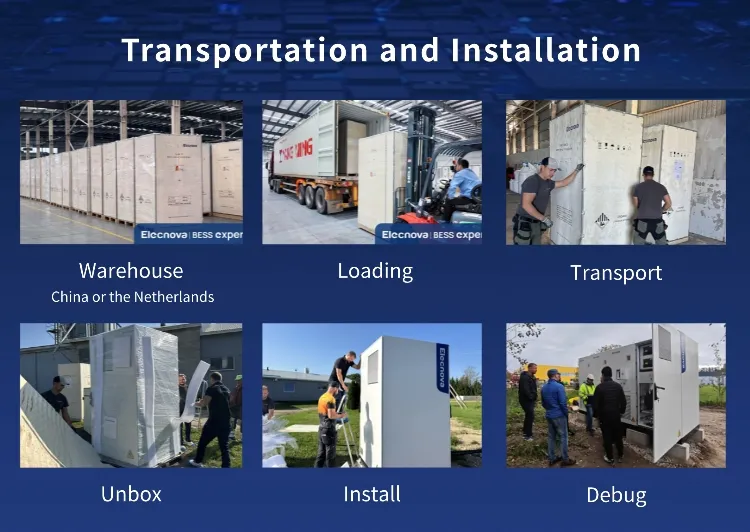

When it comes to energy storage project delivery, a systematic and professional transportation & installation process is key to ensuring your BESS (Battery Energy Storage System) operates reliably. We deliver a full-cycle service from warehouse to commissioning, designed to bring efficiency and confidence to your project:
1. Warehouse
Professional warehouses ensure your energy storage equipment is stored and managed to the highest standards, ready for timely dispatch.
2. Loading
With specialized forklifts and strict operational protocols, we load your BESS units safely onto transport vehicles, minimizing any risk of damage during handling.
3. Transport
Our trusted logistics network delivers your equipment to the project site worldwide, with full visibility and control throughout the journey.
4. Unbox
On-site, our experienced team conducts careful unboxing, ensuring every component of your energy storage system is intact and ready for installation.
5. Install
We follow rigorous installation guidelines to set up your BESS with precision, aligning with industry best practices for safety and performance.
6. Debug
Finally, our technical experts perform thorough debugging and testing, ensuring your energy storage system is fully optimized and ready to deliver reliable energy storage and dispatch.

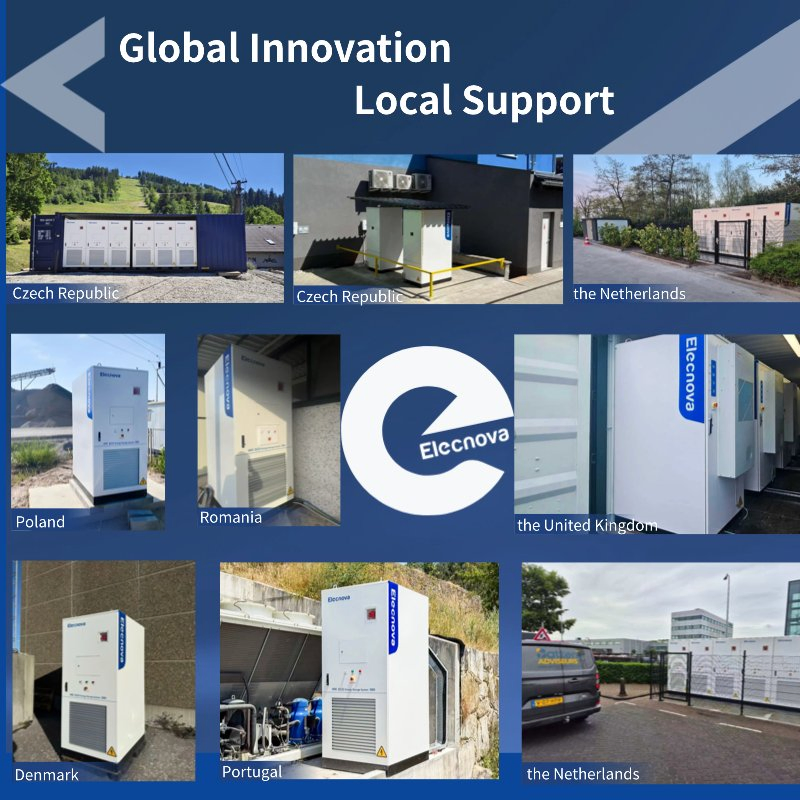

Reference

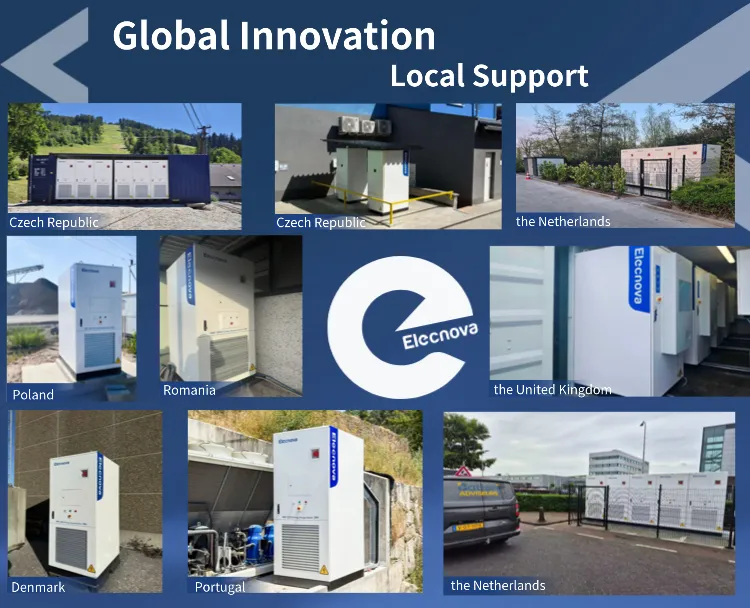

From Italy, the Netherlands, Belgium, Czech Republic, and Poland in Europe, to Ukraine, Southeast Asia, Africa, and the Middle East, our energy storage solutions are transforming energy landscapes worldwide. Trusted across continents, we deliver reliable, scalable BESS to empower your energy security, wherever you are.
After Sales Service
We stand behind every energy storage solution with a robust after-sales ecosystem. Our dedicated after-sales center, service partners, and warehouse with ample spare parts ensure localized, timely support. We offer an industry-leading max 5+5 years warranty, coupled with a cells performance warranty of up to 8000 cycles at 75% SOH. Our services extend to on-site/online training (maintenance, installation, sales), comprehensive technical guidance (specifications, schematic, design), 3rd party EMS testing, and tailored support for special projects.
Certifications
Our energy storage solutions are backed by a comprehensive suite of international certifications, underscoring our commitment to excellence, safety, and compliance across global markets:
- Transport & Safety: UN38.3 (battery transport safety), MSDS (material safety data).
- Industry Standards: IEC 62619, IEC 63056, IEC 62477, IEC 61000 (electromagnetic compatibility), CEI 0-16, CEI 0-21.
- North American Compliance: UL 9540A.
- Environmental & Restrictions: RoHS.
Frequently Asked Questions
Are you a trading company or a manufacturer?

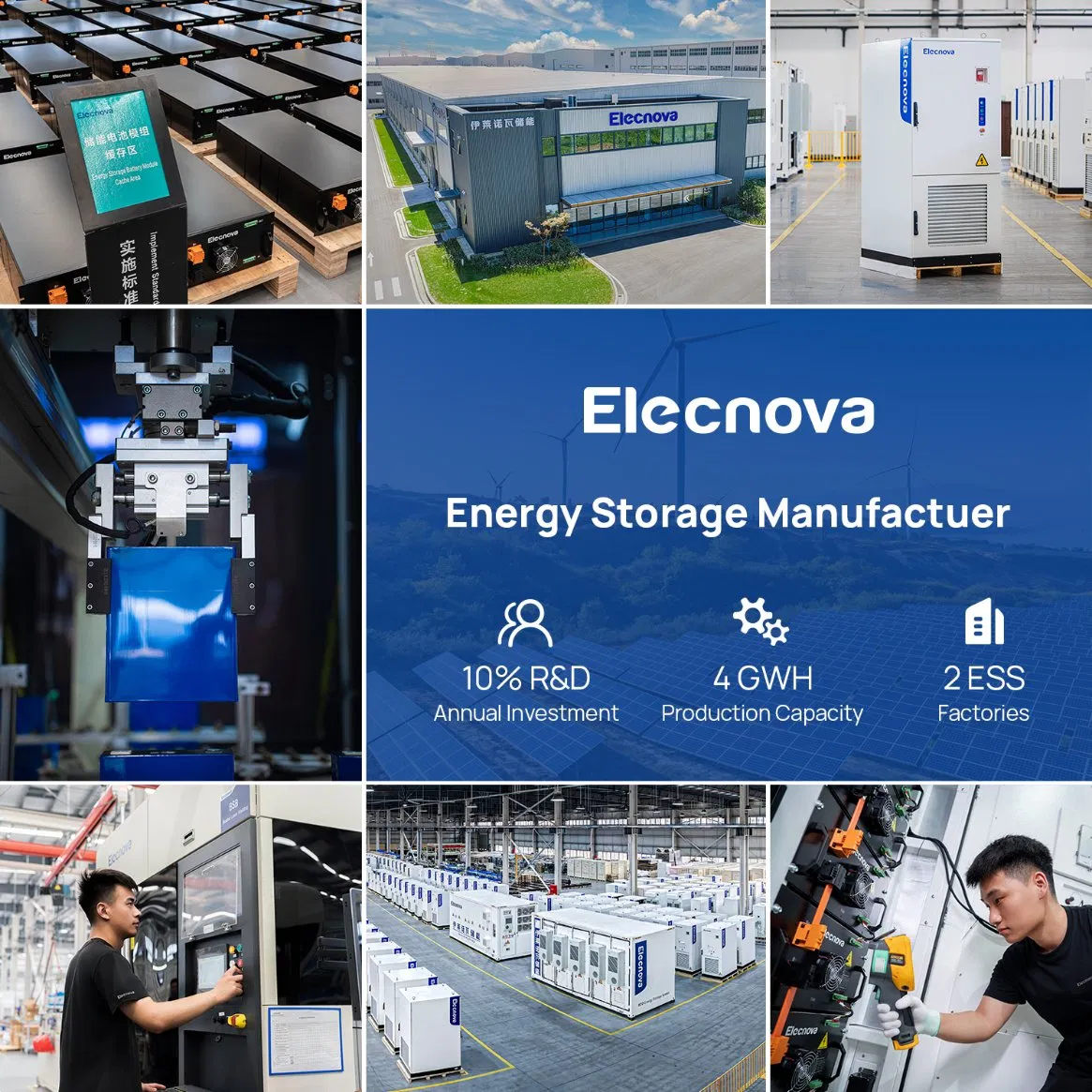

We are a professional manufacturer specializing in advanced energy storage systems.
Can you supply OEM & ODM services?
Yes, we provide both OEM and ODM services based on project requirements, subject to minimum order quantities.
Can you ship your battery products by sea or by air?
Yes, we have long-term partnerships with professional logistics forwarders who are fully certified for safe battery transport.
How long is the standard warranty?
Our product warranties range from 5 to 10 years depending on the configuration and project requirements.
What components are integrated into the all-in-one cabinets?
Our all-in-one storage solutions specialize in complete systems integrating the battery PACK, PCS, BMS, EMS, safety distribution, and temperature control.
How do you provide after-sales service and support?
We provide support through our global branches, offering localized repair, replacements, technical training, and on-site guidance.
