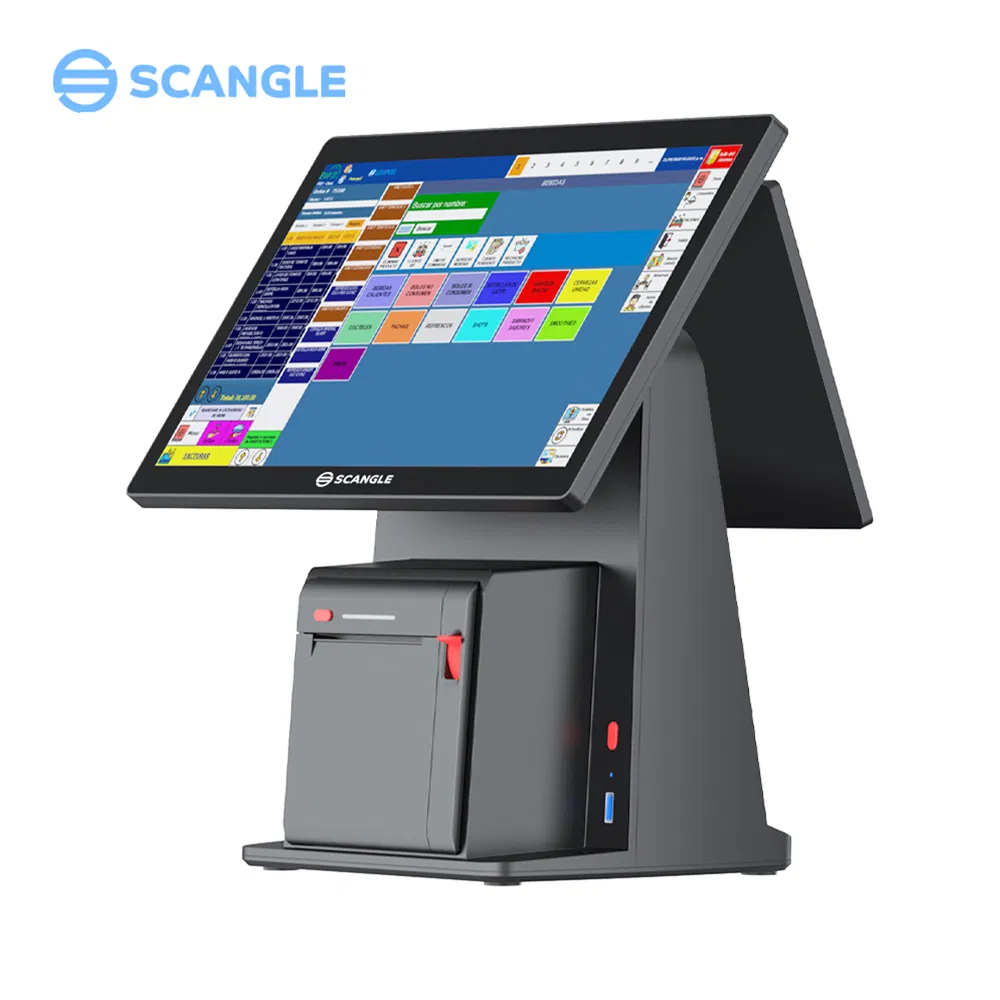

OEM All in One Cash Register POS System with 80mm Printer

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview
Dual screen all in one POS Systems with 80mm receipt Printer Support Windows & Android OS
This terminal is ideally designed for POS terminal applications to support any kind of software POS system. Thanks to a durable CPU with high performance, and an easy-access SSD with a detached slot, maintaining the device is seamless. This POS terminal is developed to be flexible with different sizes of customer displays and can be easily updated to become your business's most loyal helper.
All in One Cash Register POS System with 80mm Printer
Basic Info
Model NO. D2 Touch Screen Touch Screen
Printer Thermal Certification CE, CCC, FCC, EMV
Function Type POS for Consuming Network Management Support Network Management
CPU Intel System Windows
Processor J6412 Quad Core 2.0GHz Memory 2GB DDR3 1066MHz up to 8GB
SSD 64GB/128GB/256GB Main Display 14.1" IPS Display (1920*1080)
Second Display 10.1" IPS Customer Display Special Features Cost-effective, Fast Processing
Color Available Black Transport Package 1 Unit in a Carton
Origin China HS Code 8470509000
Production Capacity 500 units/Day
Specification
D2 Touch screen POS system can be customized as requested. OEM/ODM options are available.
  • Low MOQ requirements to support business start-ups.
  • Custom logo printing on products and packaging.
  • Professional product media support.
  • Factory visualization tours and sample testing.
  • Reliable online technical support.
Android Version
Display: 14.1" IPS Capacitive Touch Display (1366*768)
Processor: RK3568
Memory Options: 2G+16GB / 2G+32G / 4G+32G / 4G+64G
OS: Android 11 / Android 13
Printer: Inbuilt 80mm thermal printer with auto-cutter (Default: USB, Optional: RS232 / Bluetooth)
Media: Support Receipt & thermal Label
Windows Version
Display: 14.1" IPS Capacitive Touch Display (1920*1080)
Processor Options: J4125 / J6412 / I3 / I5 / I7 / N97 / N100 (Default: J6412 Quad Core 2.0GHz)
Memory: RAM 4GB/8GB, SSD 64GB/128GB/256GB
OS: Windows 10 Pro / Windows 11 Pro
Printer: Inbuilt 80mm thermal printer with auto-cutter (Default: USB, Optional: RS232 / Bluetooth)

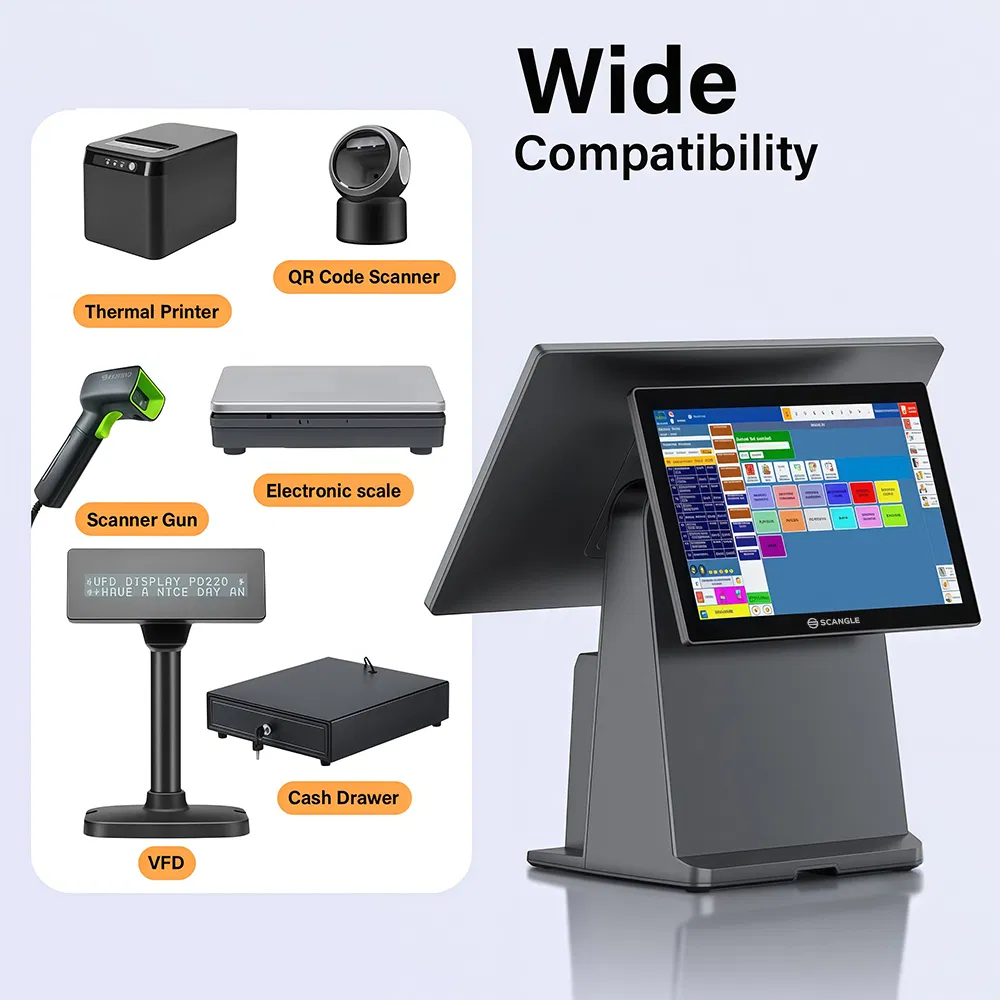

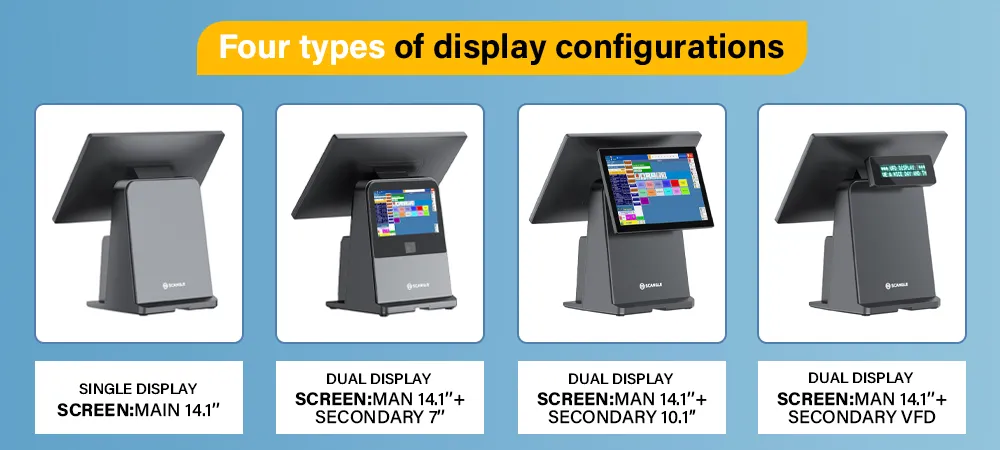

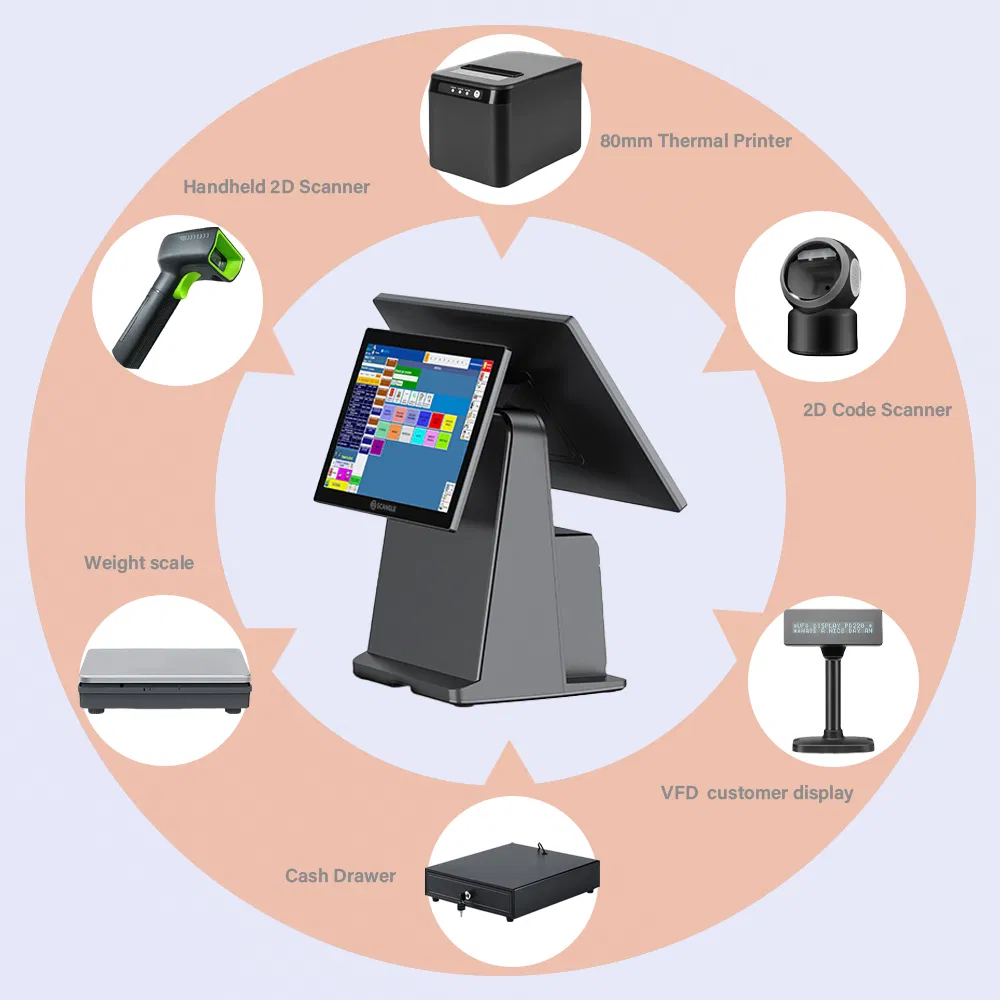

Options: 10.1" IPS Customer display, 7" LCD display, Wi-Fi, 2D Barcode scanner, NFC
POS Product Dimension and Specifications
POS Product Interface details

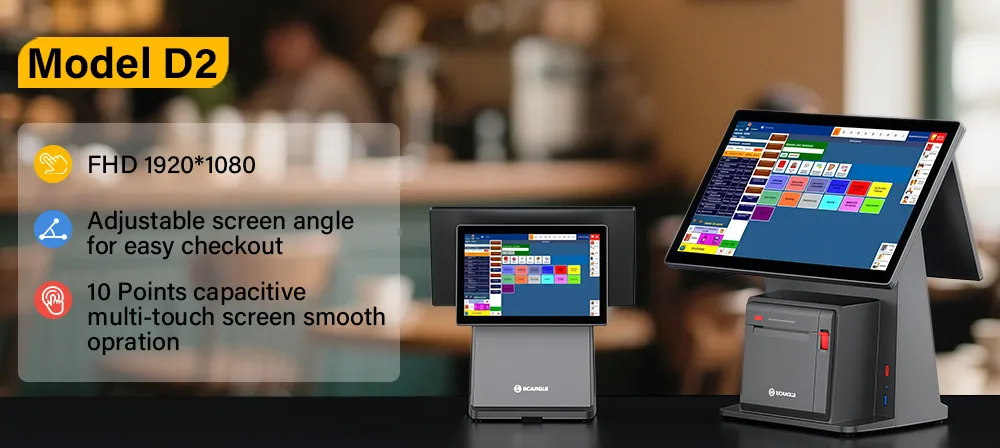

All in One POS Terminal View

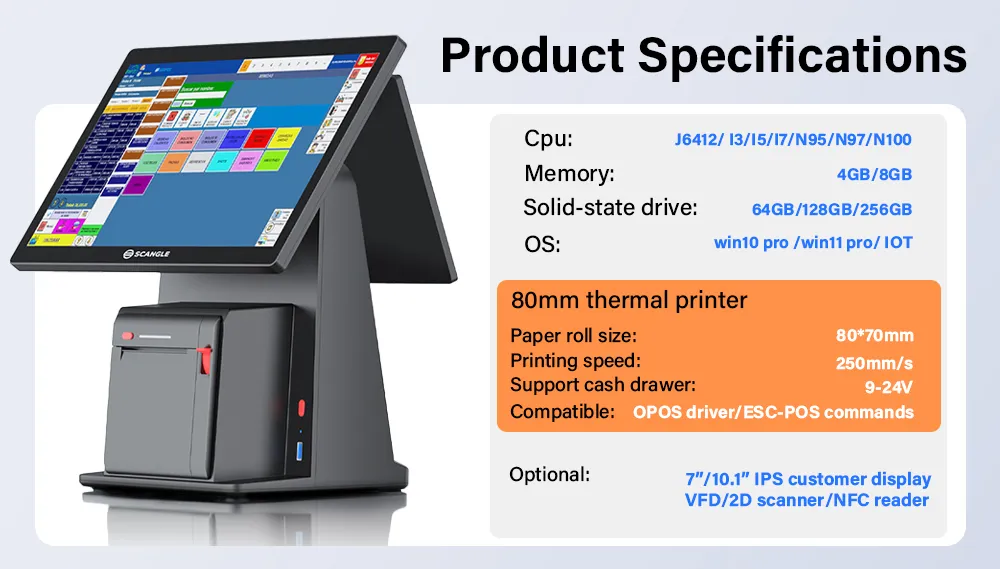

Touch Screen POS system design
Cash Register Terminal display
Customer display option POS
Thermal printer detail POS

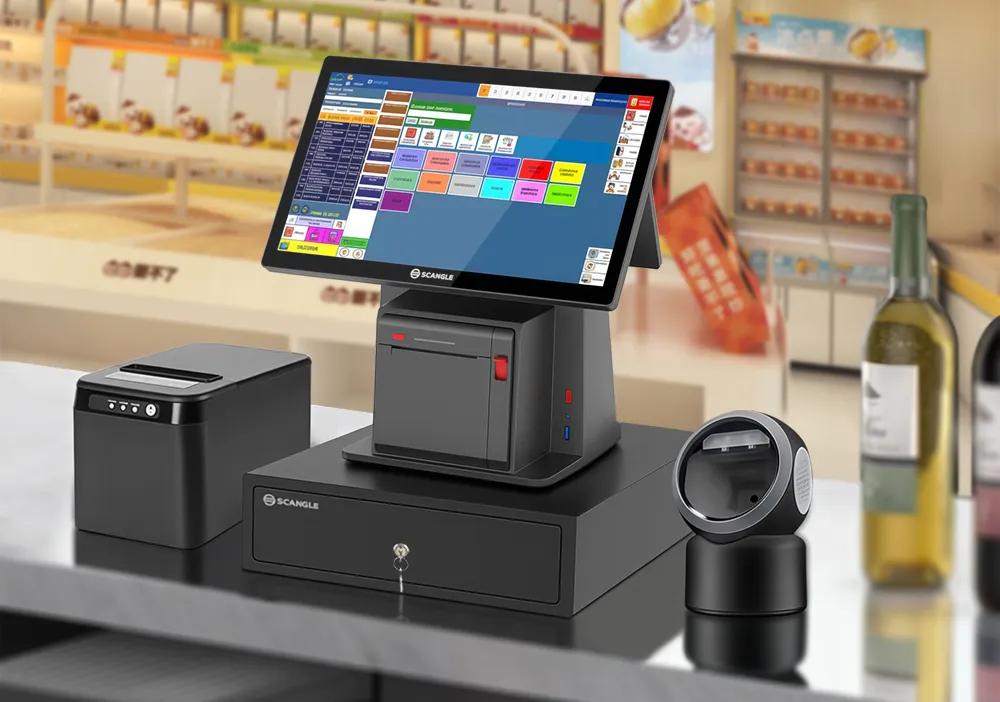

Dual screen POS terminal design

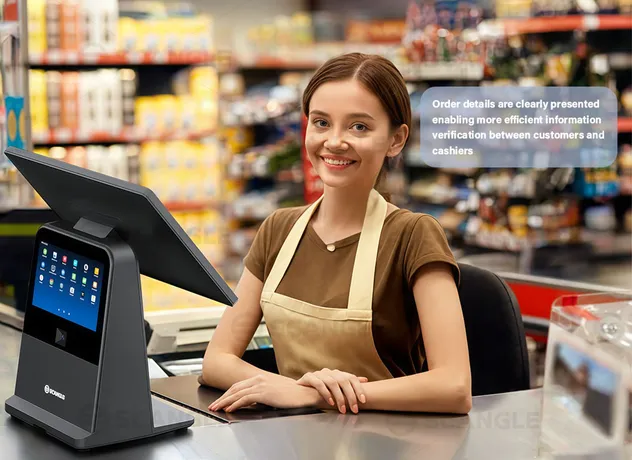

POS Side View Detail

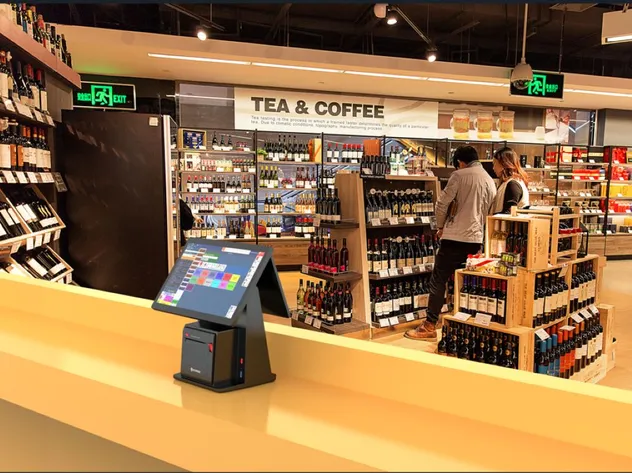

POS Front View Detail

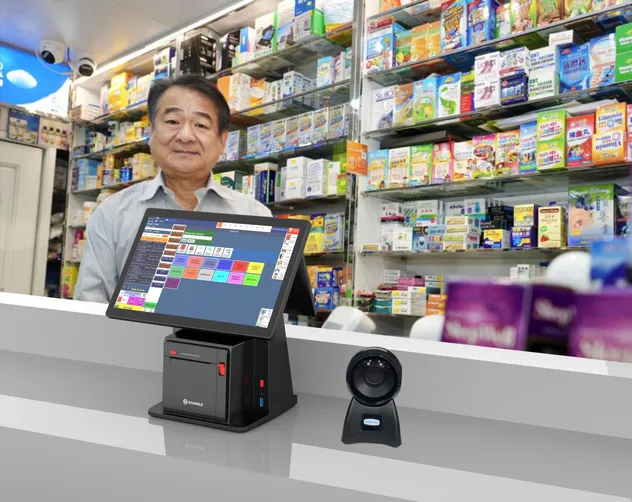

POS Back View Detail

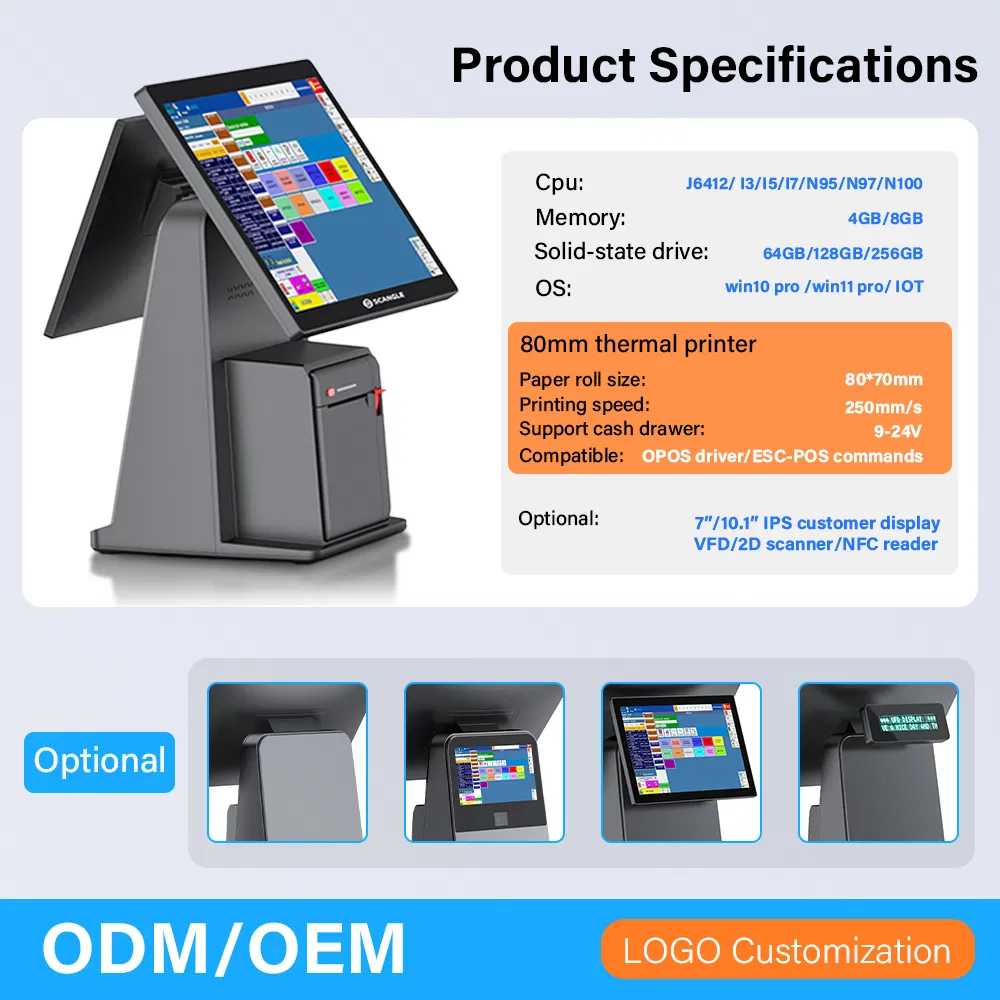

Windows Specification Details
Feature Specification Details (Windows)
ProcessorIntel Celeron J6412 (default), Optional: J4125/ N95/N97/N100/i3/i5/i7
MemoryDDR4 RAM 4GB Standard, optional: 8GB / 16GB
Graphics ChipsetIntel UHD Graphics
SSDNVMe M.2 2242: 1*128GB Standard (2 slots), Optional: 256GB/512GB
LCD14" FHD (1920*1080 Pixel), Optional: 14" HD (1366*768) LED backlighting
Touch ScreenPCAP panel
Brightness300 cd/m²

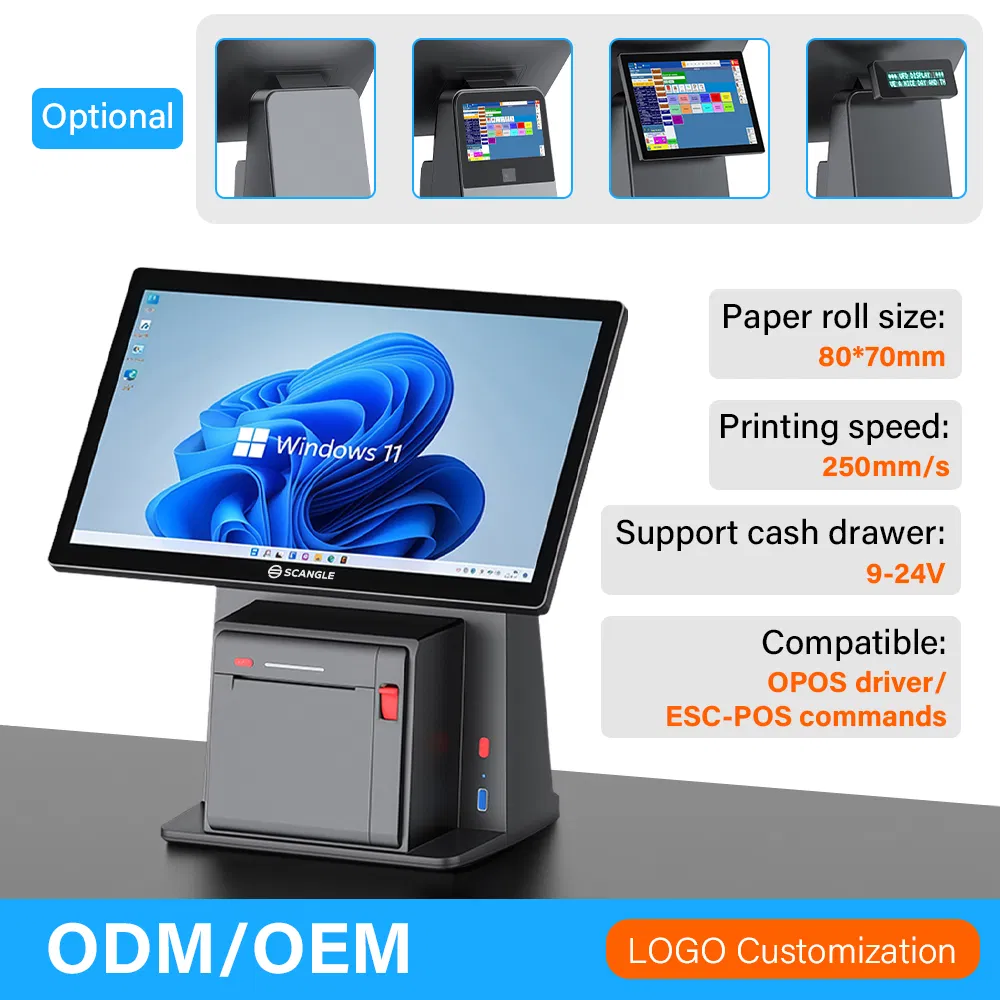

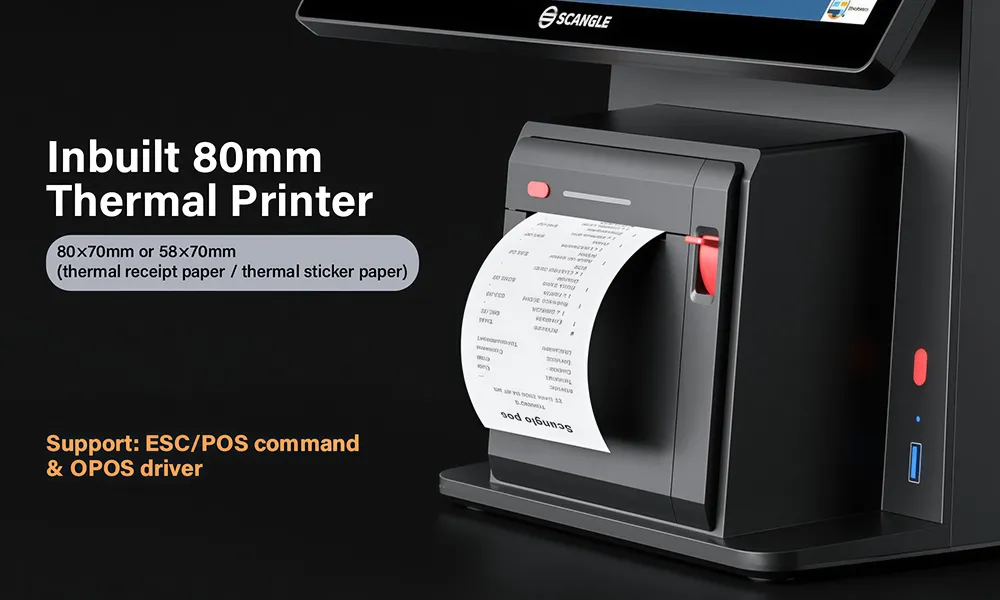

PrinterInbuilt 80mm Thermal Printer. Paper size: 80*70mm or 58*70mm (receipt & sticker). Supports ESC/POS & OPOS. Interface: USB+RS232

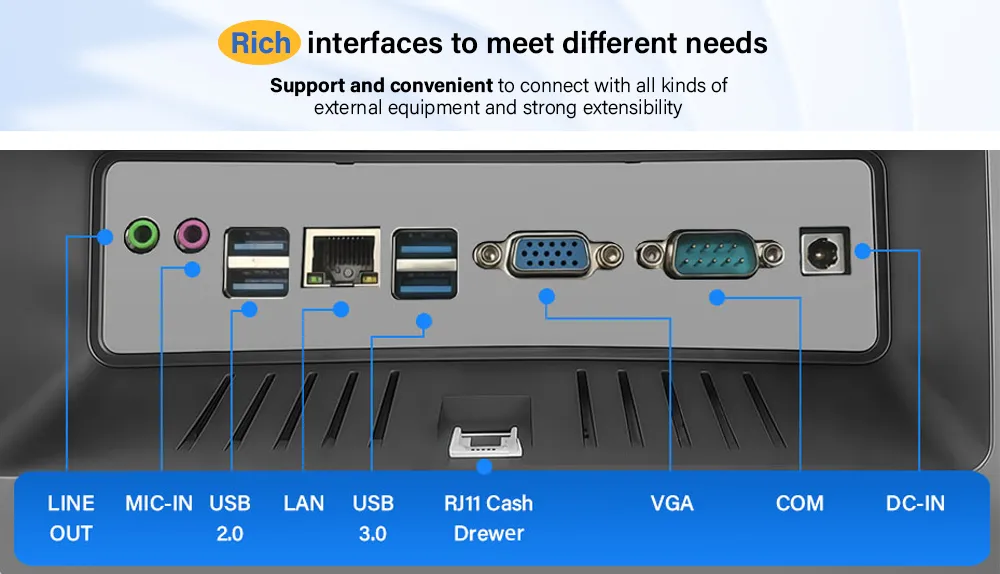

I/O Ports1 Serial, 3*USB 2.0, 2*USB 3.0, 1 Gigabit LAN, 1 VGA, 1 RJ12 (Cash Drawer support 9-24V), 1 Audio Jack, 12V DC power
Compatible OSWindows 10 / 11 Pro / IoT Enterprise, Linux
Android Specification Details
Feature Specification Details (Android)
ProcessorRockchip RK3566 (default), Optional: RK3568/RK3599
MemoryDDR4 RAM 2GB Standard, Optional: 3/4/8GB
GPUARM G52 2EE
Storage32GB, Optional: 64/128/256GB
LCD14.1" FHD IPS (1920*1080), Optional: 14.1" TFT (1366*768) LED backlighting
Touch ScreenPCAP panel
PrinterInbuilt 80mm Thermal Printer. Paper size: 80*70mm or 58*70mm (receipt & sticker). Supports ESC/POS & OPOS. Interface: USB+RS232+Bluetooth
I/O Ports1 Serial, 3*USB 2.0, 2*USB 3.0, 1 Gigabit LAN, 1 Sim Slot (4G), 1 TF Slot (Max 128G), 1 Cash Drawer (RJ12), 1 Audio Jack
Compatible OSAndroid 8.1 / 11 / 13 / 14
Factory & Production
Production Facility Office Area

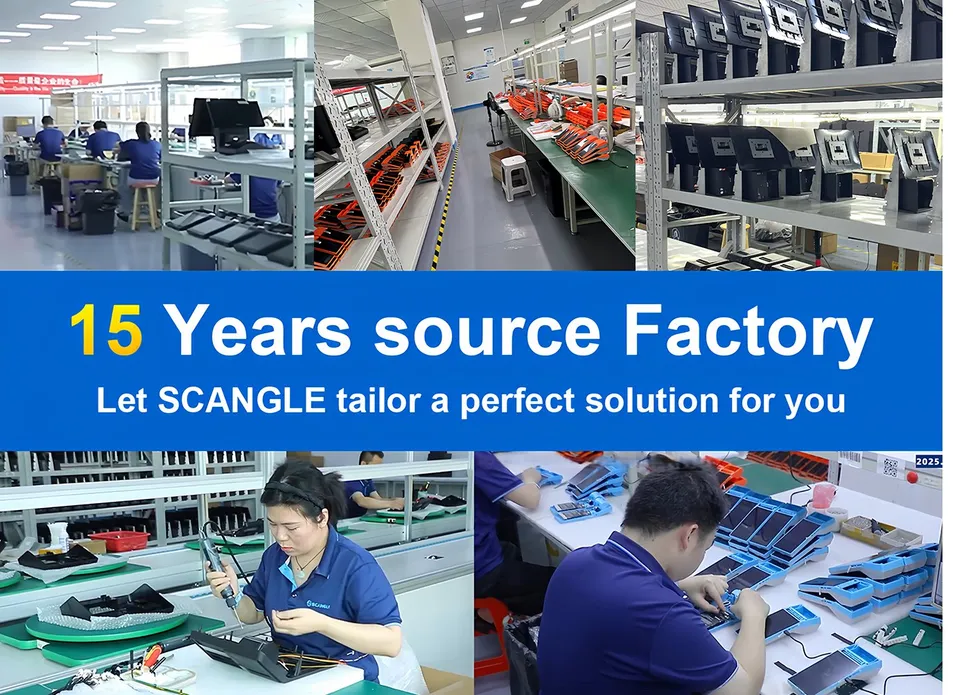

Production Assembly Line Area
Factory Overview Banner

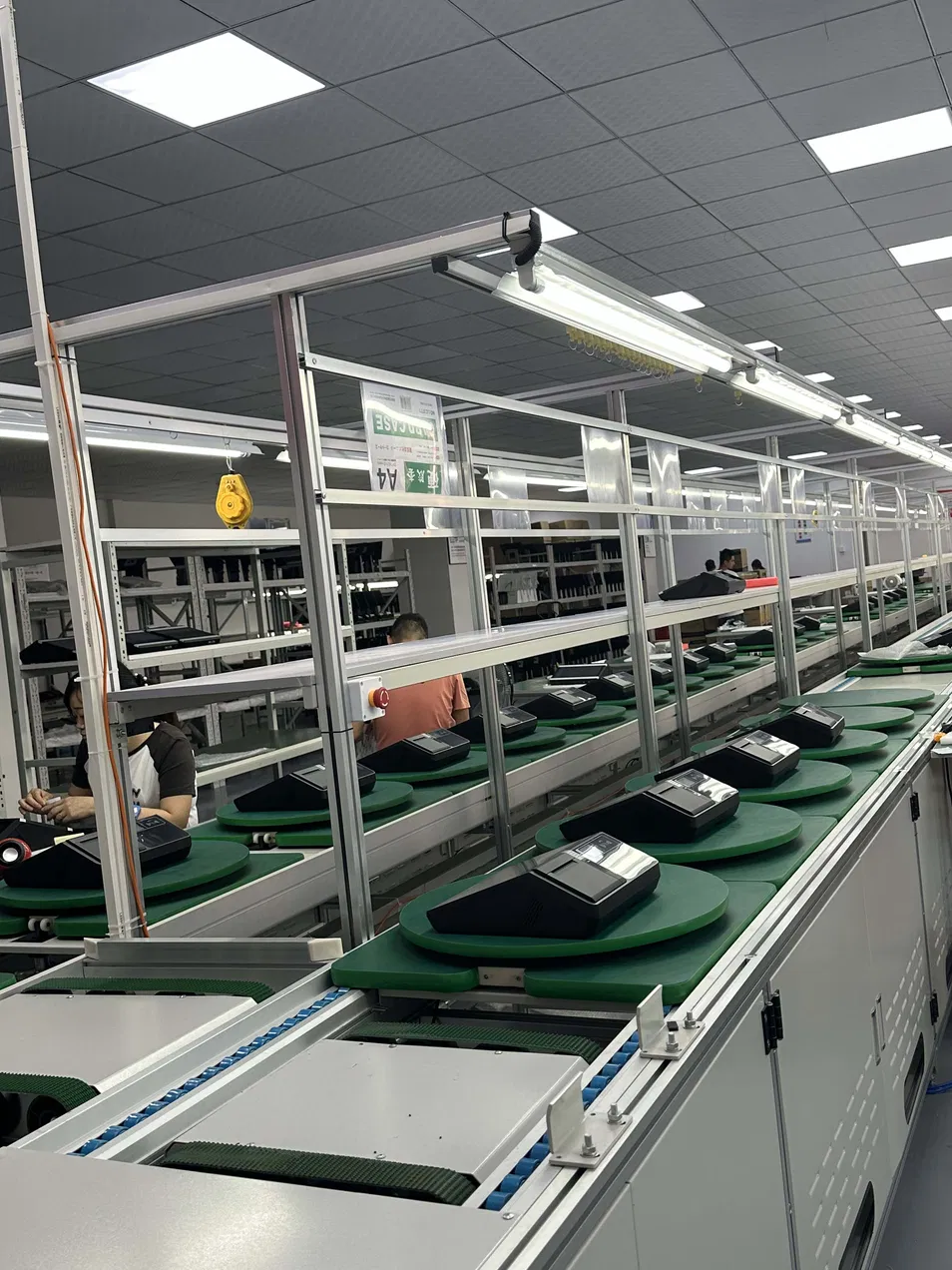

Factory Automatic Production Line

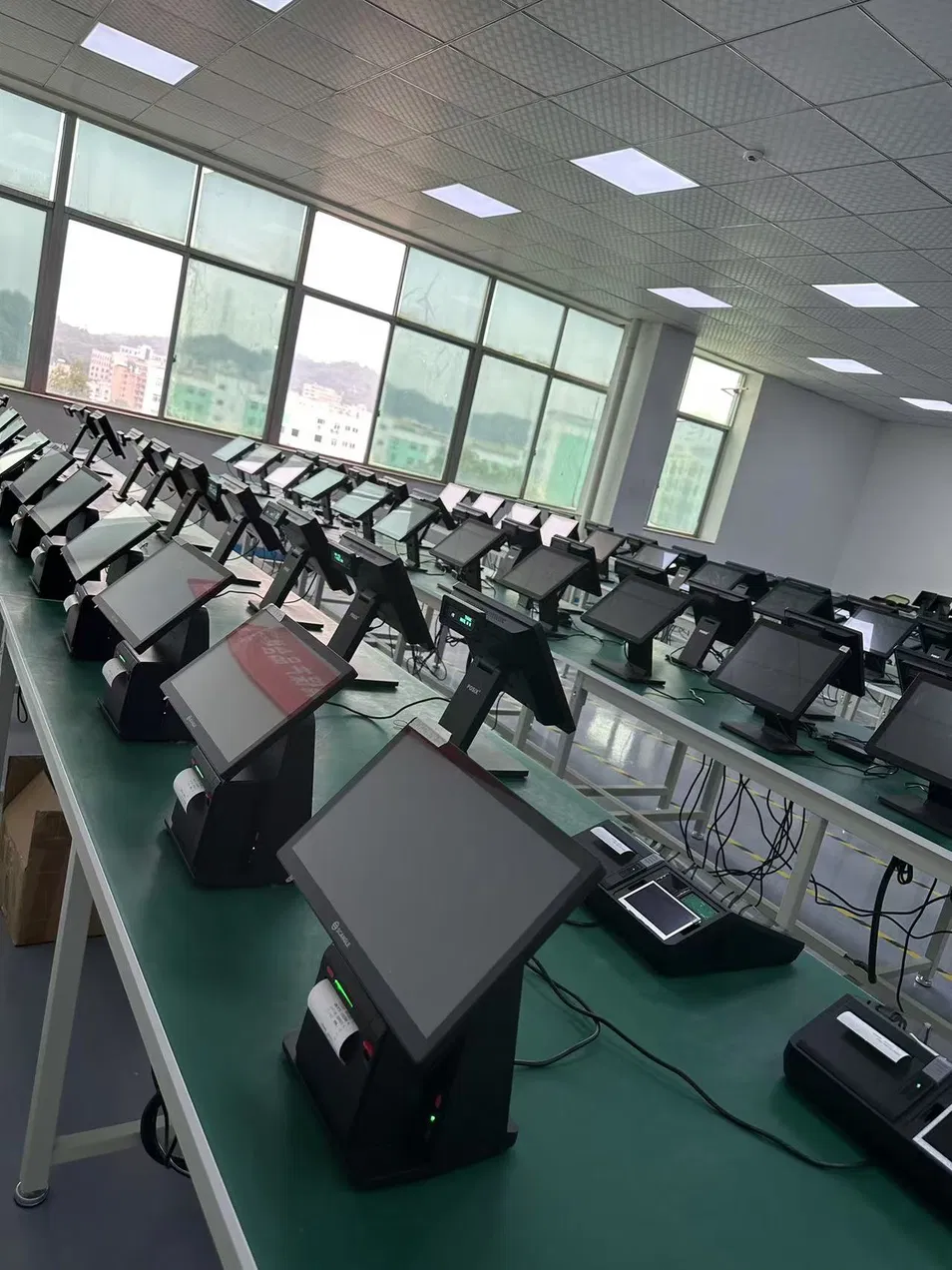

Factory Testing Room 1

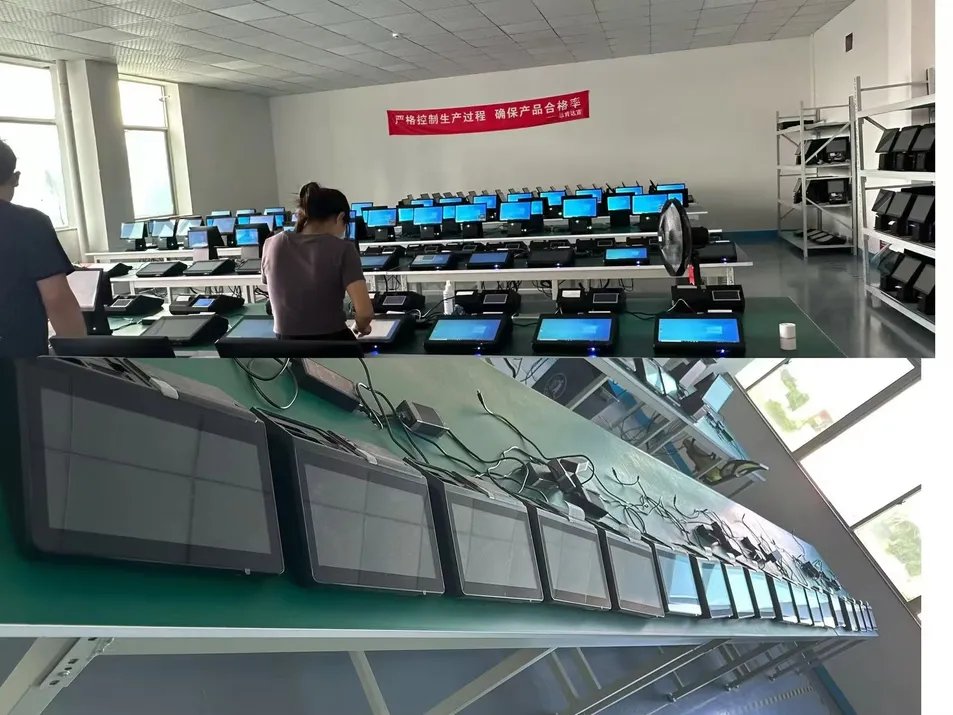

Factory Testing Room 2

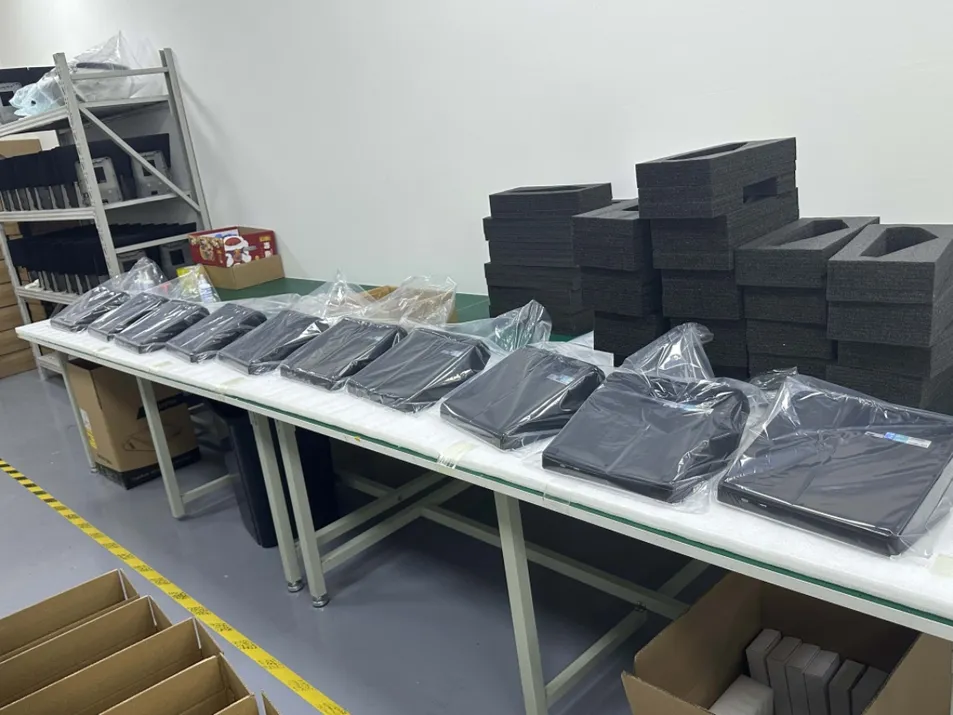

Factory Packaging Area after Testing
Exhibitions
Participating in major domestic and overseas industry exhibitions yearly, including Euro CIS & EuroShop in Germany, Autocom in Brazil, Asia In-Store, and Chinashop, ensuring constant innovation and international reach.

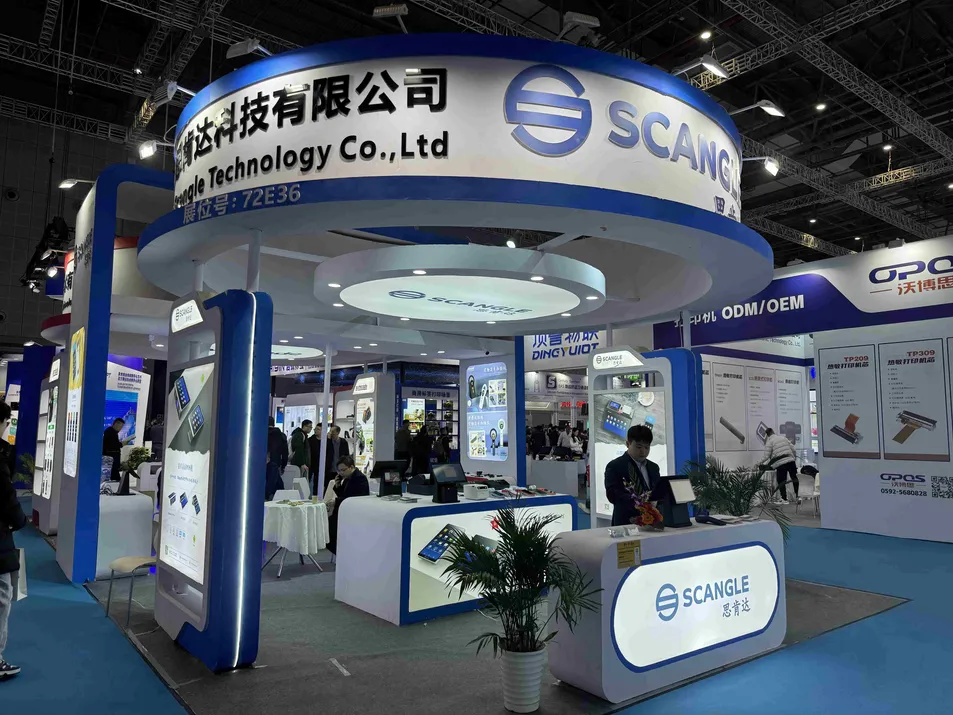

International Exhibition Booth View 1
International Exhibition Booth View 2
Exhibition Client Interaction View 1
Exhibition Client Interaction View 2

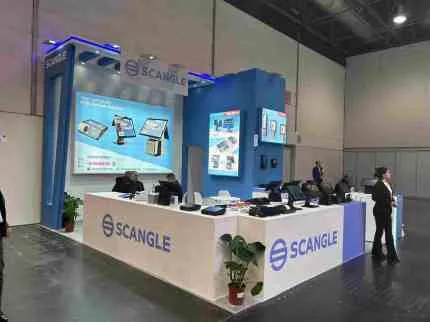

Exhibition Product Display Area 1

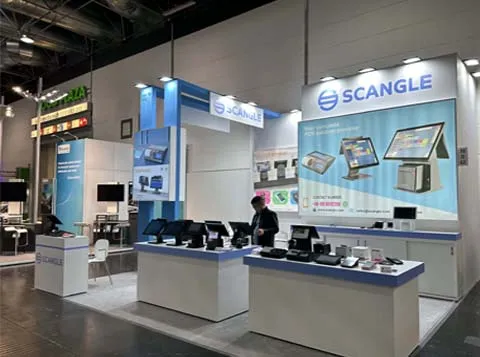

Exhibition Product Display Area 2
Frequently Asked Questions
Q1: What is the product warranty?
All of our POS products come with a 1-year / 12-month warranty. We support free components and online technical assistance during the warranty period. Post-warranty, original components are available at competitive prices, along with continuous technical support.
Q2: Do you offer OEM & ODM services?
Yes, as a factory we provide comprehensive OEM and ODM services. OEM service is free of charge when the order quantity reaches our MOQ, and is provided at a minimal cost for orders below MOQ.
Q3: Are the items kept in stock?
We generally produce items customized to specific client requirements. However, we maintain a stock of spare parts for standard sample configurations, allowing sample orders to ship within 2-3 days post-payment. Standard volume orders ship in 5-7 days, while custom OEM/ODM timelines depend on requirements.
Q4: What are the accepted payment methods?
For sample orders, full payment via T/T is required in advance. For standard volume orders, terms are 50% T/T in advance and the remaining 50% T/T before shipment. For long-term partners, terms can be adjusted to 50% T/T in advance and 50% L/C upon presentation of the Bill of Lading.
Q5: What are the delivery options?
For small and sample orders, products can be delivered via DHL, UPS, or specialized express routes. For bulk and volume orders, delivery is arranged via air cargo or sea freight, depending on the volume and client preference.
Q6: How is product quality controlled, and what is your primary market?
We specialize in POS system design and development, adhering to European standards during production. Our primary markets are Europe and South America. Our typical customer base includes POS software developers, IT solution providers, and retail management companies.
