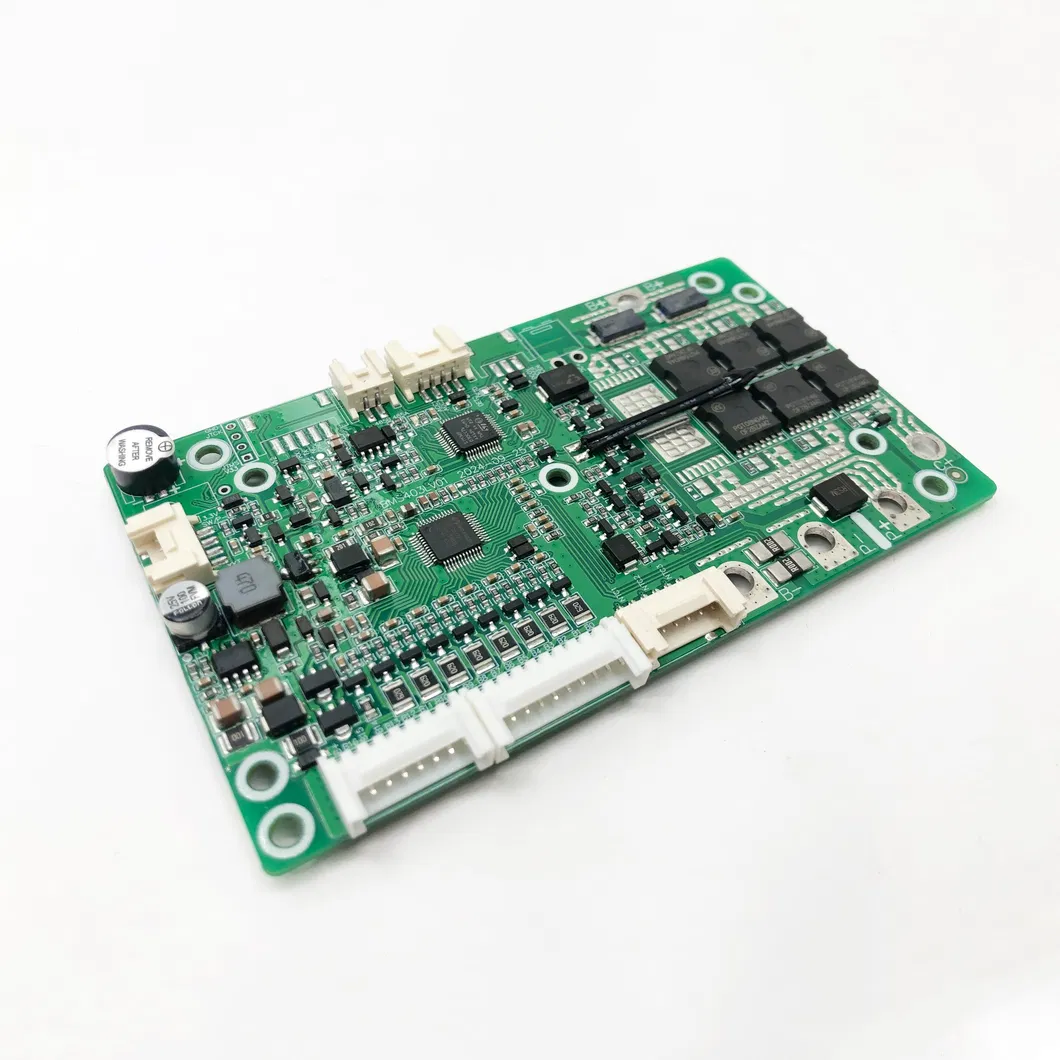

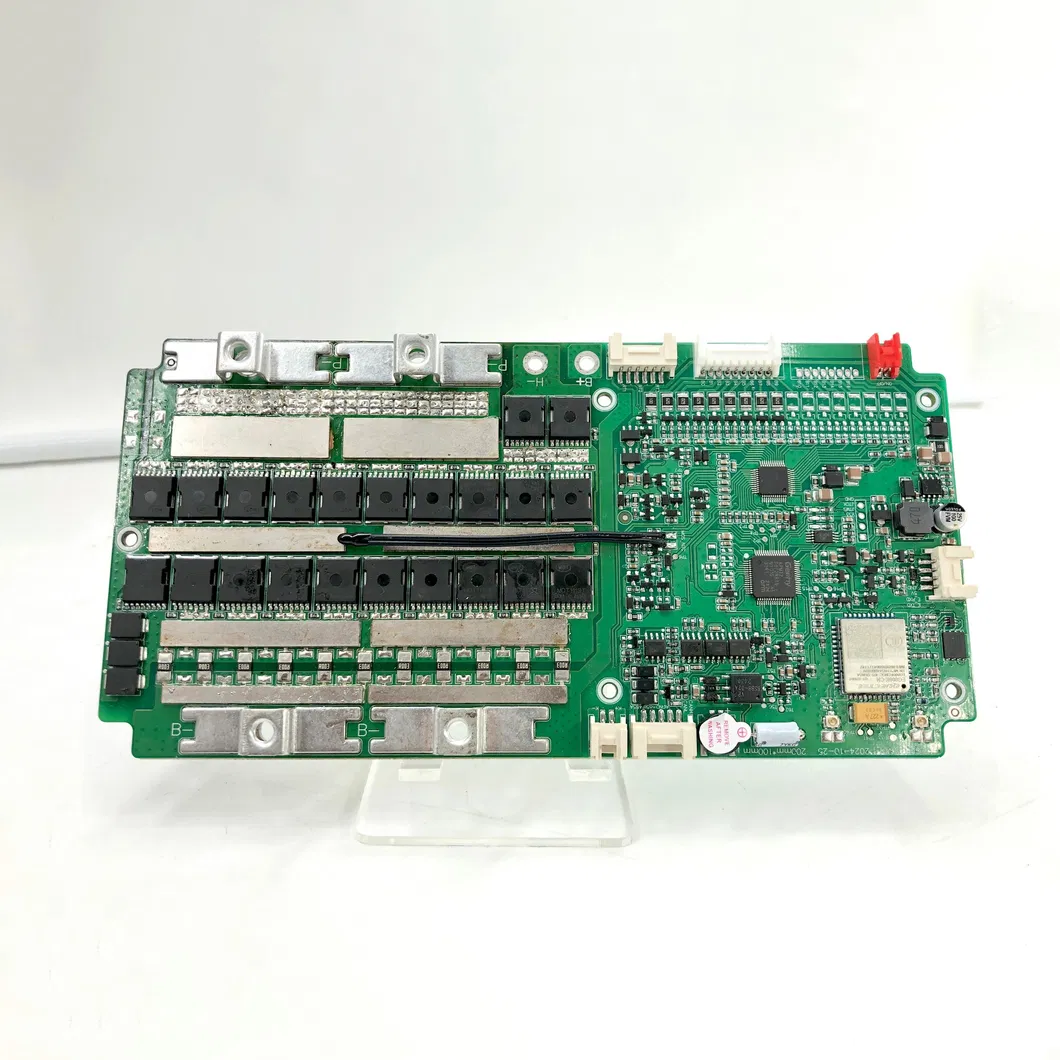

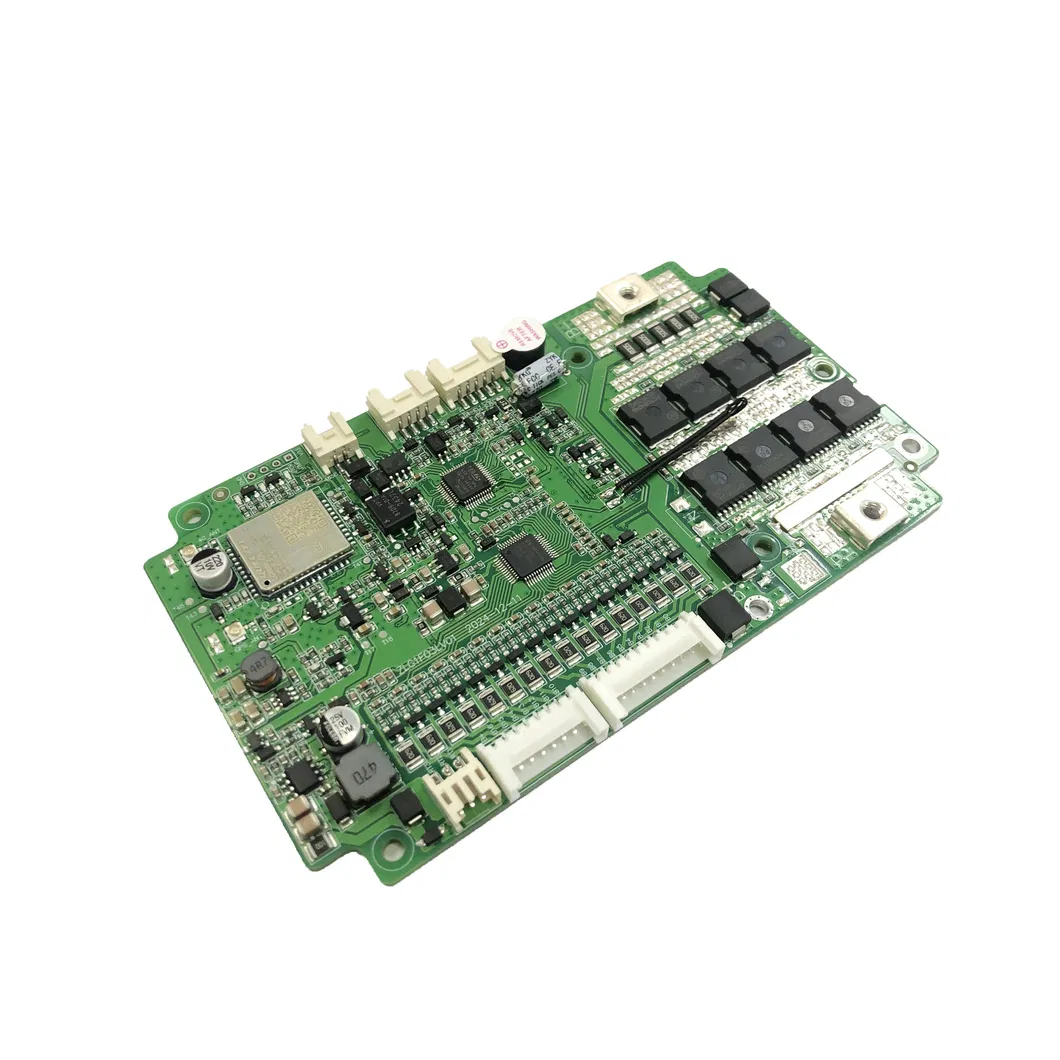

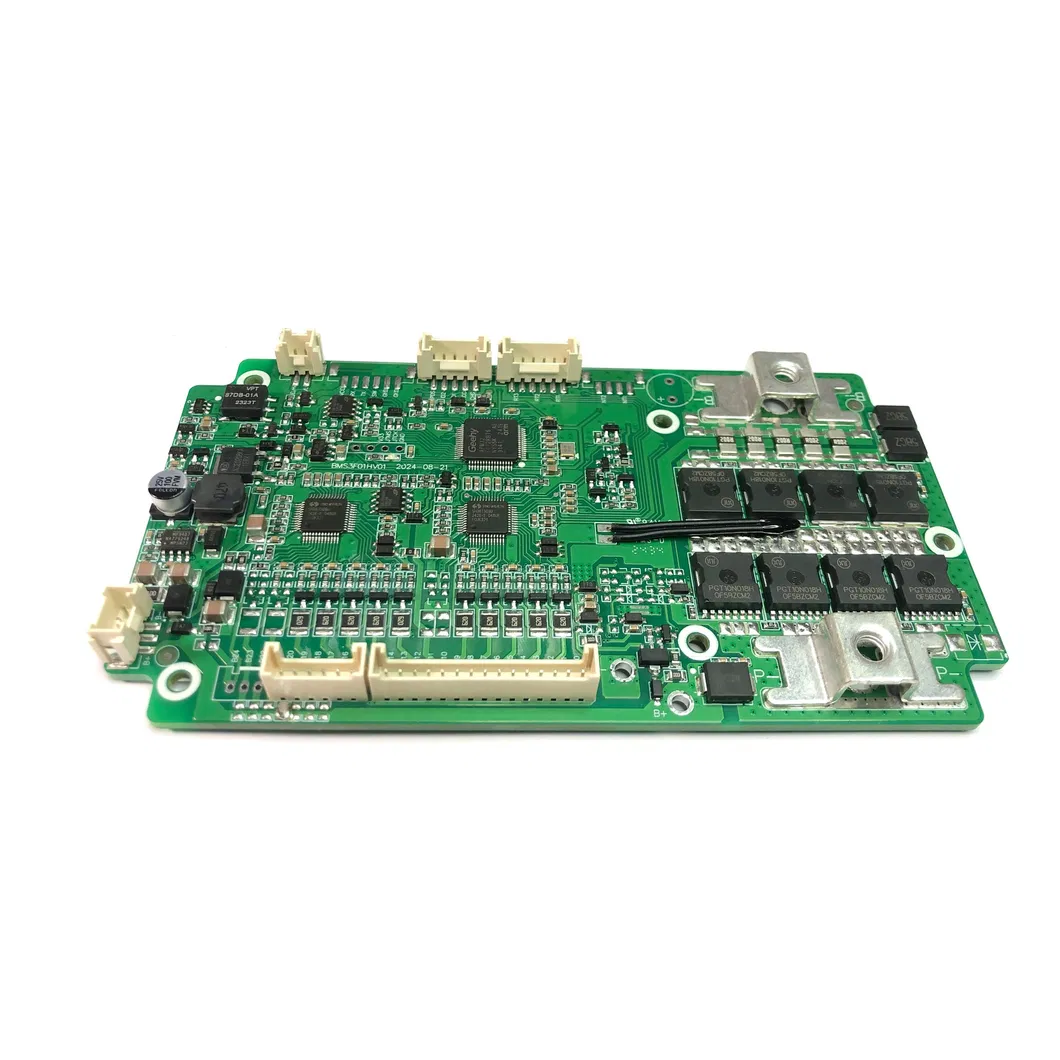

LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge

Customization: Available
Application Scenarios: E Bike,Outdoor Ess, E Motor,etc.
Low-Voltage Switch: Support

Product Description

  • Overview
  • Product Description
  • Main Products
  • Company Profile
  • Certifications
  • Our Partners
  • Exhibitions
  • Packaging & Shipping
  • FAQ
Basic Info.

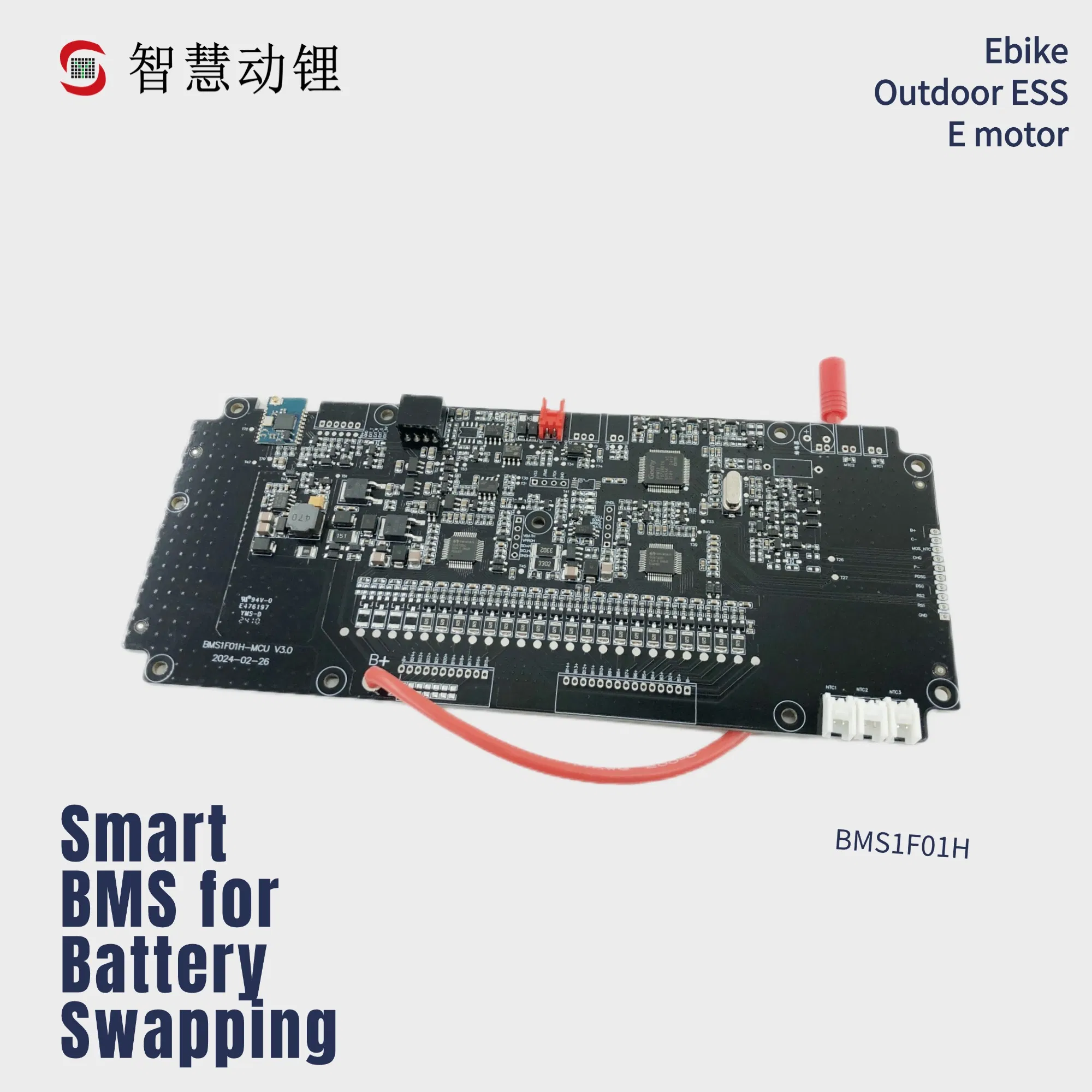

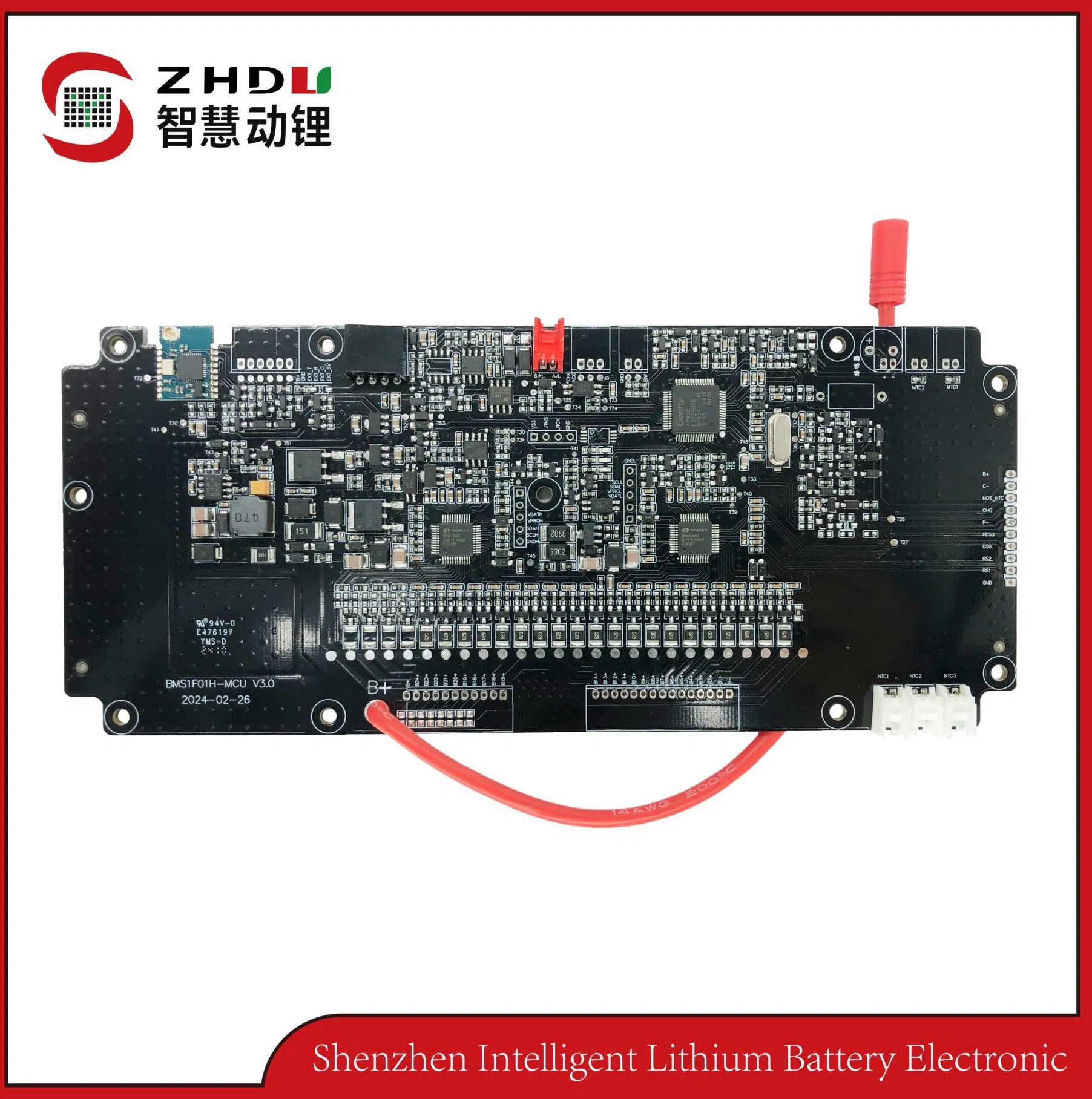

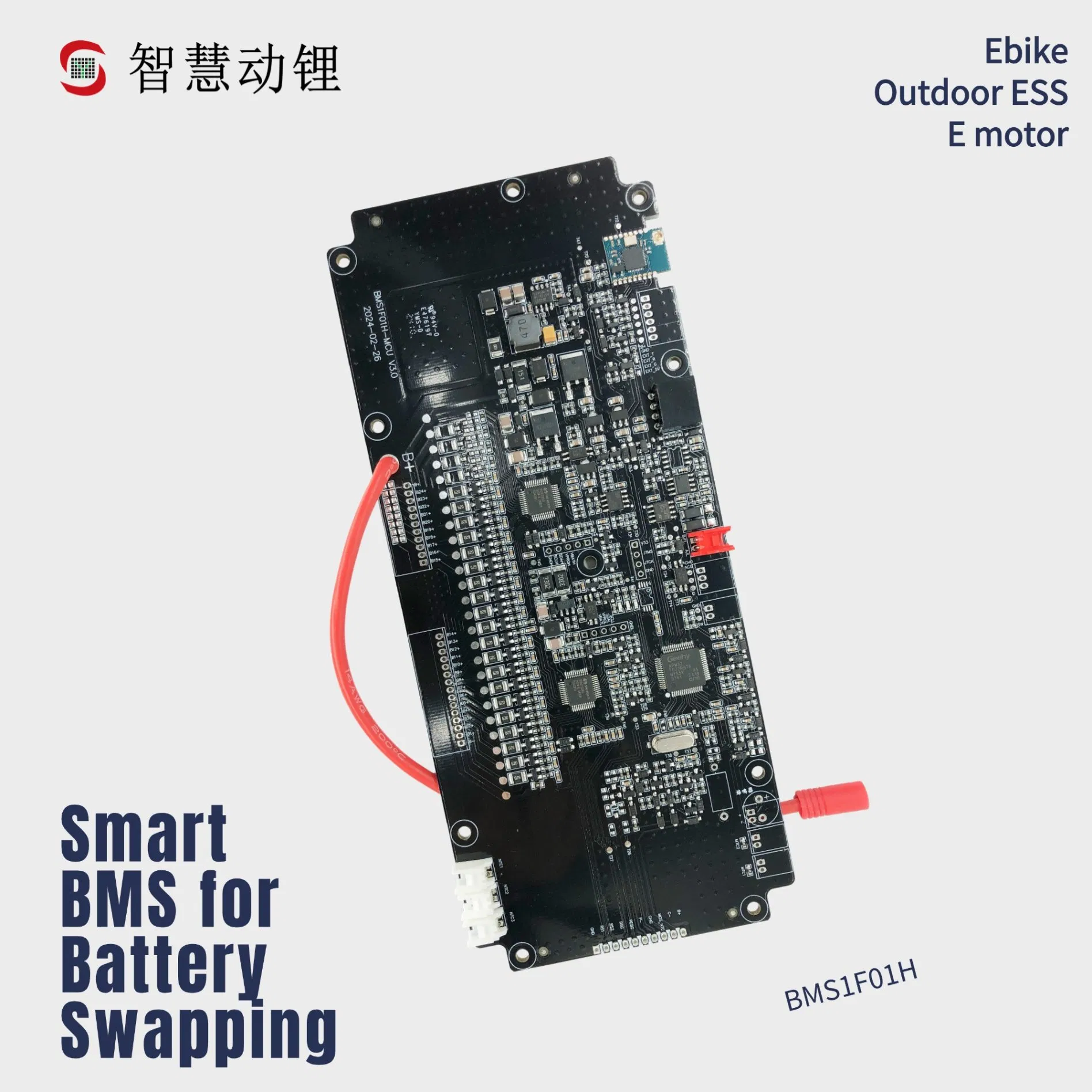

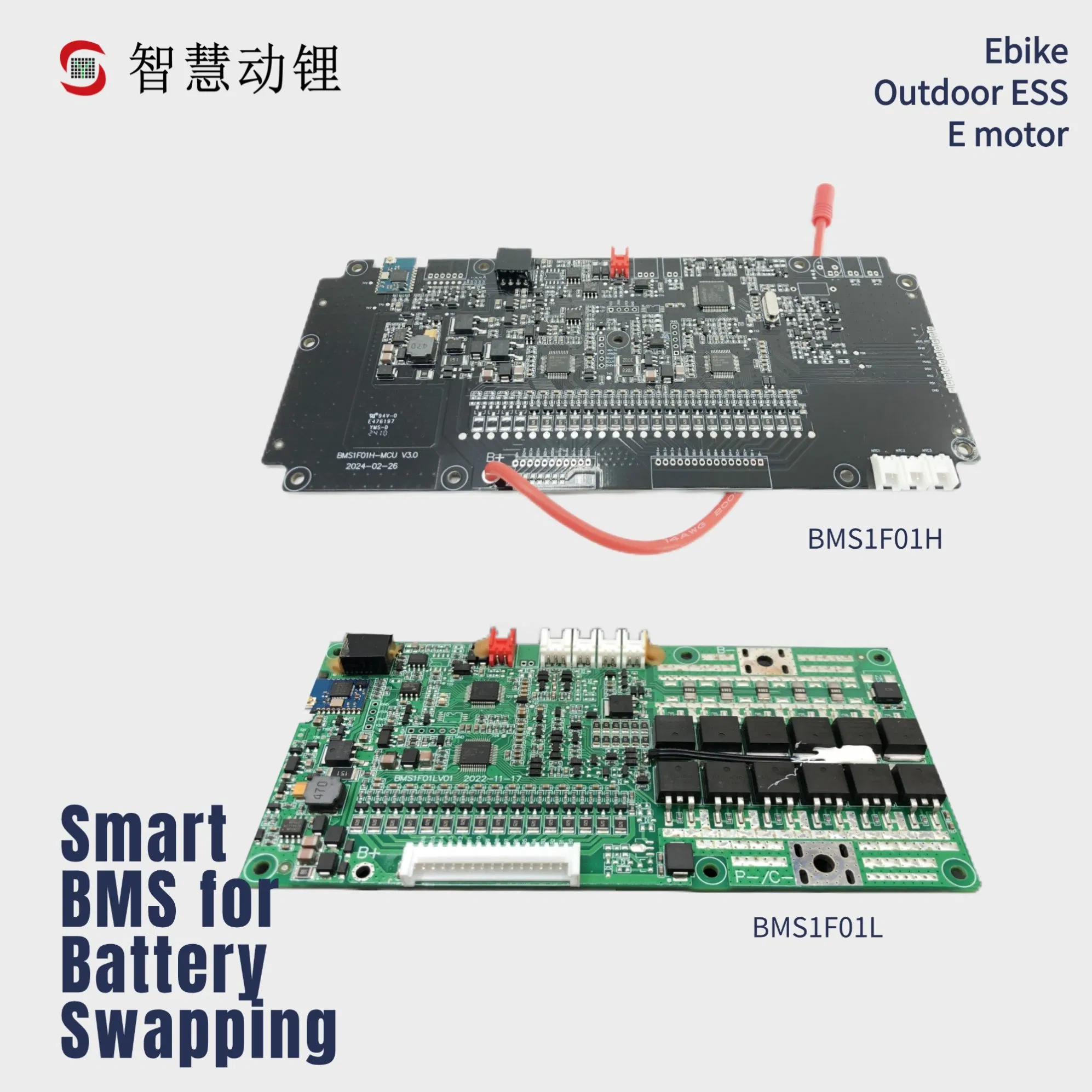

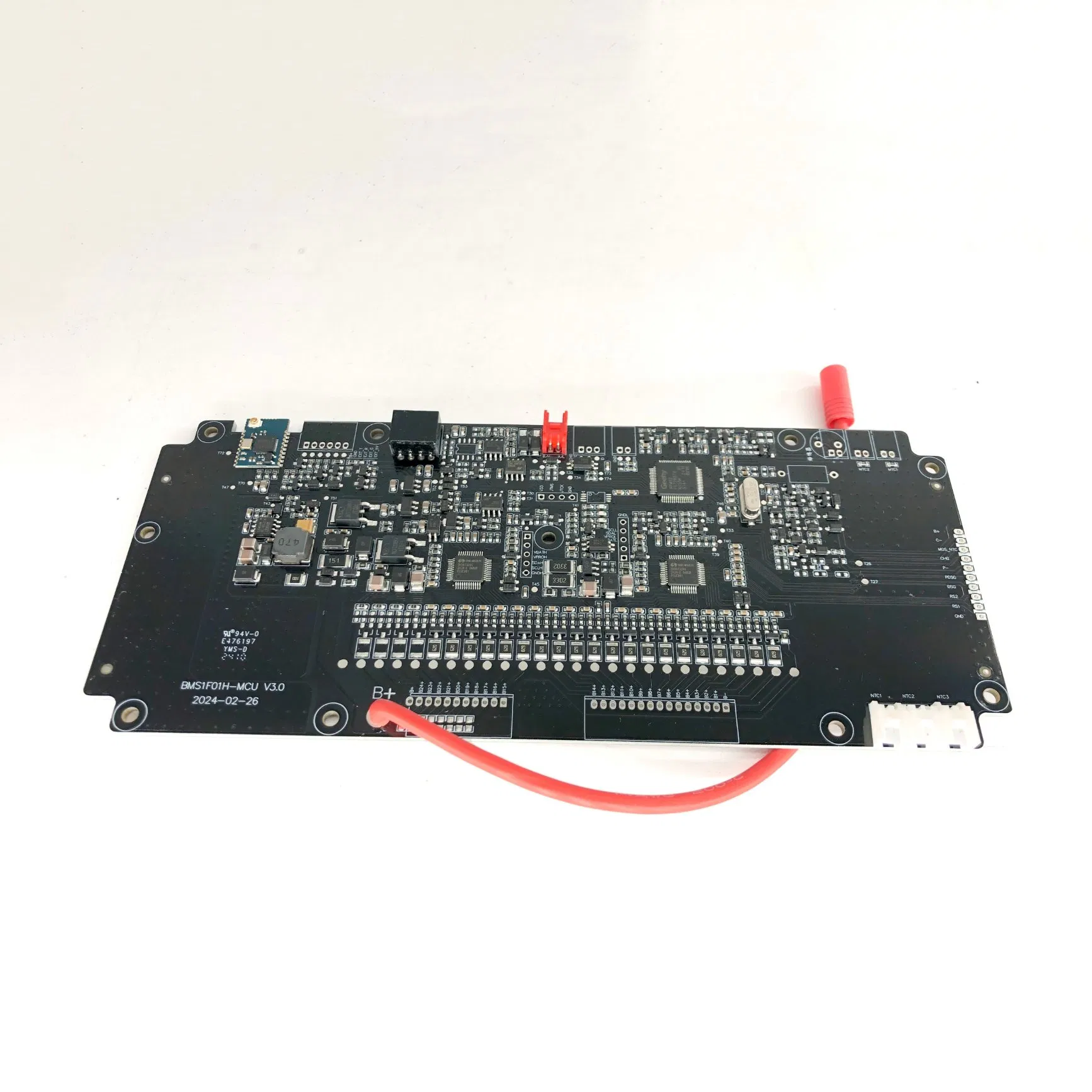

Model NO. BMS1F01H
Balance Current 50-100mA
Sleep Mode 50-100ua
Transport Package Carton Packaging
Specification Customized
Trademark OEM
Origin China

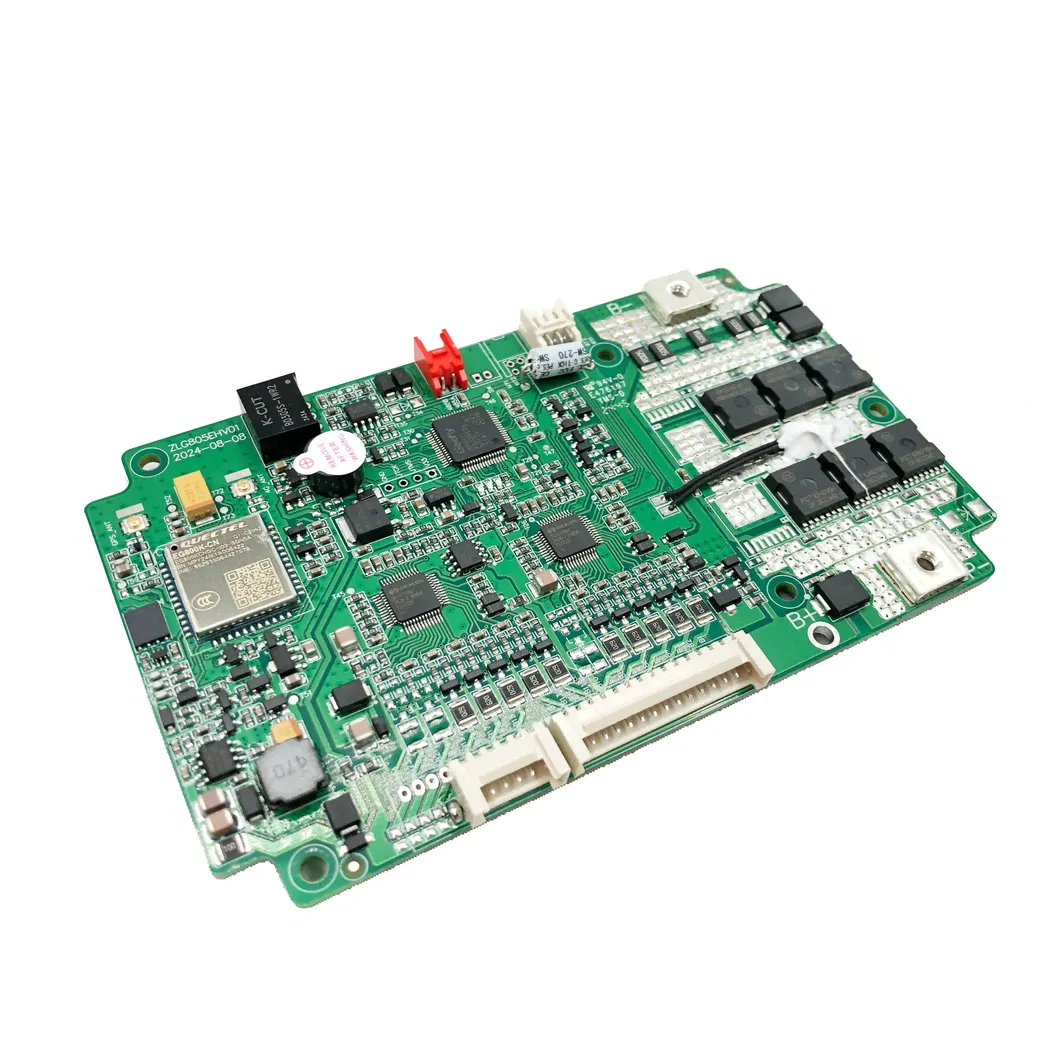

Product Description

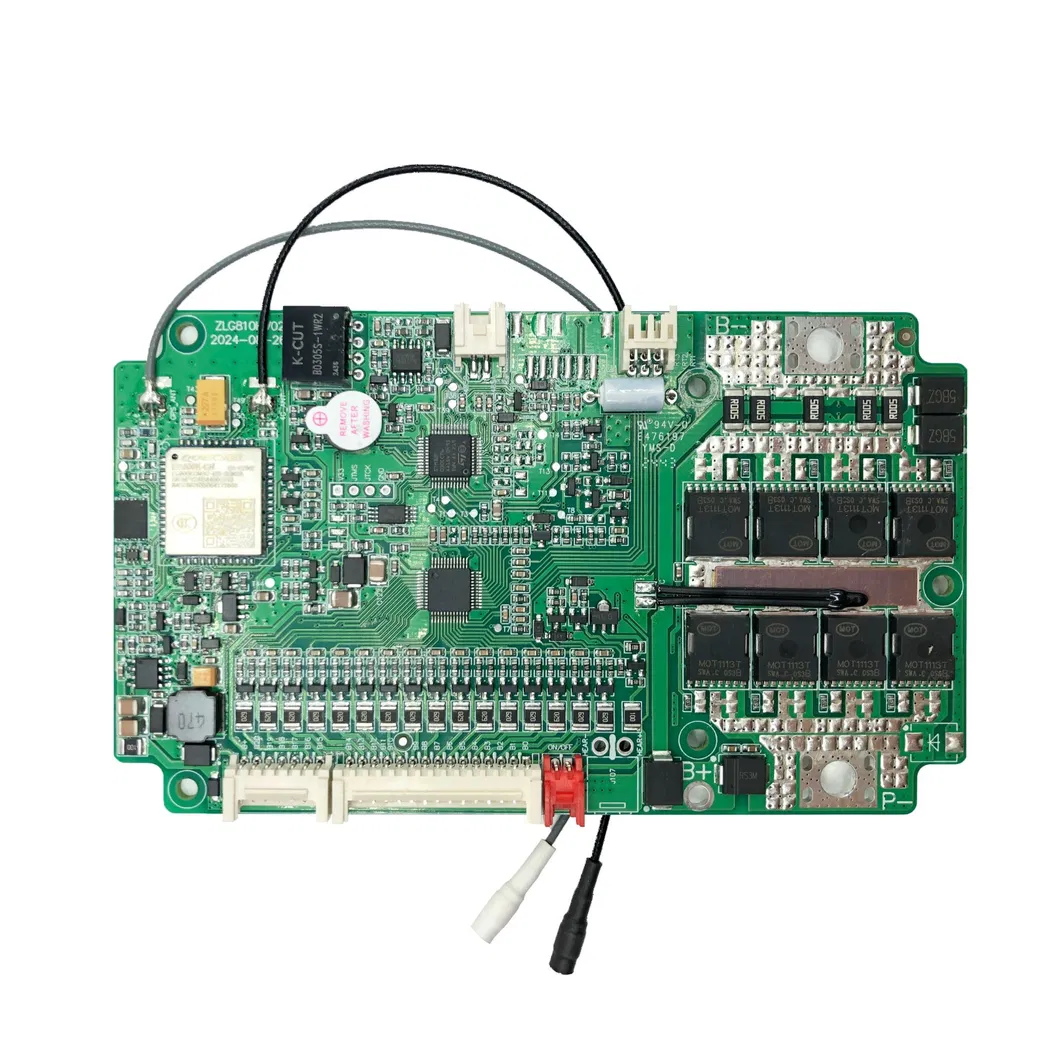

Product Model BMS403L ZLG810H ZLG805EH ZLG2F03L ZLG1F03L
Cell Series Supported 8-16S 17-20S 17-24S 8-16S 5-16S
Product Size 120*70*15mm 136*80*16mm 136*80*16mm 200*100*16mm 136*80*16mm
Discharge Current 45A 80A 80A 200A 80A
Temperature Protection 4 - 6 4 4
Communication Isolation RS485 single wire Isolation RS485/CAN single wire Isolation RS485/CAN Isolation RS485, CAN Isolation RS485/single wire
Charge/Discharge Port Separate Same port, rechargeable heating, current 1-2A Same port Same port, Charging Heating current 2-15A Same Port
Balance Current 50-100MA 50-100MA 50-100MA 50-100MA 50-100MA
Sleep Mode 50-100uA 50-100uA 50-100uA 50-100uA 50-100uA
Secondary Protection
Product Model BMS4F01H BMS5F01H BMS2F01L BMS2F02L ZLG804L
Cell Series Supported 13-24S 4-20S 4S 3-5S 3-5S
Product Size 200-85*17mm 176*80*16mm 129*170.5*16mm 92*180*16mm 110*80*18mm
Discharge Current 200A 120A 250A 250A 80A
Temperature Protection 6 4 5 3 3
Communication RS485, CAN, BT RS485, CAN, BT Bluetooth UART/RS485 Bluetooth, UART/RS485 RS485*2, RS232
Charge/Discharge Port Same Port Separate Port Same port, rechargeable heating, current 2-10A Same port, rechargeable heating, current 2-5A Same port
Balance Current 50-100MA 50-100MA 50-100MA 50-100MA 50-100MA
Sleep Mode 50-100uA 50-100uA 50-100uA 50-100uA 50-100uA
Secondary Protection -
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
Product Advantages
  • Support standard tower power replacement, mainstream cabinet control protocol.
  • Support 4G communication, can connect to the background real-time detection of battery data, remote control software upgrade.
  • It has multiple software protection functions such as over voltage, over current, over discharge, over temperature, anti-reverse connection and short circuit.
  • Built-in high-precision SOC algorithm, accurately and effectively detect the real state of the battery.
  • Host support.
  • Software parameters can be customized.

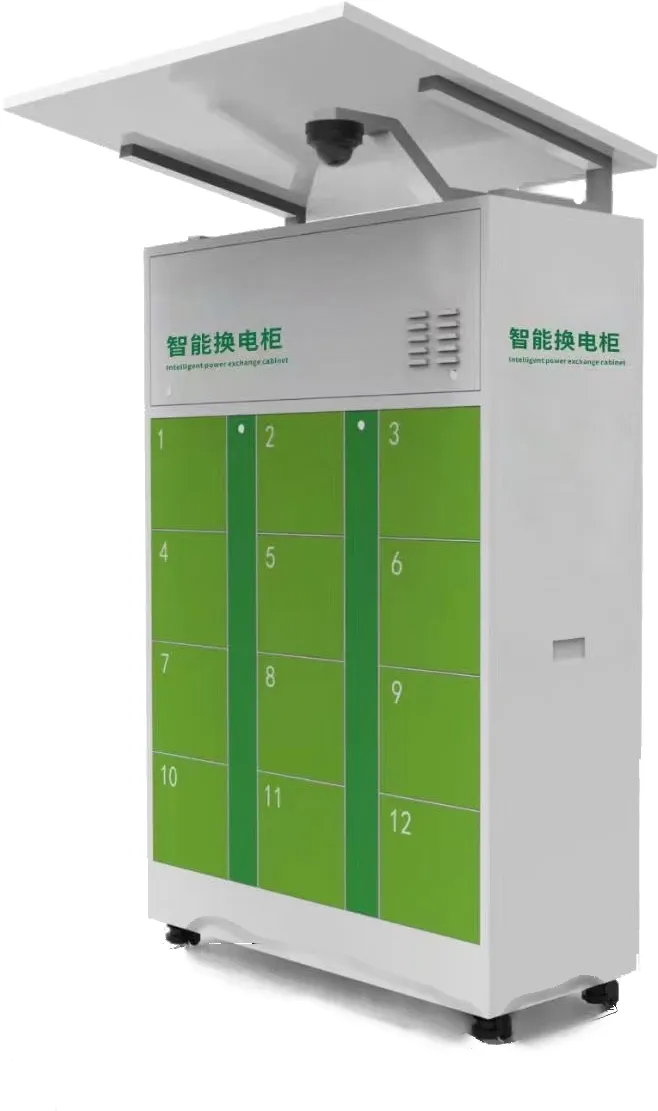

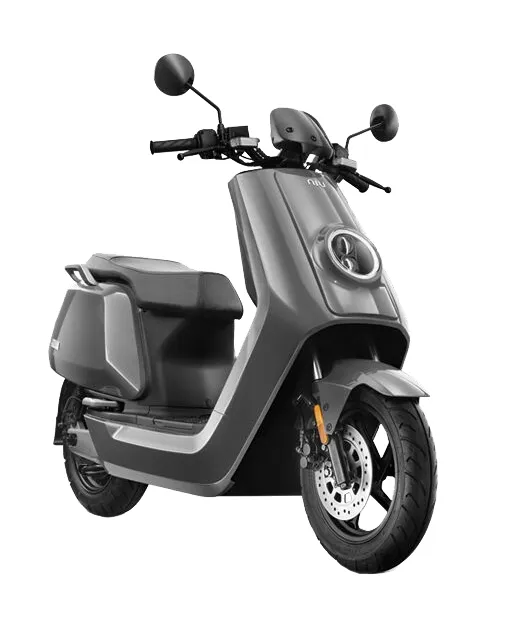

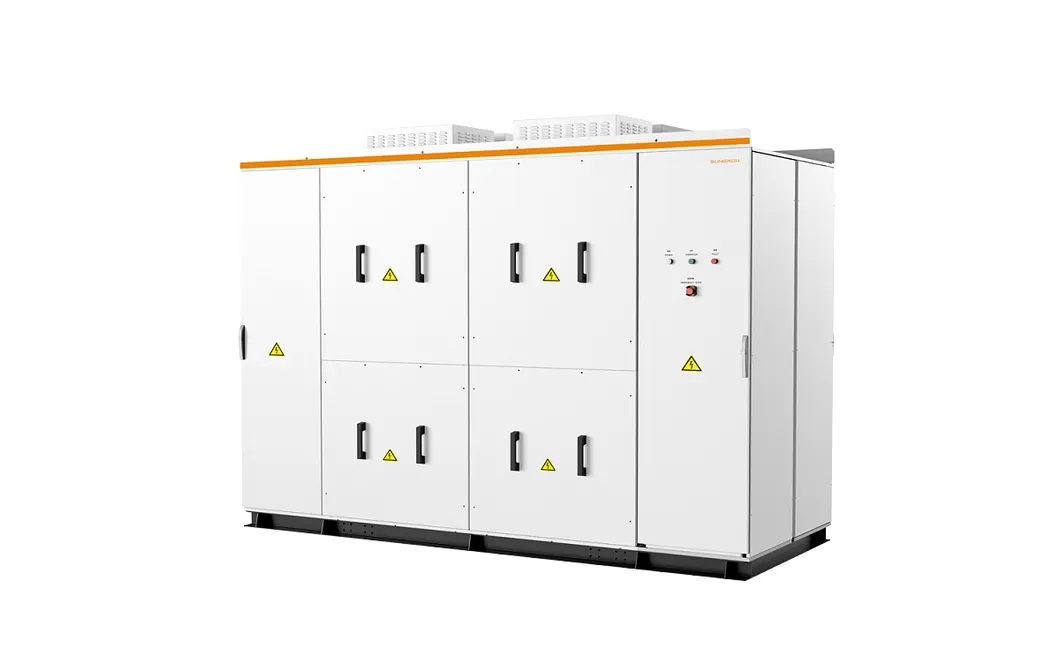

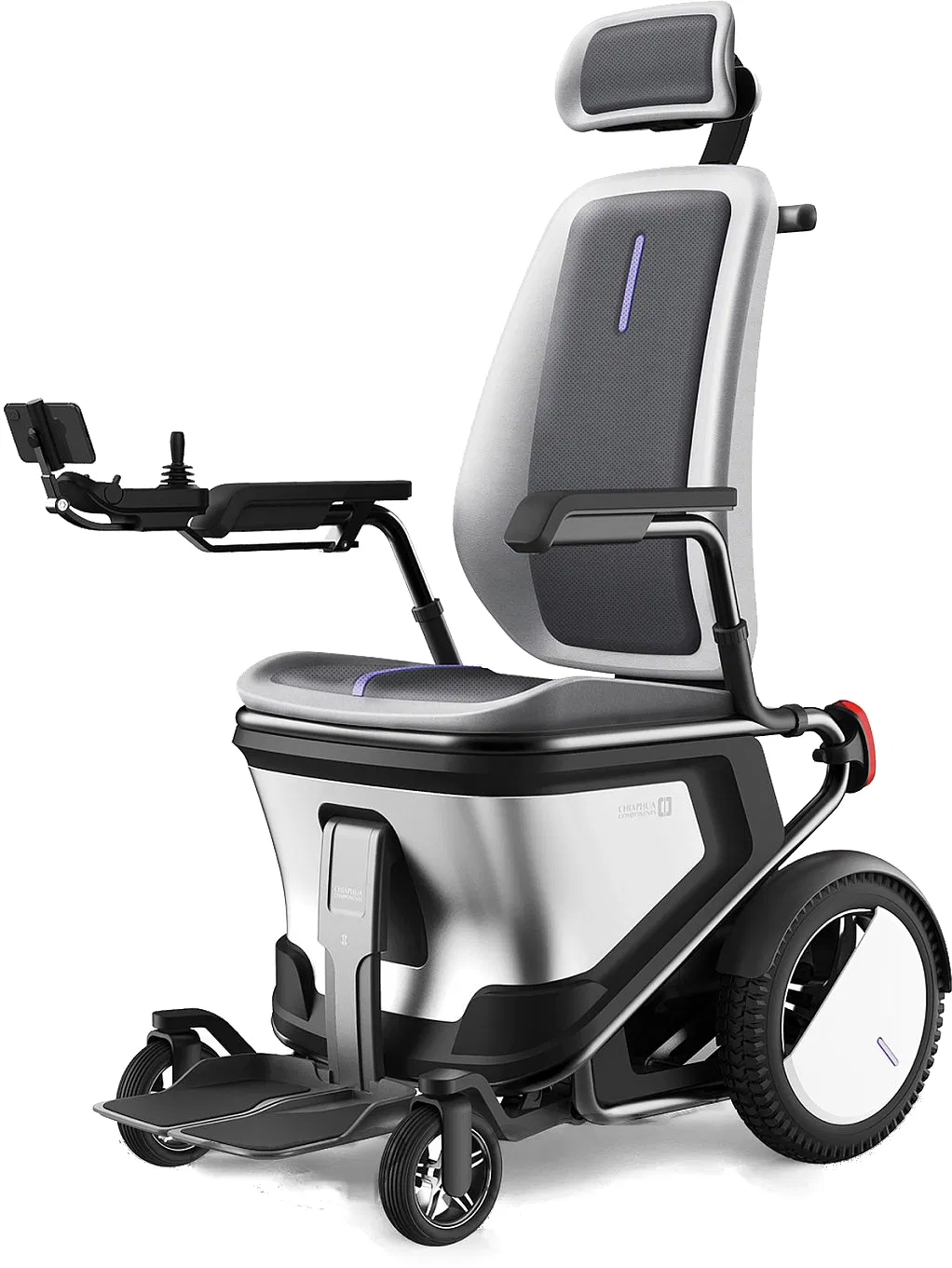

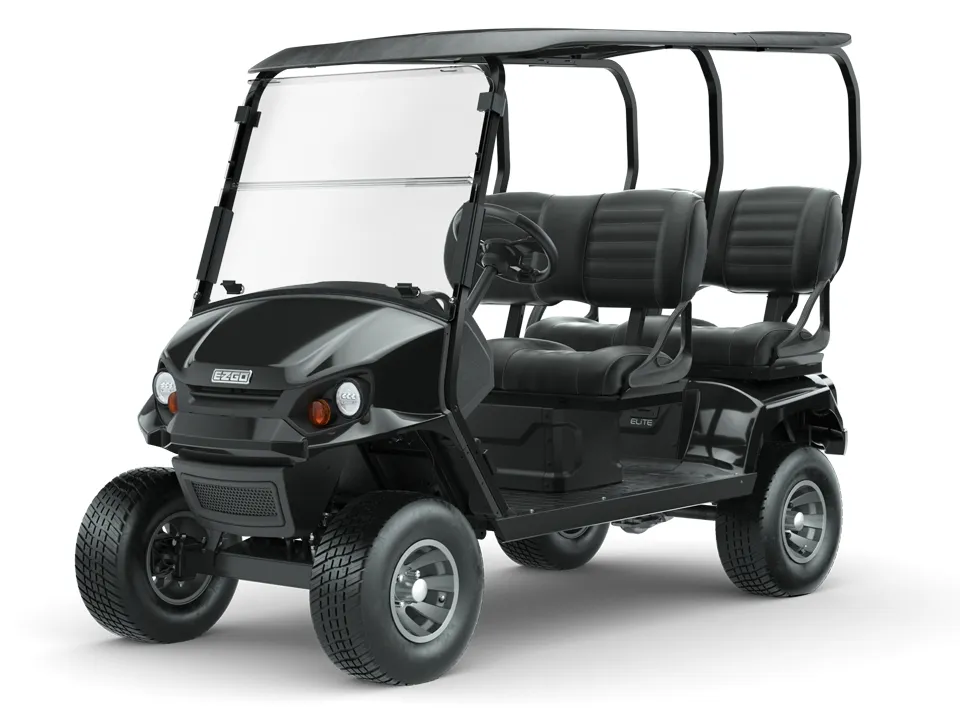

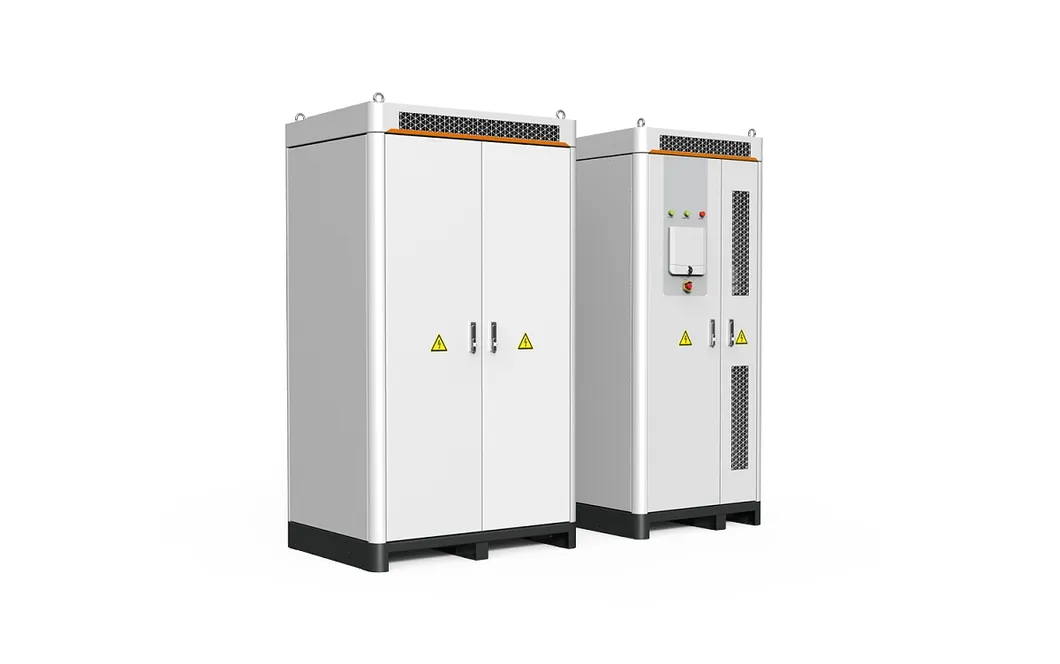

Application scenarios
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge

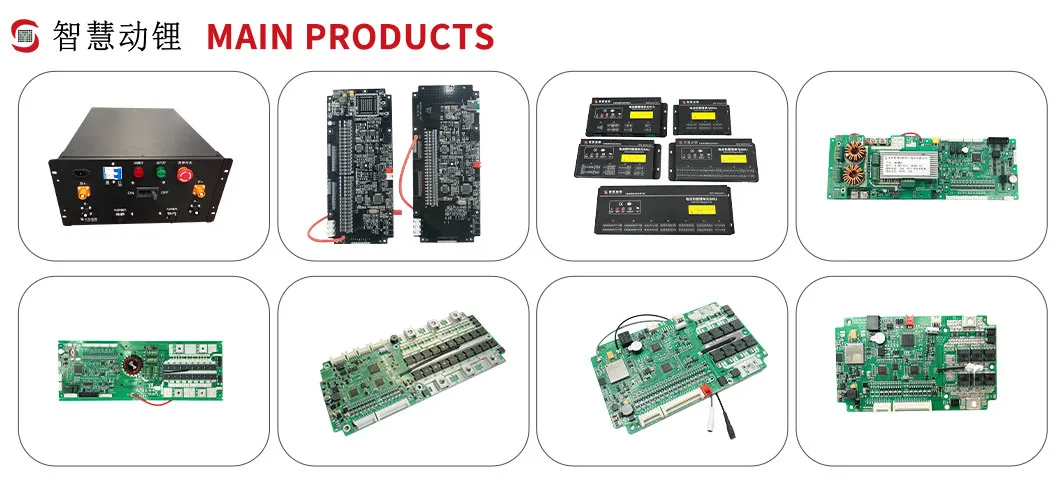

Main Products
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
Company Profile

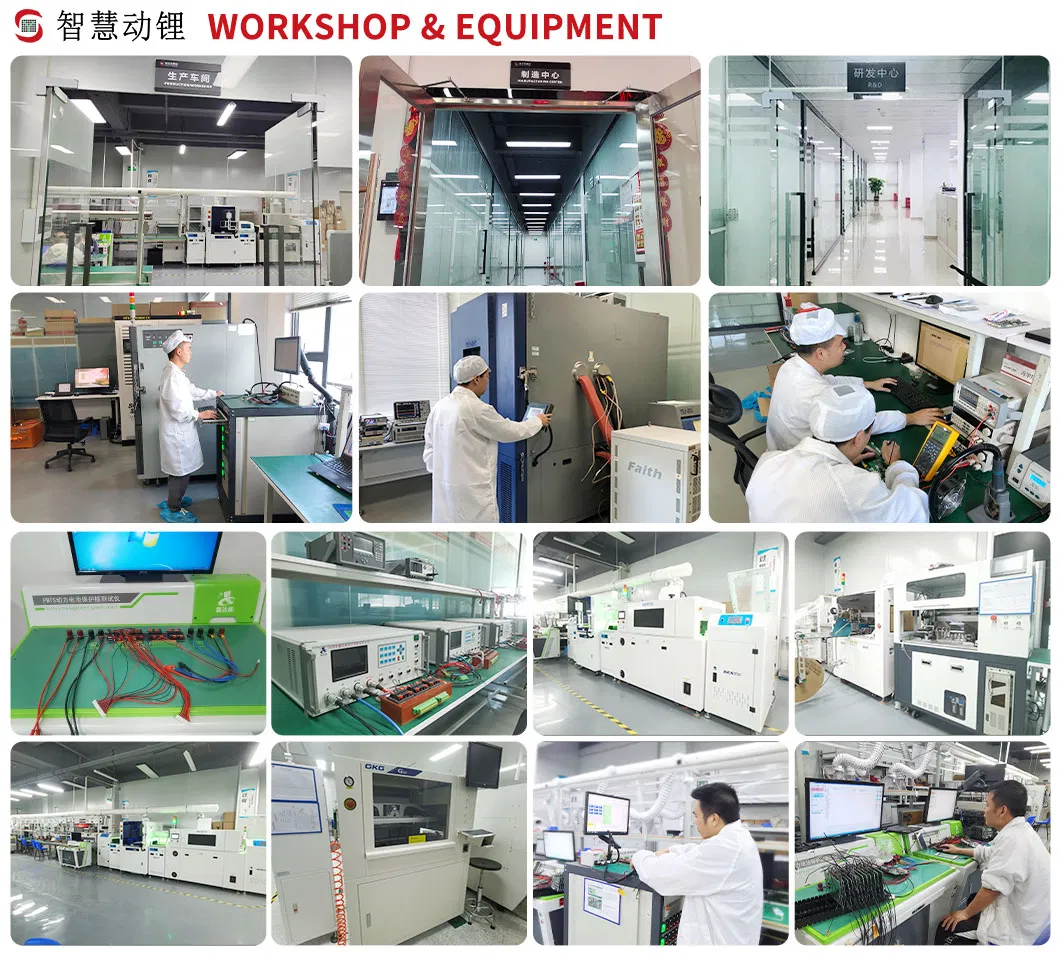

Established in 2011, we are a high-tech enterprise specializing in the research, development, production, and sales of lithium battery management systems (BMS). As a national-level "Little Giant" enterprise specializing in refined and innovative technologies, we are committed to providing global customers with safe, intelligent, and efficient lithium battery management solutions.

With a strong R&D team, 40% of whom are dedicated research professionals, we have accumulated over 50 national patents. We are among the first in China to achieve digital and platform-based management of lithium battery safety. Our cloud platform has successfully managed millions of battery packs, offering comprehensive battery health monitoring and intelligent management services.

Our core product, the BMS protection board, supports customized development and is widely used in low-speed e-bikes, electric motorcycles, electric tricycles, forklifts, drones, power tools, and special-purpose batteries. Additionally, we provide professional energy storage battery management solutions for home energy storage, portable power stations, UPS systems, and industrial and commercial energy storage scenarios, promoting efficient energy utilization and sustainable development.

Looking ahead, we will continue to drive innovation, delivering safer and smarter lithium battery management products and services to our customers, while advancing the progress and development of green energy technologies.
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
Certifications
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
Our Partners
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
Exhibitions
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
Packaging & Shipping
LiFePO4 Battery Smart Battery Management System (BMS) 150A Discharge
FAQ

QHow do I choose the right BMS board?

It depends on your cell & battery pack parameters and your application Scenarios. Please contact the technical support before buying.

QWhat is your factory production capability?

Our factory can make 50,000pcs per month and it can be increased to 100,000pcs in 3 months according to the order quantity.

QWhat is your delivery time?

For our standard products, we can deliver in 7-15 days. For OEM and ODM or huge quantity orders, please check with our team.

QDo you provide OEM/ODM service?

Yes, we have a strong R&D team and advanced equipment. OEM/ODM are warmly welcomed.

QWhat is your shipping terms?

By air, Express (DHL, FEDEX, UPS...) or by sea. It is up to your needs.

QWhat is your packing details?

Packed by bubble mailers in carton boxes.
