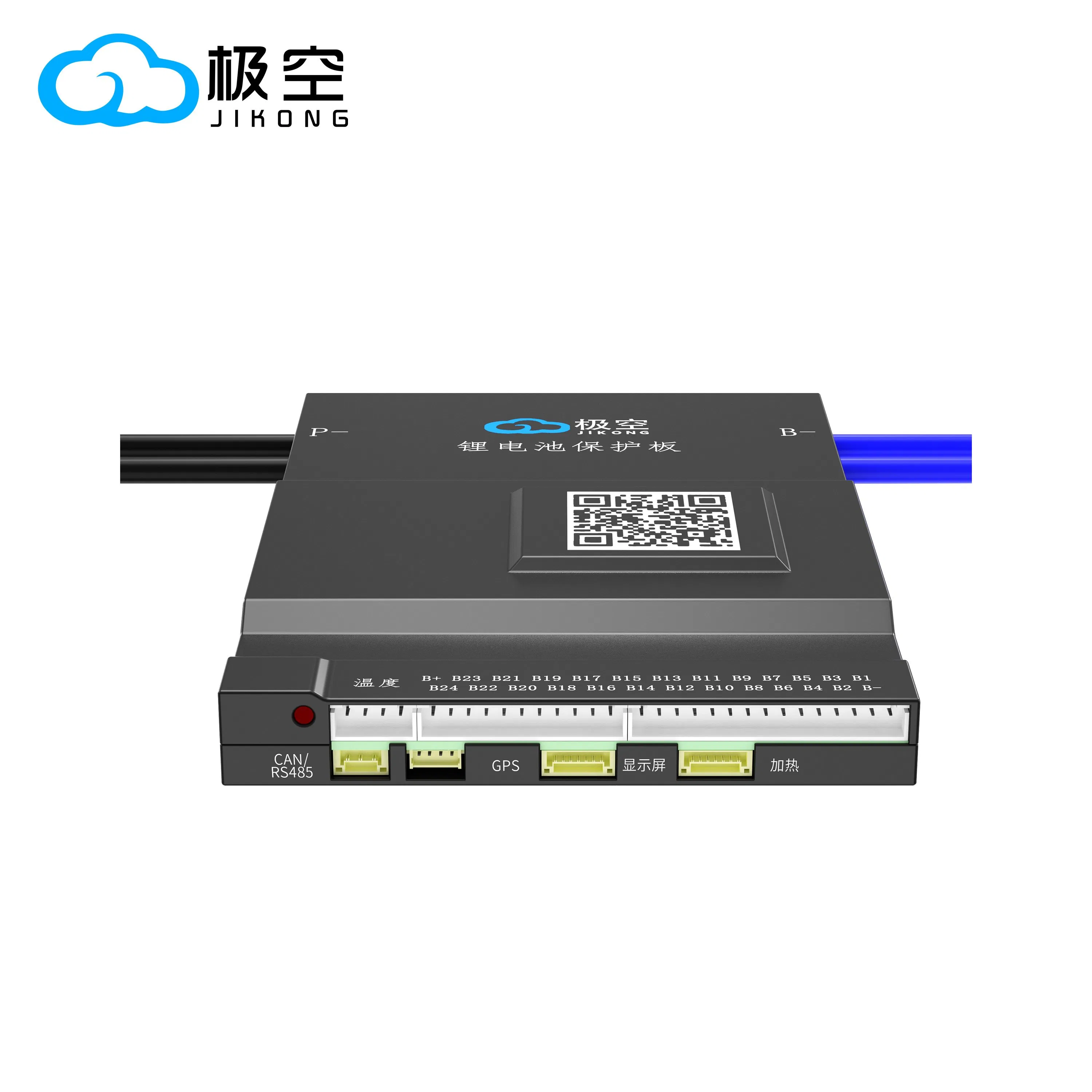

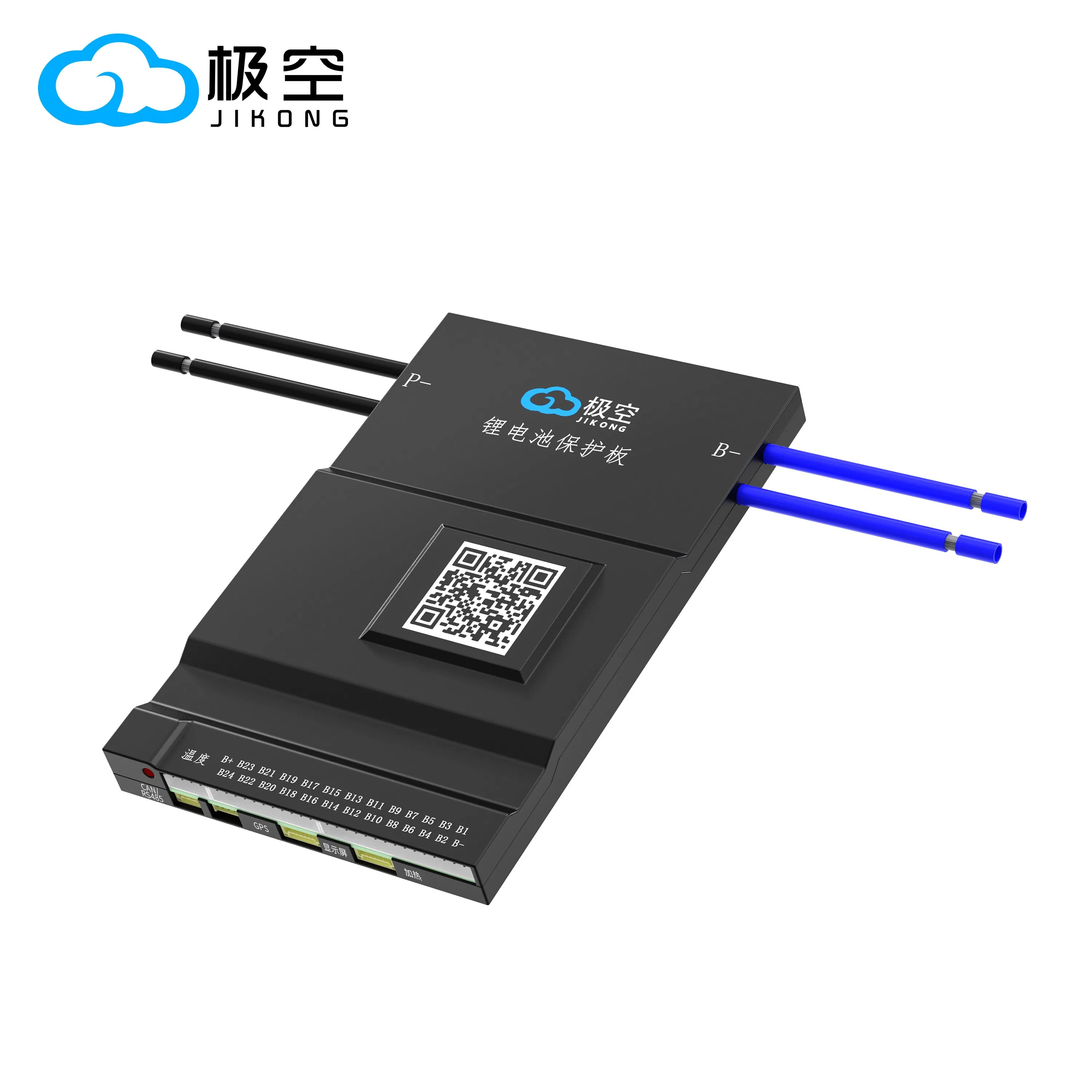

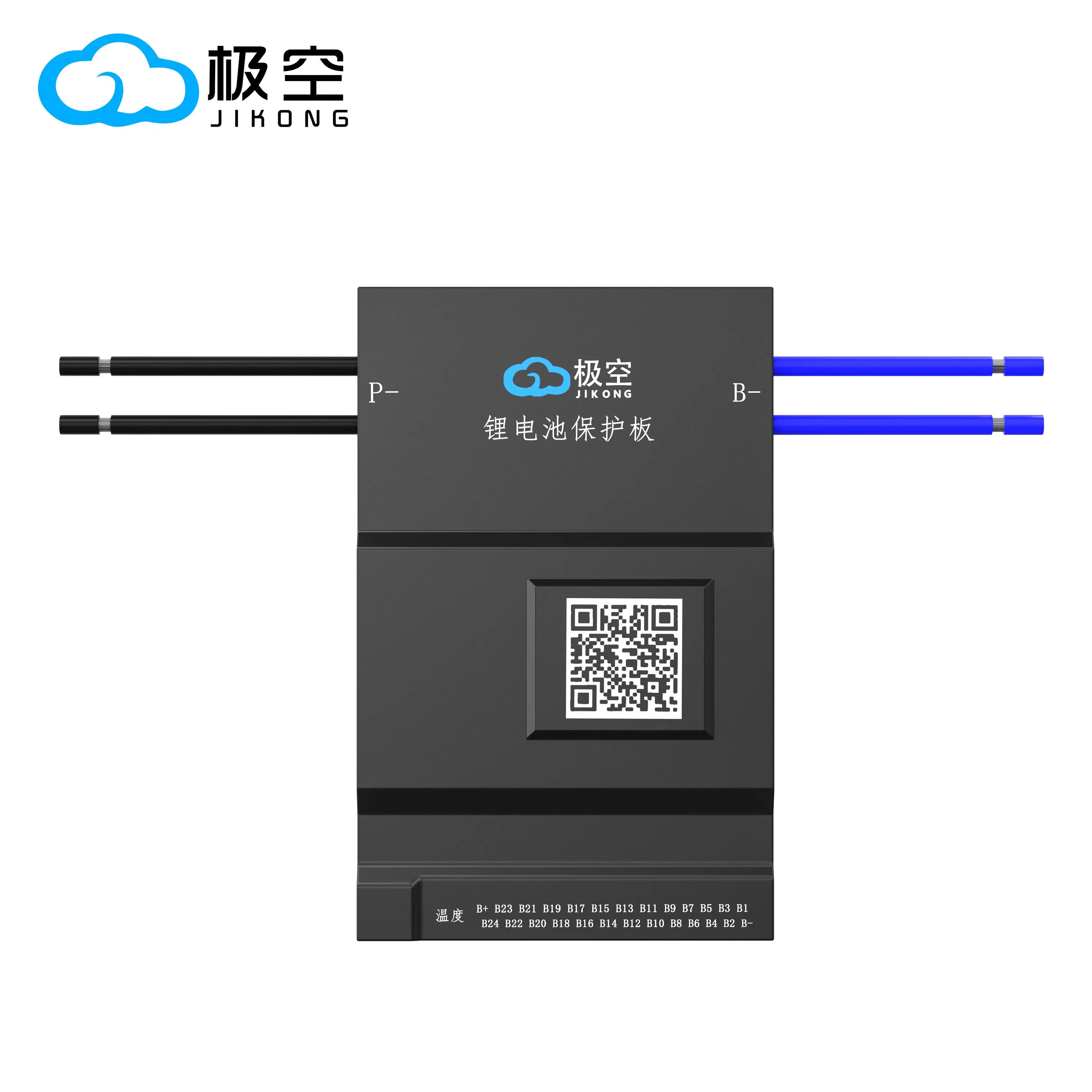

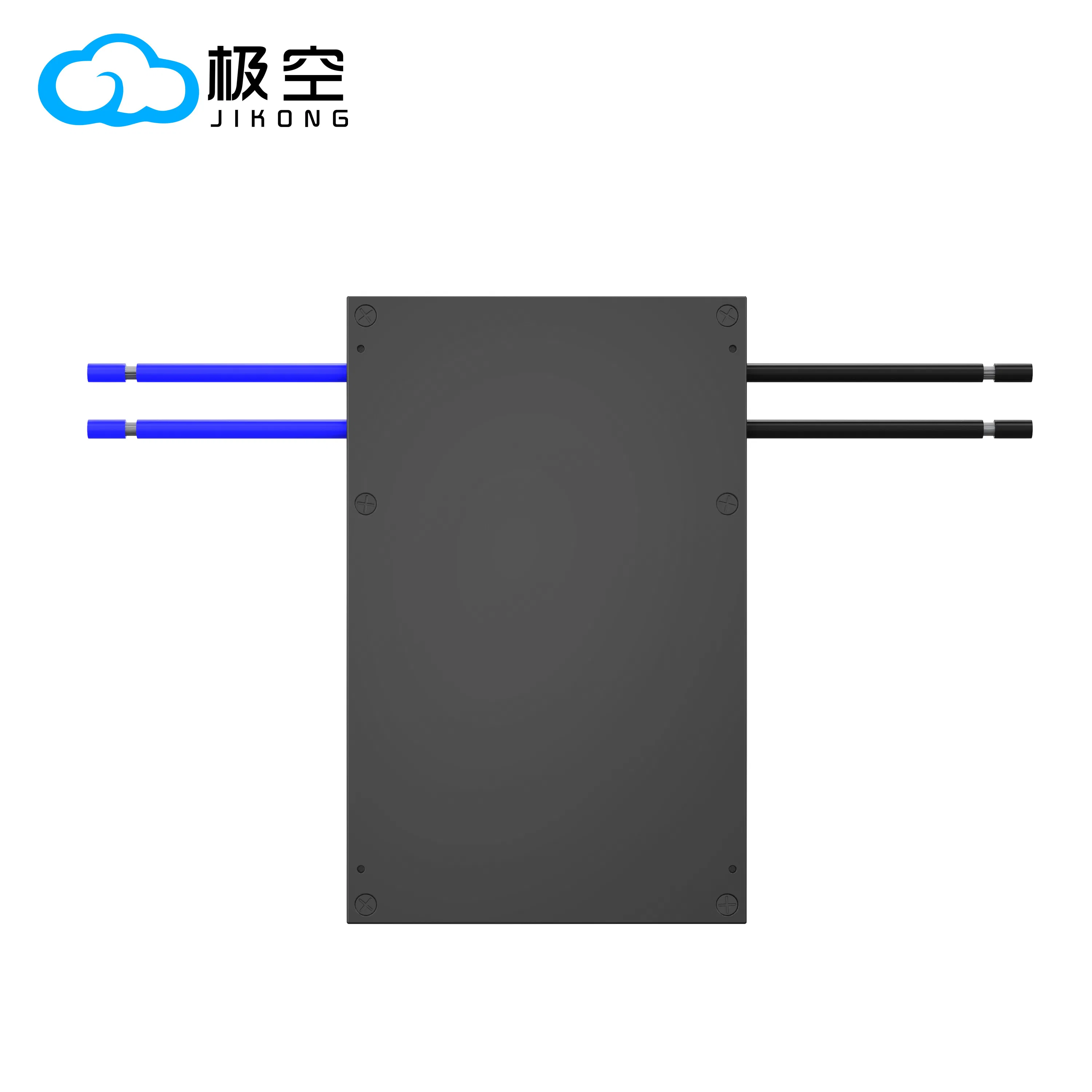

Jikong Smart BMS 8s 16s 24s 100A 200A Li-ion LiFePO4 Lto BMS 18650 Batteries BMS Smart Battery Management System UPS

Customization: Available
Balance Method: Active Balance
Balance Current: 0.6A

Product Description

Overview
Basic Info.

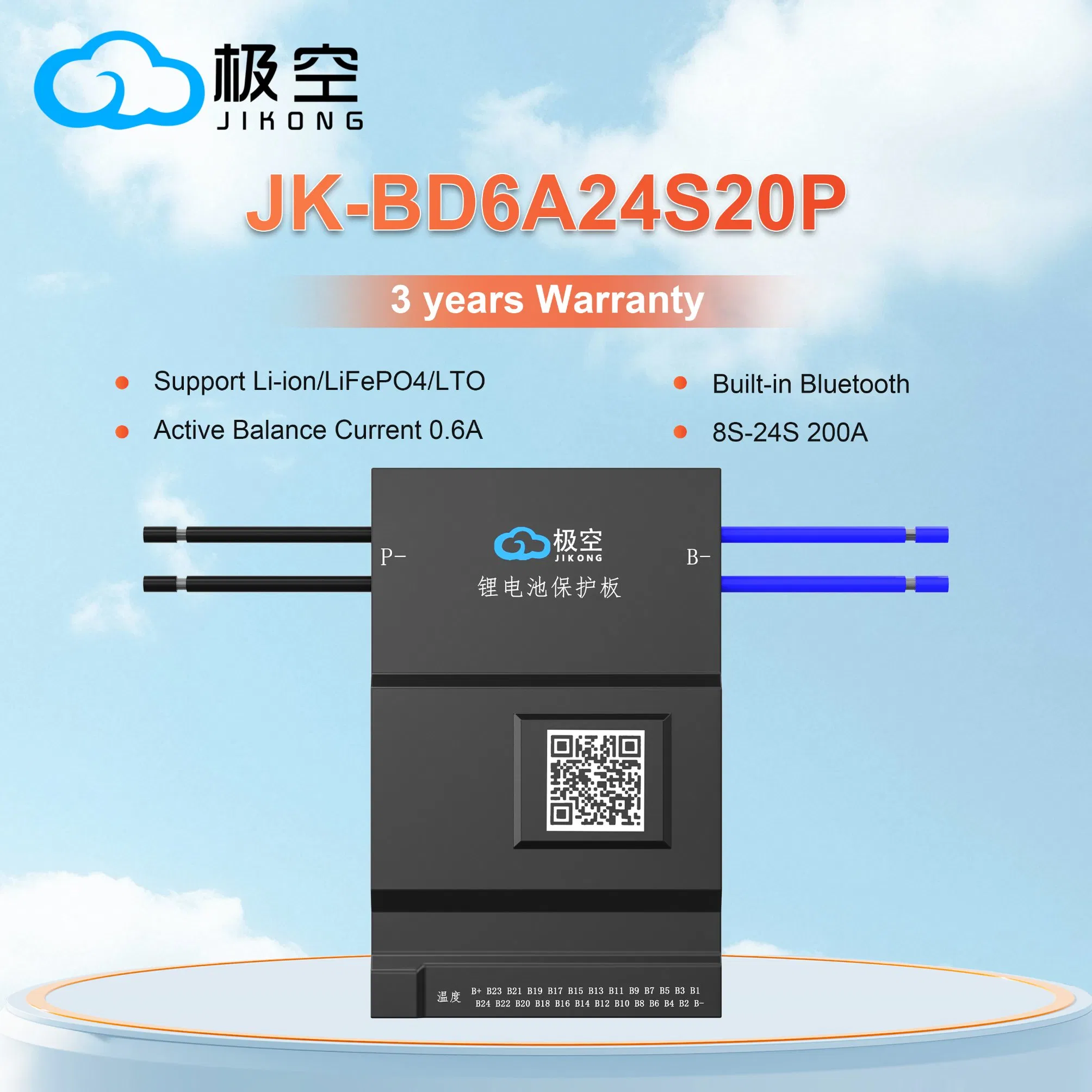

Model NO. JK-BD6A24S20P
Charge/Discharge 200A
Battery Strings 8s-24s
Battery Type LiFePO4/Li-ion/Lto
Interface Bt(Built In)/Lcdswitch/Sampling/Temp.
Output Cable 7AWG/100mm
Sampling Cable 24AWG/750mm
Size/mm 162*102*20.4mm
Transport Package Carton Packing
Specification 700g
Origin China
HS Code 9032896085
Production Capacity 500,000 Pieces / Year
Packaging & Delivery
Package Size 25.00cm * 15.00cm * 5.00cm
Package Gross Weight 0.700kg
Product Description
PRODUCT MODEL BD6A20S20P BD6A24S20P
Number of Battery Strings(Li-ion) 7S~20S 7S~24S
Number of Battery Strings(Lifepo4) 8S~20S 8S~24S
Number of Battery Strings(LTO) 12S~20S 12S~24S
Working voltage range 20~100V
Balance Method Active Balance
Balance Current 0.6A
Conductive Resistance in Main Circuit 0.5mΩ 0.5mΩ
Continuous Discharge Current 200A 200A
Continuous Charge Current 200A 200A
Maximum instantaneous current 350A 350A
Over Charge Protection Current(ADJ) 10~200A 10~200A
RS485 Interface Customized Optional
CANBUS Interface Customized Optional
Battery Heating Customized Optional
LCD Interface Support
Alarm Interface Support
Bluetooth function Support
Protection function Overcurrent protection/Overvoltage protection/Undervoltage protection/Over temperature protection/Low temperature protection/Short circuit protection
Size/mm 162*102*20.4mm
Specification

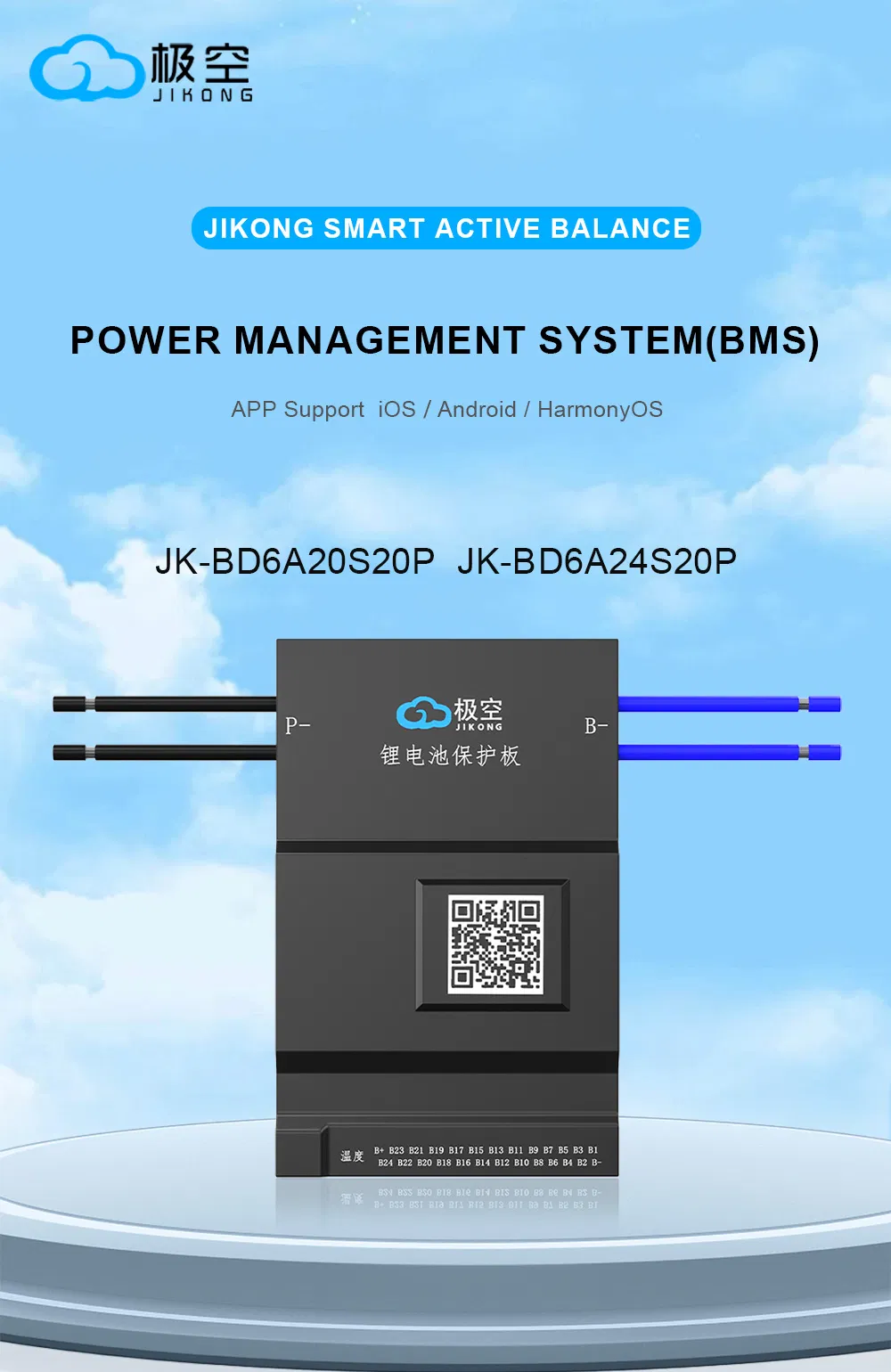

Smart BMS Specification Info 1

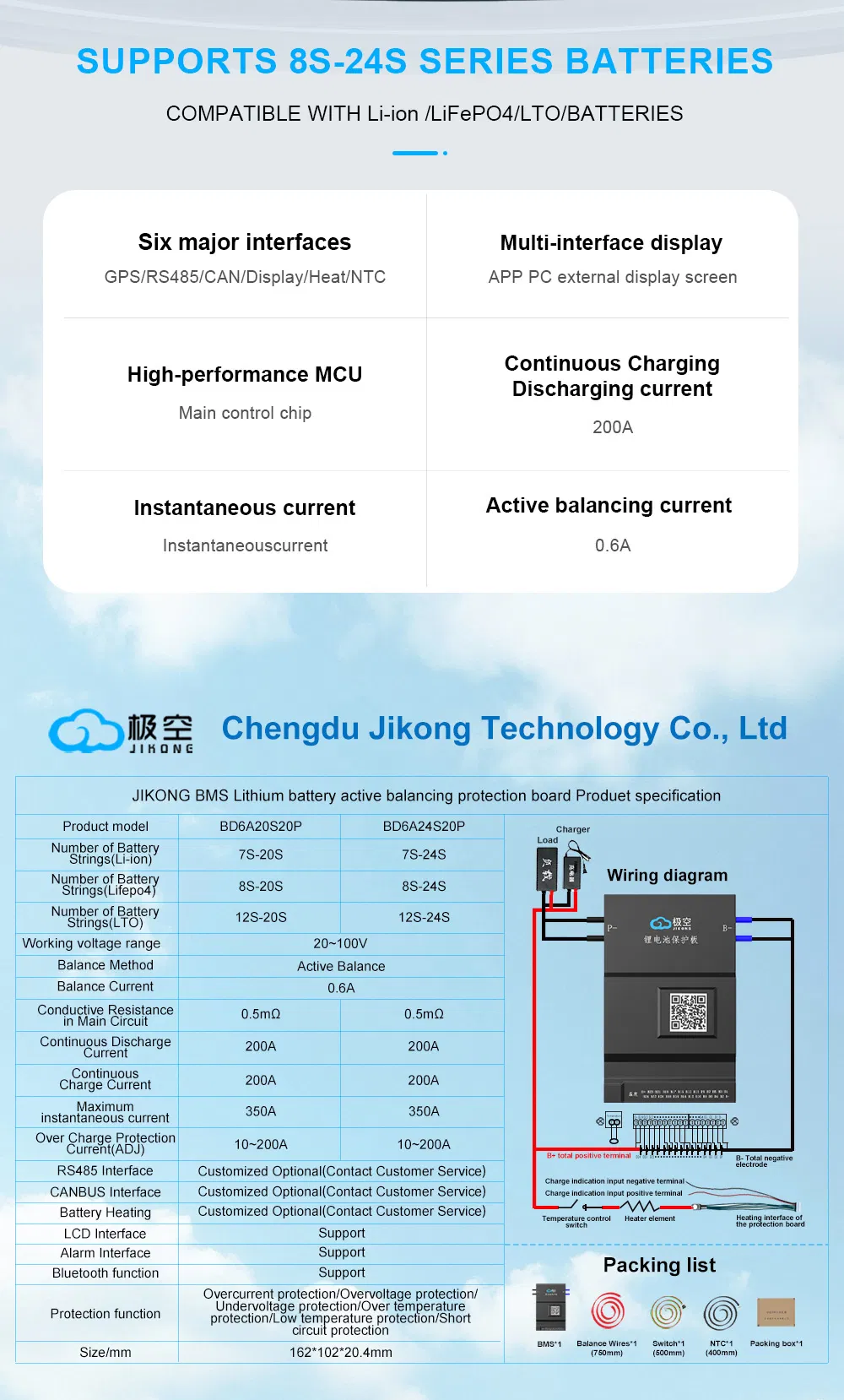

Smart BMS Specification Info 2
Smart BMS Specification Info 3

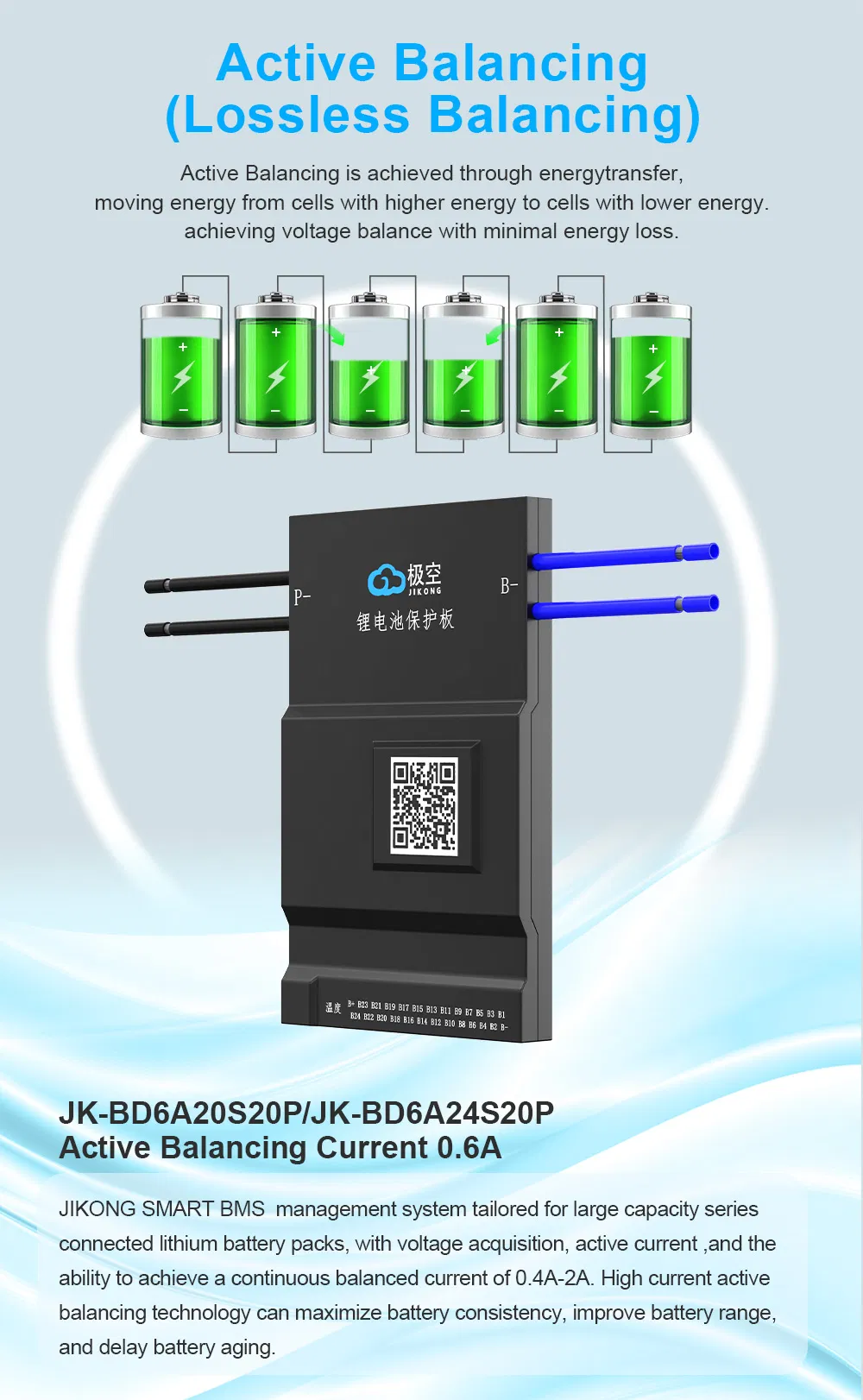

Smart BMS Specification Info 4

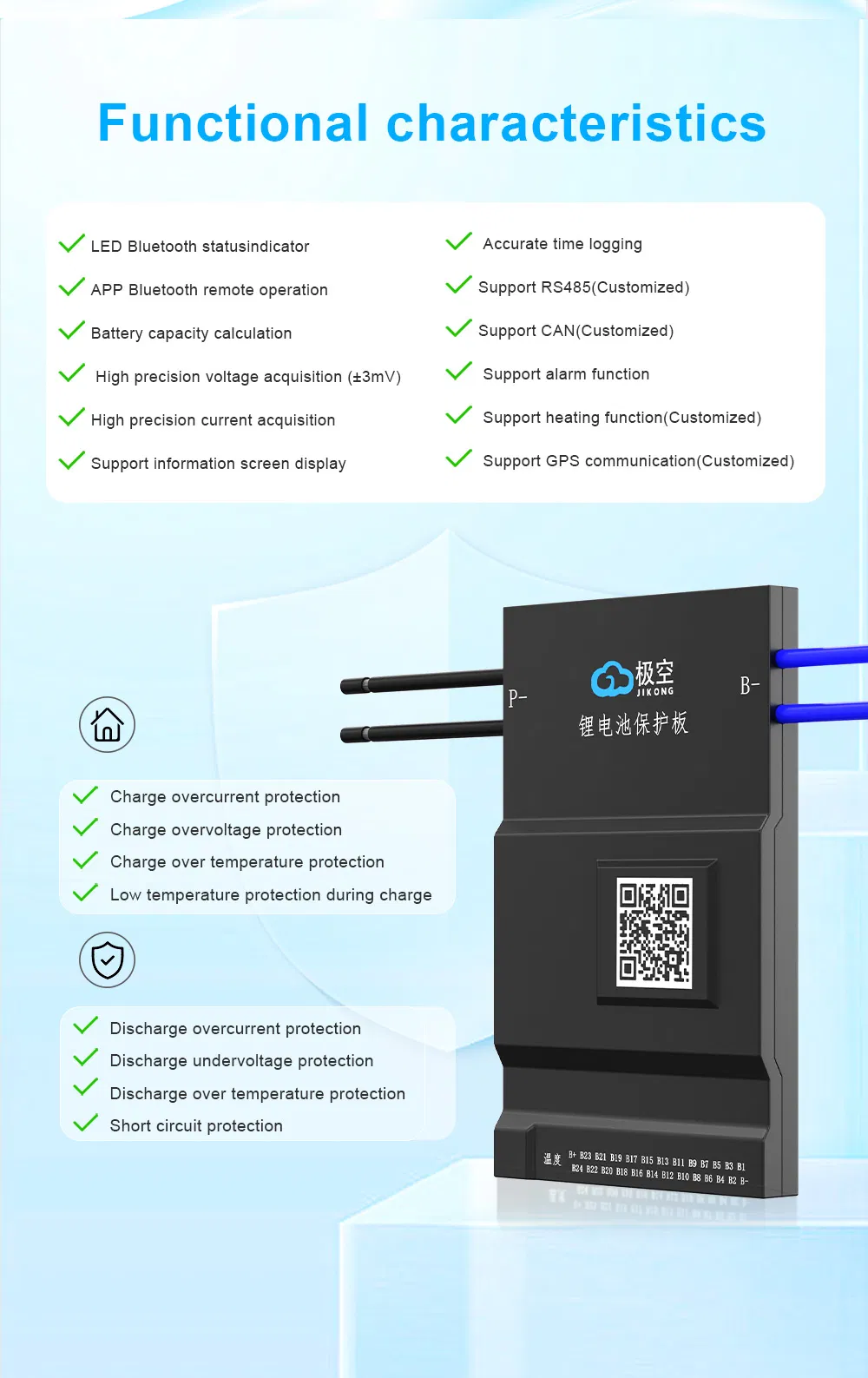

Smart BMS Specification Info 5

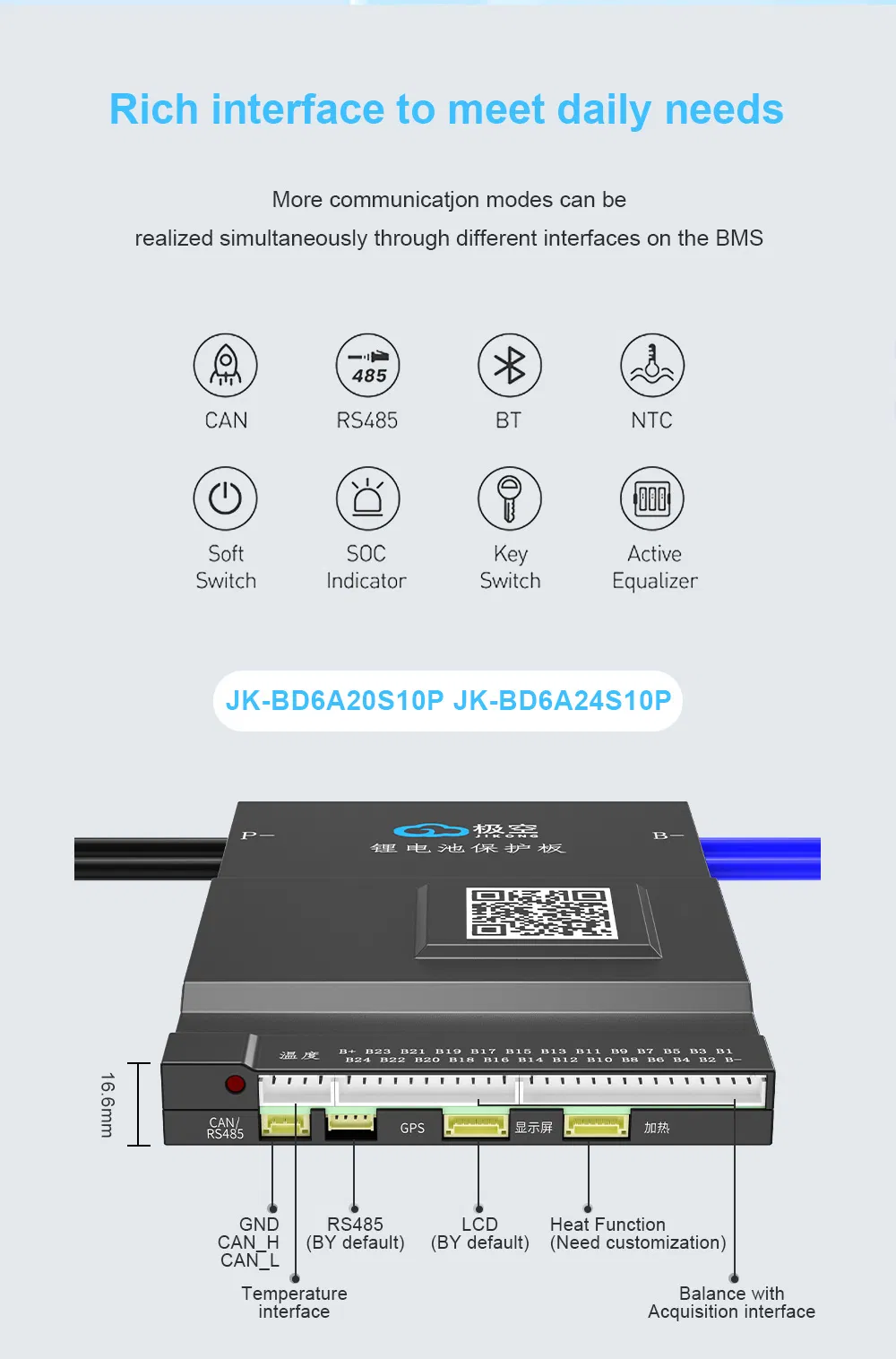

Smart BMS Specification Info 6

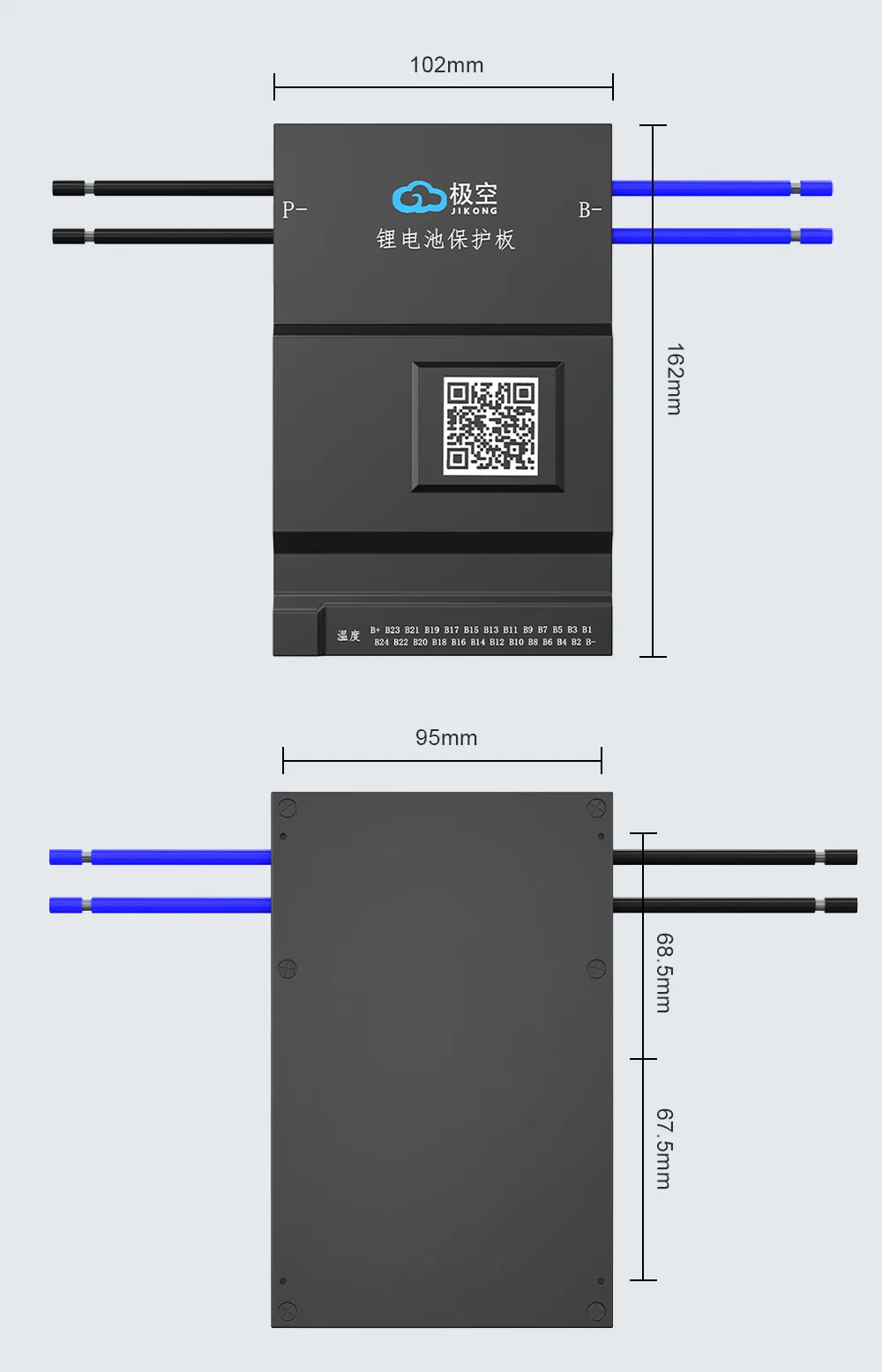

Smart BMS Specification Info 7

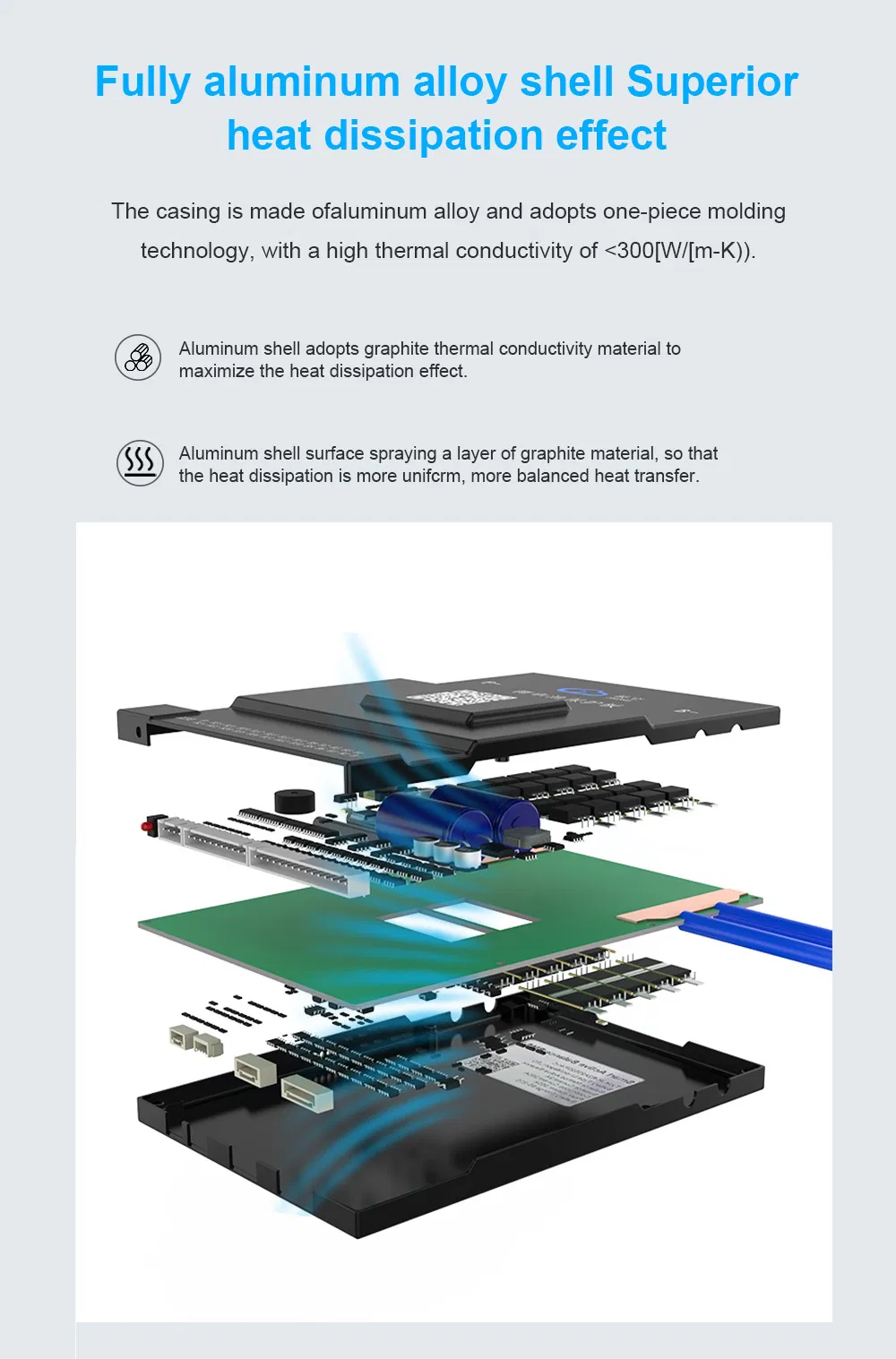

Smart BMS Specification Info 8

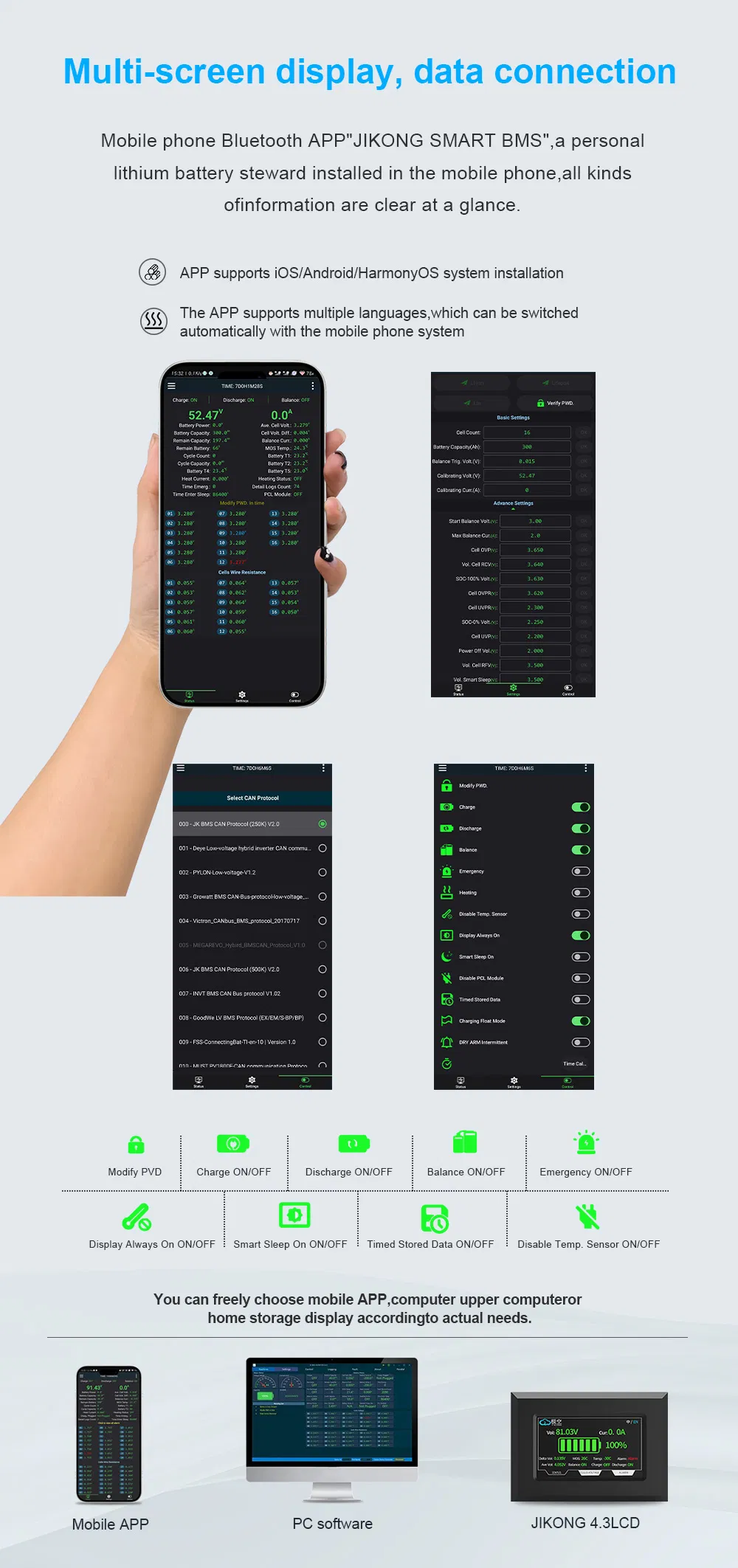

Smart BMS Specification Info 9

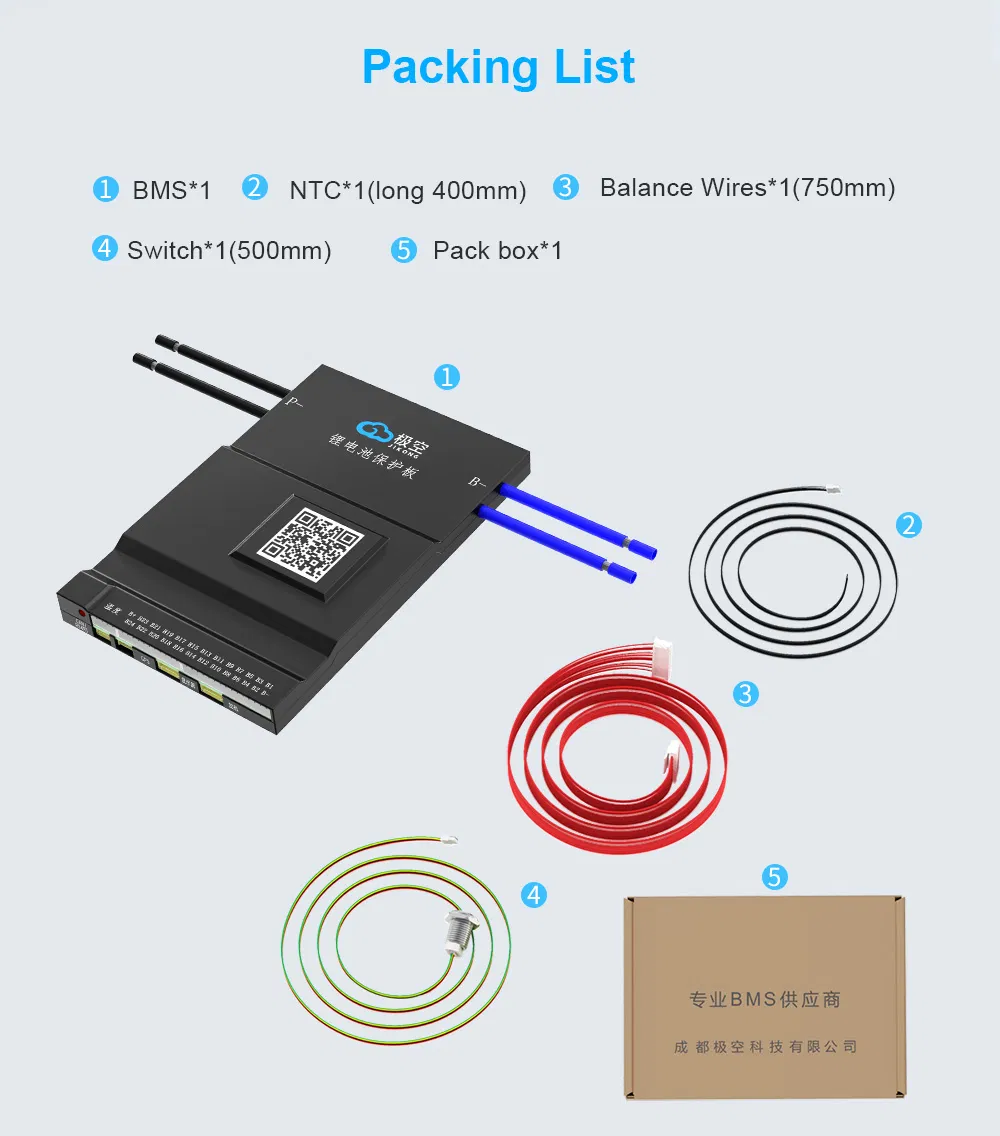

Smart BMS Specification Info 10
Company Profile
Smart BMS Solutions
A global leader in intelligent Battery Management System (BMS) solutions, integrating R&D, manufacturing, sales, and service into a single high-tech enterprise.
The company holds four proprietary core technologies: Active Lossless Balancing, All-Time Precise Regulation, Intelligent Communication Protocols, and Functional Safety Mechanisms. Its patent layout covers key areas such as battery balancing algorithms and thermal runaway early warning systems, building a strong technological foundation.

Our BMS products span high-voltage, mid-voltage, and low-voltage applications, widely used in: Home Energy Storage Systems, Commercial and Industrial Energy Storage (C&I ESS), New Energy Vehicle (NEV) Powertrains, and Industrial Power Protection.

Our BMS is sold in over 130 countries and regions worldwide, earning an excellent reputation in markets including the USA, EU, Southeast Asia, Russia, Spain, Ukraine, Poland, India, Japan, South Korea, and Saudi Arabia.

The company operates a 15,000 m² intelligent integrated manufacturing plant, with an annual production capacity exceeding 10 million BMS units, delivering stable, reliable, and high-performance solutions to end-users globally.

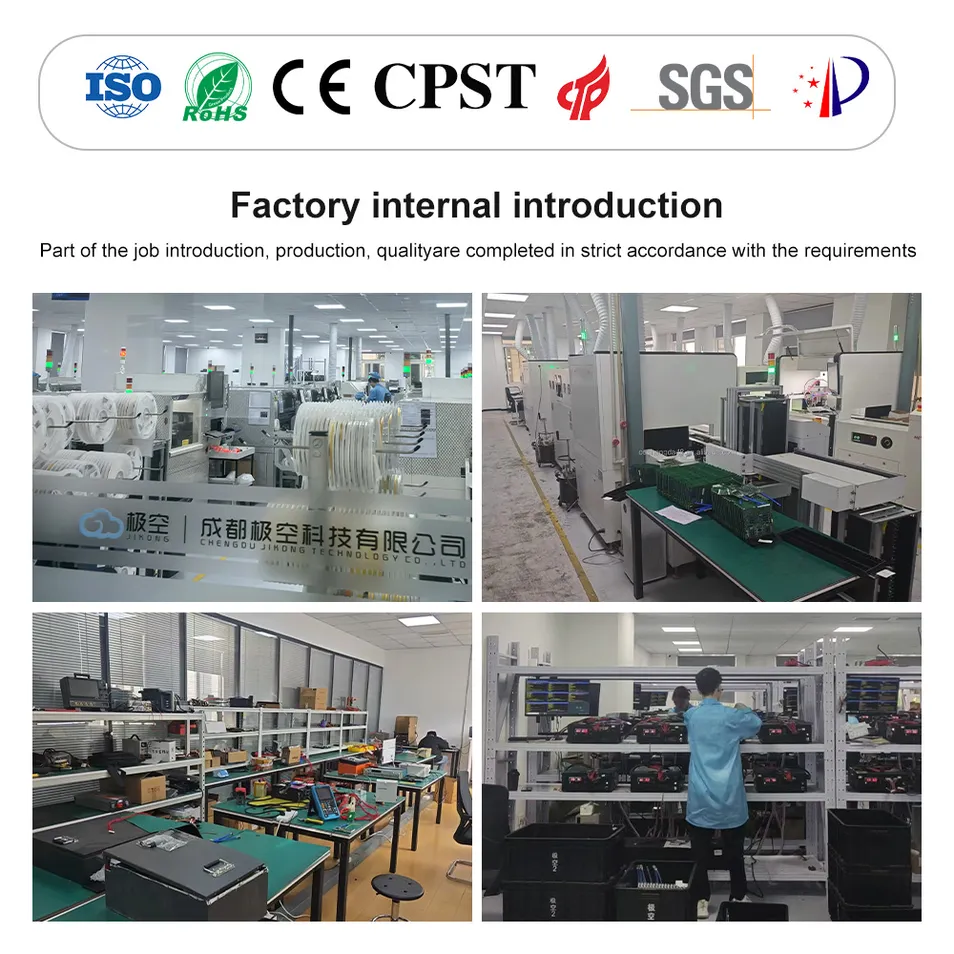

Manufacturing Facility 1
Manufacturing Facility 2
Manufacturing Facility 3
FAQ
Do you support customization and OEM/ODM service?
Yes. We are a national high-tech enterprise integrating R&D, production, and sales. Equipped with advanced production facilities and a highly experienced design team, we fully support both ODM and OEM customization requests.
How do you guarantee product quality and after-sales service?
We ensure strict quality control by checking pre-production samples before mass production, performing 100% testing prior to delivery, and conducting a comprehensive final inspection before shipment.
What are the common BMS application scenarios and how do I select a model?
Depending on your needs, you can select from the following configurations:
Inverter BMS: 8S~16S | Active balancing: 1A~2A | Charge and discharge current: 100A ~300A
Power BMS: 4S~24S | Active balancing: 0.4A~2A | Charge and discharge current: 40A ~300A
Energy storage BMS: 4S~8S | Active balancing: 1A~2A | Charge and discharge current: 100A ~300A
Truck start BMS: 4S~8S | Active balancing: 1A~2A | Limit current: 3000A
Active balancer: 4S~24S | Active balancing: 1A~15A
What shipping and transportation channels do you offer?
We support multiple transport methods. Customers with specific logistics requirements or custom shipping requests can discuss options with us in advance to find the most suitable method.
How long is the lead time for samples and bulk orders?
The lead time for sample delivery is approximately 7-15 working days. For bulk orders, the estimated delivery time is around 30 working days.
What protective features does the Smart BMS offer?
Our Smart BMS products are equipped with comprehensive protection protocols, including overcurrent protection, overvoltage protection, undervoltage protection, over-temperature protection, low-temperature protection, and short-circuit protection.
