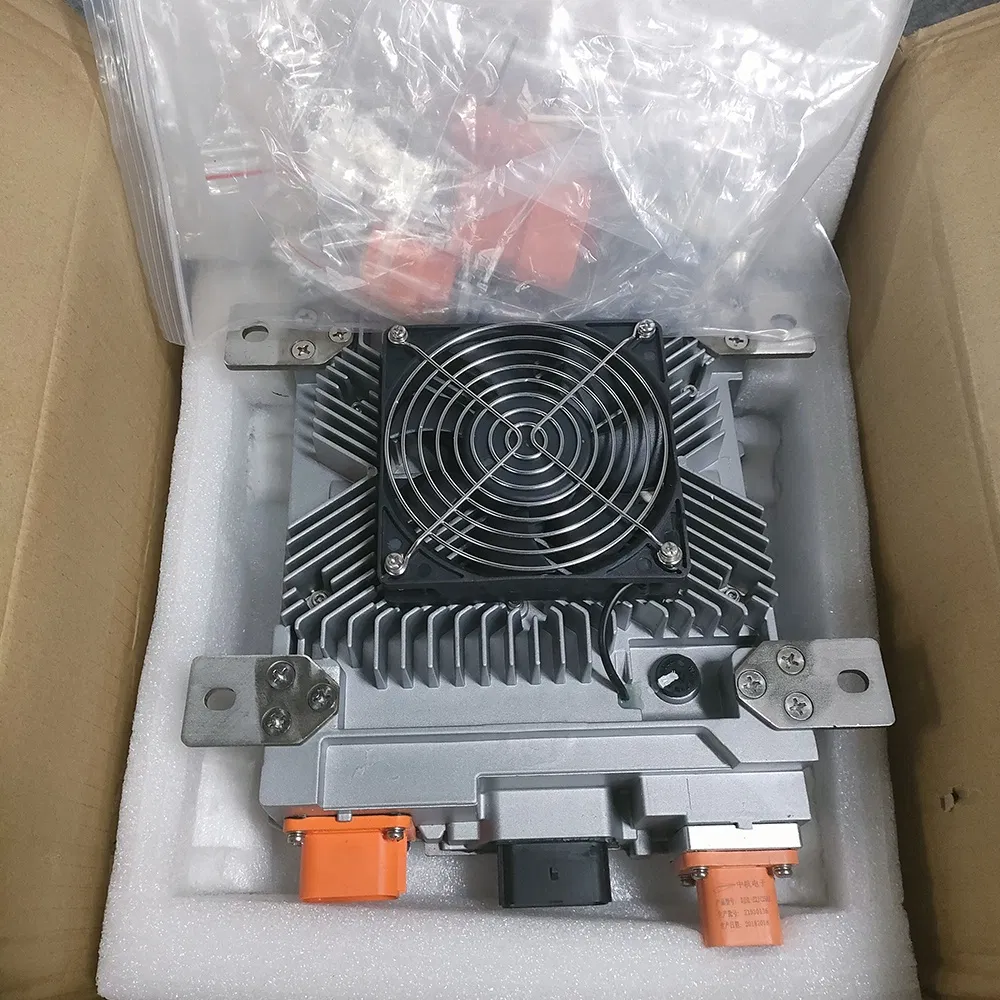

| Basic Specification | Protection grade | IP67 | |
|---|---|---|---|
| Input voltage range | AC90V~264V | Operation temperature | -40ºC~85ºC |
| Input current | 16A | Storage temperature | -55ºC~90ºC |
| Frequency | 45Hz~65Hz | Charging control | CAN or Enable |
| Power factor | ≥0.99 | Size | 250(length) x 222(width) x 108.7(height)(fan-cooled) |
| Efficiency at full-loading | ≥93% | Protection | Output over-voltage, over-current, short-circuit, polarity reverse, input low-voltage, input over-voltage, over-temperature |
| Mechanical impact and vibration grade | QC/T 895-2011 | Cooling way | Enforce Air Cooling, liquid-cooling |
| Model | Output voltage | VAC-DC model | Power | VAC-DC output voltage (V) | Output voltage range | VAC-DC output current(A) | DC-DC model | DC-DC power |
|---|---|---|---|---|---|---|---|---|
| CD-MF01 | 72V | HK-MF-72-40 | 3.3KW | 72 | 50-107V | 35A | TDC-IY-72-12 | 1KW |
| CD-MF03 | 108V | HK-MF-108-32 | 3.3KW | 108 | 80~161V | 32A | TDC-IY-108-12 | 1KW |
| CD-MF04 | 144V | HK-MF-144-23 | 3.3KW | 144 | 95~202V | 23A | TDC-IY-144-12 | 1KW |
| CD-MF05 | 312V | HK-MF-312-10 | 3.3KW | 312 | 200~450V | 10A | TDC-IY-320-12 | 1KW |
| Model | Type of cooling | DC input voltage(V) | DC input current(A) | Max input current(A) | DC-DC output voltage (V) | DC-DC output current(A) | Net Weight (kgs) | Gross Weight (kgs) | Dimension (CM) |
|---|---|---|---|---|---|---|---|---|---|
| CD-MF01 | Enforce Air Cooling | 72 | 14 | 23 | 14 | 72A | 5.5 | 6.5 | 40*35*21 |
| CD-MF03 | Enforce Air Cooling | 108 | 10 | 17 | 14 | 72A | 5.5 | 6.5 | 40*35*21 |
| CD-MF04 | Enforce Air Cooling | 144 | 8 | 13 | 14 | 72A | 5.5 | 6.5 | 40*35*21 |
| CD-MF05 | Enforce Air Cooling | 320 | 3.5 | 6.2 | 14 | 72A | 5.5 | 6.5 | 40*35*21 |

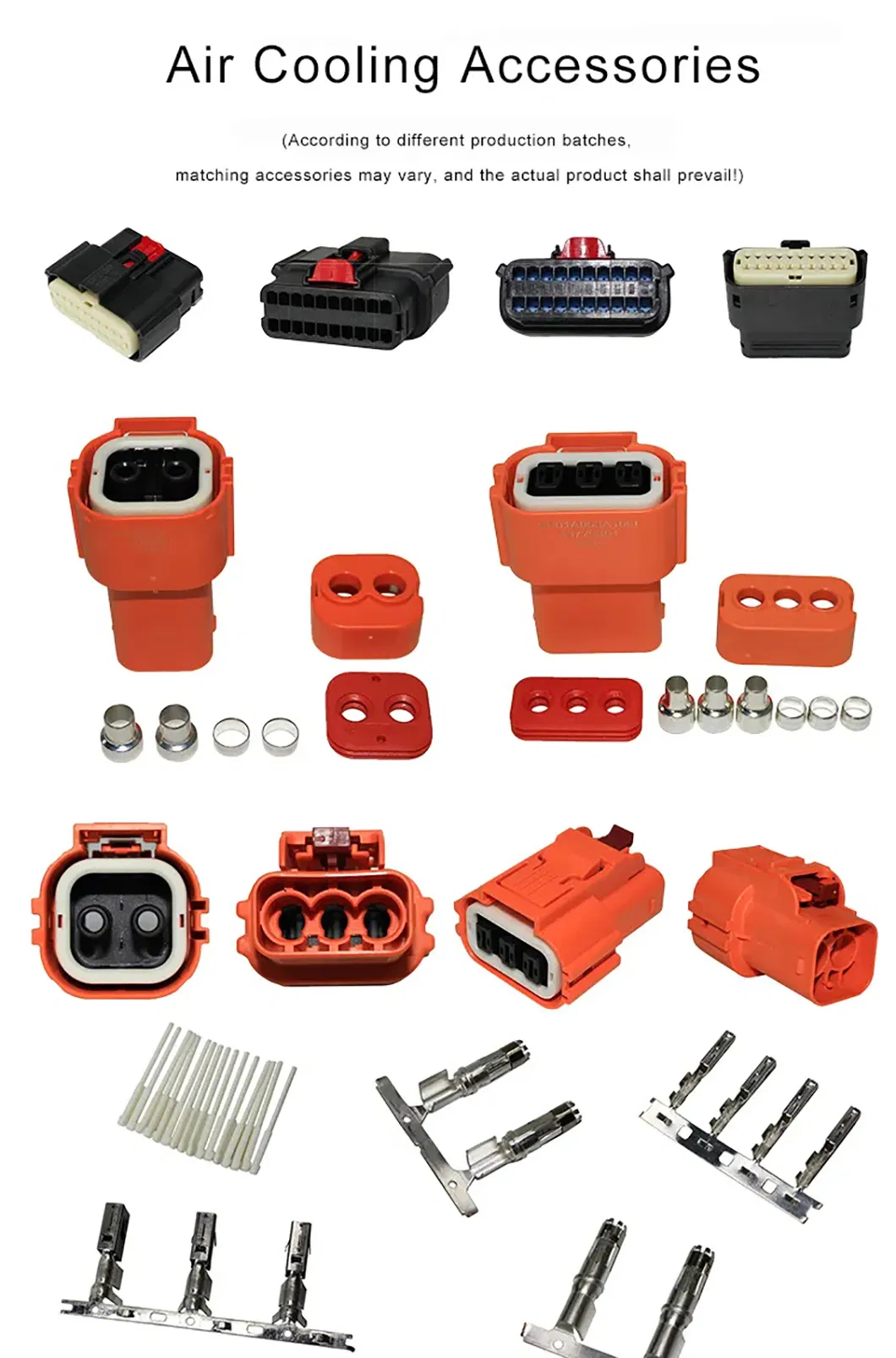

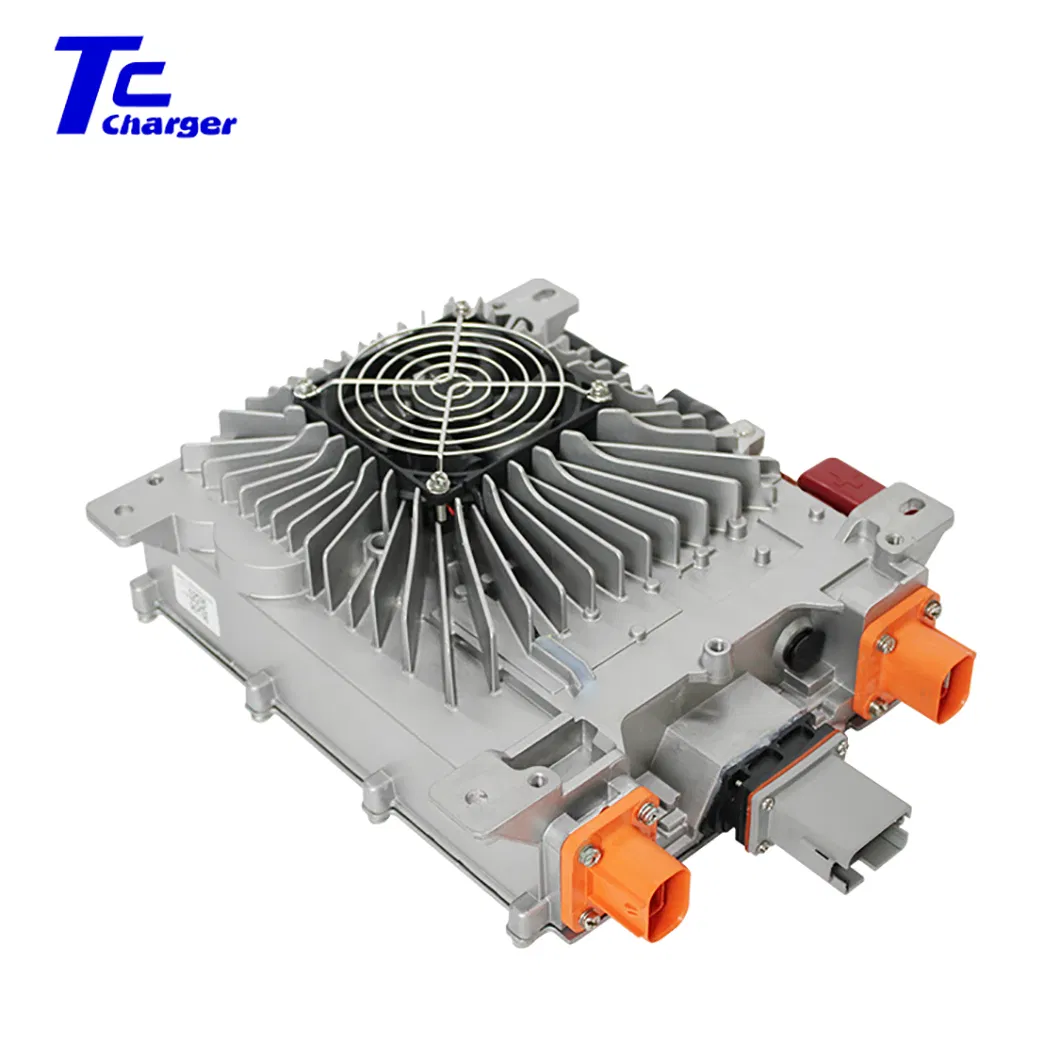

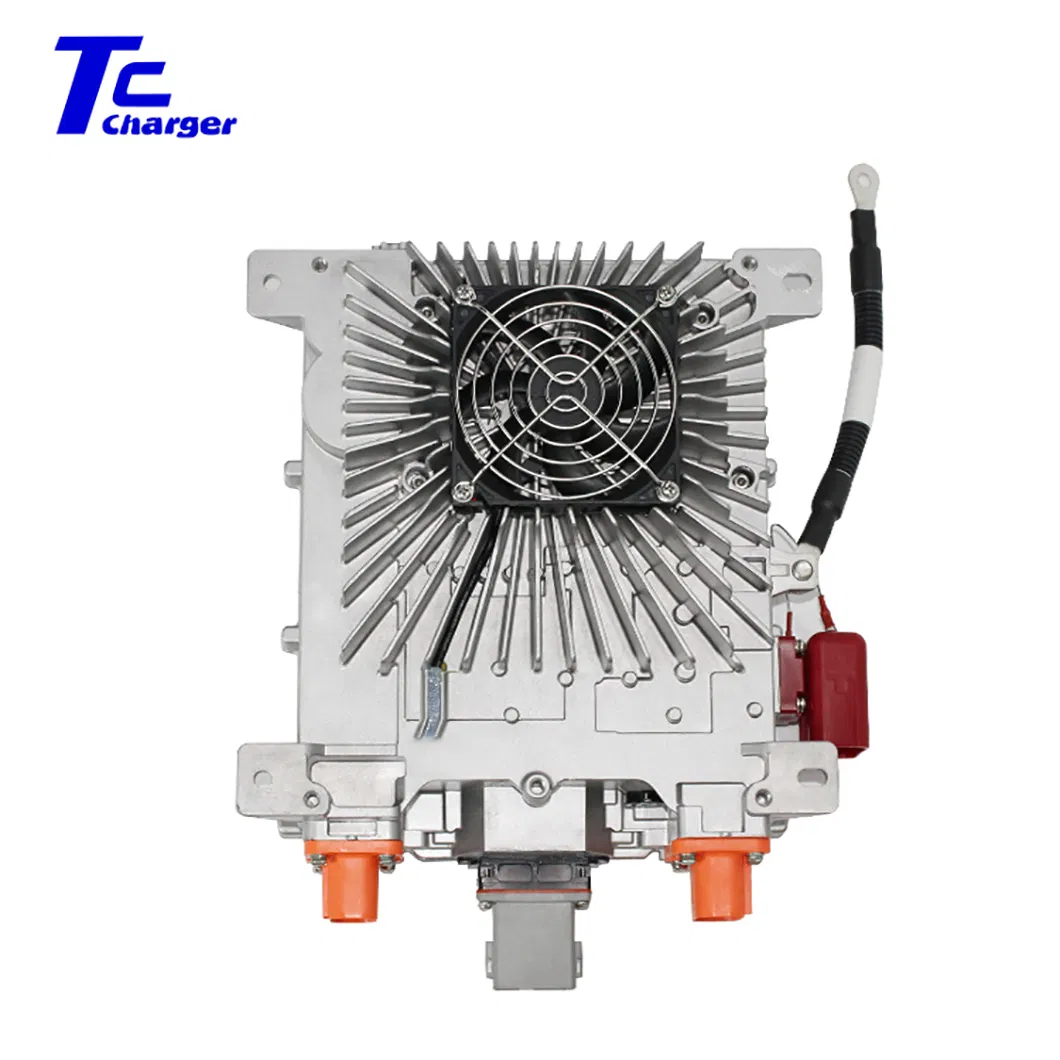

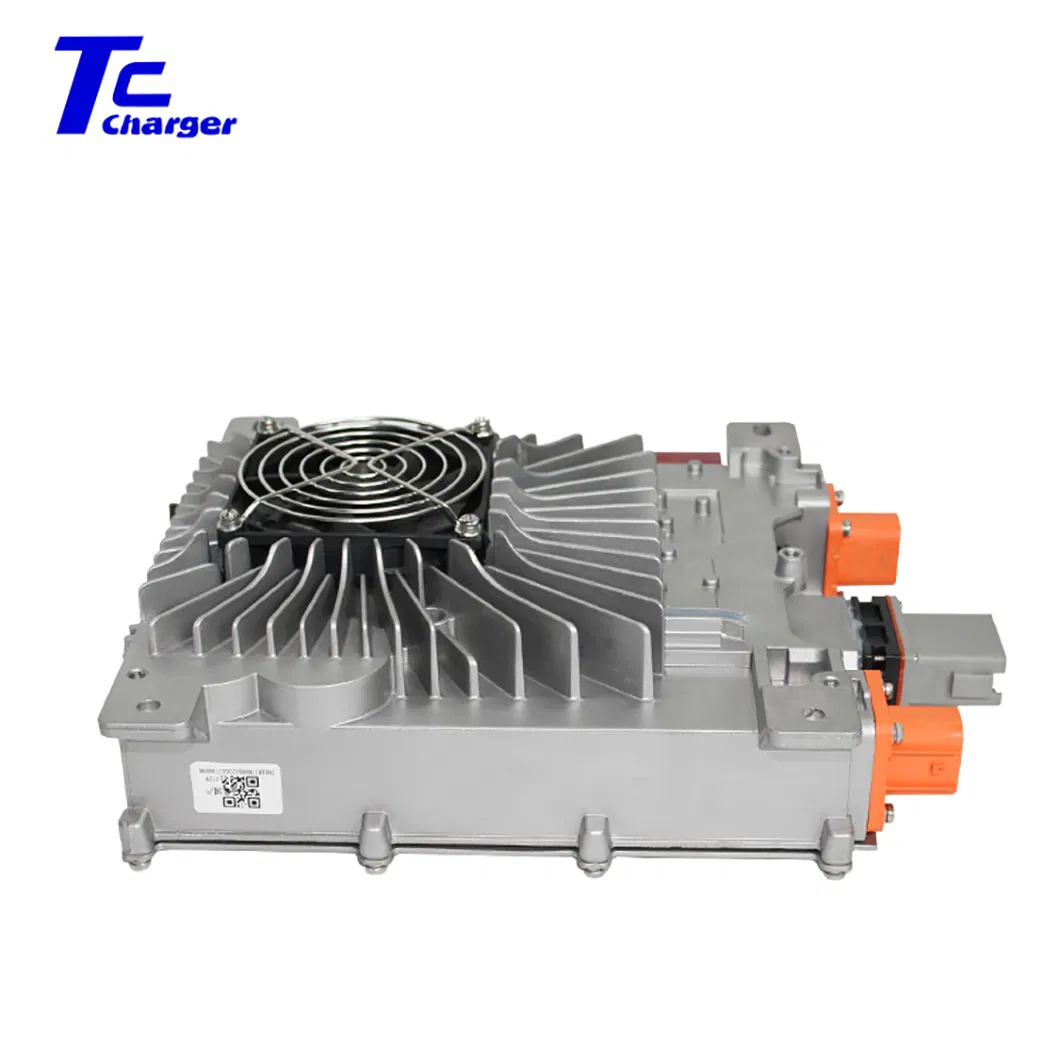

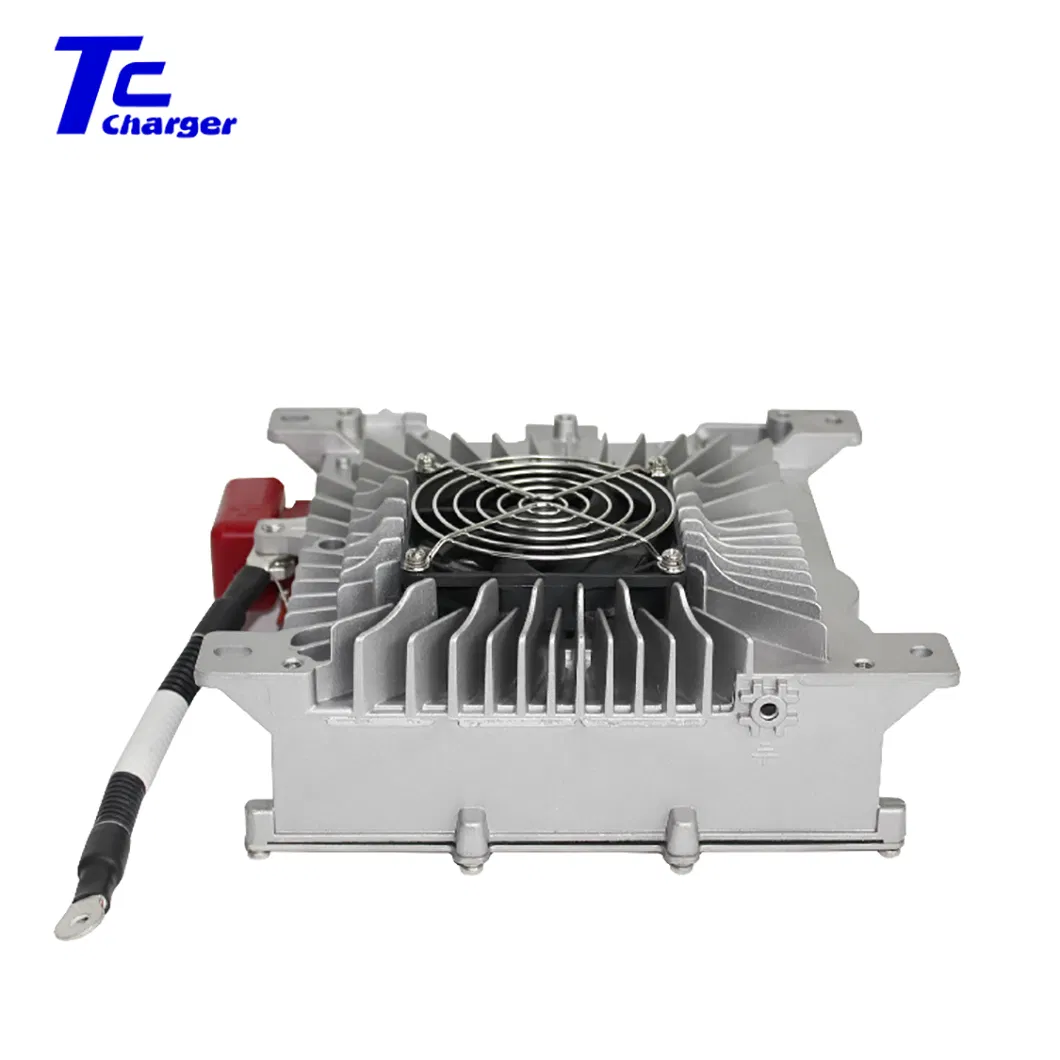

A1: By integrating a 3.3kW On-Board Charger (OBC) and a 1kW DC-DC Converter into a single compact unit, it significantly reduces space requirements, overall vehicle weight, and installation complexity in electric vehicles.
A2: This system features an IP67 protection rating, offering exceptional protection against water immersion and dust ingress, ensuring safe operation in harsh automotive environments.
A3: The unit supports a wide input voltage range of AC 90V to 264V and an input frequency range of 45Hz to 65Hz, making it compatible with various global grid systems.
A4: The system supports both Enforce Air Cooling and Liquid-Cooling configurations, allowing developers to choose the best thermal strategy for their specific vehicle design.
A5: It supports CAN-Bus communication or an Enable signal interface, providing flexible and reliable control integration with the vehicle's Battery Management System (BMS).
A6: The unit comes equipped with multiple safety mechanisms, including output over-voltage, over-current, short-circuit, reverse polarity, input low/over-voltage, and over-temperature protections.
