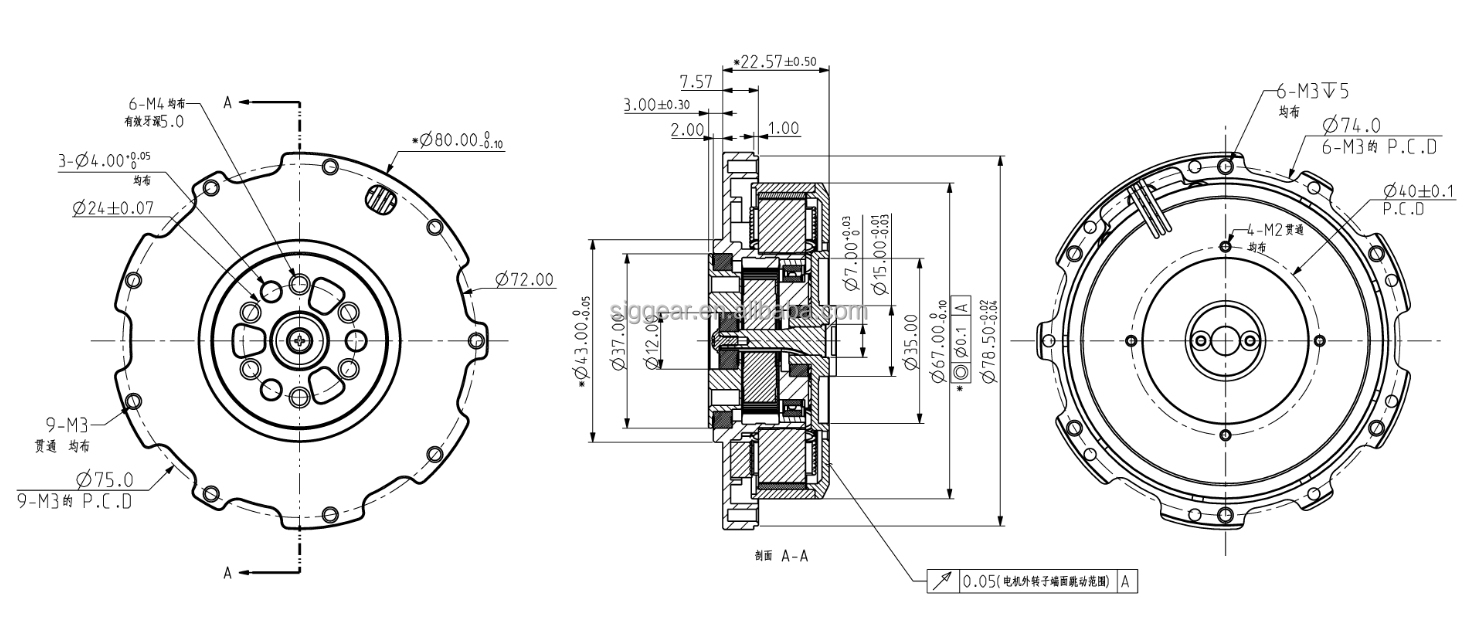

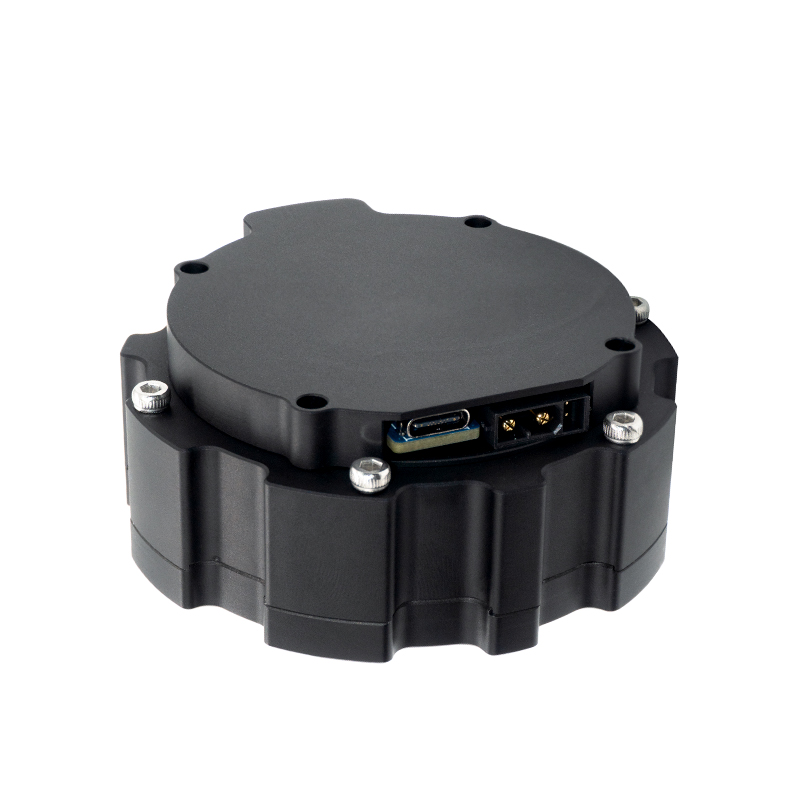

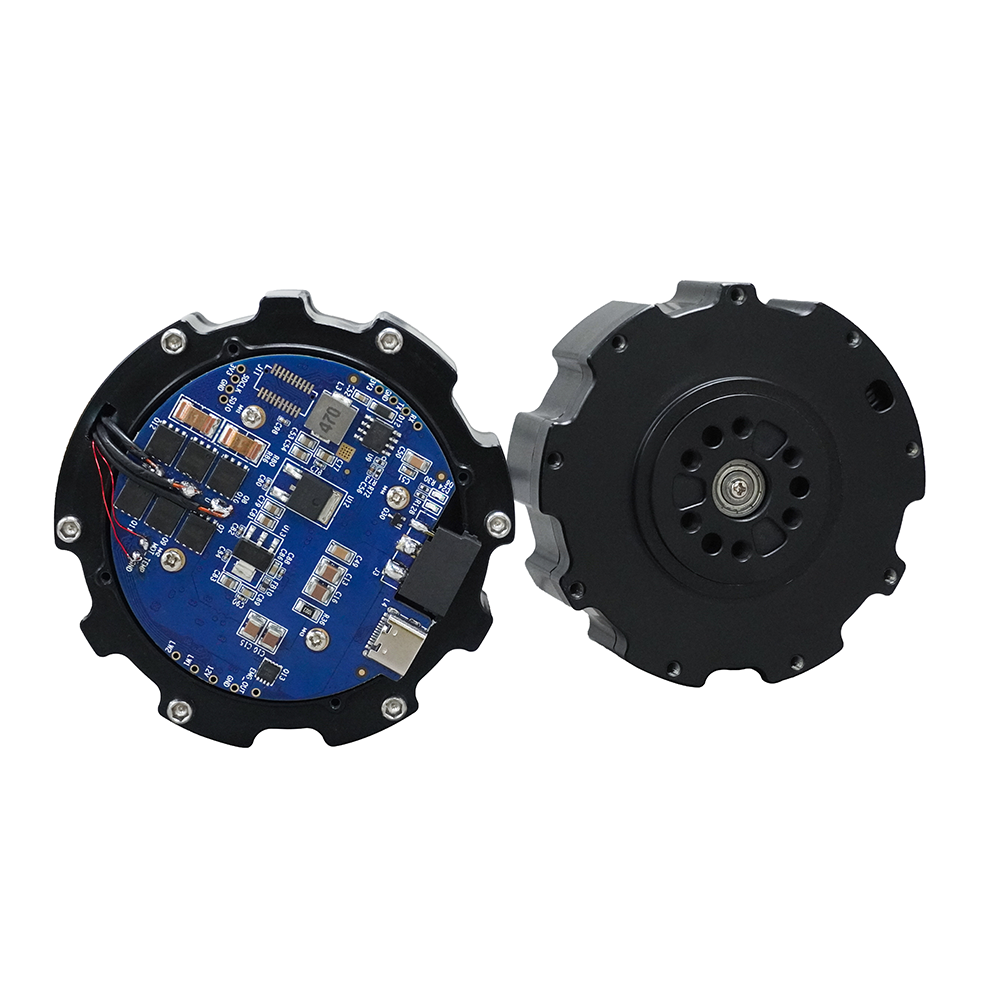

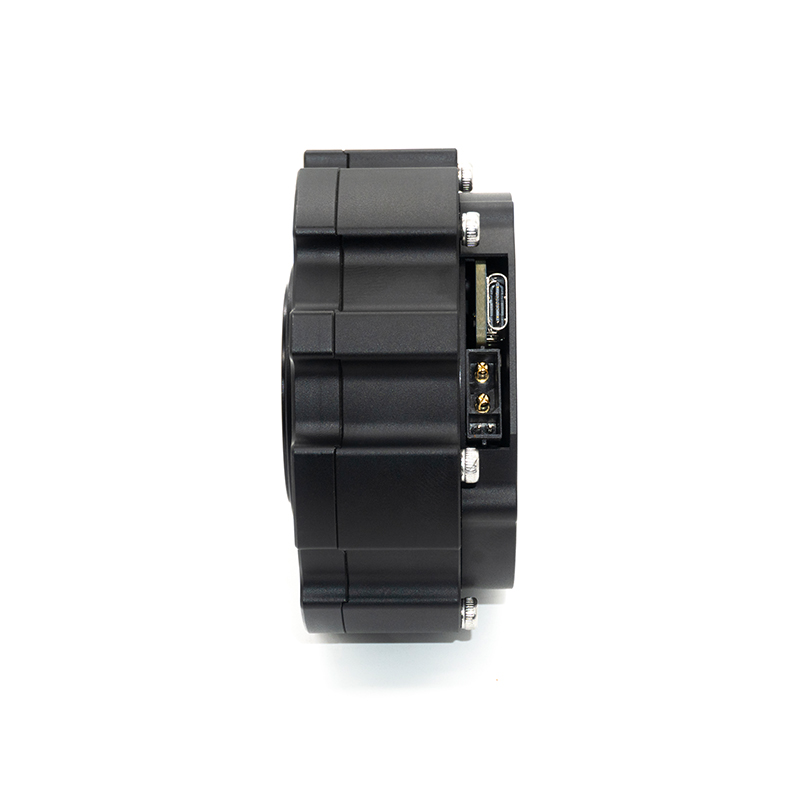

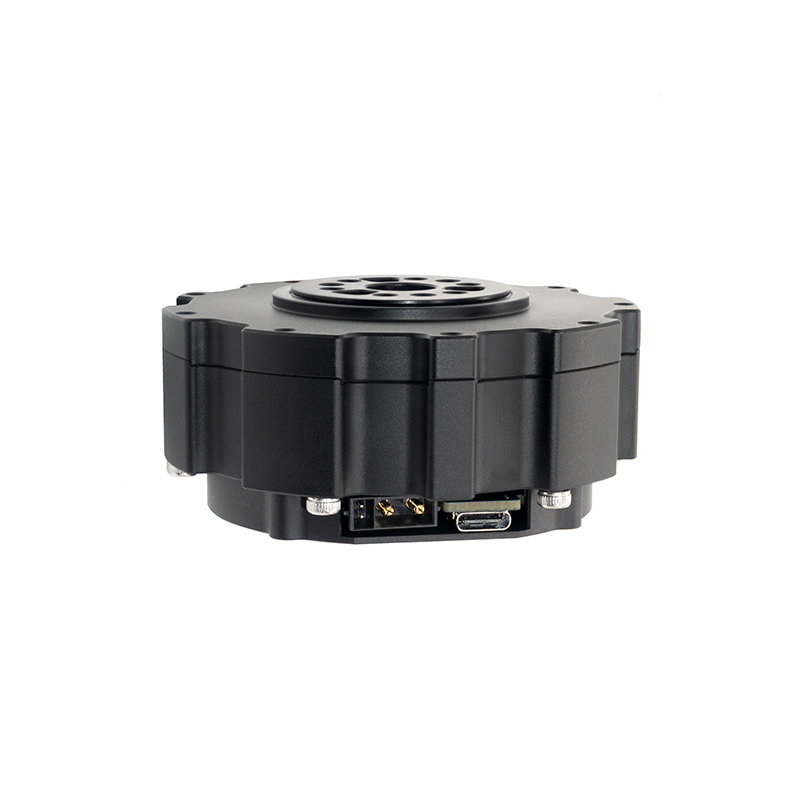

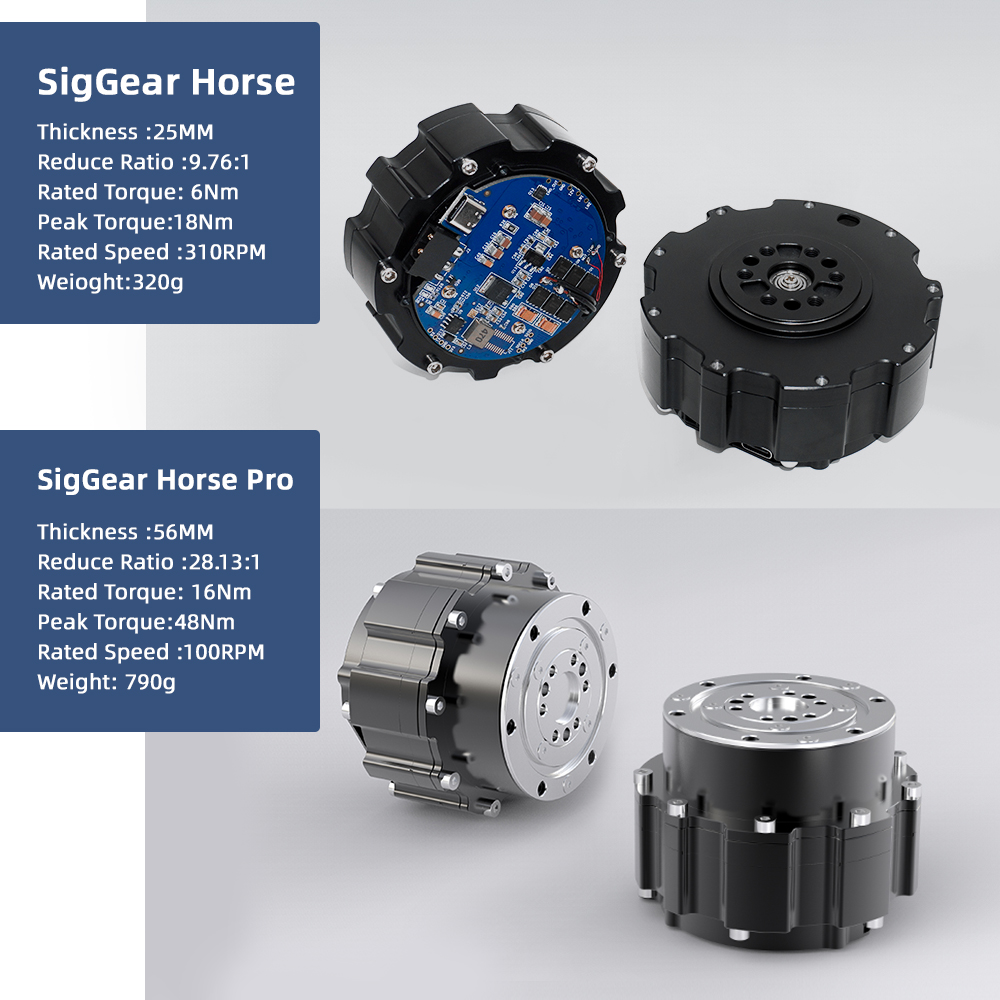

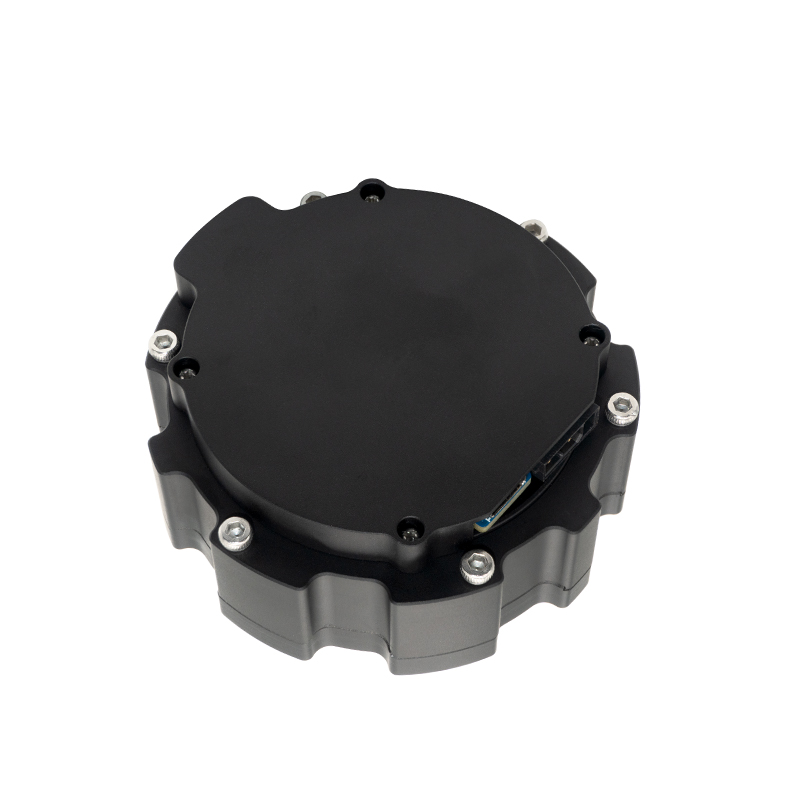

| Material | Steel |
| Outer diameter | 80mm |
| Thickness | 25.6mm |
| Reduction ratio | 9.67:1 |
| Backlash | 15-20 arcmin |
| Motor Power | 500 W |
| Output Rated Voltage | 24-48 V |
| Output Rated Speed | 310rpm |
| Output Rated Torque | 6Nm |
| Output Peak Torque | 18Nm |
| Output No-load speed | 400rpm |
| Phase damping | 224 uΩ |
| Phase inductance | 235 uH |
| Phase current full scale | 33 A |
| Rated bus current | 12 A |
| Static working bus current | 0.08 A |
| Motor structure | 18N20P |
| Thermistor | 10k B3435 %1 |
| B value of ntc | 3435 |
| Motor KV value | 104 kv |
| Weight | 305 g |
Industrial Automation
Robotic
Agricultural Automation
Drones
Smart Home

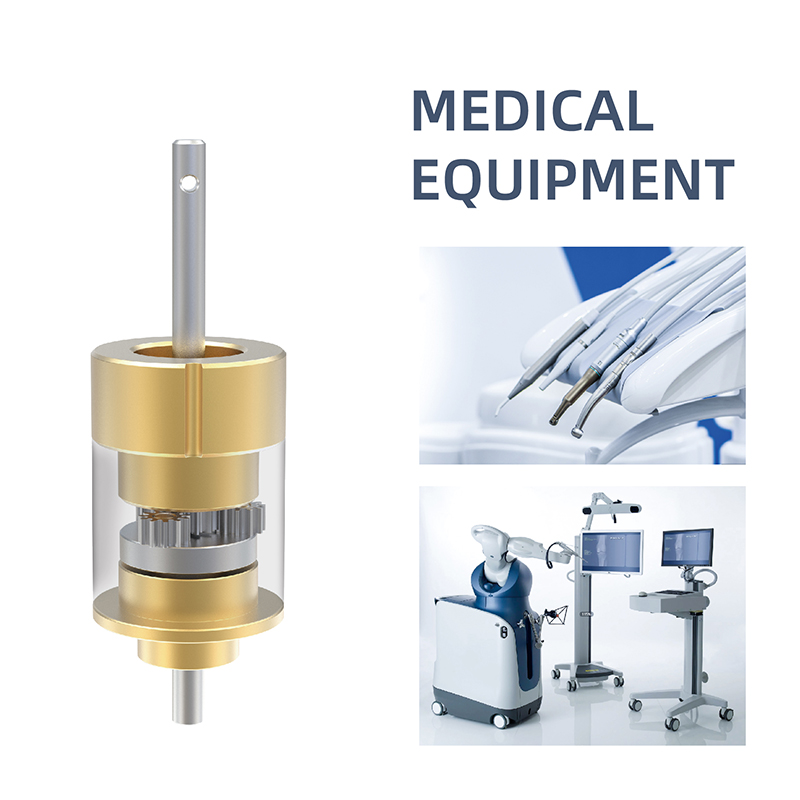

Medical Equipments
E-bikes
Vehicle
Car Park Barrier
The company is located in the Intelligent Manufacturing Center, the hinterland of the Pearl River Delta, with convenient transportation, beautiful environment, and a single-family factory building with an area of 10,000 square meters.
Founded in 2008, the company specializes in providing gear transmission system solutions. It is a high-tech enterprise integrating R&D, design, production and sales. It has a group of professional and solid R&D personnel and experienced production technicians.
The main business is the R&D, design, production and assembly of robot joint modules, micro-cycloidal pin wheel gearboxes, embedded gearbox motor modules, planetary gearboxes, reduction motors, spur gearboxes and precision transmission accessories. Products are widely used in fields such as robots, drones, medical equipment, smart homes, smart agriculture, automotive electronics, garden tools, and industrial automation.

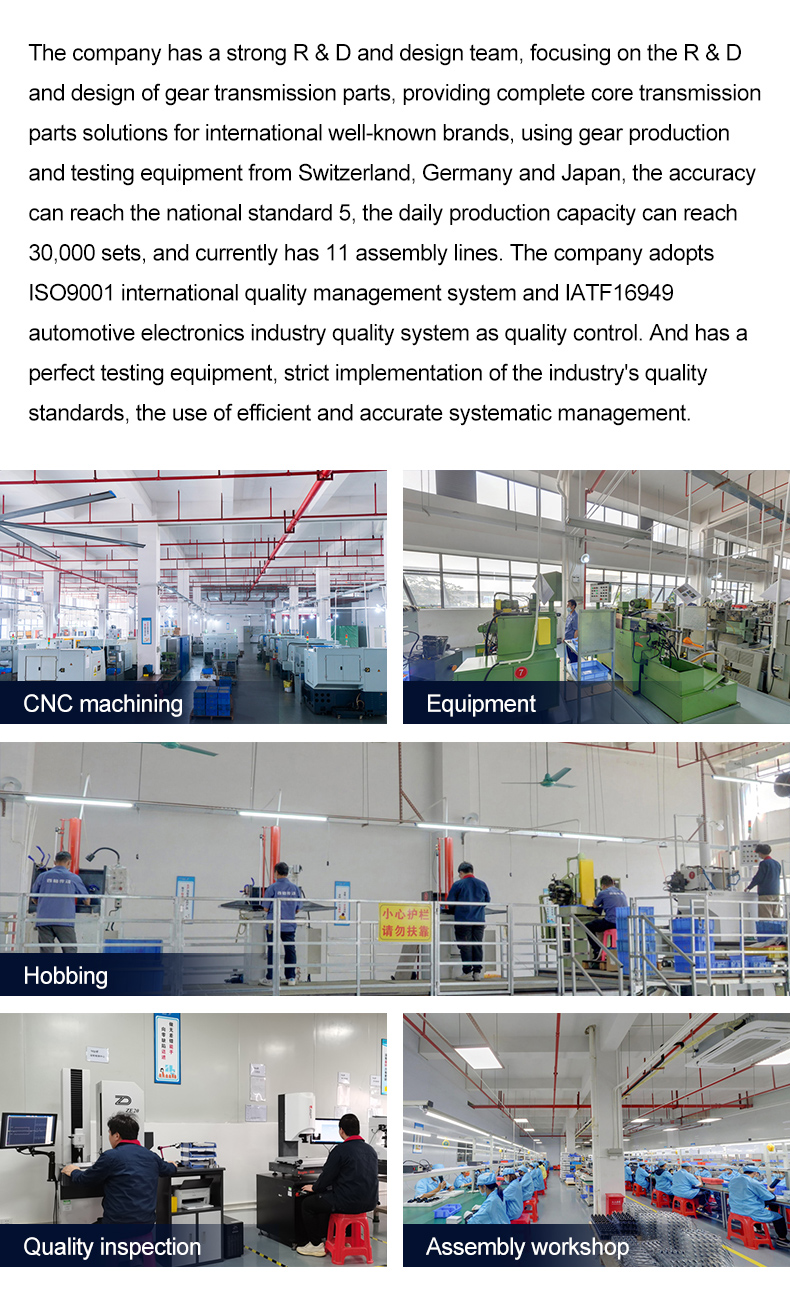

The company provides complete core transmission component solutions. It has a series of high-precision production equipment and high-precision testing instruments, and the accuracy can reach national standard level 5. It has passed ISO9001 international quality management system and IATF16949 automotive electronics industry quality system certification.
