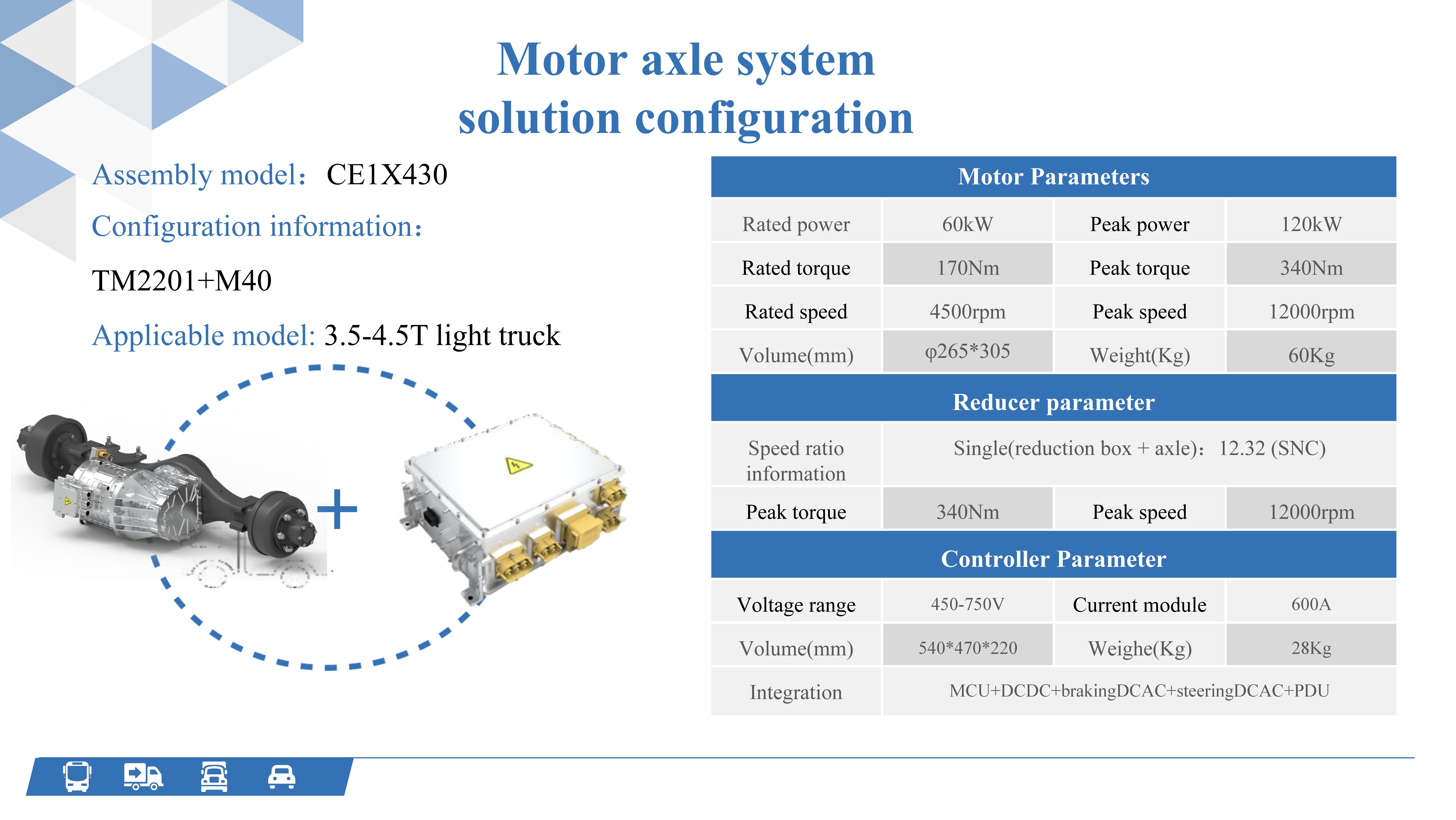

| Motor Parameters | |||
| Rated power | 60kw | Peak power | 120kw |
| Rated torque | 170N.m | Peak torque | 340N.m |
| Rated speed | 4500rpm | Peak speed | 12000rpm |
| Volume(mm) | φ265*305 | Weight(kg) | 60kg |
| Reducer parameter | |||
| Speed ratio | Single(reduction box + axle)：12.32 (SNC) | ||
| Peak torque | 340Nm | Peak speed | 12000rpm |
| Controller Parameter | |||
| Voltage range | 450-750V | Current module | 600A |
| Volume(mm) | 540*470*220 | Weight(kg) | 28kg |
| Integration | MCU+DCDC+braking DCAC+steering DCAC+PDU | ||

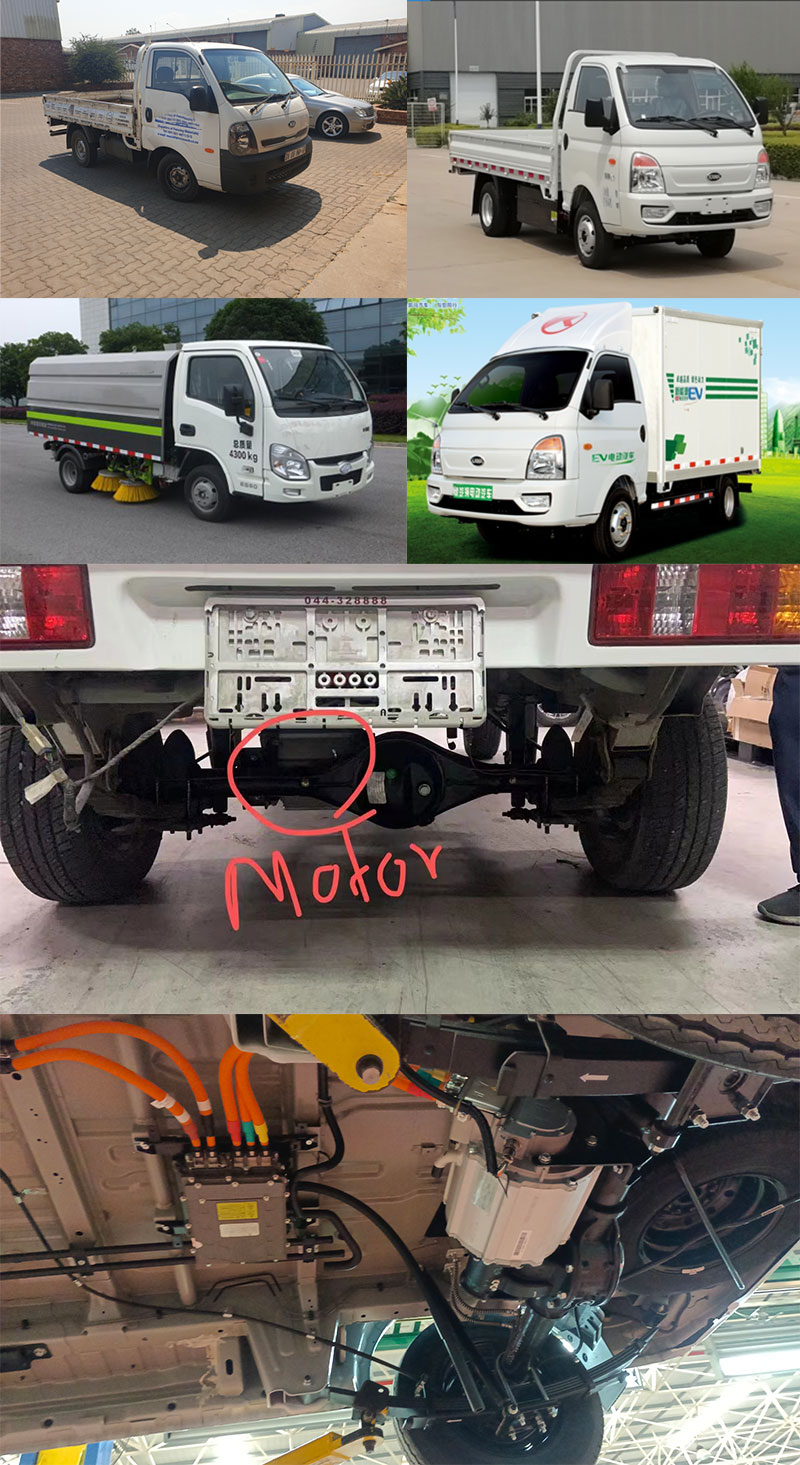

Application: 3.5T-4.5T light truck
Motor Type: PMSM
Power: 60/110kw
Torque: 150/350Nm
System Weight: 200kg
Rated Load: 2500kg

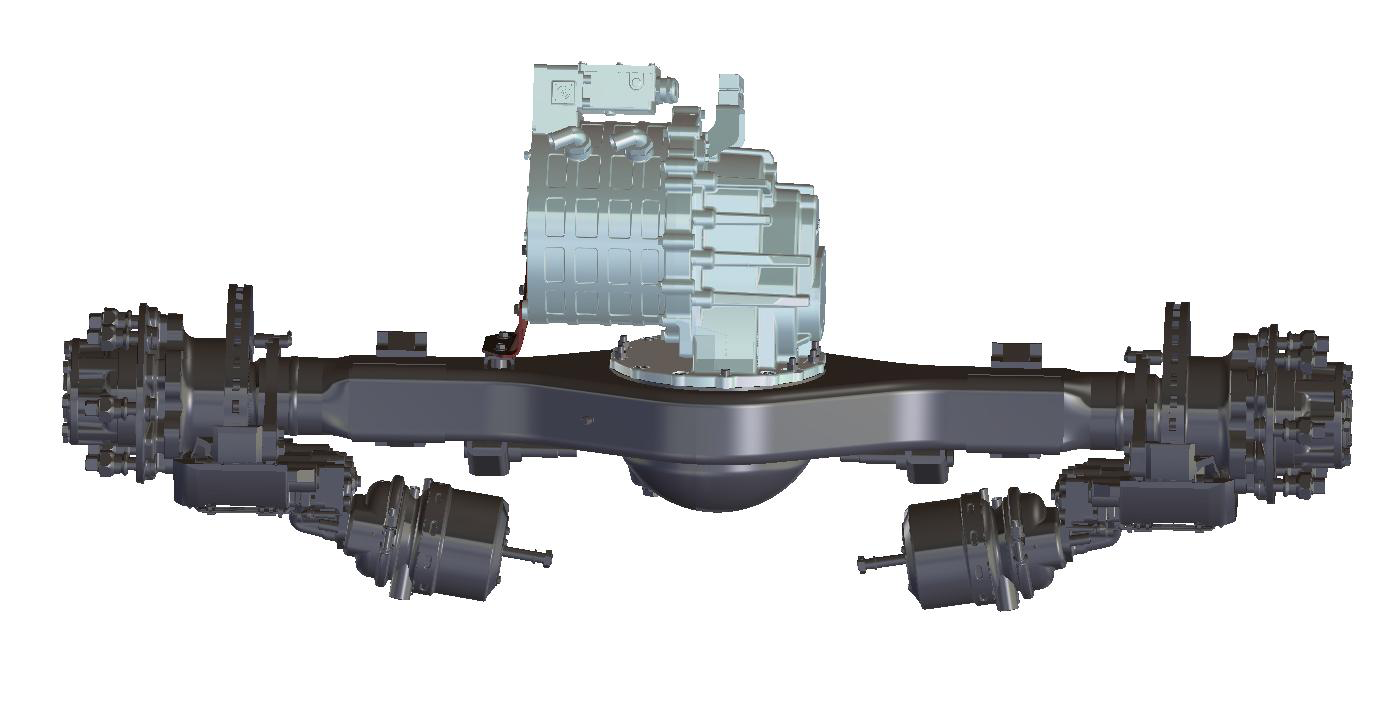

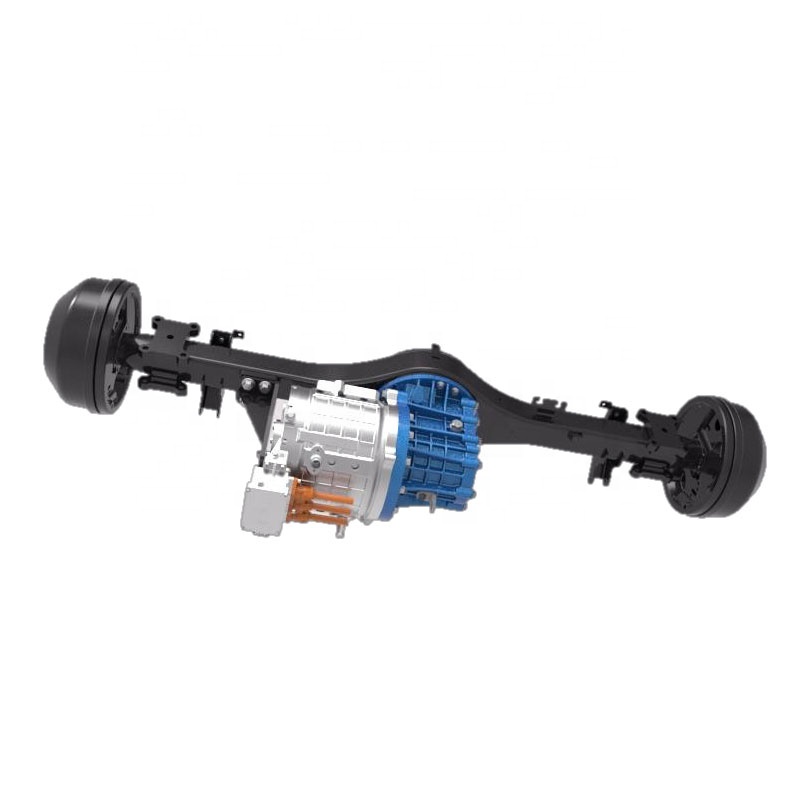

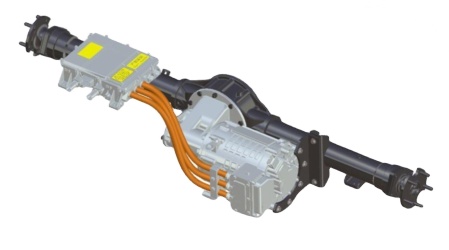

Application: 4.5T-6T light truck
Motor Type: PMSM
Power: 60/120kw
Torque: 145/335Nm
System Weight: 270kg
Rated Load: 3500kg
Product scope: 4.5T-6T light truck
For 2~2.8T truck and mini van

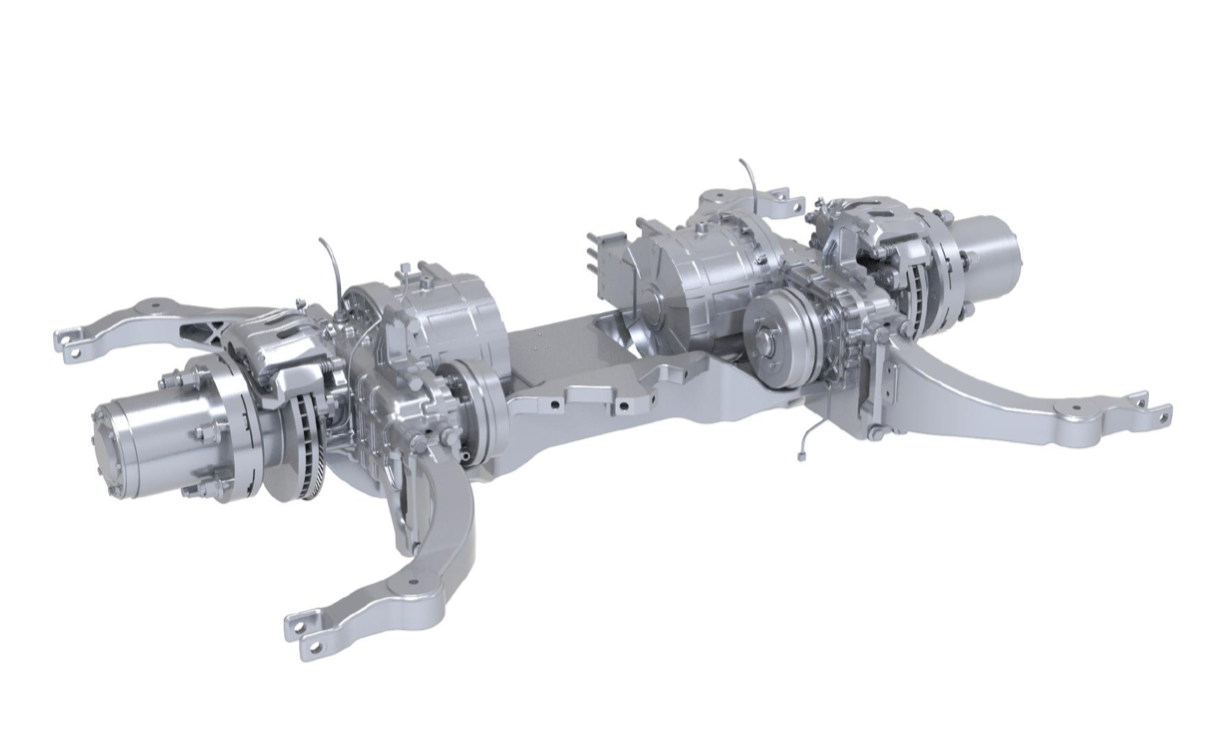

Application: Tourist buses, light-duty trucks
Motor: PMSM | Rated Voltage: 540V
Gear Ratio: 10.63 | Protection: IP67
Brake: Hydraulic disc brake | Weight: 550kg
Leading provider of customized EV powertrain solutions, for cars, buses, trucks, boats, and more. To help your business excel in the competitive electric vehicle market, we provide a wide range of complete EV solutions, tailored to the unique challenges faced by EV developers and brands, ensuring your success.
12+ Years of Experience | 300+ Overseas Clients | 100+ Strategic Partners
