Specializing in the research, development, and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and AC/DC power supplies. The goal is to provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries.
We provide the right power supply solution with optimized quotation solutions for your specific needs.
We specialize in customizing DC-DC converters. With customized input and output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A.
Options include both isolated and non-isolated converter designs. If you cannot find the exact specification, our team can assist in developing a custom model for you.
| Parameter | Details |
|---|---|
| Type | Isolate / Non-isolate |
| Model | IPS-DTD Series |
| Input Voltage | Customizable VDC options |
| Output Voltage | Customizable VDC options |
| Output Current | Customizable Amperage |
| Output Power | Customizable Wattage |
| Shell Material | Aluminum / Plastic |
| Waterproof Level | IP67 Standard |

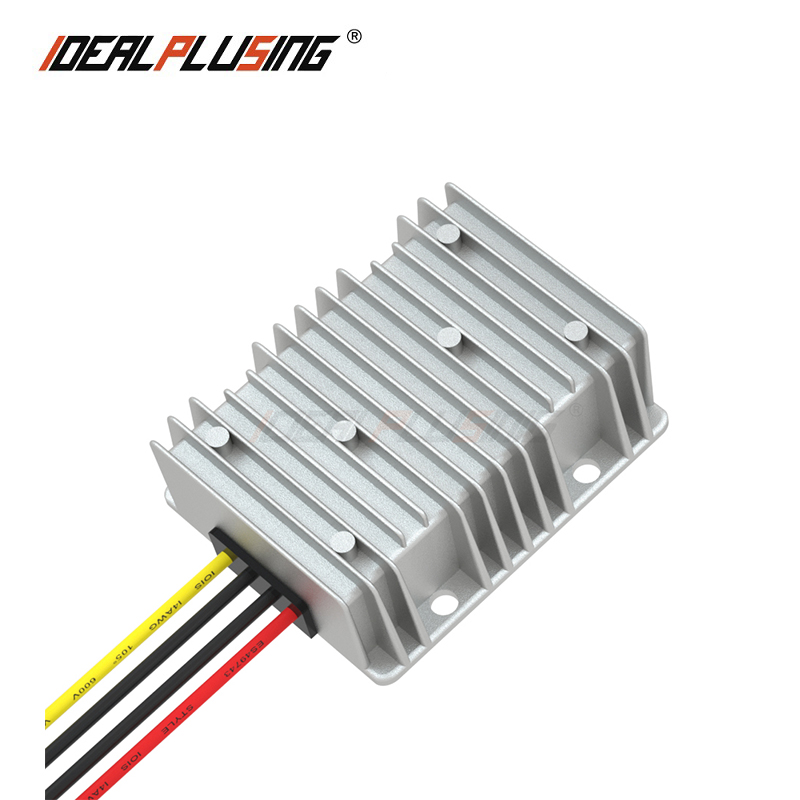

Input: 30-60VDC | Output: 12VDC 10A (120W)

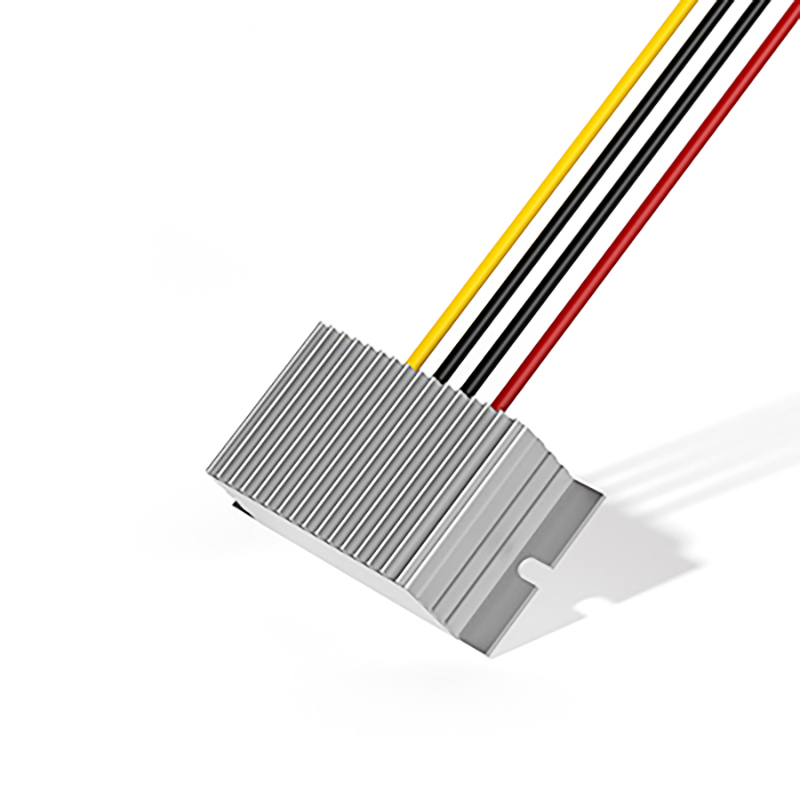

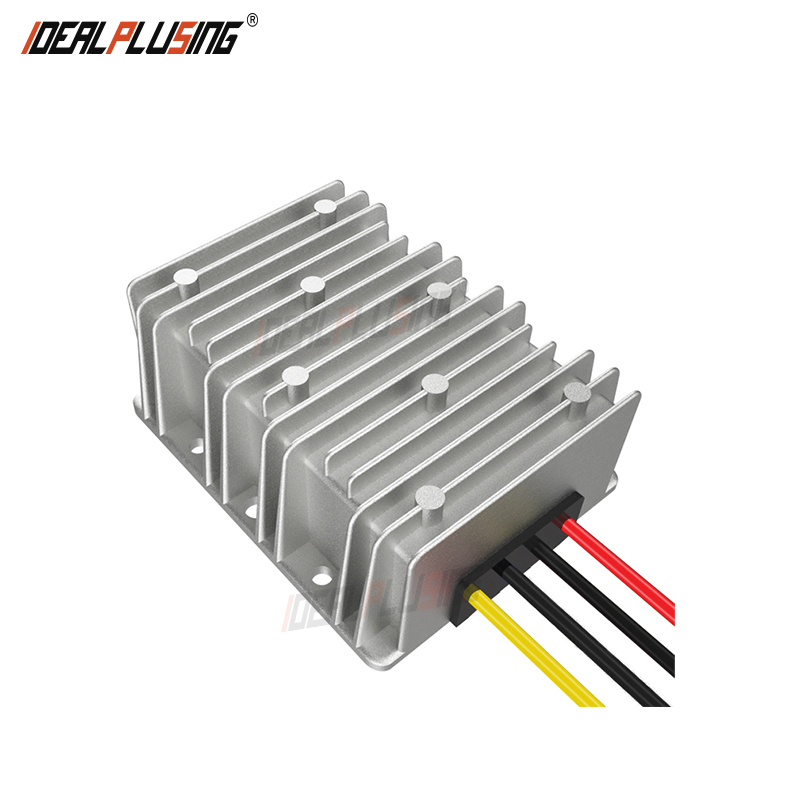

Input: 20-100VDC | Output: 12VDC 2A (24W)

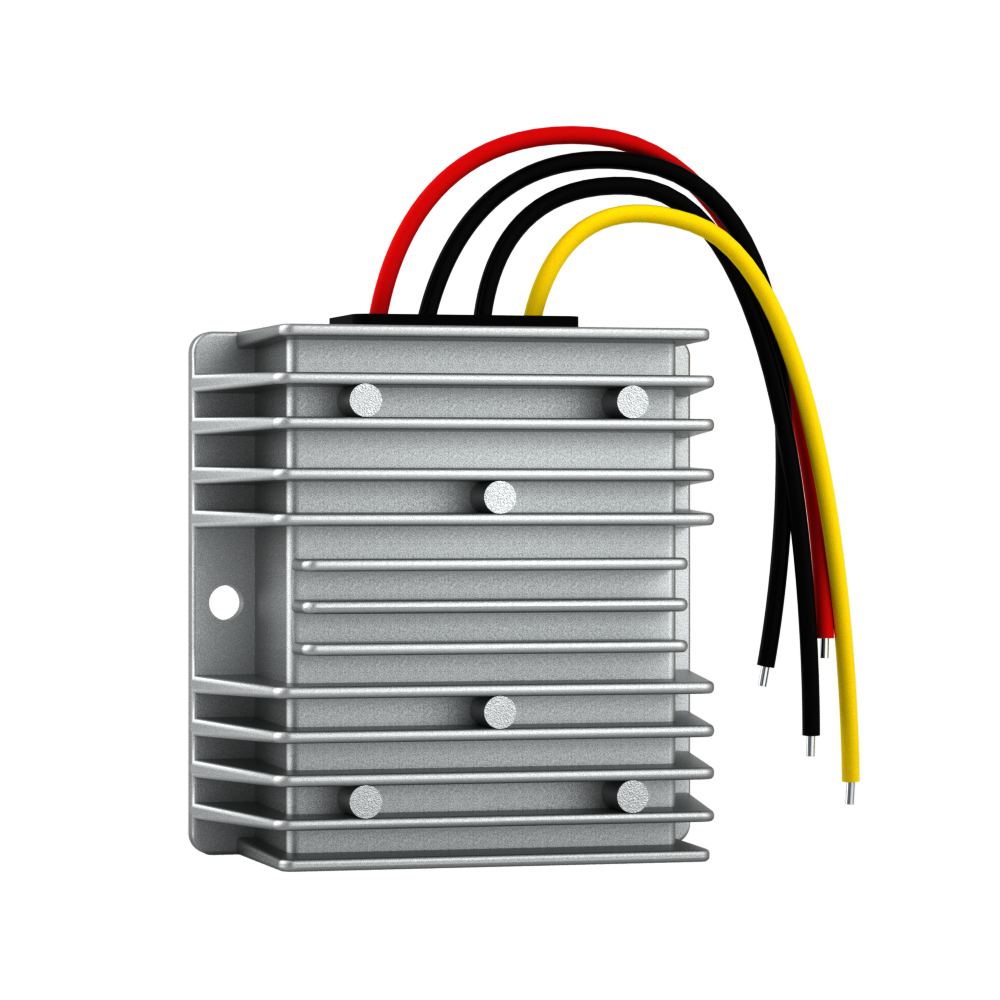

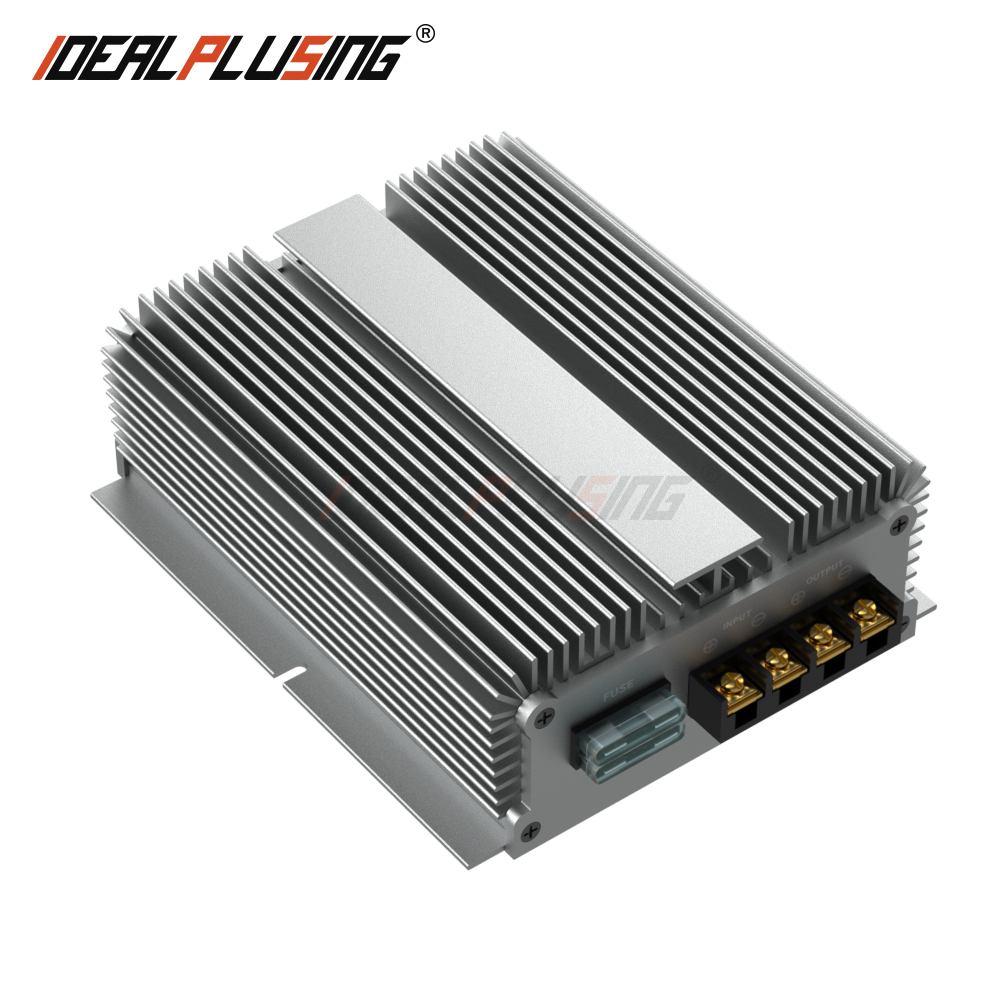

Input: 15-40VDC | Output: 12VDC 10A (120W)
1. Protections: All buck-boost and step-up/step-down products come standard with output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
2. Inductive Loads: For motor applications, coils, or speakers, it is recommended to use a power supply 3-5 times the rated power of the load to handle starting currents.
3. Isolated Products: Strongly recommended for carrying precious loads or when the input voltage is significantly higher than the output voltage to improve safety.

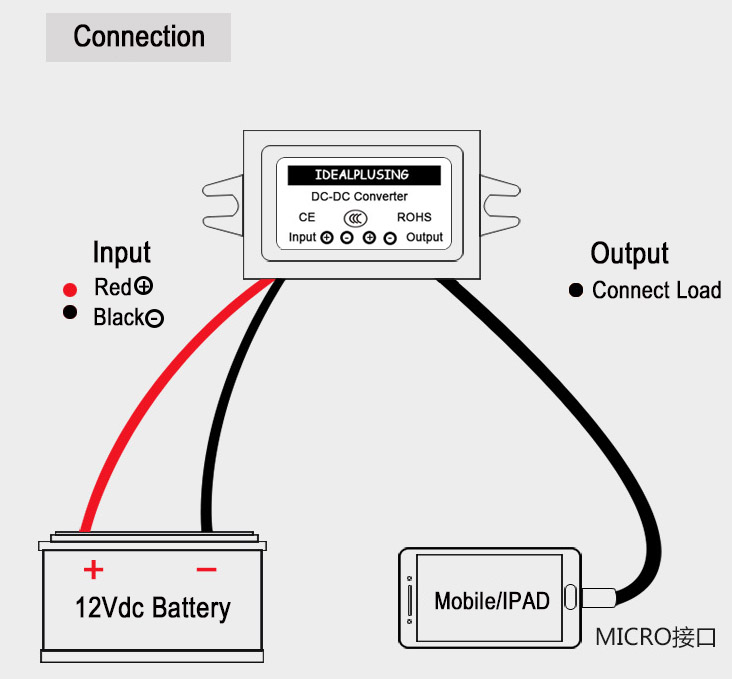

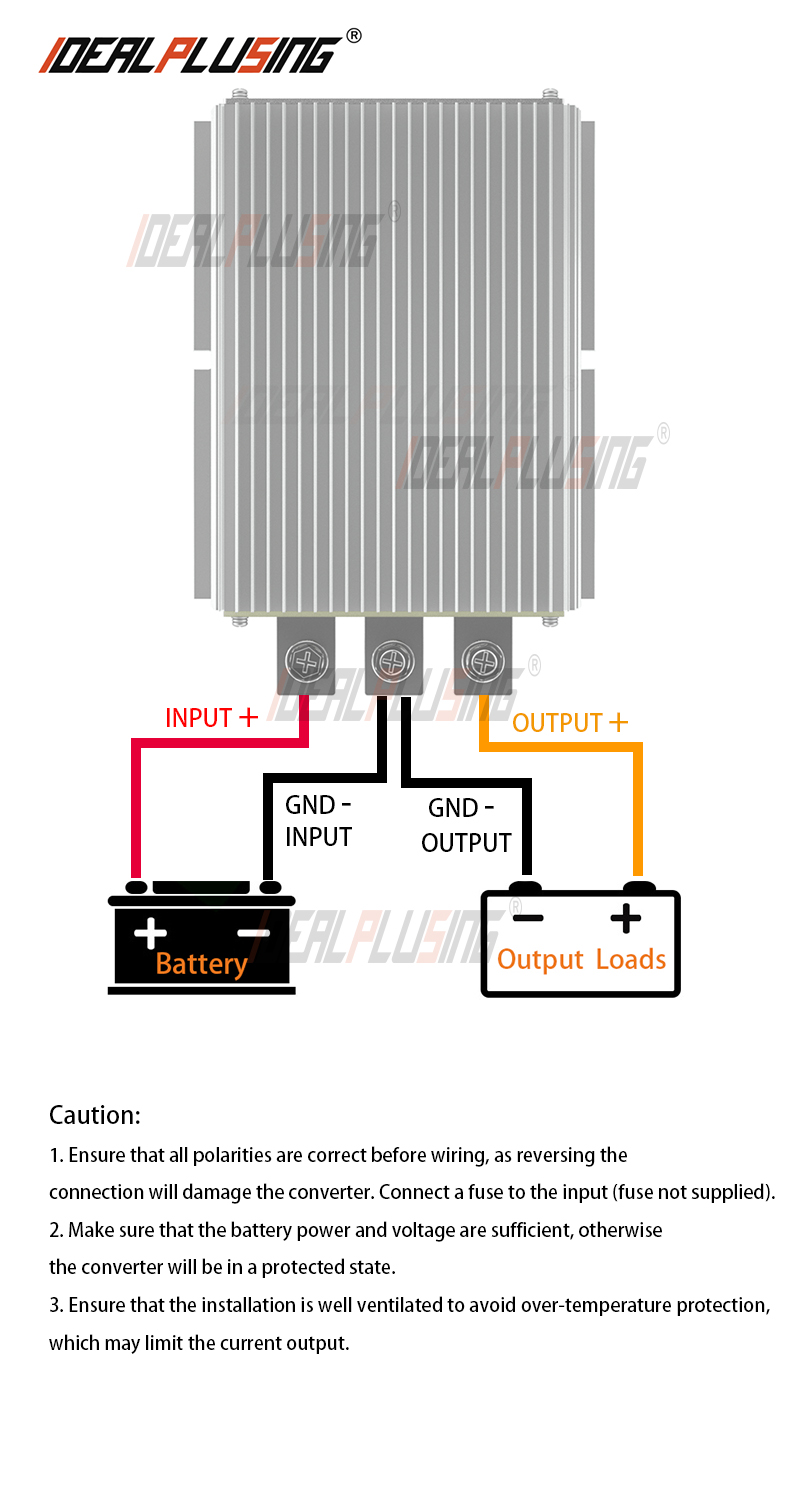

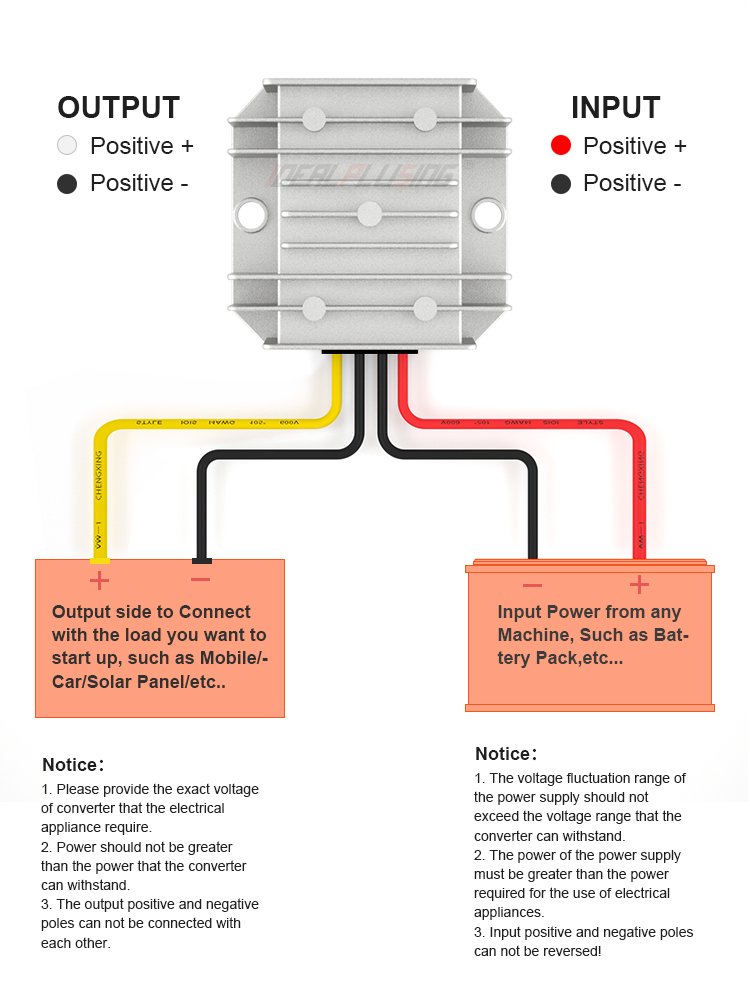

4. Installation: To prevent damage, ensure appropriate fuses are added at the input end and diodes for anti-reverse connection where applicable.
A1: Isolated converters have a physical barrier between input and output, preventing high voltage from passing through in case of failure. Non-isolated converters share a common ground and are more compact but less protective for sensitive loads.
A2: Yes, we specialize in customization. We can provide DC-DC converters ranging from 1V to 1000V DC and 1A to 1000A based on your specific requirements.
A3: For inductive loads like motors or solenoids, the starting current is much higher than the rated current. We recommend choosing a power supply with 3 to 5 times the rated power of your load.
A4: Yes, we offer models with IP65 and IP67 waterproof levels, which are ideal for outdoor and high-demand industrial environments.
A5: Most models include overcurrent protection, short-circuit protection, input undervoltage protection, and chip/board over-temperature protection.
A6: Our high-efficiency designs typically reach up to 93%, ensuring minimal energy loss and reduced heat generation.
