| Category | Parameters | Unit | Details |
|---|---|---|---|
| Input | Rated voltage | V | 48 |
| Efficiency | Efficiency (type) | % | >90 |
| Output | Voltage | V | 12 |
| Output | Max. rated current | A | 20 |
| Output | Max. rated power | W | 240 |
| Performance | Voltage regulation | % | ±1 |
| Performance | Load regulation | % | 2 |
| Loss | No load loss | mA | 22 @ 12Vin |
| Ripple | Ripple & noise | mV | 300 (full load) |
| Environment | Working temperature | °C | -40 ~ +80 |
| Environment | Working humidity | RH | 10% ~ 90% |
| Environment | Storage temperature | °C | -40 ~ +100 |
| Function | Short circuit protection | - | NO |

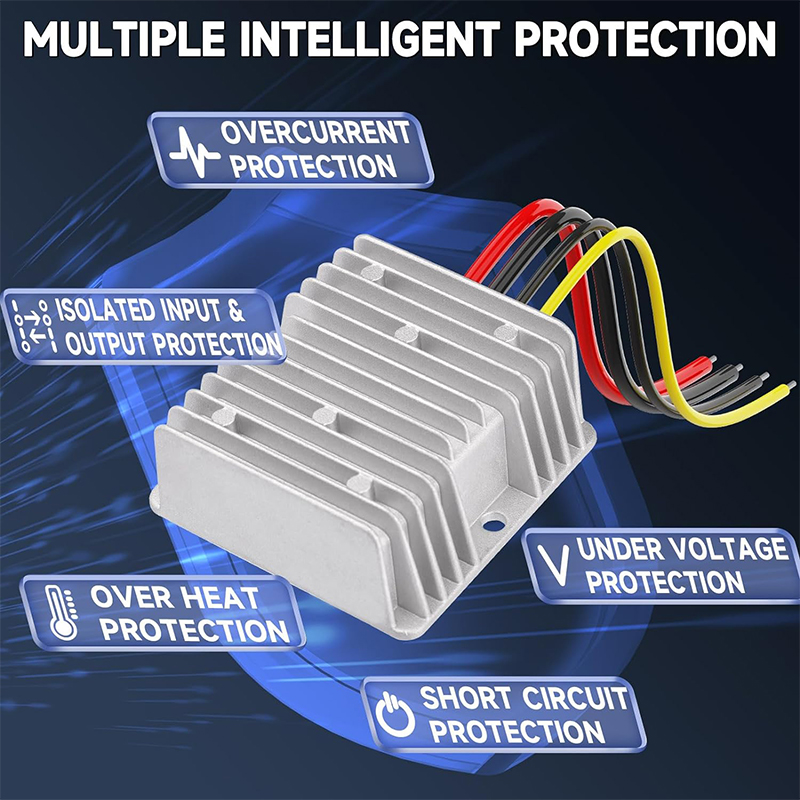

| Function | Over current protection | - | YES |

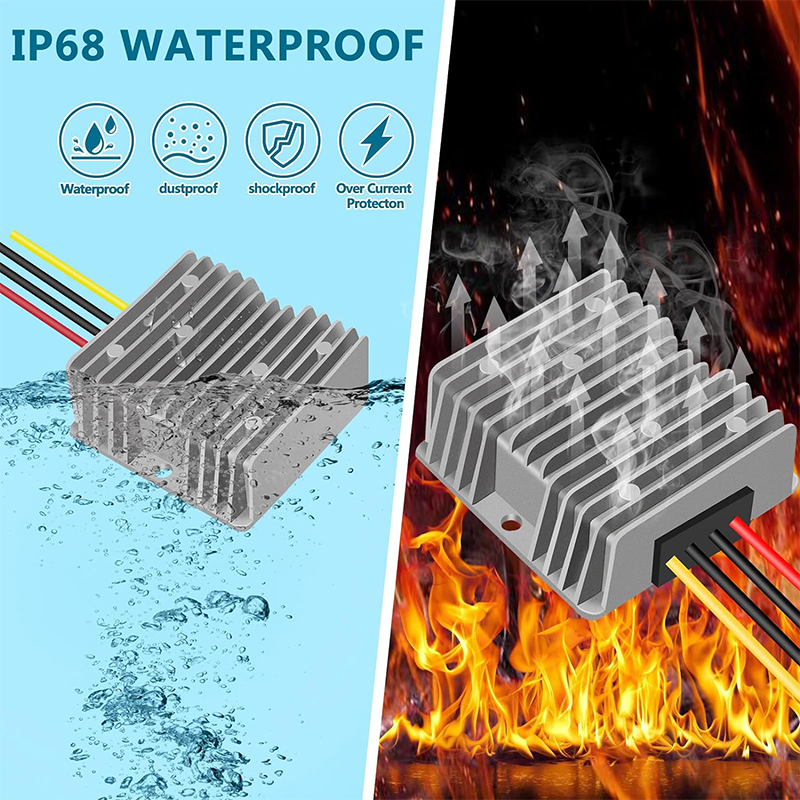

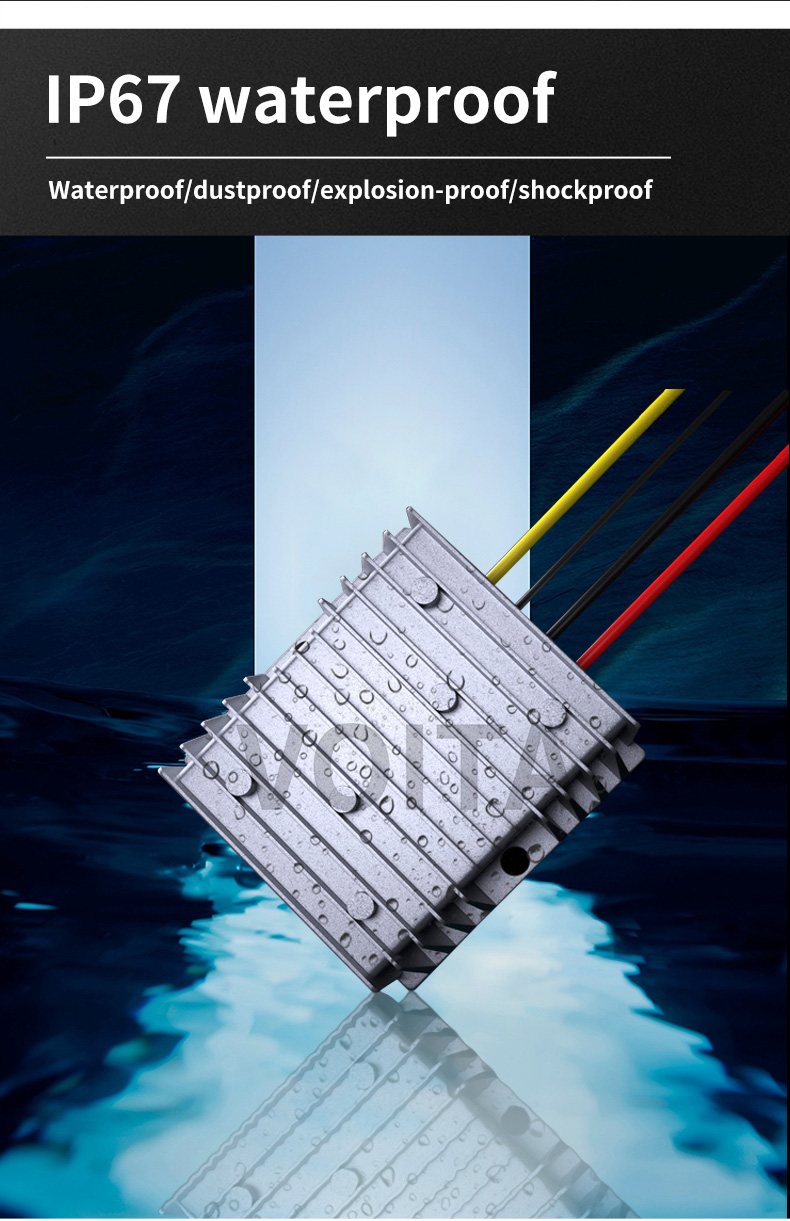

| Function | Waterproof Level | - | IP67 |
| Function | Over temperature protection | - | YES |
| Function | Over voltage protection | - | YES |

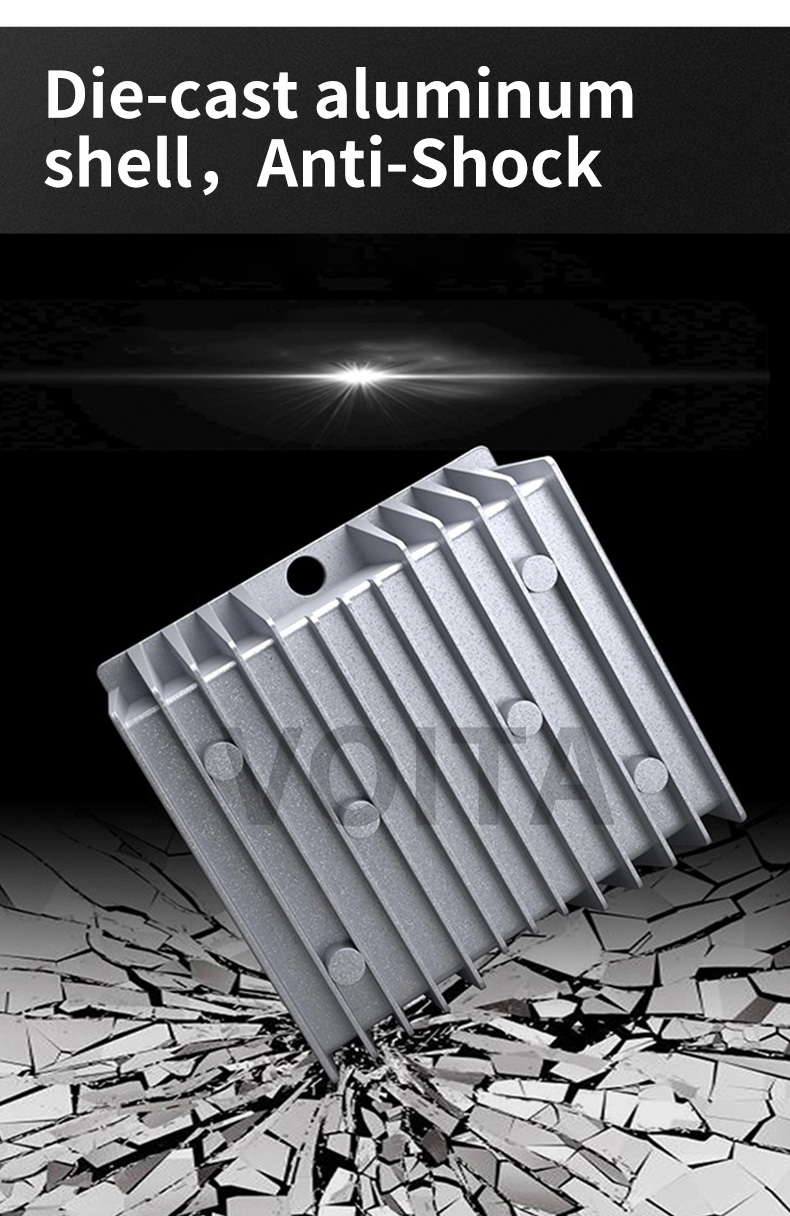

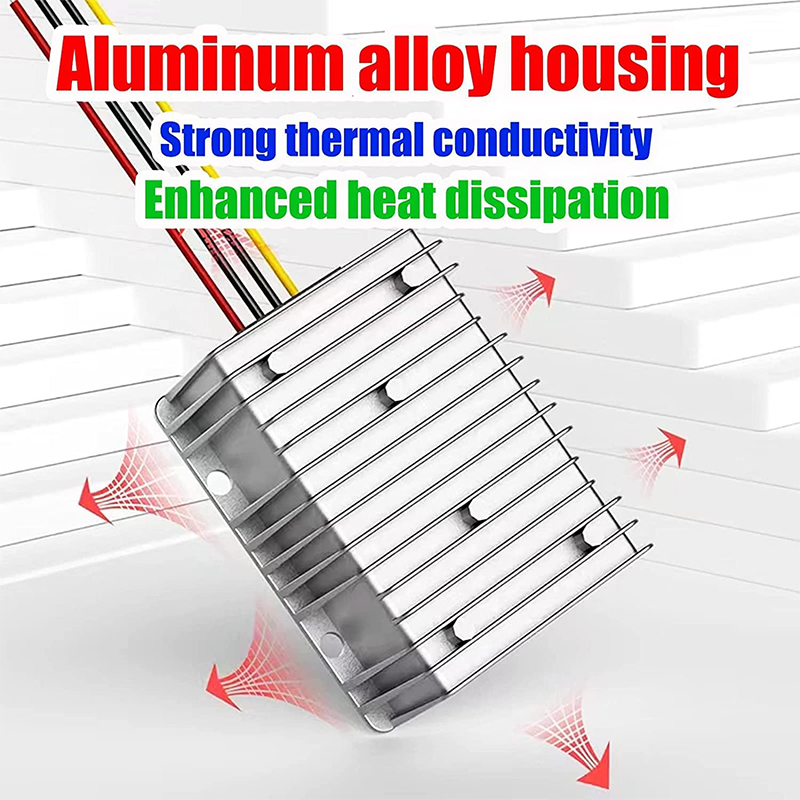

| Other | Cooling | - | Free air convection |
| Other | Packaging | - | Static bag or White Box |
