Product Description

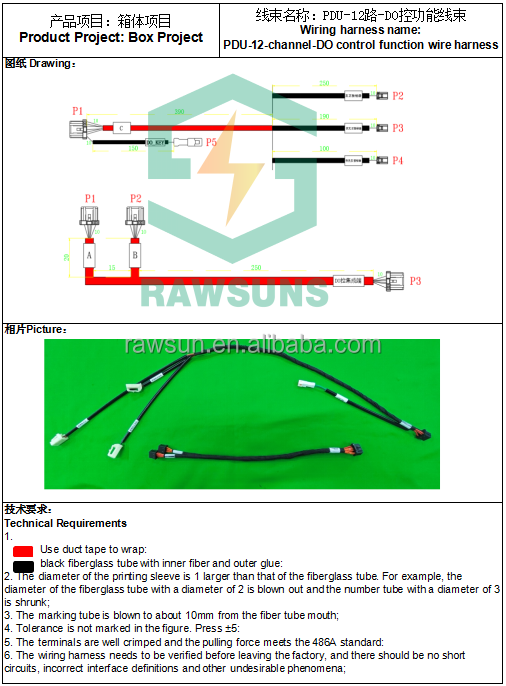

Product Project: Box Project - PDU-12-channel-DO control function wire harness

Technical Requirements:

1. Use duct tape to wrap: black fiberglass tube with inner fiber and outer glue.

2. The diameter of the printing sleeve is 1 larger than that of the fiberglass tube. For example, the diameter of the fiberglass tube with a diameter of 2 is blown out and the number tube with a diameter of 3 is shrunk.

3. The marking tube is blown to about 10mm from the fiber tube mouth.

4. Tolerance is not marked in the figure. Press ±5.

5. The terminals are well crimped and the pulling force meets the 486A standard.

6. The wiring harness needs to be verified before leaving the factory, and there should be no short circuits, incorrect interface definitions and other undesirable phenomena.

Model	Applicable Vehicles	Motor power (rated/peak)	Motor torque (rated/peak)	Maximum speed
RDD500	3.5 tons light trucks & airport tractors	60/120kW	220/500Nm	5000rpm
RDD850	sprinter models, light trucks	70/112kW	350/860Nm	4500rpm
RDD1000	6m bus, 4.5 tons light truck	70/130kW	400/1000Nm	4500rpm
RDD1100	6.6m bus, 6.6m coach	80/160kW	500/1100Nm	4500rpm
RDD1300	6m bus, coach	100/190kW	500/1300Nm	4500rpm
RDD1700-low rpm	8m bus	80/150kW	750/1700Nm	3000rpm
RDD1700-high rpm	coster	100/220kW	750/1700Nm	4000rpm
RDD2100-low rpm	8.5m bus	75/155kW	900/2100Nm	2800rpm
RDD2100-high rpm	8.5m coach	90/195kW	900/2100Nm	3500rpm
RDD2500	10m bus	100/200kW	1000/2500Nm	2800rpm
RDD2800-low rpm	12m bus	115/200kW	1200Nm/2800Nm	2600rpm
RDD2800-high rpm	12m coach	135/275kW	1200Nm/2800Nm	3500rpm
RDD3400	12m coach	180/290kW	1600Nm/3400Nm	3000rpm
RDD3800	45 tons reach stacker, 70 tons port truck	200/300kW	1800Nm/3800Nm	2800rpm
RDD5000	18 tons sanitation truck	200/400kW	2200Nm/5000Nm	3000rpm
RH2E105T	105 tons electric mining truck	500/860kW	2700Nm/4800Nm	3500rpm

Detailed Images

60kw Car Electric Motor RDD730 EV Conversion Kit for 3.5ton Light Truck Electric Truck Conversion Kit Electric Propulsion

Packing & Shipping

Frequently Asked Questions

What types of vehicles are the RDD series electric motors compatible with?

The RDD series electric motors support a wide range of commercial and industrial vehicles. These include 3.5-ton to 4.5-ton light trucks, airport tractors, sprinter models, 6m to 12m passenger buses, coaches, costers, 18-ton sanitation trucks, 45-ton reach stackers, 70-ton port trucks, and heavy-duty 105-ton electric mining trucks.

What are the power and torque capacities of these electric propulsion systems?

The system output ranges from rated/peak power of 60/120kW (suited for lighter trucks and airport tractors) up to a heavy-duty peak power of 860kW (RH2E105T for mining trucks). Peak torque outputs range similarly from 500Nm up to 4800Nm to support varied loading conditions.

What are the main technical guidelines for the PDU-12-channel-DO wire harness?

The wiring harness utilizes a black fiberglass tube featuring inner fiber and outer glue, wrapped tightly with duct tape. Terminals must be crimped to meet 486A pulling force standards. Comprehensive factory verification is conducted to ensure there are no short circuits or incorrect interface definitions.

How are marking tubes sized and located on the wire harness assemblies?

The printing sleeve diameter is scaled one size larger than the fiberglass tube (e.g., using a diameter-3 sleeve shrunk over a diameter-2 fiberglass tube) for a precise fit. The marking tube is positioned and blown approximately 10mm away from the fiber tube opening.

What tolerances apply to harness dimensions when not explicitly specified?

For all dimension figures and specifications without designated tolerance indicators, a general tolerance guideline of ±5 is strictly applied during manufacturing.

Can these motors be used for heavy cargo transport and port operations?

Yes. Models such as the RDD3800 and RH2E105T are designed with high torque capacities (up to 3800Nm and 4800Nm peak) specifically to satisfy the heavy duty cycle demands of reach stackers, port trucks, and mining vehicles.
