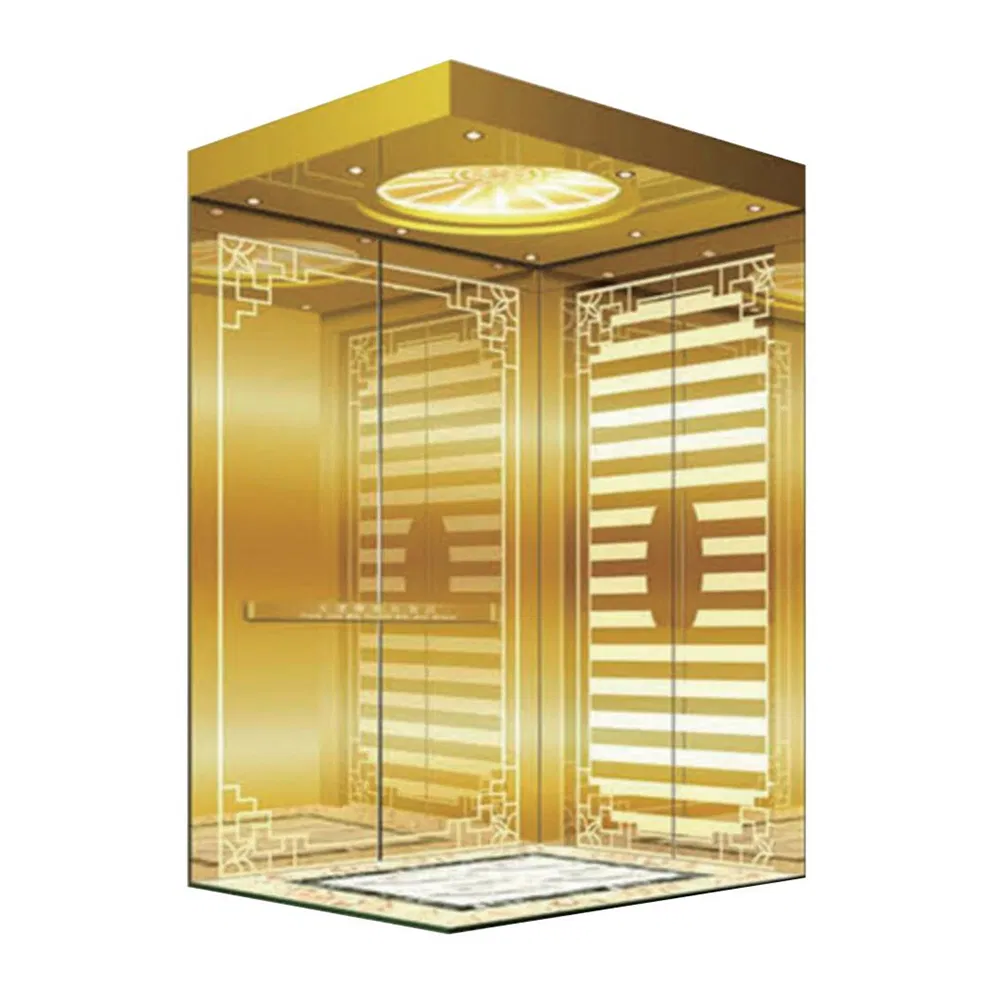

FUJI High Speed Safe & Low Noise Residential Passenger Elevator

1 / 5

FUJI High Speed Safe & Low Noise Residential Passenger Elevator

Customization:	Available
After-sales Service:	Installation/Guidance/Warranty
Warranty:	1 Years

Send Inquiry

Product Description

Basic Information

Model NO.:FUJI-JX

Driving Type:AC Elevator

Capacity:450-1600kg

Persons:6-21

Speed:1.0-4.0m/S

Control Mode:Group Control

Door Type:Center Opening

Material:304 Stainless Steel

Energy Saving:More Than 50%

Certification:ISO/SGS

Product Parameters

Small machine room passenger elevator parameters for modern residential and commercial buildings.

Capacity (Kg)	Persons	Speed (m/s)	Entrance (mm)	Car Dimension (CWxCD)	Hoistway Dimension (HWxHD)	Machine Room (MWxMDxMH)
450	6	1.0 / 1.5	700	1200x1100	1800x1800	1800x1800x2200
630	8	1.0 / 1.5	800	1400x1100	2000x1800	2000x1800x2200
800	10	1.0 - 2.0	800	1400x1350	2000x2050	2000x2050x2200
1000	13	1.0 - 4.0	900	1600x1450	2200x2200	2200x2200x2200
1250	16	1.0 - 4.0	1000	1800x1550	2400x2300	2400x2300x2200

Product Features

🛡️ Safety & Reliability

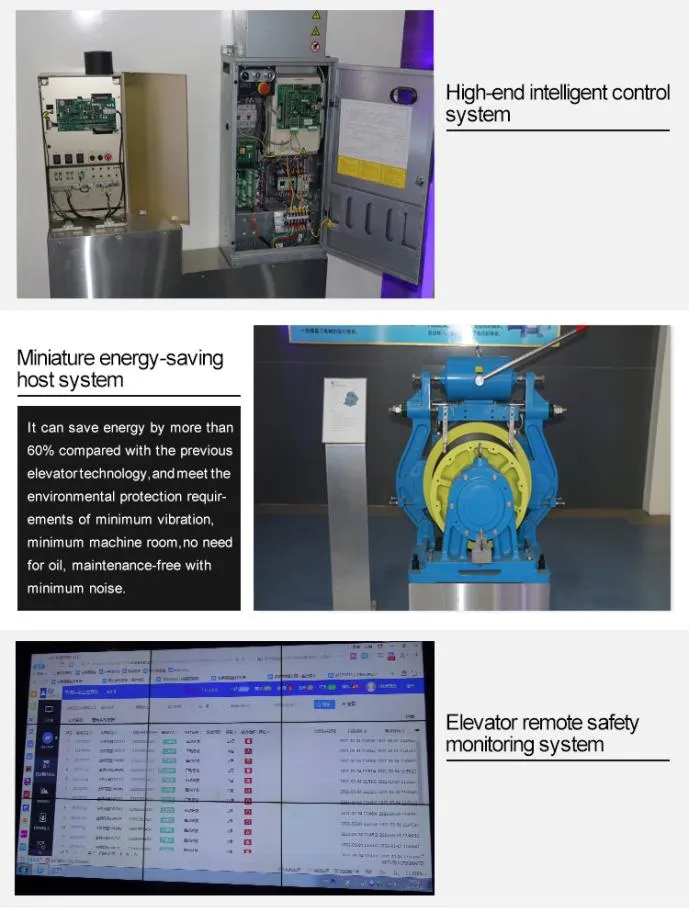

Passenger safety is the top priority. Elevator networking is incorporated into an internet platform, allowing all information to be queried, maintained, and managed efficiently.

💰 Cost Reduction

Utilizing regenerative braking units, the drive system feeds energy back to the power grid, resulting in 50% energy savings compared to ordinary AC elevators.

🌱 Environmental-Friendly

Latest permanent magnet gearless technology replaces traditional tractors, eliminating oil consumption and minimizing noise and engine room size.

⚙️ High Technology

Adopts VVVF technology and advanced IGBT transistors to reduce motor noise and prolong the service life of the system.

🎨 Custom Made

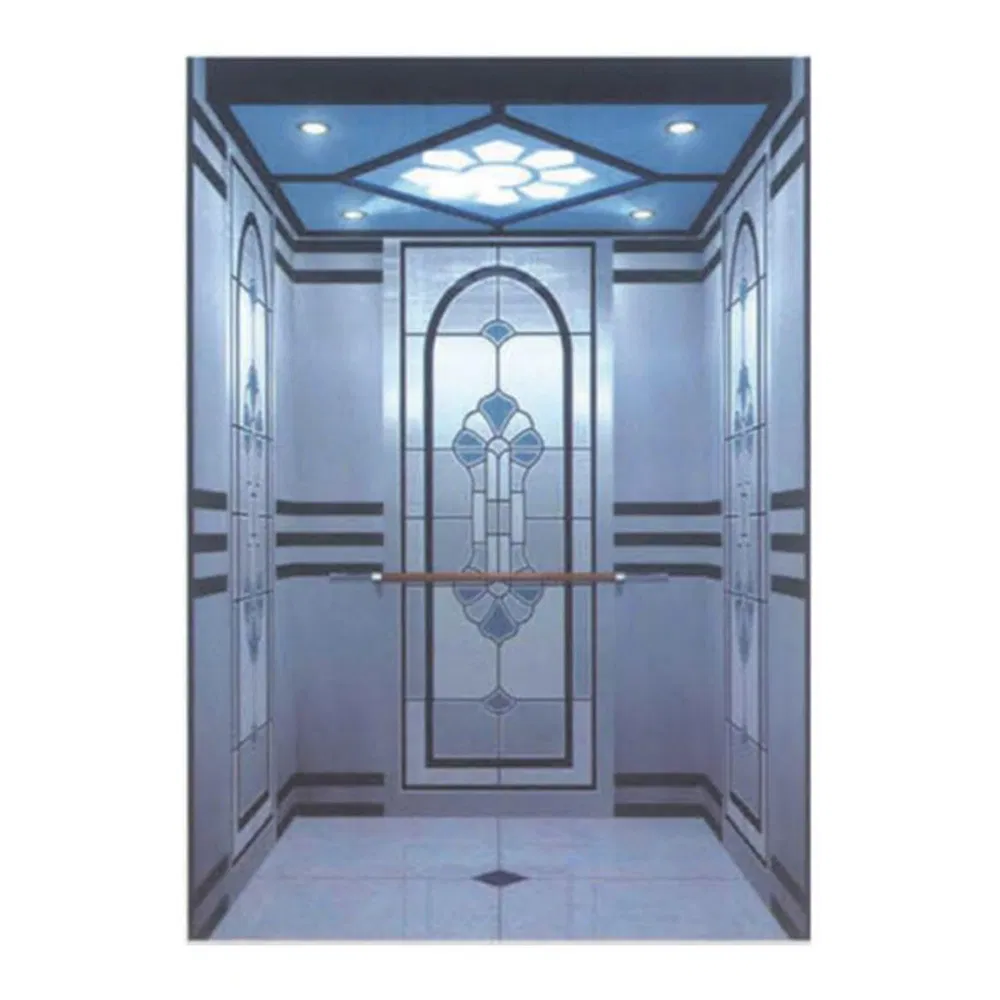

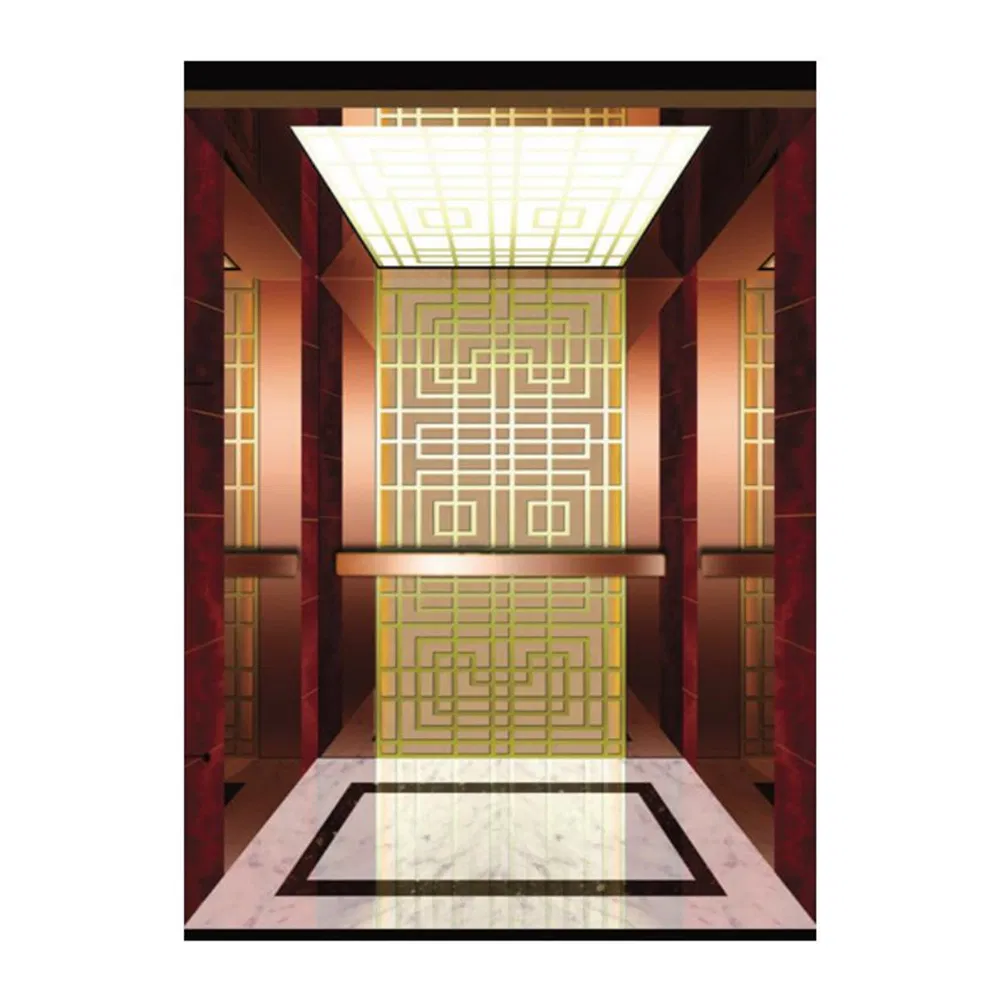

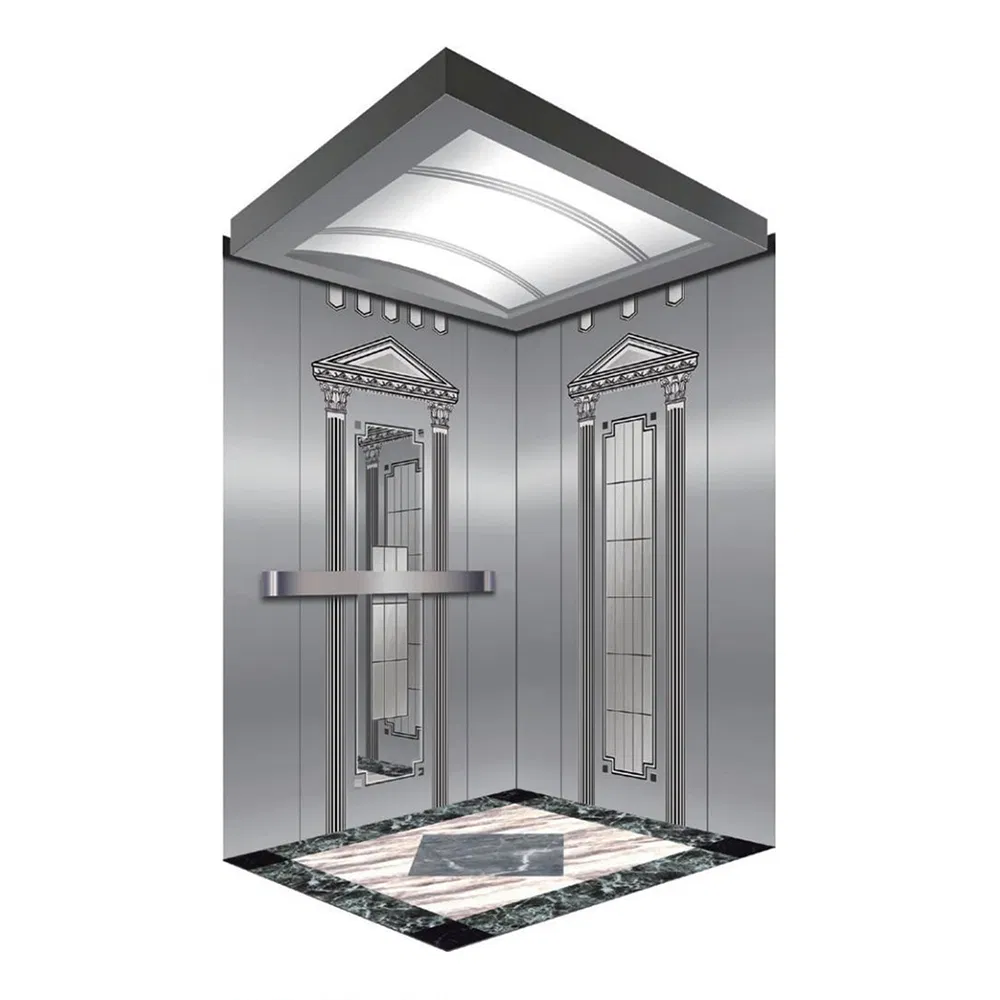

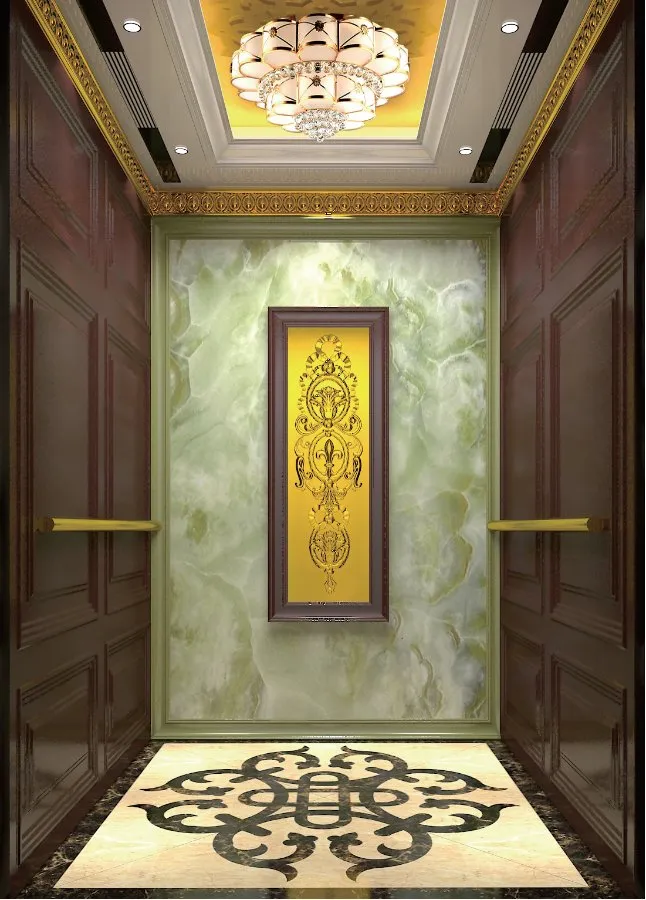

Flexibility to choose customized appearances including car finish, design, ceiling styles, and floor materials.

Manufacturing Excellence

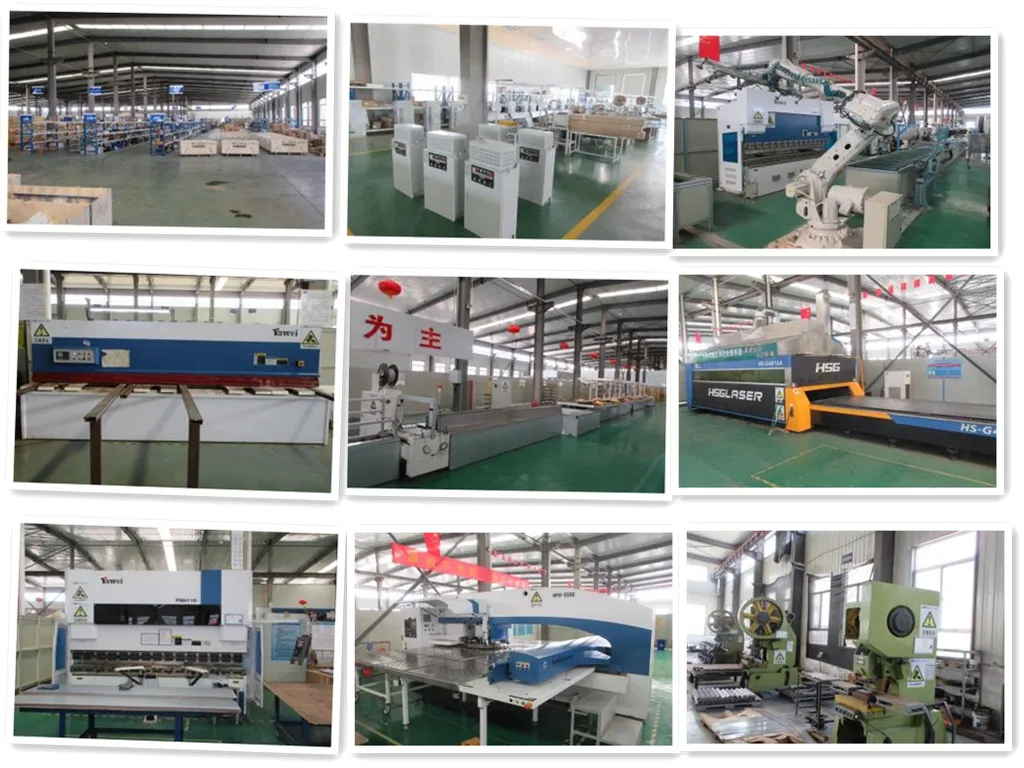

Our facility integrates R&D, design, production, sales, installation, and maintenance for a wide range of elevators. We utilize intelligent production lines featuring ABB series robotics and 360° rotation systems to ensure manufacturing accuracy from feeding to welding.

Frequently Asked Questions

Q1: What advantages does your intelligent production line offer? A1: Our line uses ABB series robotics with 360° rotation from feeding to bending, guaranteeing high stability, efficiency, and the best manufacturing accuracy.

Q2: What information is needed before asking for a price? A2: Please provide the capacity (number of persons), number of floors/stops, shaft size (width and depth), and whether there is a machine room on top.

Q3: How do you guarantee the quality of the products? A3: During production, we inspect all parts. Before shipping, we perform a final inspection and mockup the cabin, providing photos and videos for customer peace of mind.

Q4: What is the standard payment term? A4: Typically 30% in advance and 70% after inspection but before loading.

Q5: How is the elevator packaged for long-distance transport? A5: All parts are packed into solid wooden cases. Machinery parts are wrapped in film to protect against damage during transit.

Q6: What about installation and maintenance? A6: We provide comprehensive guidebooks and technical support. Local engineers can typically complete the job using our resources, saving costs for the customer.
