Description
ipDCIS series isolated DC/DC converter applies advanced technology and is configured specifically for electric vehicles. It is very suitable to supply power to the lamp and audio system as it is very stable and clean. The advantages of high efficiency, stability and compact size, are achieved by adopting the advanced high frequency technology. It is sealed by silica glue to get water and vibration proof, which ensures the stability of the vehicle in atrocious condition.
It also can be used as a charger to charge the 12V battery in the electric automobile according to the customer’s requirement.
Current equalizer is built in, which makes converters work in parallel possible in order to enlarge the capability.
Specifications
Input Voltage36V / 48V / 60V / 72V / 144V / 220V
Output Voltage13.8V @0A / 12.0V @30A
Max Output Current32A @11V
Maximum Efficiency≥90%
Environmental EnclosureIP68
Shock and VibrationSAEJ1378
Operating Temperature-20°C to 50°C
Safety StandardsUL2202/UL1564/FCC Part 15
Protections
Water and Vibration Proofed
All sealed by silica glue to get water and vibration proof, which is suitable for all kinds of condition.
Input Reverse Polarity
Electronic protection with auto-reset functionality.
No Arc Control

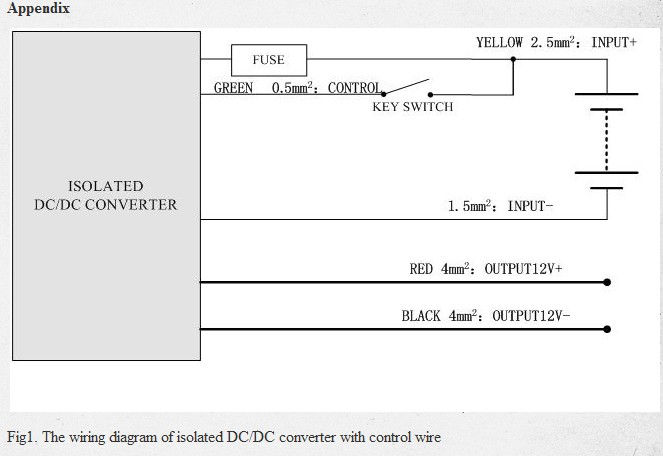

Input with no arc, can be controlled by key switch directly without contactor.
Short Circuit Protection
Shut down with little plus current, auto-reset, ensuring wire safety.
Superheating Cutback
Reduce output current if the temperature is over 65°C to ensure continuous power.
Input Low Protection
Shut down and auto-reset to prevent the battery from over discharging.
Frequently Asked Questions
What makes the ipDCIS series suitable for electric vehicles?
The ipDCIS series is designed with advanced high-frequency technology, offering high efficiency, stability, and a compact size. Its silica glue sealing provides IP68-rated water and vibration resistance, ideal for harsh vehicle environments.
Can this converter be used to charge a secondary battery?
Yes, the converter can be configured to charge a 12V battery in electric automobiles based on specific customer requirements.
Is it possible to increase the power capacity by using multiple units?
Absolutely. The units feature a built-in current equalizer which allows multiple converters to work in parallel to enlarge the total output capability.
How does the device handle overheating?
The device includes a superheating cutback feature. If the internal temperature exceeds 65°C, it automatically reduces the output current to ensure continuous power supply without damaging the unit.
What kind of safety protections are included?
It includes input reverse polarity protection, short circuit protection with auto-reset, input low protection to prevent battery over-discharge, and arc-free operation for direct key switch control.
