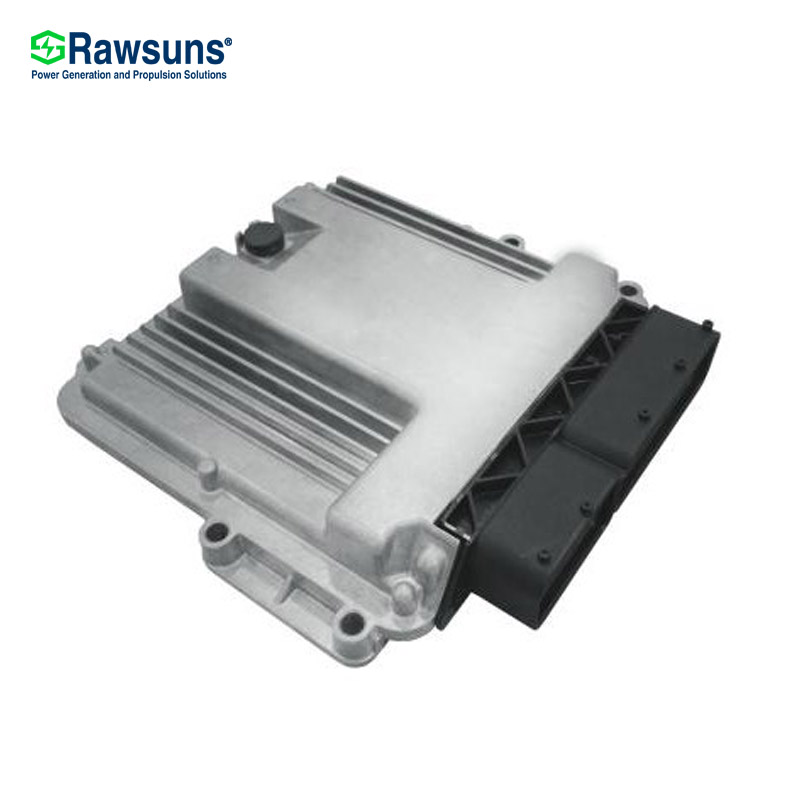

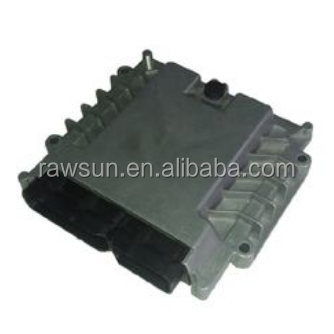

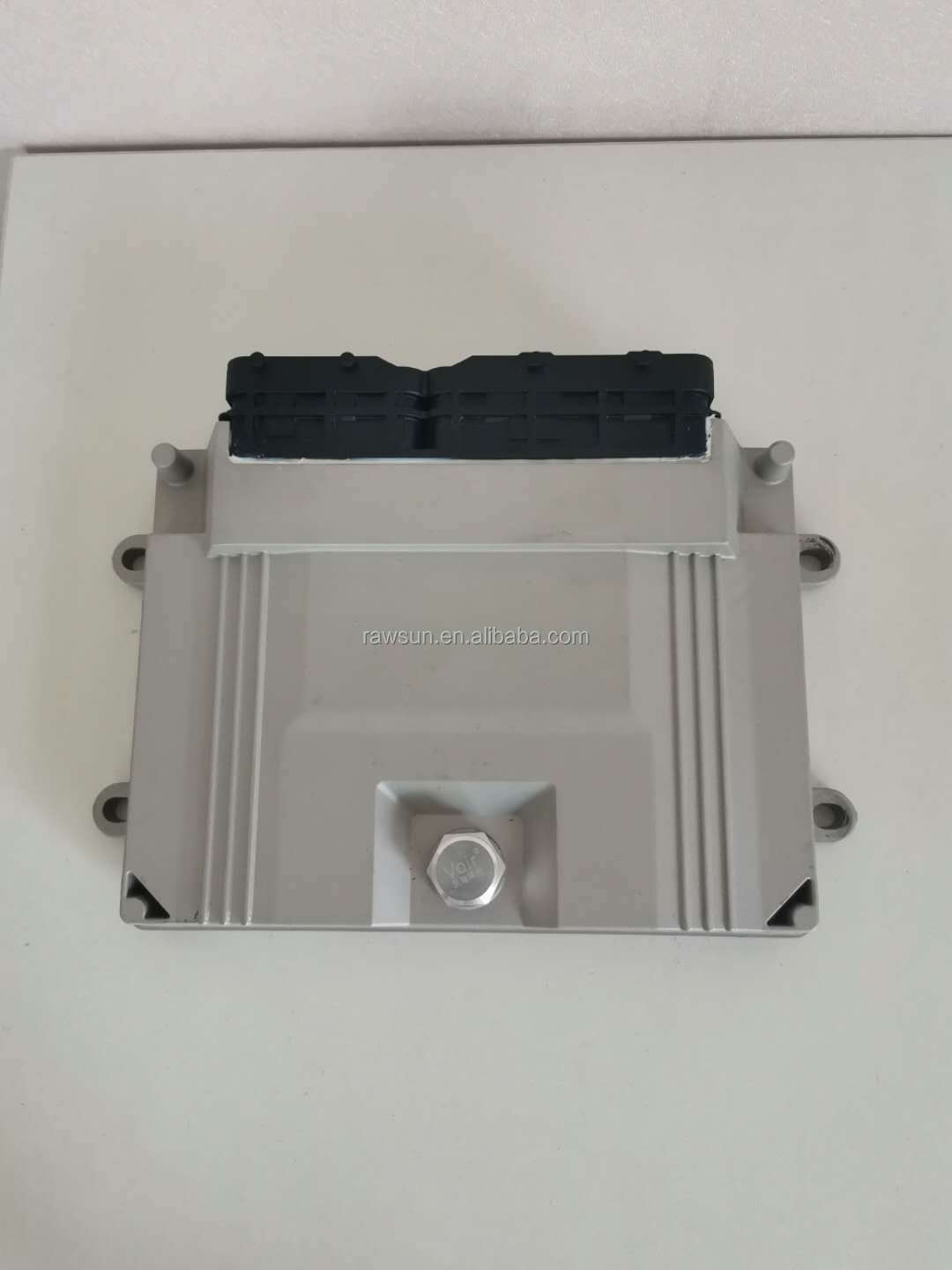

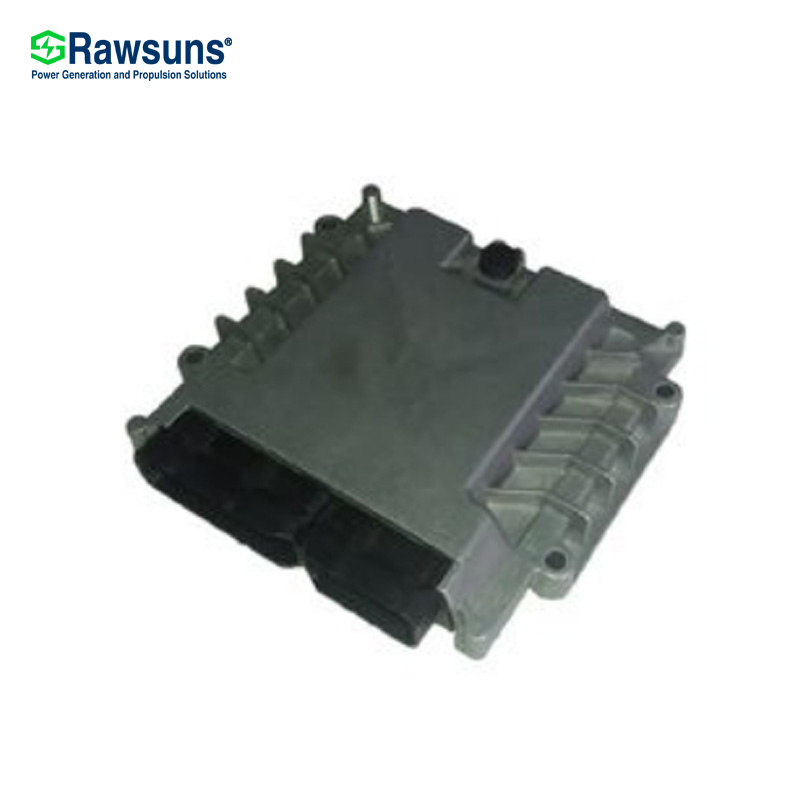

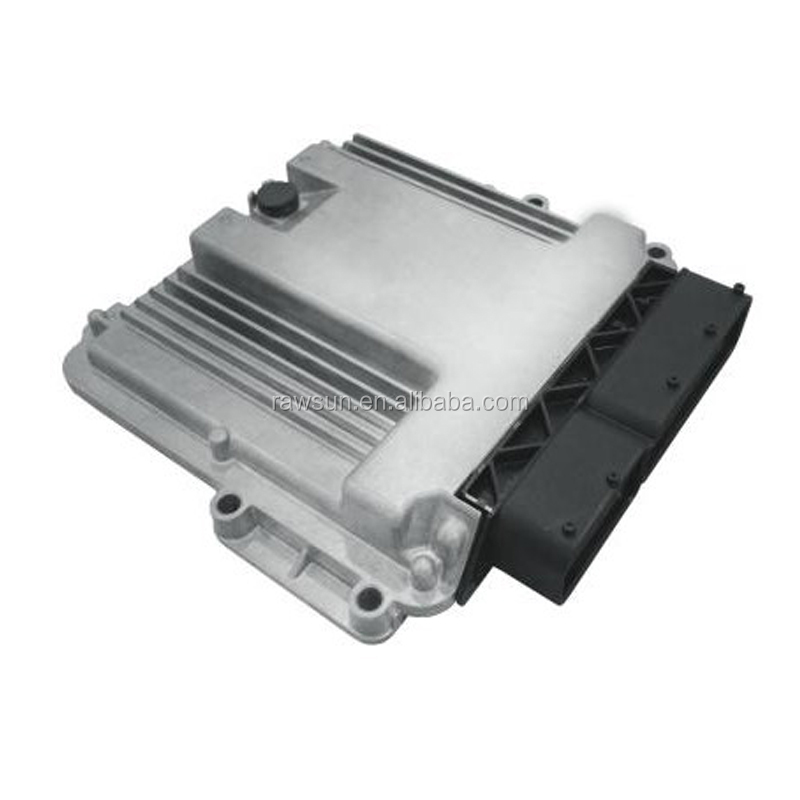

Rawsun EV Car Conversion Kit Vehicle Control Unit 12/24V Automotive Control Unit VCU CAN/RS485 Electric Bus Truck Software

Product Description

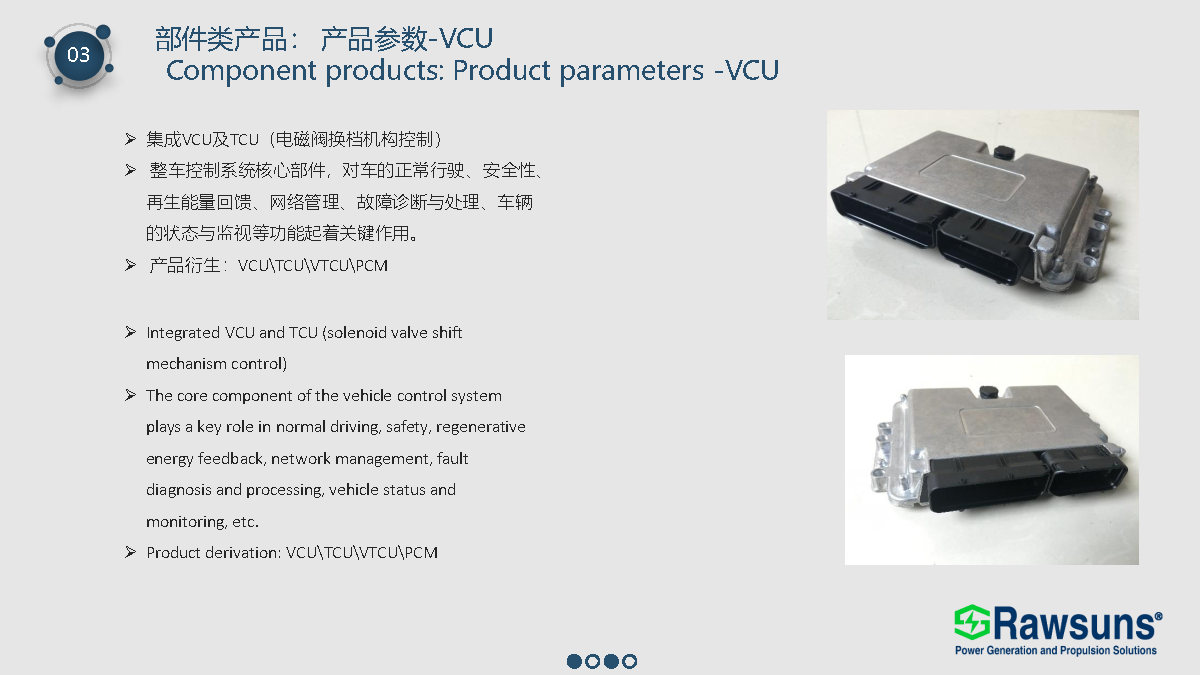

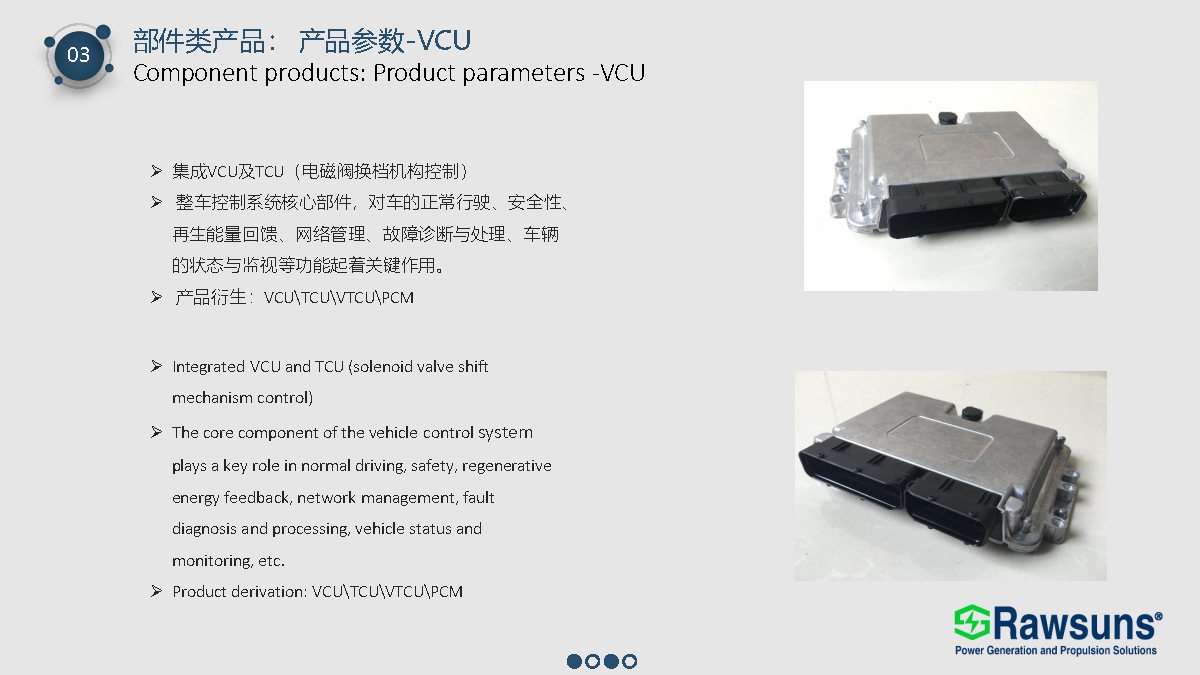

Integrated VCU and TCU (solenoid valve shift mechanism control)

The core component of the vehicle control system plays a key role in normal driving, safety, regenerative energy feedback, network management, fault diagnosis and processing, vehicle status and monitoring, etc.

Product derivation: VCU / TCU / VTCU / PCM

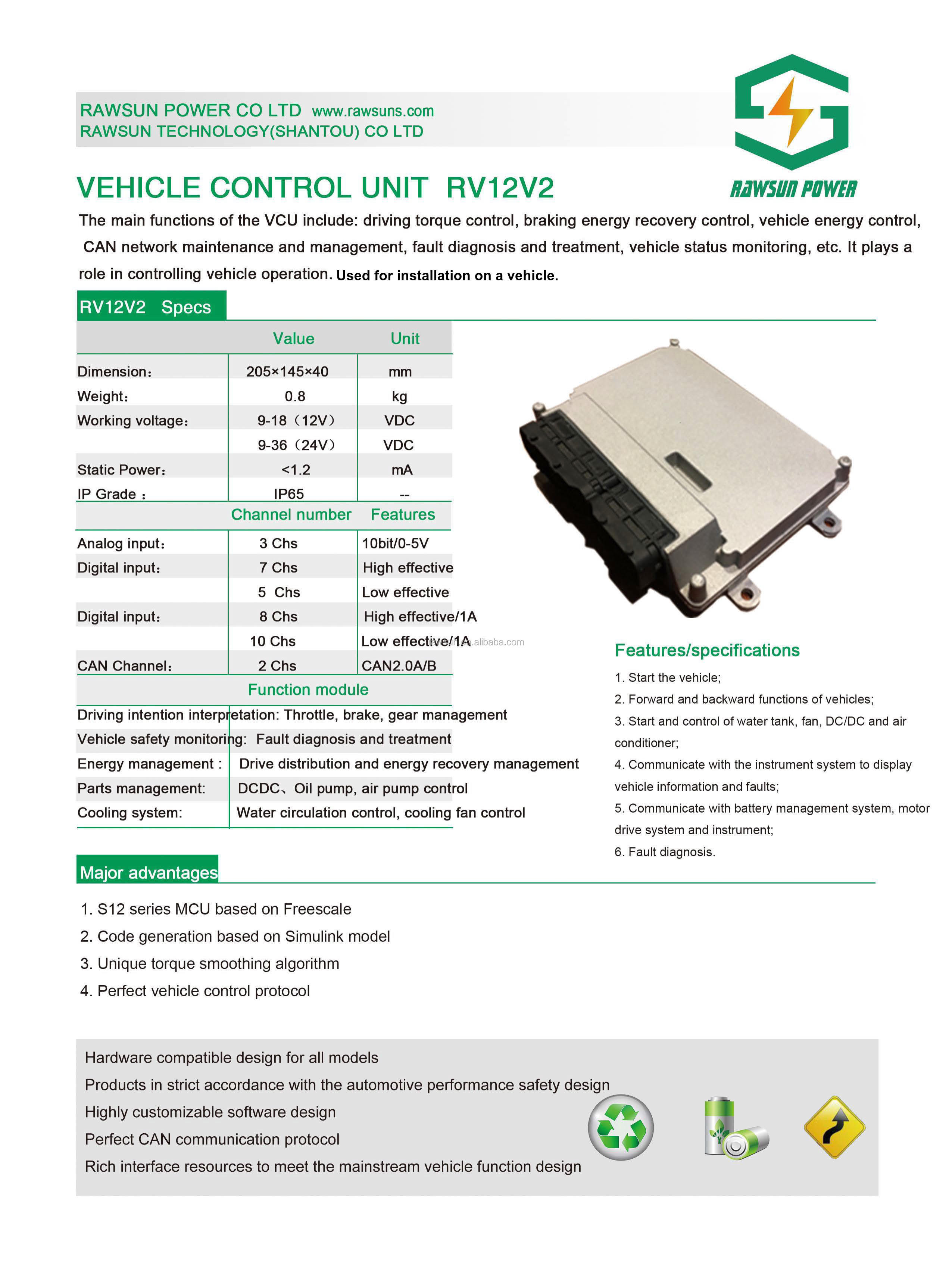

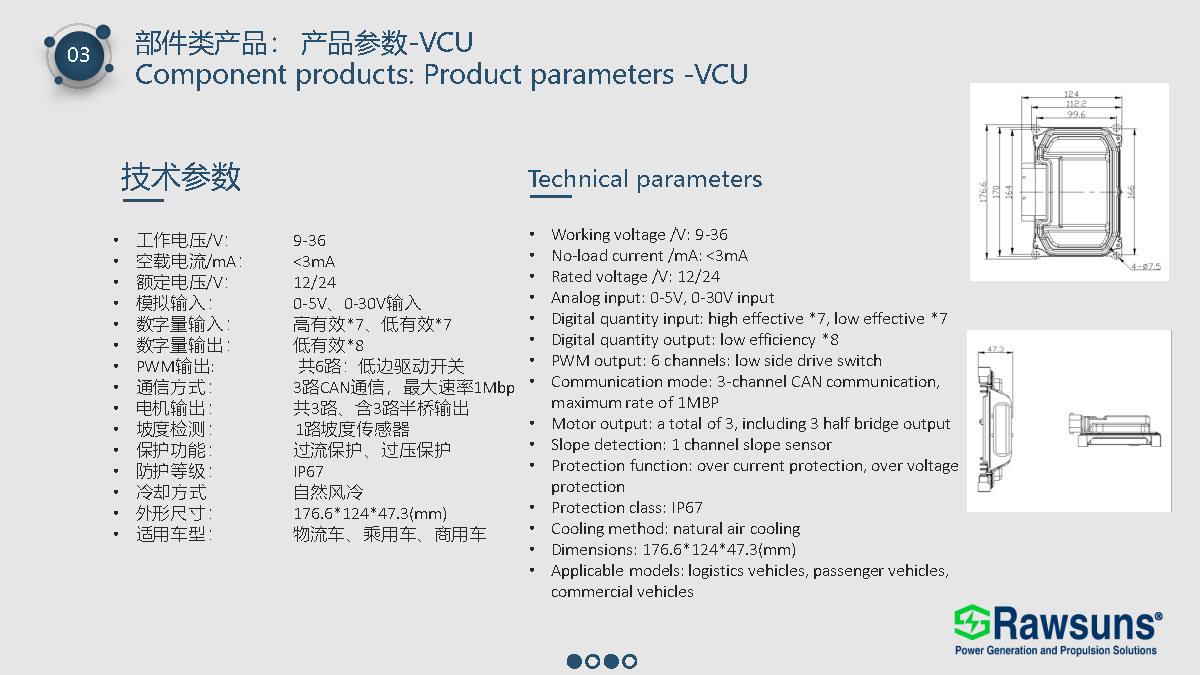

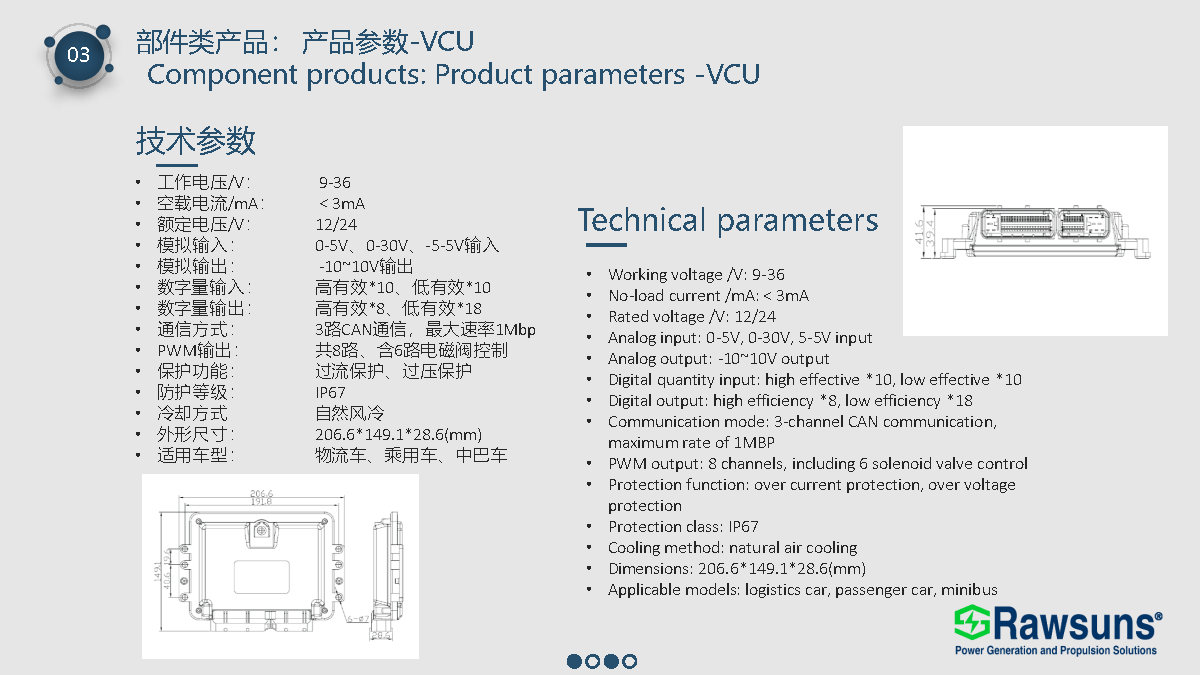

Technical Parameters

Working Voltage

9 - 36 V

No-load Current

< 3 mA

Rated Voltage

12 / 24 V

Analog Input

0-5V, 0-30V input

Digital Quantity Input

High effective *7, Low effective *7

Digital Quantity Output

Low efficiency *8

PWM Output

6 channels: low side drive switch

Communication Mode

3-channel CAN communication (max 1Mbps)

Motor Output

3 total (including 3 half bridge outputs)

Slope Detection

1 channel slope sensor

Protection Function

Over current protection, Over voltage protection

Protection Class

IP67

Cooling Method

Natural air cooling

Dimensions

176.6 * 124 * 47.3 mm

Applicable Models

Logistics, Passenger, and Commercial Vehicles

Model Specifications

Model	Applications	Battery Voltage (V)	Motor Rated kW	Motor Peak kW	Tn/N.m	Tmax/N.m	Speed rpm	Speed rpm	Imax/A
RSTM260-J	2T Truck	380	25	50	80	180	3000	6000	190
RSTM261-J	2.5T Truck	380	34	68	110	270	3000	6000	320
RSTM262-J	4.5T Truck / 6M AMT Bus	380	50	90	160	350	3000	6000	300
RSTM262D1	5T Truck	380	50	80	170	380	3000	6000	385
RSTM262D1-H	5T Truck	540	50	80	170	380	3000	6000	288
RSTM423	8M AMT Bus	540	70	120	335	600	2000	4500	295
RSTM424	8M AMT Bus	380	70	120	335	600	2000	4500	370
RSTM424A	10 AMT Bus	540	90	130	285	500	3000	4500	300
RSTM420	6.6-7M Direct-drive Bus/ 7.5T Truck	540	115	150	550	1000	2000	4500	340
RSTM421	6M Direct-drive	380	70	120	335	800	2000	4500	374
RSTM422	10-12M AMT Bus	540	115	150	550	1000	2000	4500	340
RSTM430	8M Direct-drive Bus	540	92	140	764	1700	1150	3000	350
RSTM460A-2500	12M Direct-drive	576	100	200	1000	2500	955	2700	500
RSTM460A-2800	12M Direct-drive	576	120	200	1200	2800	955	2700	543

Detailed Images

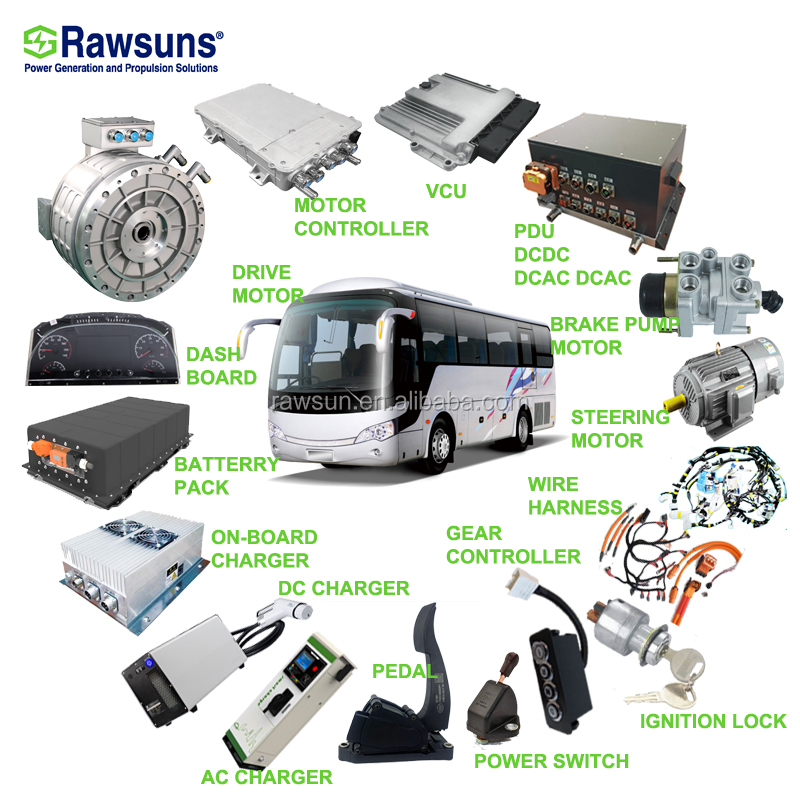

EV conversion kit
EV motors range from 50kw(180Nm)-200kw (2800Nm), we also provide motor controller, DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel, battery pack with bms, wireharness to complete the ev conversion kit.

Packing & Shipping

Our Services & Strength

We are committed to becoming a professional electric vehicle motor manufacturer. With independent R&D and production strength, we practice standardized production processes. Our independent production workshop includes: motor automated production lines, CNC machine tools, machining center, CNC grinding machine, CNC boring machine, CNC wire cutting machine, automatic punching machine, automatic drilling machine, automatic winding machine, large automatic painting line, etc. We have professional testing laboratories, establishing a new energy motor electrical engineering experiment center to provide quality assured motor products for customers.

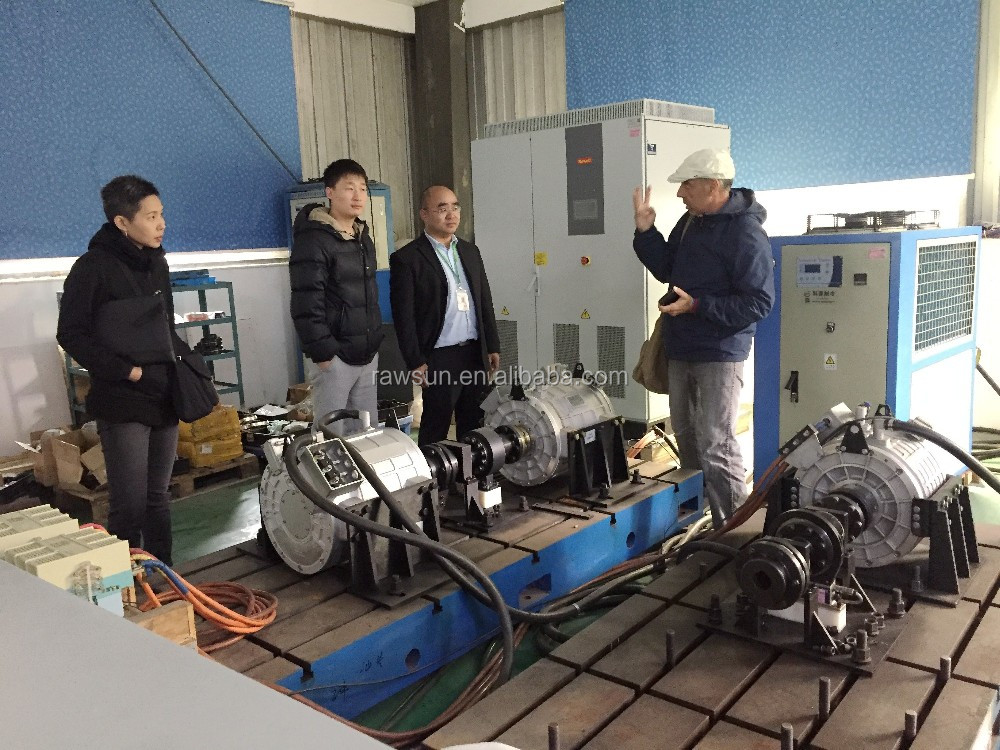

Customer Photos

Frequently Asked Questions (FAQ)

1. What is the primary function of the integrated VCU and TCU?

The integrated unit acts as the core controller of the vehicle control system. It plays a critical role in normal driving operations, vehicle safety, regenerative energy feedback, network management, fault diagnosis and processing, and real-time status monitoring.

2. What are the key technical parameters of this control unit?

It features a working voltage of 9-36V (rated at 12/24V) with a no-load current under 3mA. It includes analog input ranges of 0-5V and 0-30V, digital inputs and outputs, 6 PWM channels (low side drive switch), 3-channel CAN communication (up to 1Mbps), and 3 half-bridge motor outputs.

3. What types of vehicles are compatible with these components?

These propulsion components and control units are widely applicable to logistics vehicles, passenger vehicles, commercial vehicles, full electric buses, electric trucks, and electric boats.

4. What is the protection rating and cooling method for the control unit?

The control unit features an IP67 protection class, safeguarding it against dust and moisture ingress. It uses a natural air cooling method to ensure stable temperature management.

5. Can you supply a complete EV conversion kit?

Yes, in addition to EV motors (ranging from 50kW to 200kW), we provide motor controllers, DCDC/DCAC converters, power distribution units (PDU), on-board chargers (OBC), vehicle control units (VCU), dashboards, control pedals, gear panels, battery packs with BMS, and wire harnesses.

6. What protection mechanisms are built into the hardware?

The unit is equipped with advanced safety protection functions including over-current protection, over-voltage protection, and a built-in 1-channel slope sensor to detect driving inclinations dynamically.
