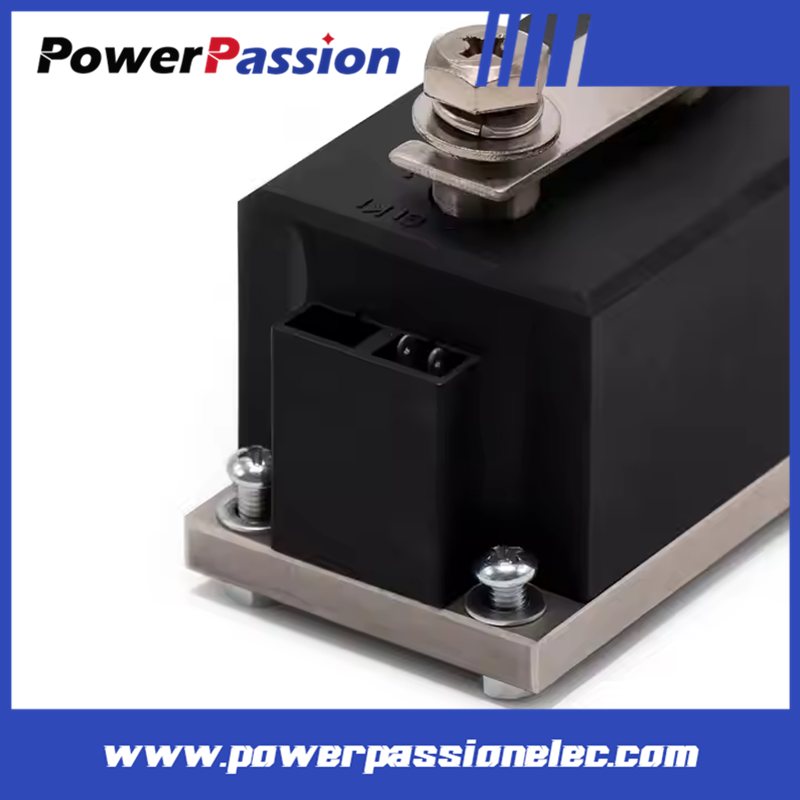

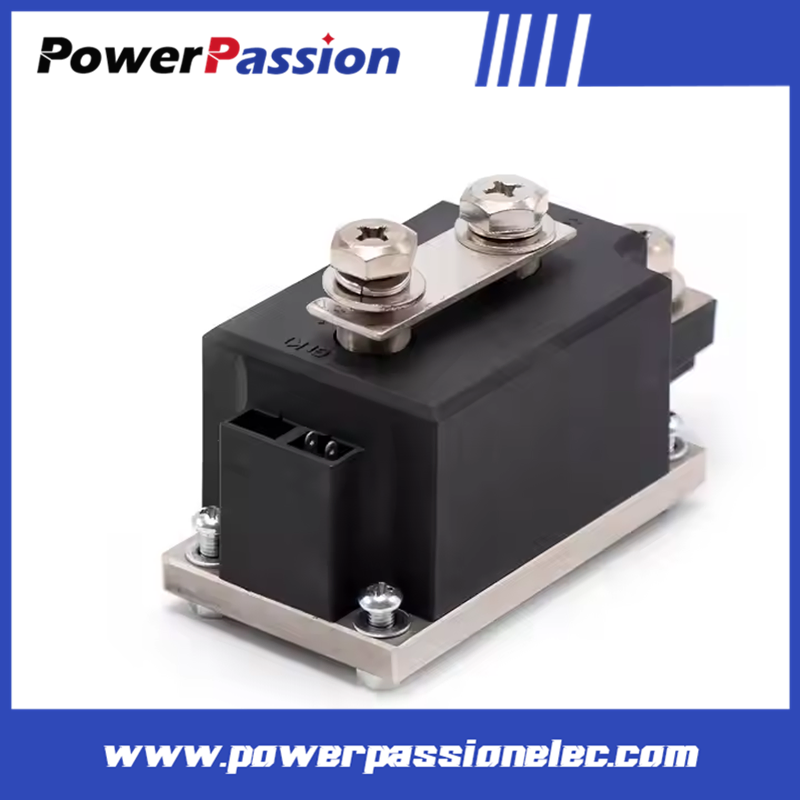

Thyristor Module
High Power Handling Capacity: Engineered to handle high-power applications effortlessly, boasting a peak repetitive reverse voltage of 1600V and a mean on-state current range of 200-400A. Perfect for demanding inverter and converter systems.
- Reliability and Durability: This semiconductor module offers unmatched reliability and durability. With a generous 180-day warranty, it ensures outstanding long-term performance and instills confidence with every use.
- Customized Dimensions and Packaging: Experience the flexibility of tailored dimensions with this product, enabling seamless integration with a variety of systems. Each unit is carefully packaged in a sturdy box, guaranteeing safe and secure transit.
- Wide Range of Applications: Versatile and efficient, this silicon-controlled rectifier module is the ideal solution for single-phase bridge rectifier applications across numerous industries.
- User-Friendly Documentation: Equipped with a comprehensive datasheet and high-quality photo, this product provides users with all the essential information needed for seamless integration and optimal performance.
Product Specifications
| Specification |
Detail |
| Product Name |
High quality fast delivery control power ir thyristor s1219 |
| Color |
BLACK |
| Usage |
HVDC transmission, reactive power compensation, air conditioning, switching switch, motor excitation, induction heating, electrical heating, locomotive traction and transmission |
| Service |
24 hours service |
Product Parameters
| Type |
IT(AV) (A) |
VDRM/ VRRM (V) |
VTM/ITM (V) |
VTM/ITM (A) |
IDRM/IRRM (mA) |
VGT (V) |
Viso (V AC) |
| MT 30A |
30 |
400-1800 |
1.5 |
80 |
8 |
2.5 |
2500 |
| MT 60A |
55 |
400-1800 |
1.5 |
80 |
8 |
2.5 |
2500 |
| MT 90A |
90 |
400-1800 |
1.9 |
270 |
15 |
2.5 |
2500 |
| MT 120A |
110 |
400-1800 |
1.9 |
330 |
20 |
2.5 |
2500 |
| MT 200A |
200 |
400-1800 |
1.9 |
600 |
30 |
2.5 |
2500 |
| MT 250A |
250 |
400-1800 |
1.9 |
750 |
30 |
2.5 |
2500 |
| MT 300A |
300 |
400-1800 |
1.9 |
900 |
40 |
2.5 |
2500 |
| MT 400A |
400 |
400-1800 |
1.9 |
1050 |
40 |
3.0 |
2500 |
| MT 500A |
500 |
400-1800 |
1.9 |
1500 |
40 |
3.0 |
2500 |
| MT 800A |
800 |
400-1800 |
1.9 |
2400 |
40 |
3.0 |
2500 |
| MT 500*A |
500 |
400-1800 |
1.9 |
1500 |
40 |
3.0 |
2500 |
| MT 800*A |
800 |
400-1800 |
1.9 |
2400 |
40 |
3.0 |
2500 |

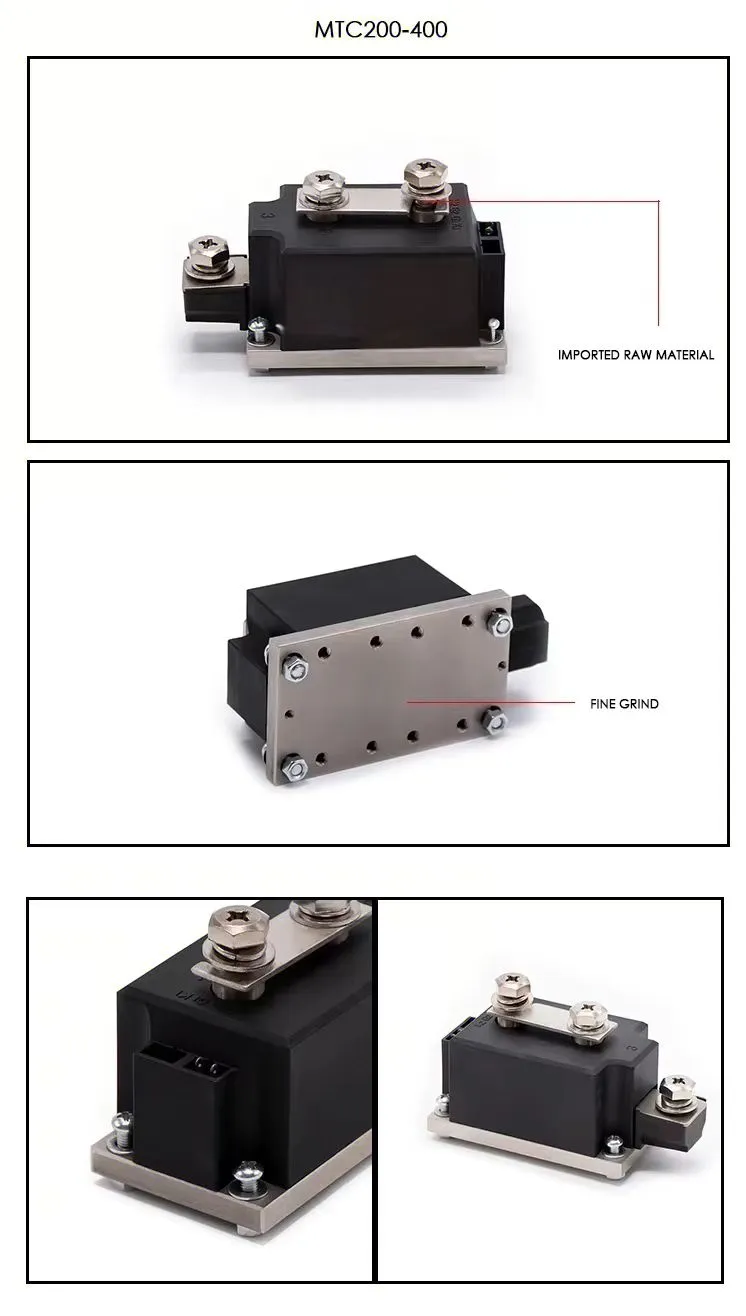

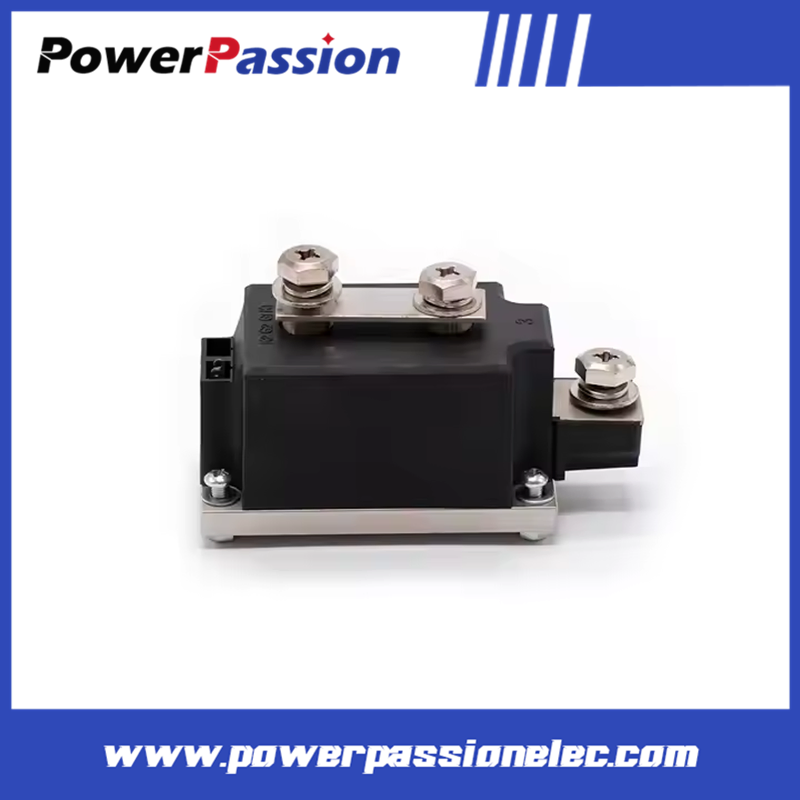

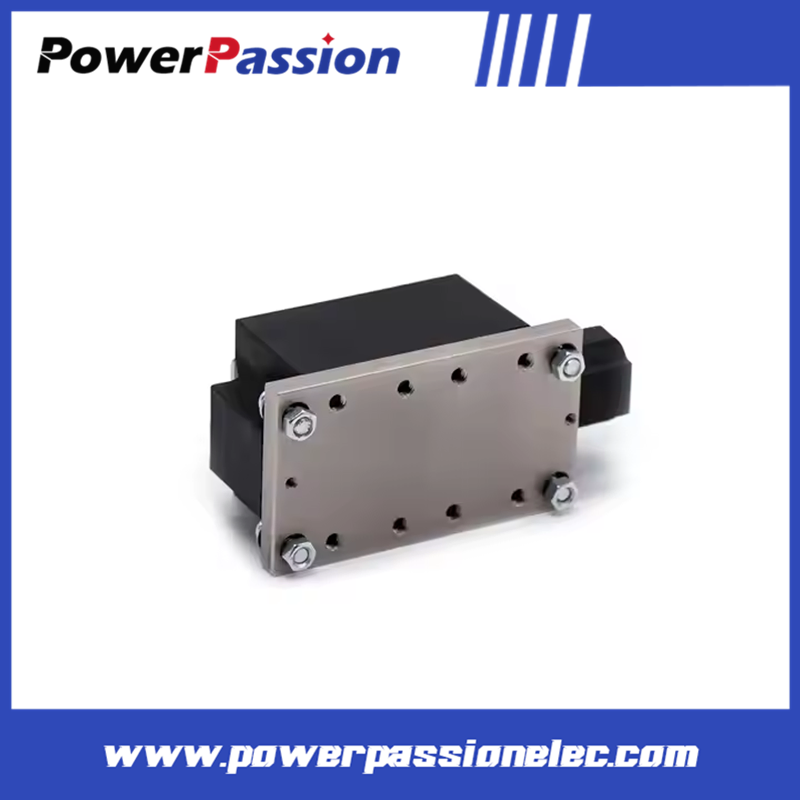

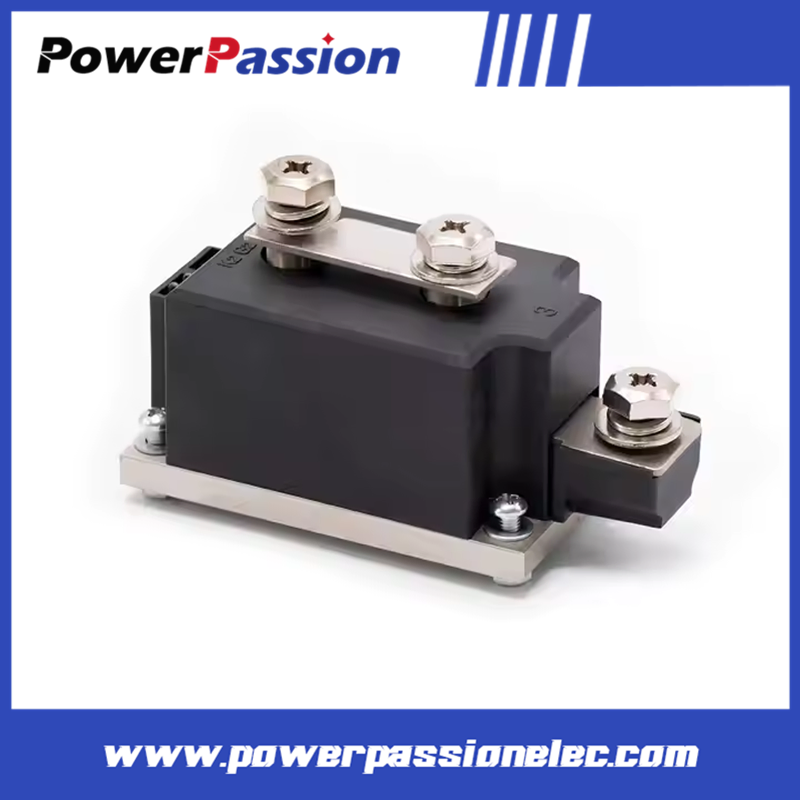

Detailed Photos

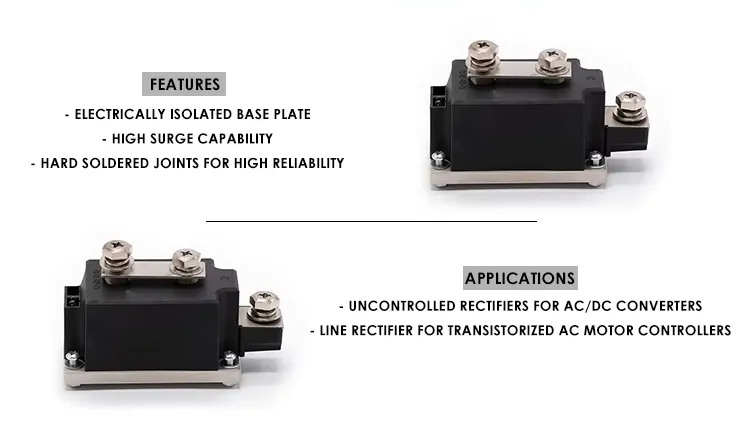

Product Features
- Isolated mounting base, with an impressive insulation capacity of 2500V to 6000V.
- Designed with an international standard package. The pressure contact technology enhances power cycling capability efficiently.
- Optimized for air-cooling up to 350A, and for over 400A, adaptable with either air-cooling or water-cooling solutions.
- (TSC) SVC: Tailored for specialized applications.
- Enjoy the simplicity of mounting and the ease of maintenance with our user-friendly design.
- Achieve significant space and weight savings with our compact design.
- Our chip is electrically insulated from the baseboard, withstanding up to AC 2500V.
- Ensure reliability with our international standard sealing techniques.
- Advanced vacuum and hydrogen protection bonding technique for superior durability.
- Featuring a compression connection structure, optimized for fine temperature control and enhanced power circulation capabilities.
Product Applications
- AC/DC motor control: Precision and efficiency in motion management.
- Various rectifier power supplies: Adaptable solutions for diverse needs.
- Industrial heating control: Reliable and precise thermal regulation.
- Light-dimmer, Contactless switch: Smooth lighting transitions and reliable switching.
- Soft start AC motor control: Gentle initiation for your motors.
- Welding power supply converter: Robust power handling for welding applications.
- UPS, Battery DC chargers or dischargers: Ensuring consistent power management and reliability.
- DC supply for PWM inverter: Efficient and stable power conversion.
- Static reactive compensation: Enhance power quality and efficiency.

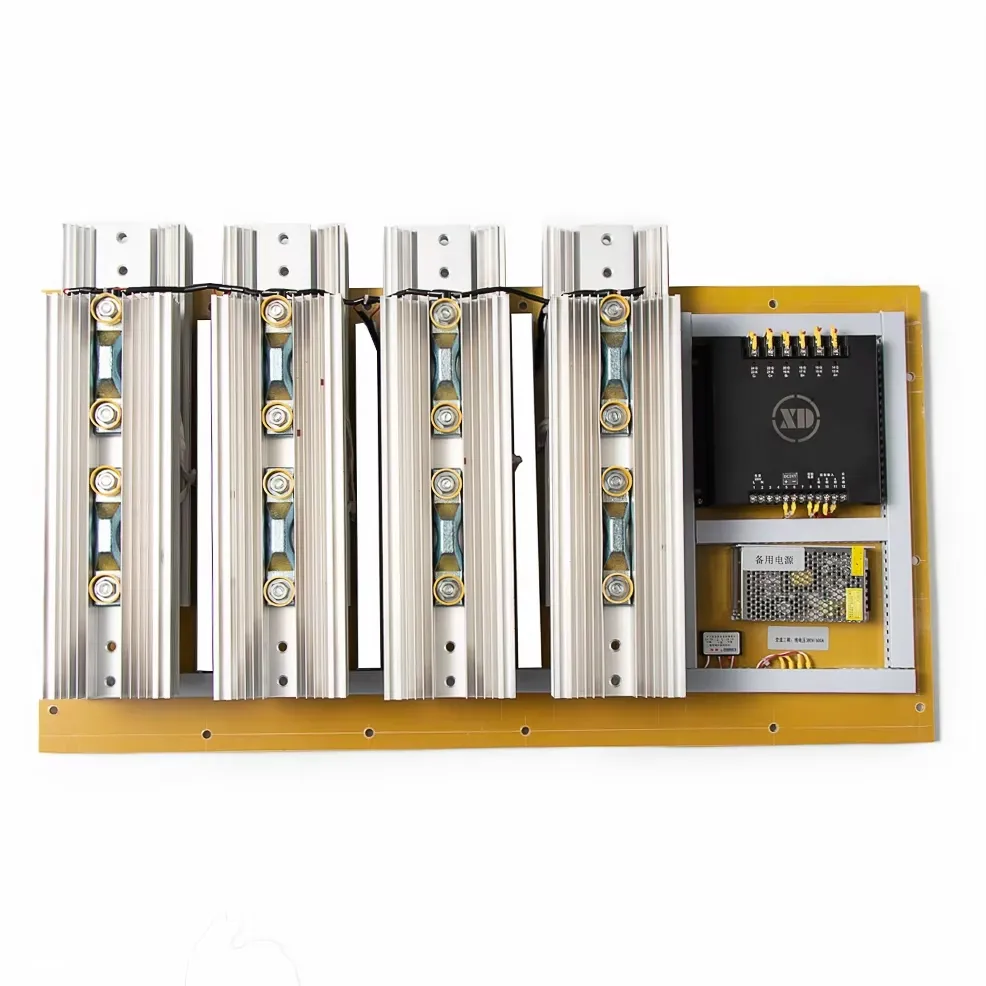

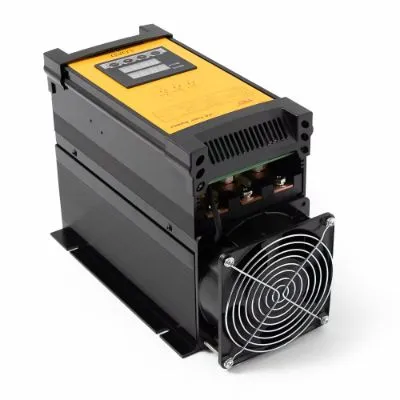

Related Products
Certifications

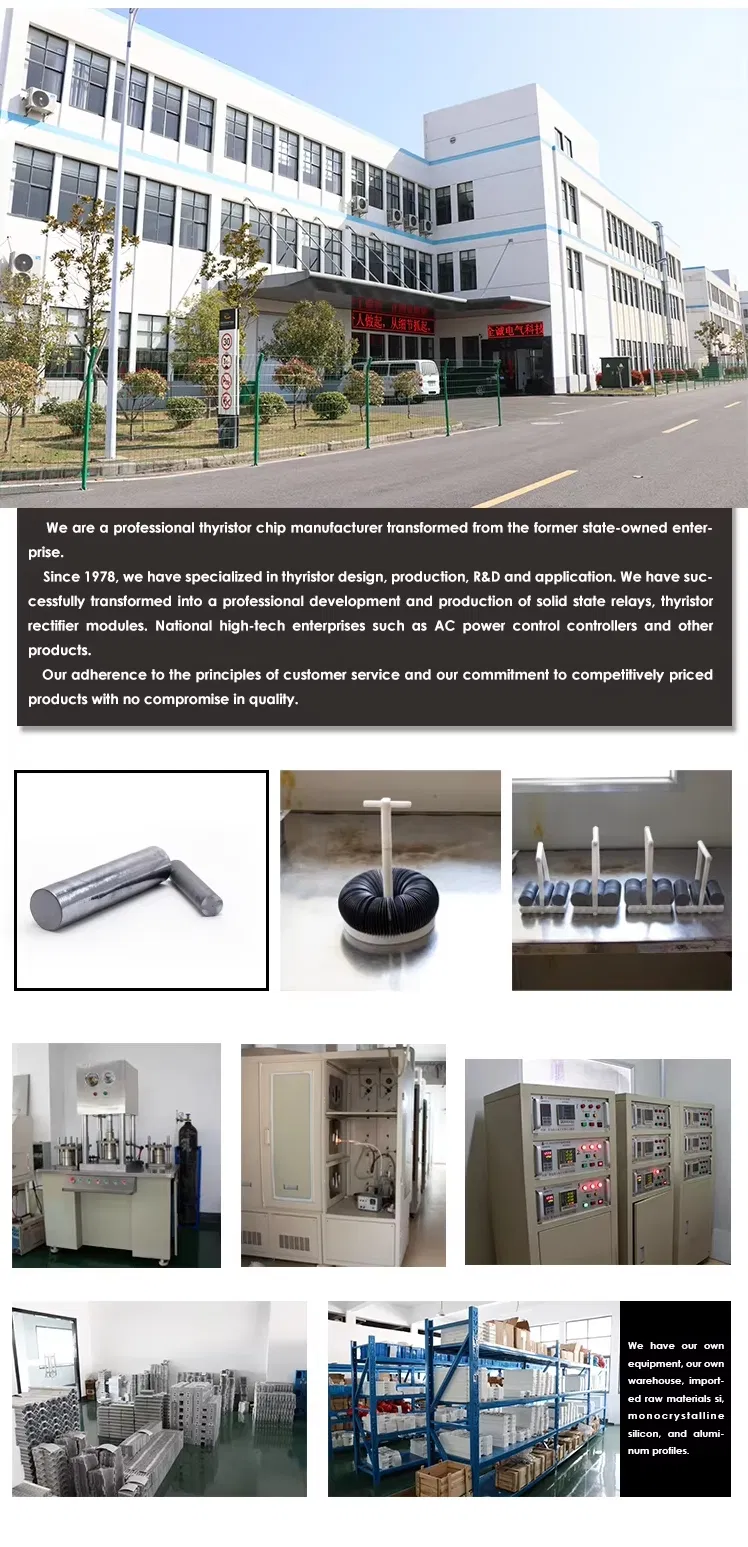

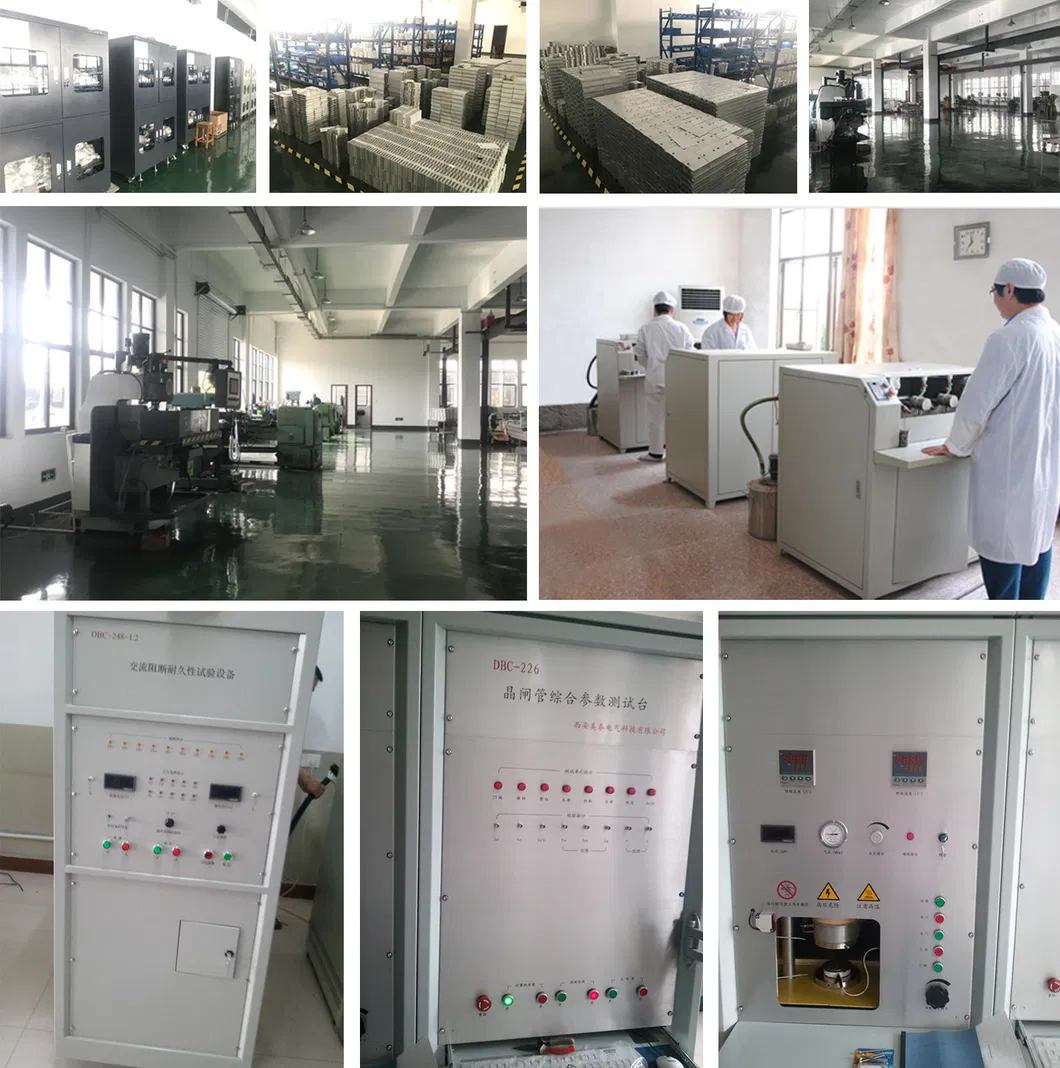

Company Equipment
Our capabilities are fueled by state-of-the-art equipment housed within our facilities, featuring our proprietary warehouse. We pride ourselves on using only the finest imported raw materials, including silicon, monocrystalline silicon, and premium aluminum profiles to ensure the highest quality in our offerings.
Packaging & Shipping
Frequently Asked Questions
Do you provide after-sales service?
Of course, we offer comprehensive after-sales service. If you encounter any issues with our products during use, please feel free to contact us, and we will do our best to solve your problems. Within the warranty period, if there are any quality issues with the product, we will replace or repair it for free.
How can I place an order for your thyristor products?
You can place an order by consulting our sales staff online or sending a purchase order directly to our designated processing channels.
Do you provide samples, and how is the charging handled?
For low-value standard products, we can provide free samples for testing, but the customer is responsible for the shipping costs. High-value product samples come with a discount, which can be discussed on a case-by-case basis.
Do you have SCR Power Regulators products in stock?
We have some conventional models in stock. For specific inventory details, please consult our support team. For non-stock products, our delivery time is usually 15-30 days.
How can one determine if a thyristor is damaged?
You can determine if a thyristor is damaged by checking if there are any anomalies in its forward and reverse blocking voltages. For specific products, please consult an engineer for detailed numerical reference and guidance.
What is the standard warranty period for the thyristor module?
Our thyristor modules come with a 180-day warranty to ensure reliable long-term performance and outstanding operation in high-power applications.
